Caswell High 9 Details
| Property | Value |
|---|---|
| Rupture Count | 360 |
| Ruptures Above Sect Min Mag | 354 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.57, 8.50] |
| Length Range | [14, 821] km |
| Total Rate | 2.5530043E-4 /yr |
| Multi-Fault Rate | 2.5530043E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

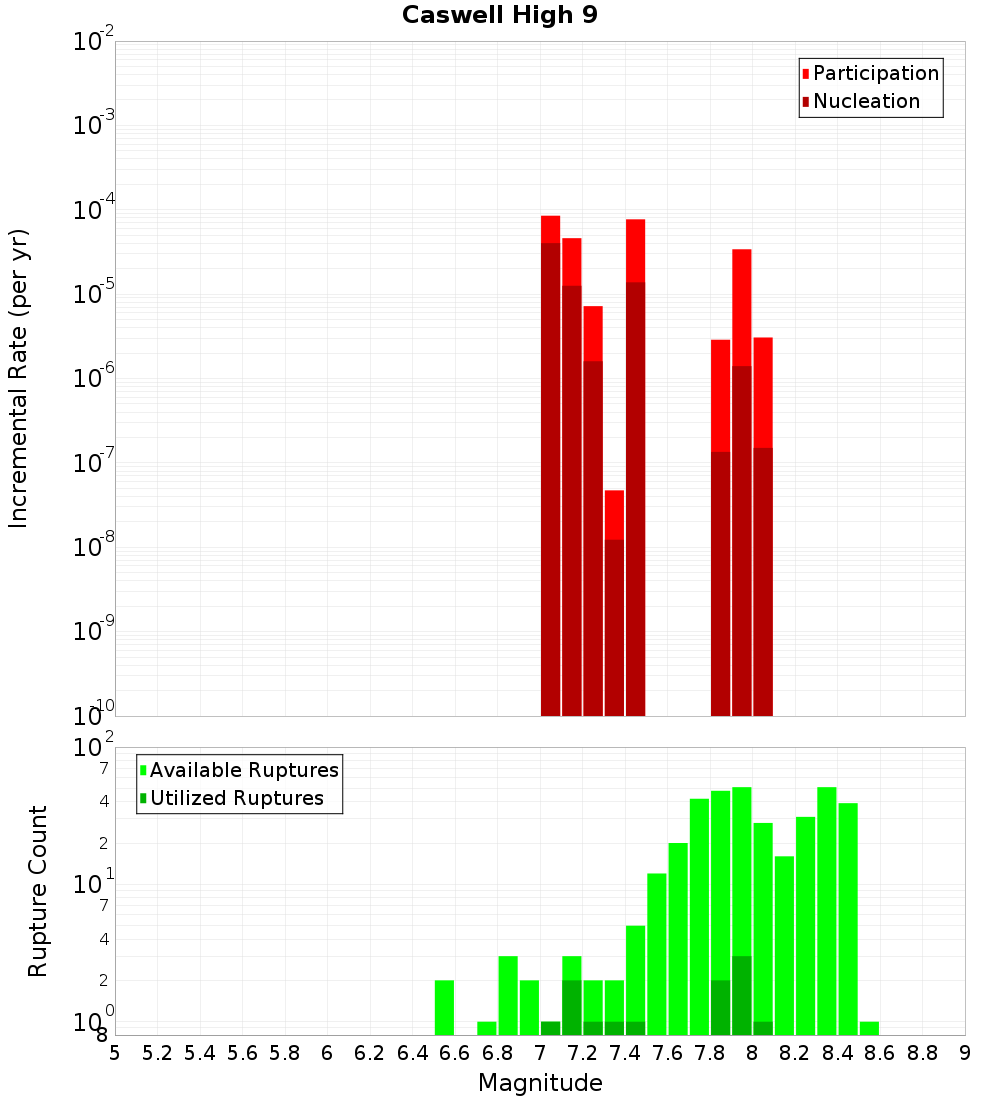

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

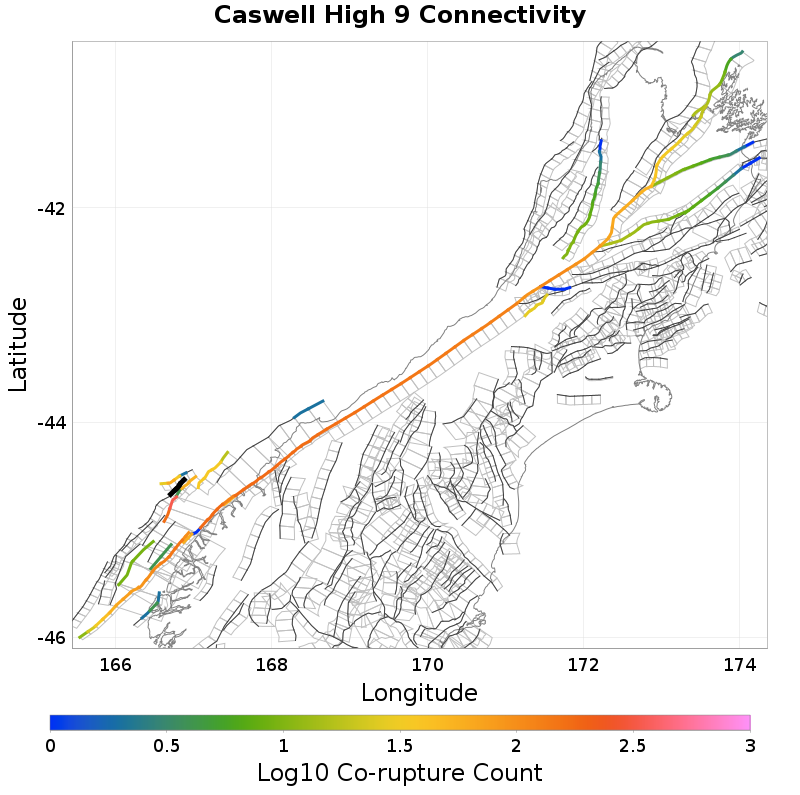

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 67, 2.07 km away |
| Caswell High 10, 3.01 km away |
| Caswell High 8, 4.19 km away |
| Central Wedge 1 & 2 & 3, 5.17 km away |
| Milford Basin 5 to George R2, 13.81 km away |
Caswell High 67, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTYuMFE0ZEpp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 10, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTYuMFE0ZEpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 57 |
| Co-rupture Rate | 2.1841204E-4 |
Caswell High 8, 4.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTYuMFE0ZEpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 9.013911E-5 |
Central Wedge 1 & 2 & 3, 5.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTYuMFE0ZEpp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 341 |
| Co-rupture Rate | 3.9951545E-5 |
Milford Basin 5 to George R2, 13.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MTYuMFE0ZEpp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 8.013541E-5 |
