Hope: Kakapo-2-Hamner Details

Property	Value
Rupture Count	7,603
Ruptures Above Sect Min Mag	7,601
Ruptures w/ Nonzero Rates	456
Magnitude Range	[6.47, 8.62]
Length Range	[6, 946] km
Total Rate	0.0014278543 /yr
Multi-Fault Rate	0.0014278543 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	150

Table Of Contents

Magnitude-Frequency Distribution

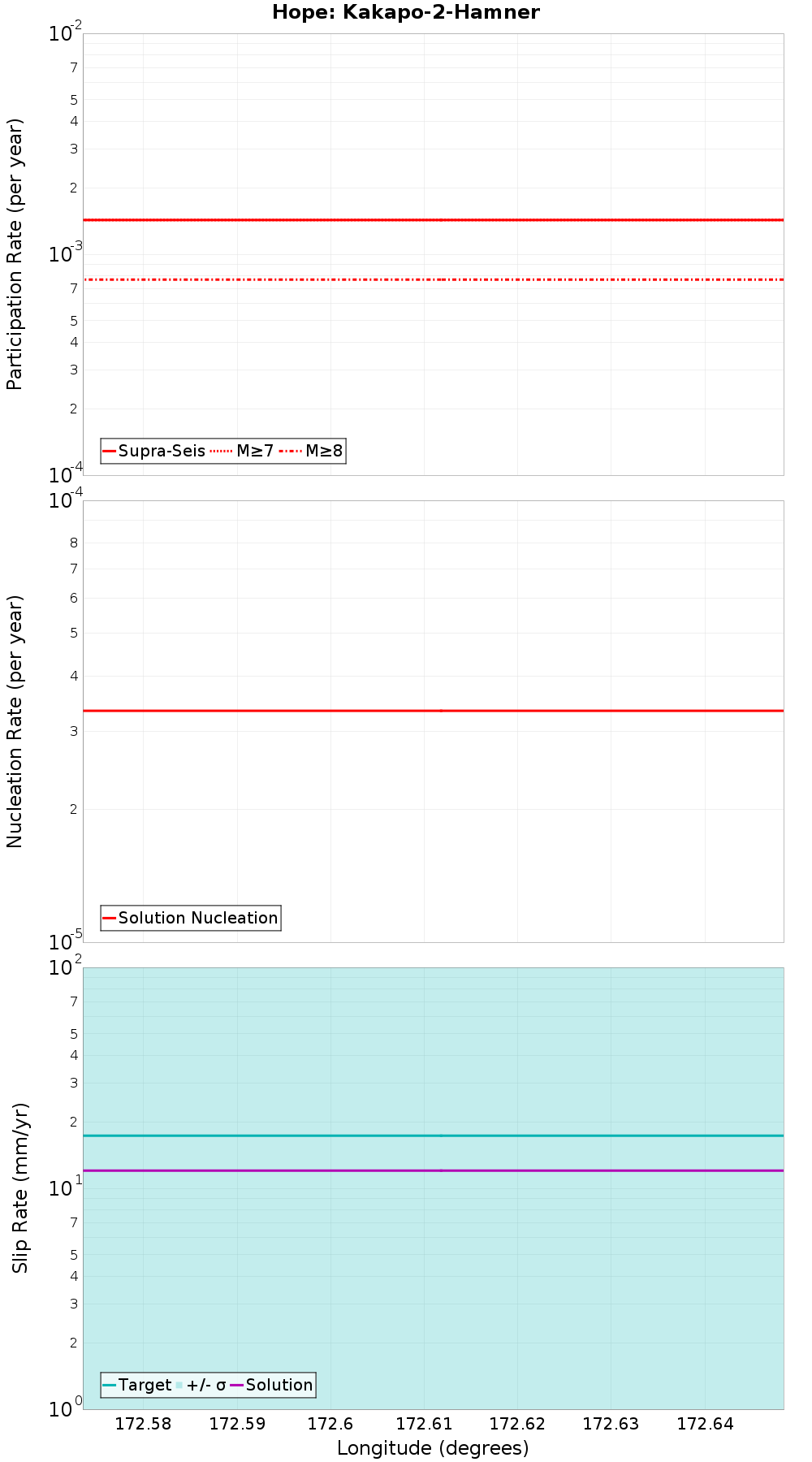

Along-Strike Values
- Moment-Rates and b-Values

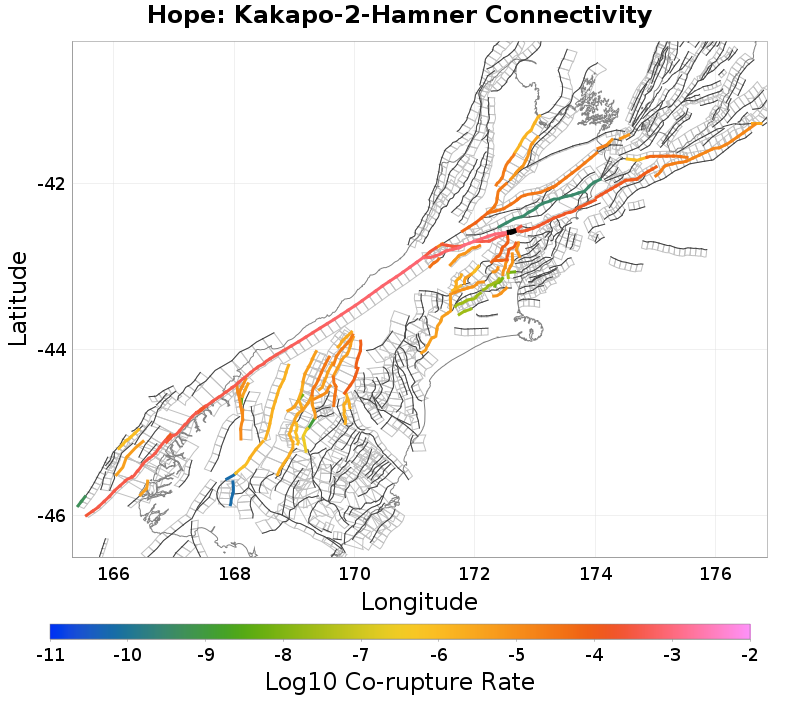

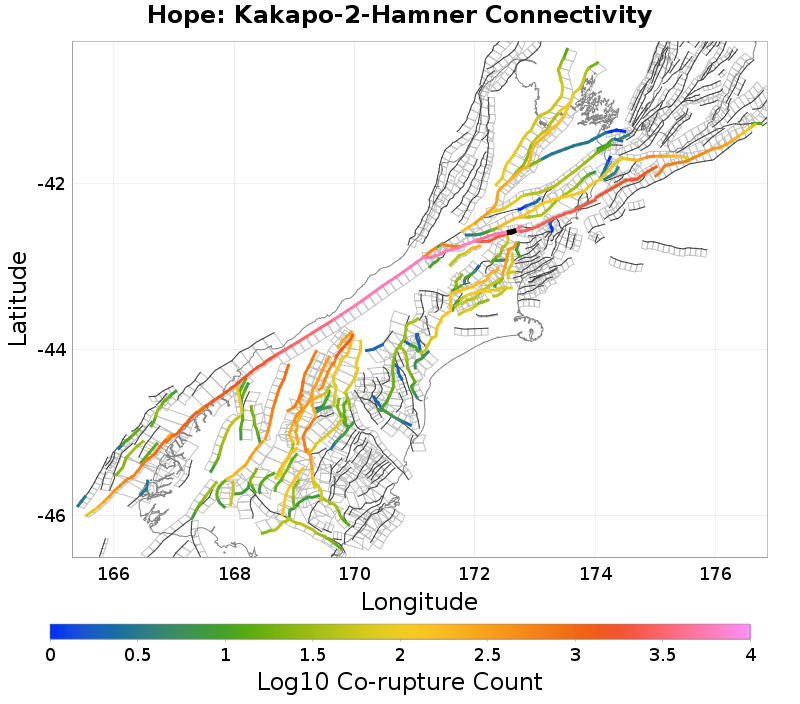

Connectivity
- Nearby Sections

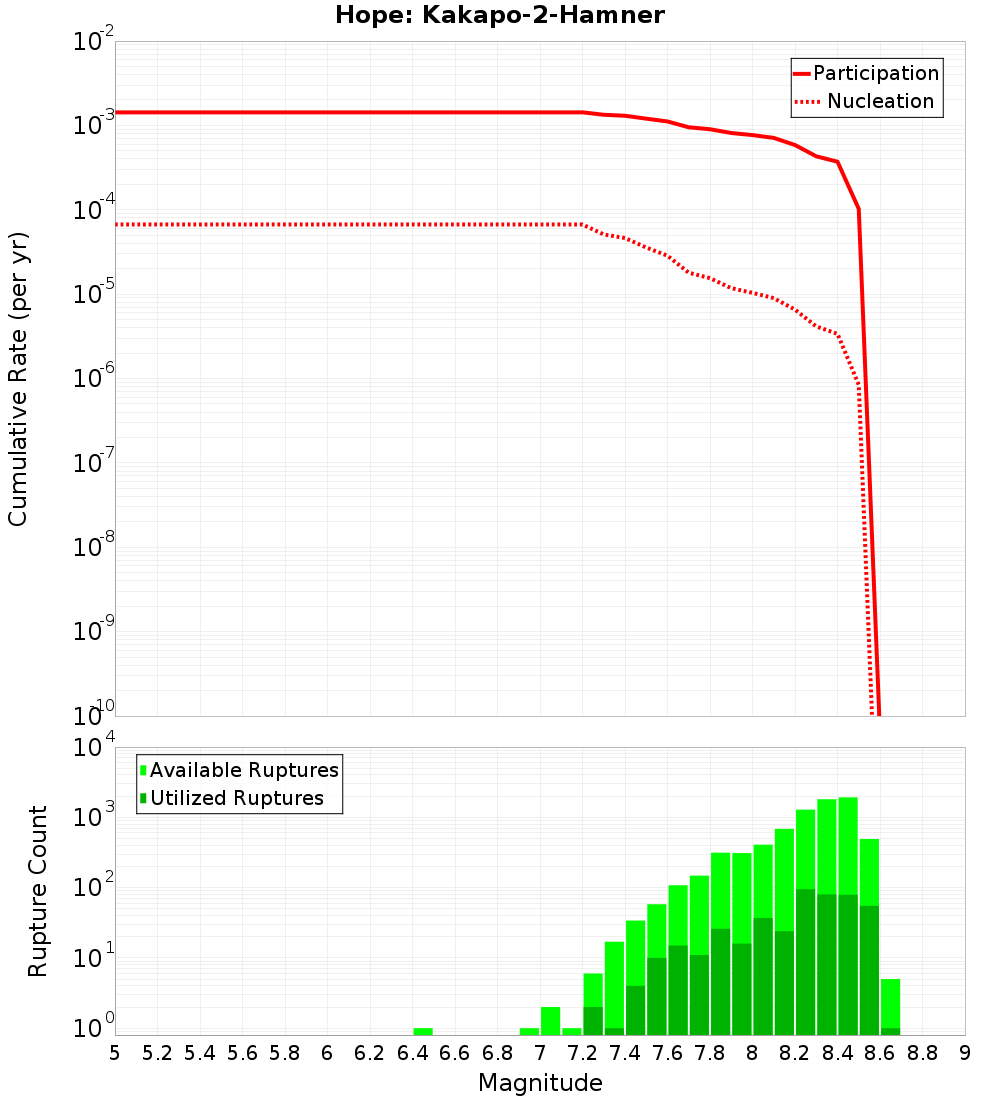

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kakapo, 0 km away
Hope: Hanmer NW, 0 km away
Hope: Hope River, 0 km away
Hope: Hamner SW, 0 km away
Esk North, 4.29 km away
Hanmer, 7.2 km away
Hope: Hamner SE, 10.42 km away
Clarence: Southwest, 12.23 km away
Hurunui Peak, 12.99 km away

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	true
Co-rupture Count	2,436
Co-rupture Rate	5.119099E-4

Hope: Hanmer NW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	false
Co-rupture Count	4,428
Co-rupture Rate	2.8807865E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	true
Co-rupture Count	5,367
Co-rupture Rate	9.2922815E-4

Hope: Hamner SW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	true
Co-rupture Count	5,950
Co-rupture Rate	3.1903893E-4

Esk North, 4.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	8.0660604E-5

Hanmer, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hamner SE, 10.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	false
Co-rupture Count	2,627
Co-rupture Rate	1.723353E-4

Clarence: Southwest, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	3.1981473E-10

Hurunui Peak, 12.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzIuMG1VQnRi
Connected?	true
Directly Connected?	false
Co-rupture Count	377
Co-rupture Rate	1.05828236E-4
