Awatere: Northeast 1 Details

PropertyValue
Rupture Count19,862
Ruptures Above Sect Min Mag19,858
Ruptures w/ Nonzero Rates309
Magnitude Range[6.99, 8.68]
Length Range[22, 1,082] km
Total Rate0.0011305587 /yr
Multi-Fault Rate0.0010982971 /yr (97.15%)
Directly-Connected Faults8
All Co-Rupturing Faults157

Table Of Contents

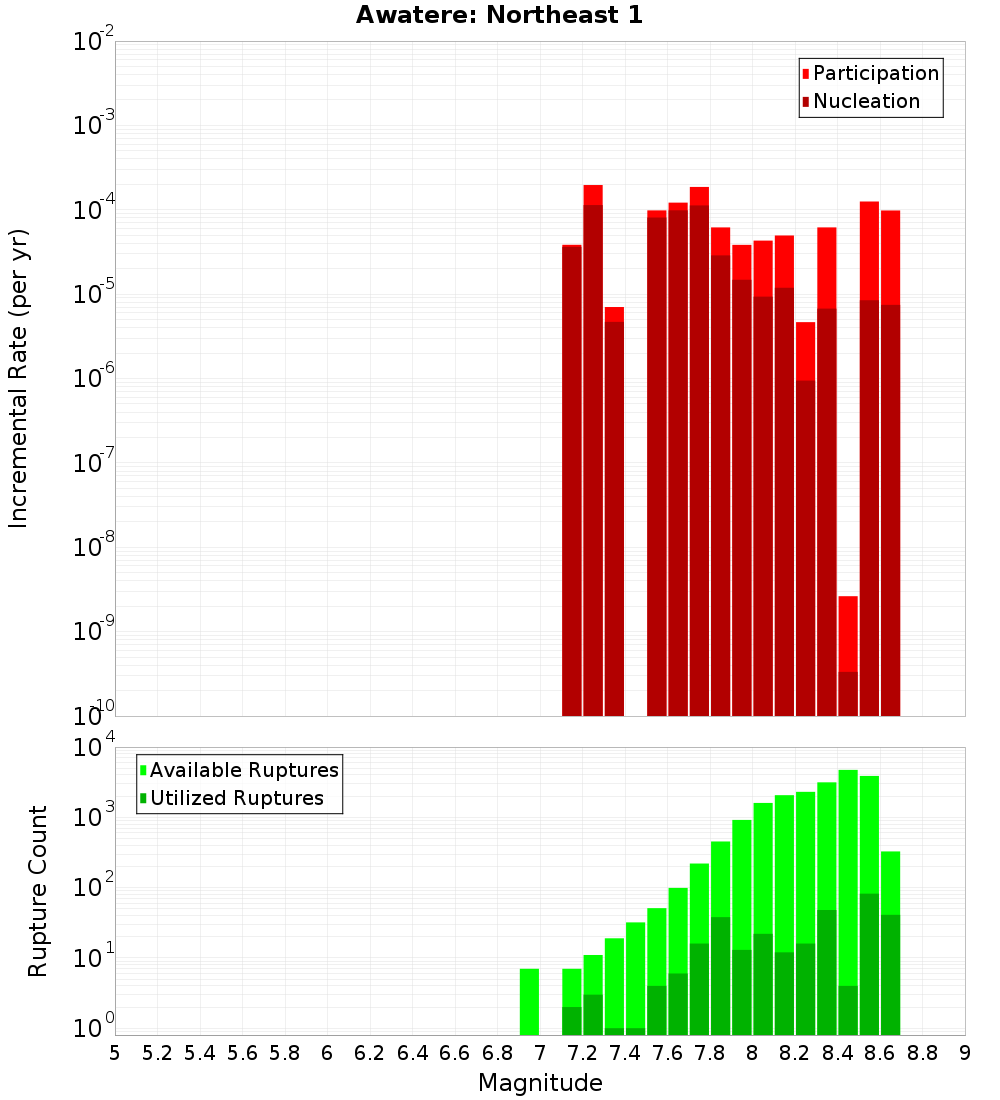

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

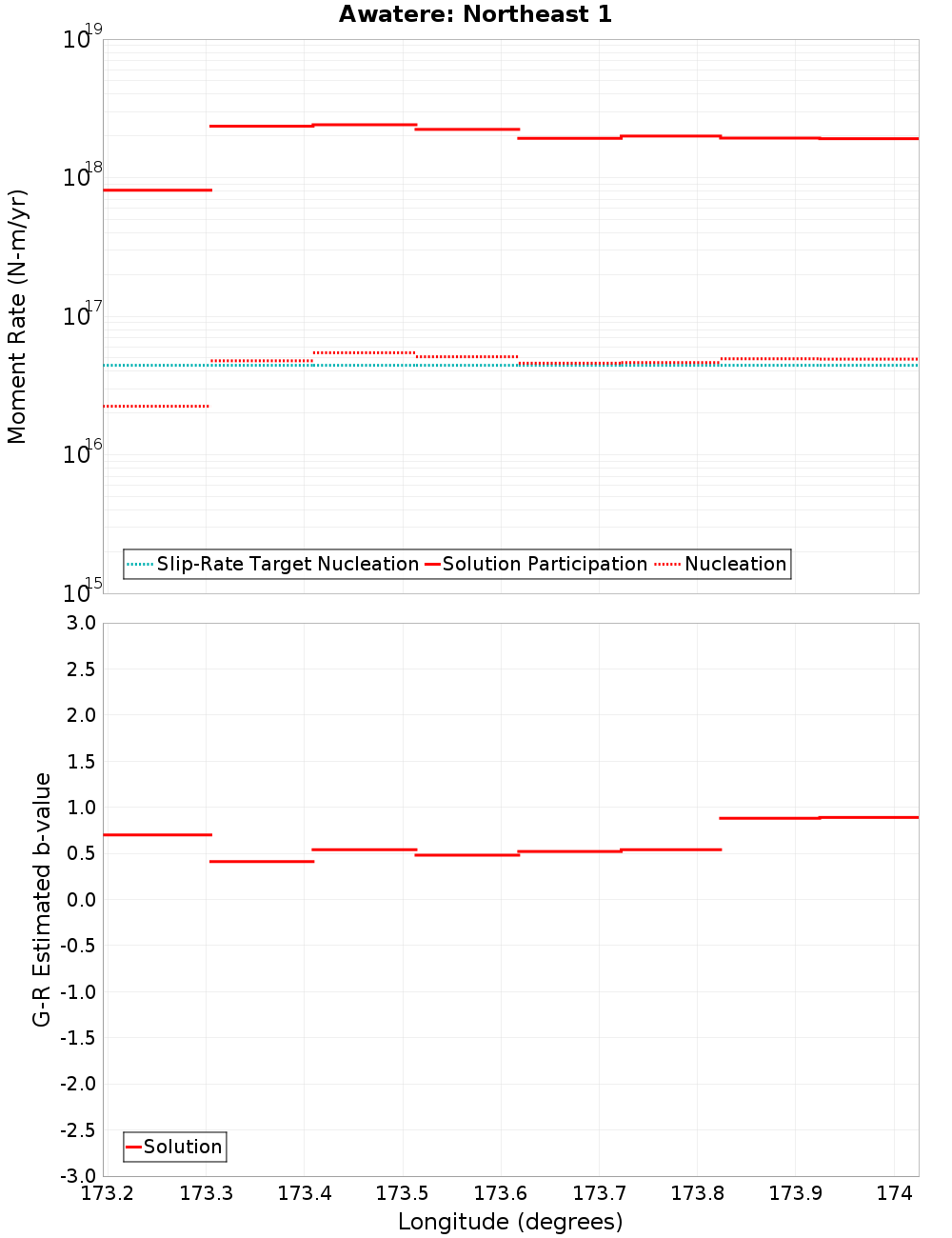

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Vernon 2, 4.62 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.64 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count2,405
Co-rupture Rate7.2898176E-5

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate5.447235E-4

Awatere: Northeast 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count10,284
Co-rupture Rate2.2250459E-4

Awatere: Southwest, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count14,826
Co-rupture Rate4.808299E-4

Vernon 2, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count2,269
Co-rupture Rate6.327282E-4

Elliott, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate0.0

Clarence: Northeast, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Clarence: Central, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?false
Co-rupture Count556
Co-rupture Rate4.789113E-6

Wairau, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count1,606
Co-rupture Rate2.101902E-5

Jordan, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate7.47829E-5

Fowlers, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFVVVnFB
Connected?true
Directly Connected?false
Co-rupture Count2,348
Co-rupture Rate5.2454983E-5
