Edgecumbe Coastal Details

Property	Value
Rupture Count	7,654
Ruptures Above Sect Min Mag	7,651
Ruptures w/ Nonzero Rates	484
Magnitude Range	[6.54, 8.48]
Length Range	[7, 679] km
Total Rate	3.2291465E-4 /yr
Multi-Fault Rate	3.2291465E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

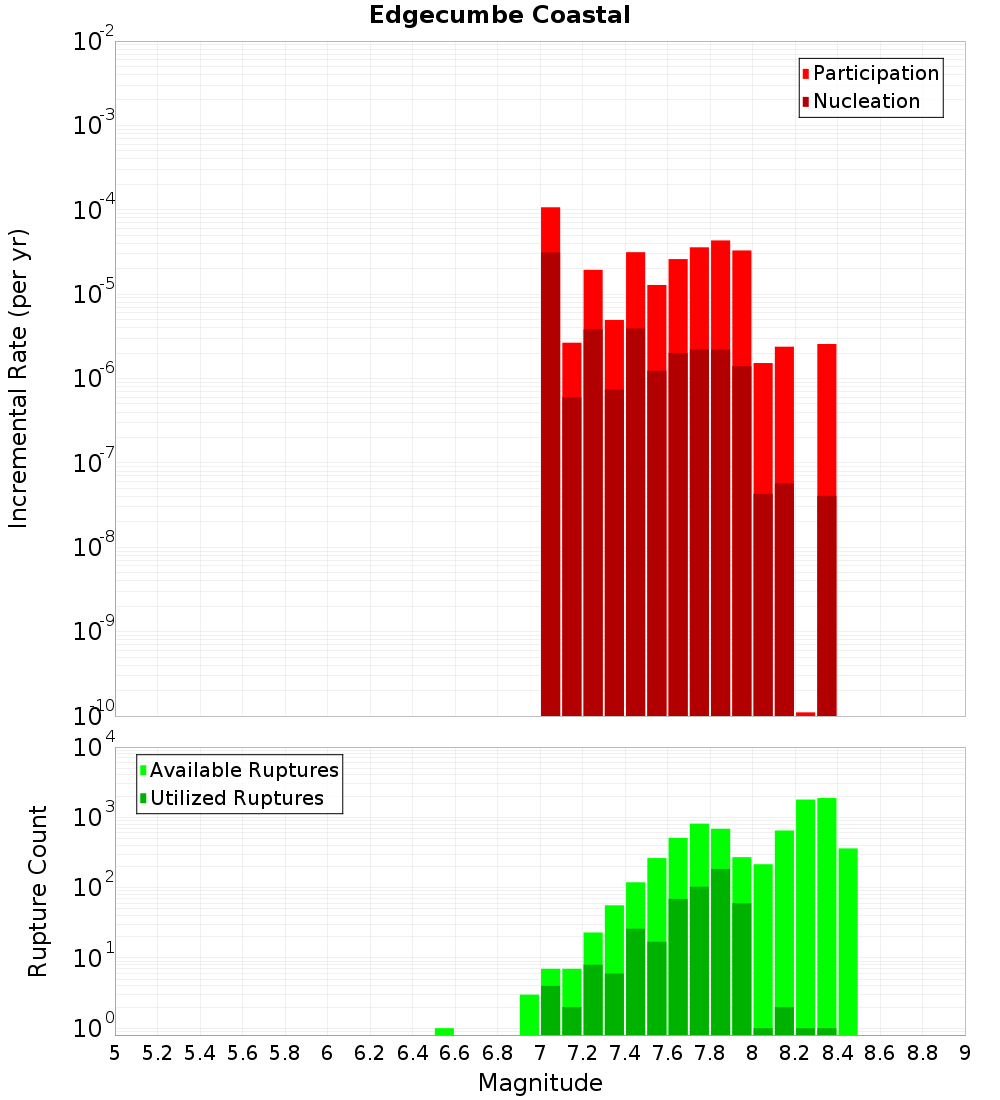

Magnitude-Frequency Distribution

Incremental	Cumulative

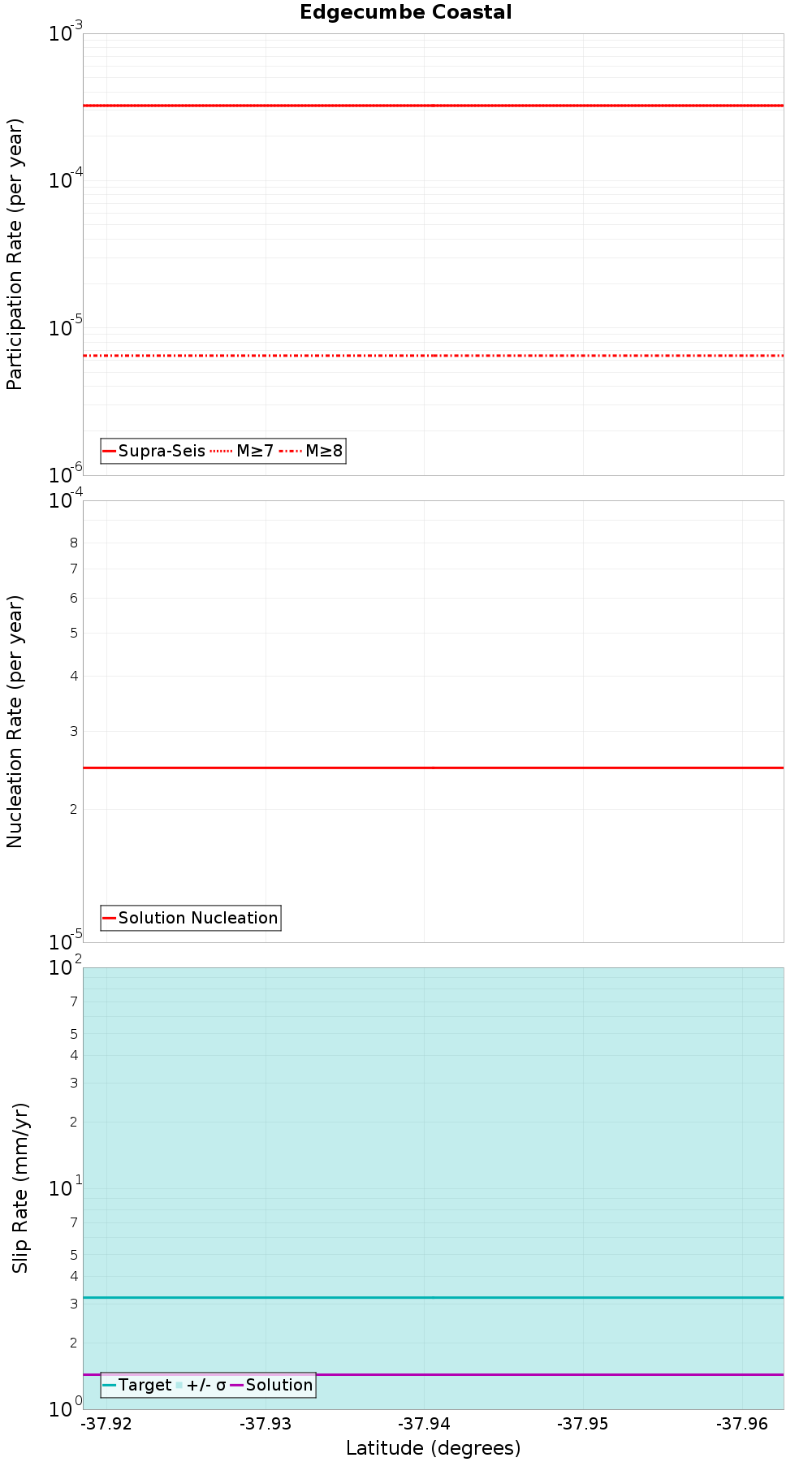

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	true
Co-rupture Count	7,417
Co-rupture Rate	2.0924269E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	true
Co-rupture Count	6,312
Co-rupture Rate	1.7253711E-4

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	true
Co-rupture Count	1,128
Co-rupture Rate	6.791162E-5

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	9.311265E-6

Keepa, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	false
Co-rupture Count	530
Co-rupture Rate	0.0

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	true
Co-rupture Count	558
Co-rupture Rate	1.4911701E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	false
Co-rupture Count	2,379
Co-rupture Rate	9.116545E-5

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	false
Co-rupture Count	5,761
Co-rupture Rate	2.2337526E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1MzYuMFl4RGhm
Connected?	true
Directly Connected?	false
Co-rupture Count	1,625
Co-rupture Rate	6.862256E-5
