Rangitaiki 1 Details

Property	Value
Rupture Count	5,405
Ruptures Above Sect Min Mag	5,404
Ruptures w/ Nonzero Rates	458
Magnitude Range	[6.62, 8.45]
Length Range	[9, 631] km
Total Rate	1.949006E-4 /yr
Multi-Fault Rate	1.949006E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

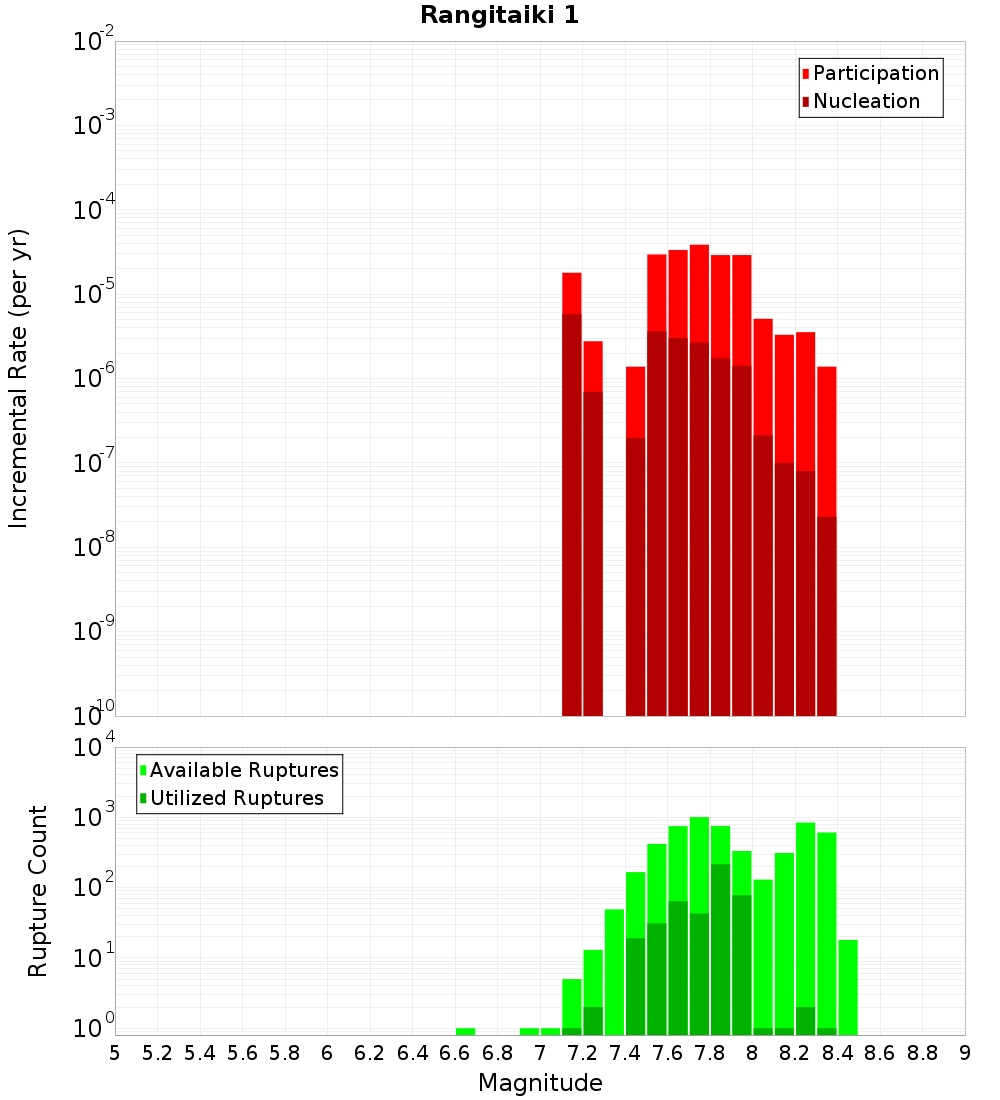

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Keepa, 4.87 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	true
Co-rupture Count	2,803
Co-rupture Rate	9.509366E-5

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,342
Co-rupture Rate	2.6098118E-4

Keepa, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	364
Co-rupture Rate	5.391231E-6

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,184
Co-rupture Rate	3.030476E-5

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	2,379
Co-rupture Rate	1.03611215E-4

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,841
Co-rupture Rate	5.1589137E-5

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,372
Co-rupture Rate	8.603512E-5

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	754
Co-rupture Rate	1.0361216E-5

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	2,319
Co-rupture Rate	7.1052185E-5

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	484
Co-rupture Rate	2.8634784E-5

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NDUuMHhhcjRl
Connected?	true
Directly Connected?	false
Co-rupture Count	137
Co-rupture Rate	5.0560584E-6
