Horse Flat Details

PropertyValue
Rupture Count649
Ruptures Above Sect Min Mag647
Ruptures w/ Nonzero Rates32
Magnitude Range[6.90, 7.99]
Length Range[23, 263] km
Total Rate1.6765696E-5 /yr
Multi-Fault Rate9.252402E-6 /yr (55.19%)
Directly-Connected Faults7
All Co-Rupturing Faults36

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

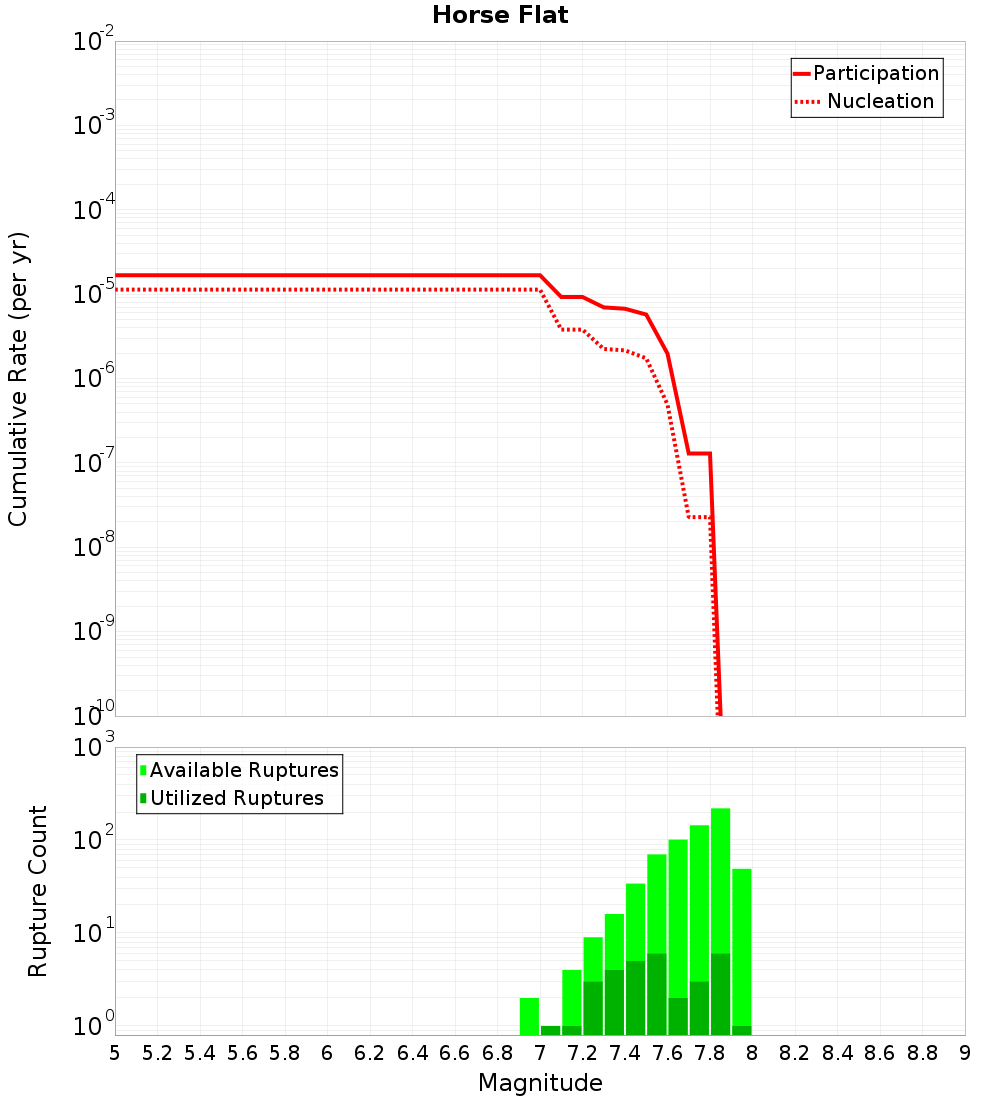

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ranfurly, 0.12 km away
Waipiata, 0.24 km away
Pylap, 0.45 km away
Billys Ridge, 2.27 km away
Waihemo, 2.81 km away
Logan Burn, 3.91 km away
Murphys Creek, 5.19 km away
Hyde North, 5.99 km away
Long Valley, 7.19 km away
Cross Eden, 7.44 km away
Dunback Hill, 9.22 km away
Nichols Rock, 12.8 km away
Flat Stream - Glenpark, 13.11 km away

Ranfurly, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate2.3849455E-7

Waipiata, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate0.0

Pylap, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate2.7810206E-6

Billys Ridge, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Waihemo, 2.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate3.7509076E-6

Logan Burn, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count324
Co-rupture Rate4.1803496E-6

Murphys Creek, 5.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Hyde North, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate1.4511903E-7

Long Valley, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate1.8443759E-6

Cross Eden, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate6.8953723E-6

Dunback Hill, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NTYuMG9Vd3E2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
