Barrier Range Details

Property	Value
Rupture Count	12,349
Ruptures Above Sect Min Mag	12,347
Ruptures w/ Nonzero Rates	185
Magnitude Range	[6.99, 8.54]
Length Range	[23, 810] km
Total Rate	5.75371E-6 /yr
Multi-Fault Rate	5.75371E-6 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	109

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

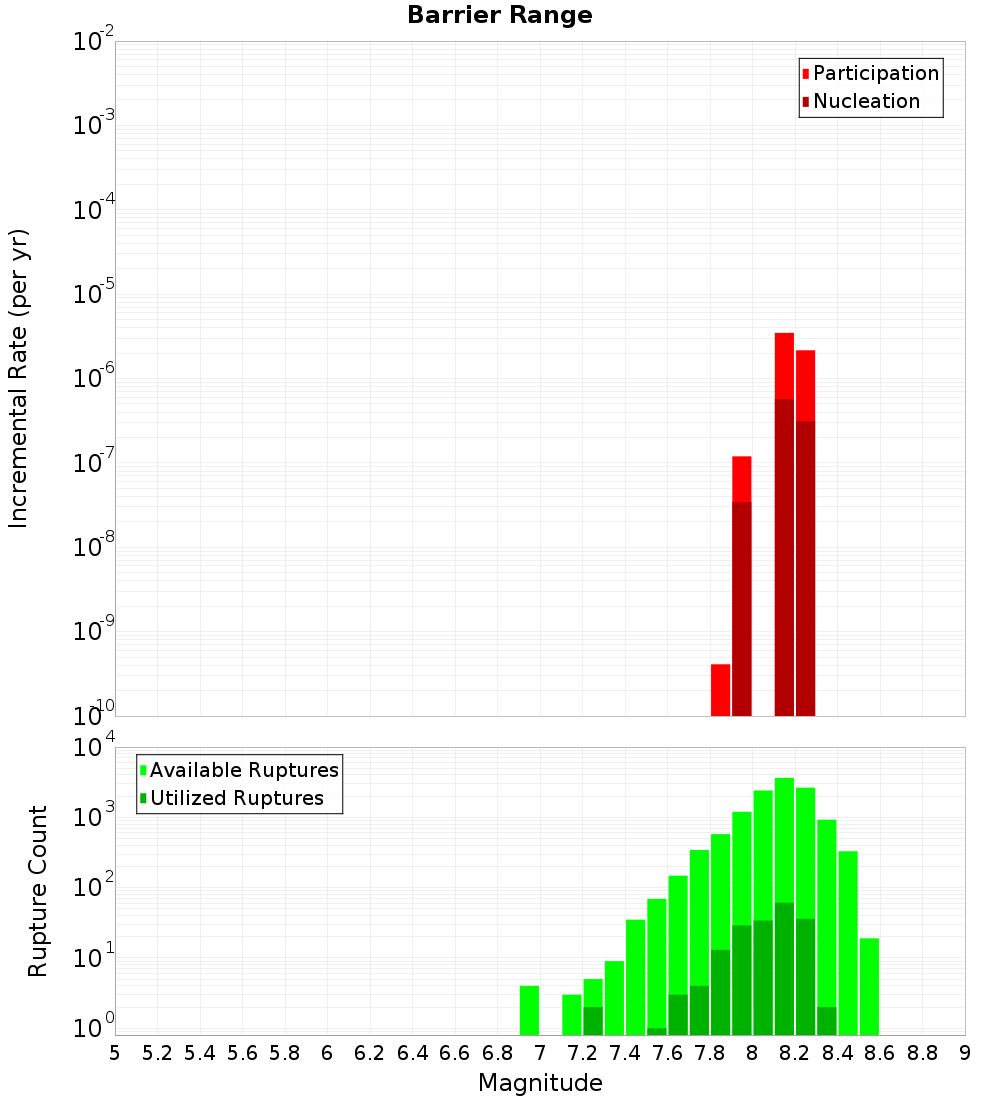

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dromedary, 1.72 km away
Hopkins, 1.83 km away
Ostler North, 2.09 km away
Huxley, 5.8 km away
Dingle, 7.44 km away
Wanaka, 8.72 km away
Timaru Creek, 9.19 km away
Alpine: Jacksons to Kaniere, 9.21 km away
Ostler South, 12.24 km away
Hunter Valley, 14.29 km away

Dromedary, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	true
Co-rupture Count	8,900
Co-rupture Rate	5.5230055E-7

Hopkins, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	true
Co-rupture Count	3,128
Co-rupture Rate	5.197805E-6

Ostler North, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	3.5920356E-9

Huxley, 5.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	true
Co-rupture Count	3,319
Co-rupture Rate	1.10013694E-7

Dingle, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	3.55131E-17

Wanaka, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	3.55131E-17

Timaru Creek, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,879
Co-rupture Rate	5.197817E-6

Alpine: Jacksons to Kaniere, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	false
Co-rupture Count	6,002
Co-rupture Rate	5.3078184E-6

Ostler South, 12.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	3.5920256E-9

Hunter Valley, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1NzAuMEtZR1FK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
