Ariel Bank 2 Details

PropertyValue
Rupture Count192
Ruptures Above Sect Min Mag186
Ruptures w/ Nonzero Rates13
Magnitude Range[6.58, 7.63]
Length Range[17, 189] km
Total Rate0.0024461623 /yr
Multi-Fault Rate0.0024461623 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults11

Table Of Contents

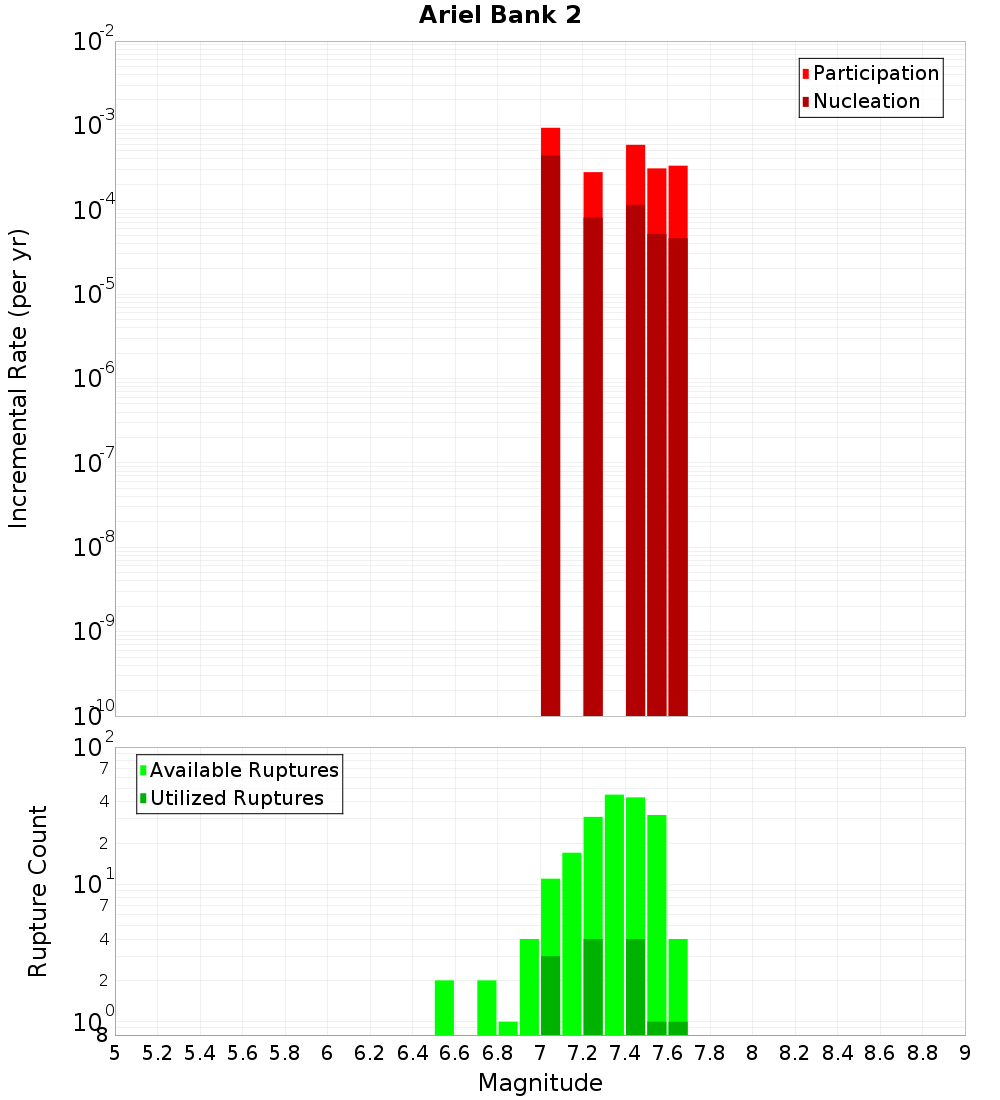

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

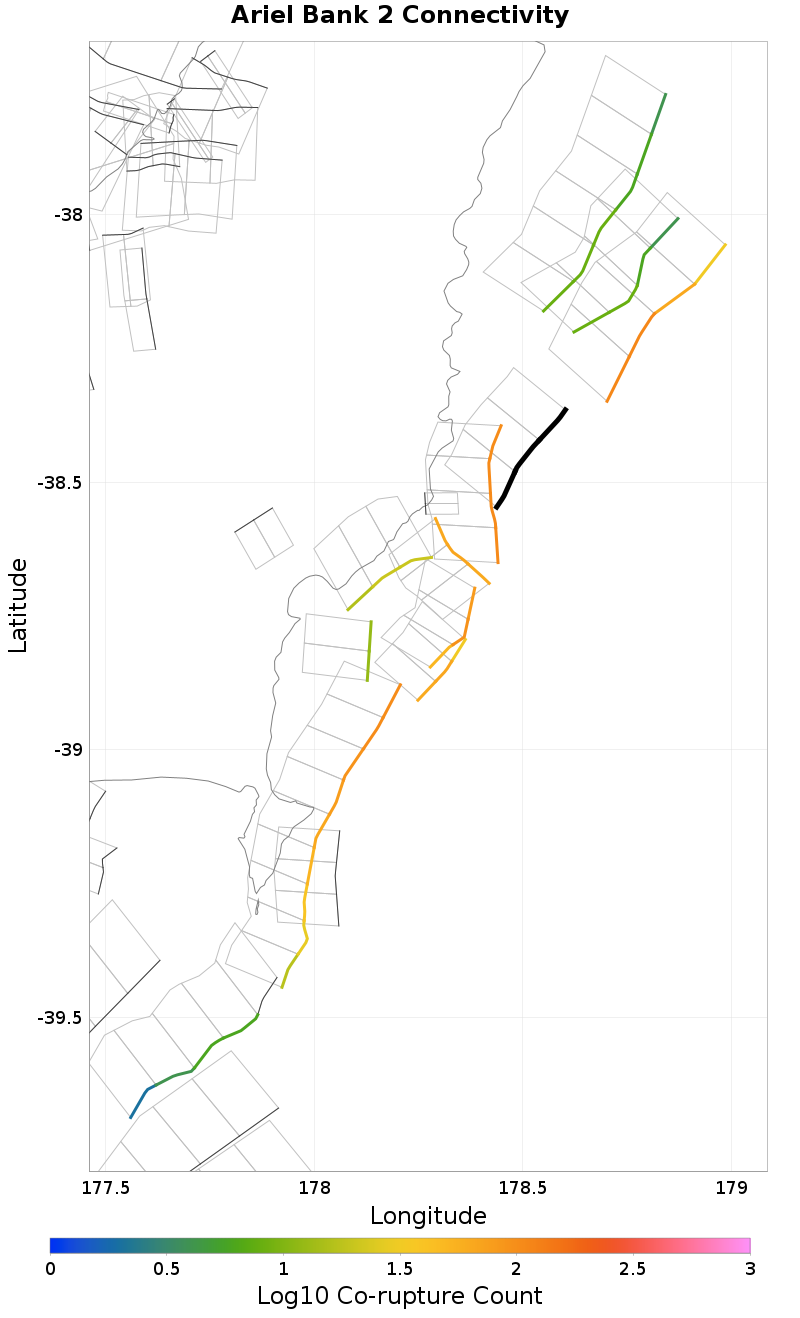

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.9 km away
Pakarae, 3.93 km away
Ruatoria South 3, 7.91 km away
Te Ikaarongamai, 11.26 km away
Gable End South, 11.88 km away
Ruatoria South 4, 14.82 km away

Gable End North, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate0.0012827794

Pakarae, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruatoria South 3, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count112
Co-rupture Rate0.001015991

Te Ikaarongamai, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate9.3640614E-4

Gable End South, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate8.174462E-4

Ruatoria South 4, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.2697677E-4
