Middle Range Details

PropertyValue
Rupture Count528
Ruptures Above Sect Min Mag523
Ruptures w/ Nonzero Rates13
Magnitude Range[6.76, 8.03]
Length Range[21, 344] km
Total Rate3.82018E-5 /yr
Multi-Fault Rate3.82018E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults33

Table Of Contents

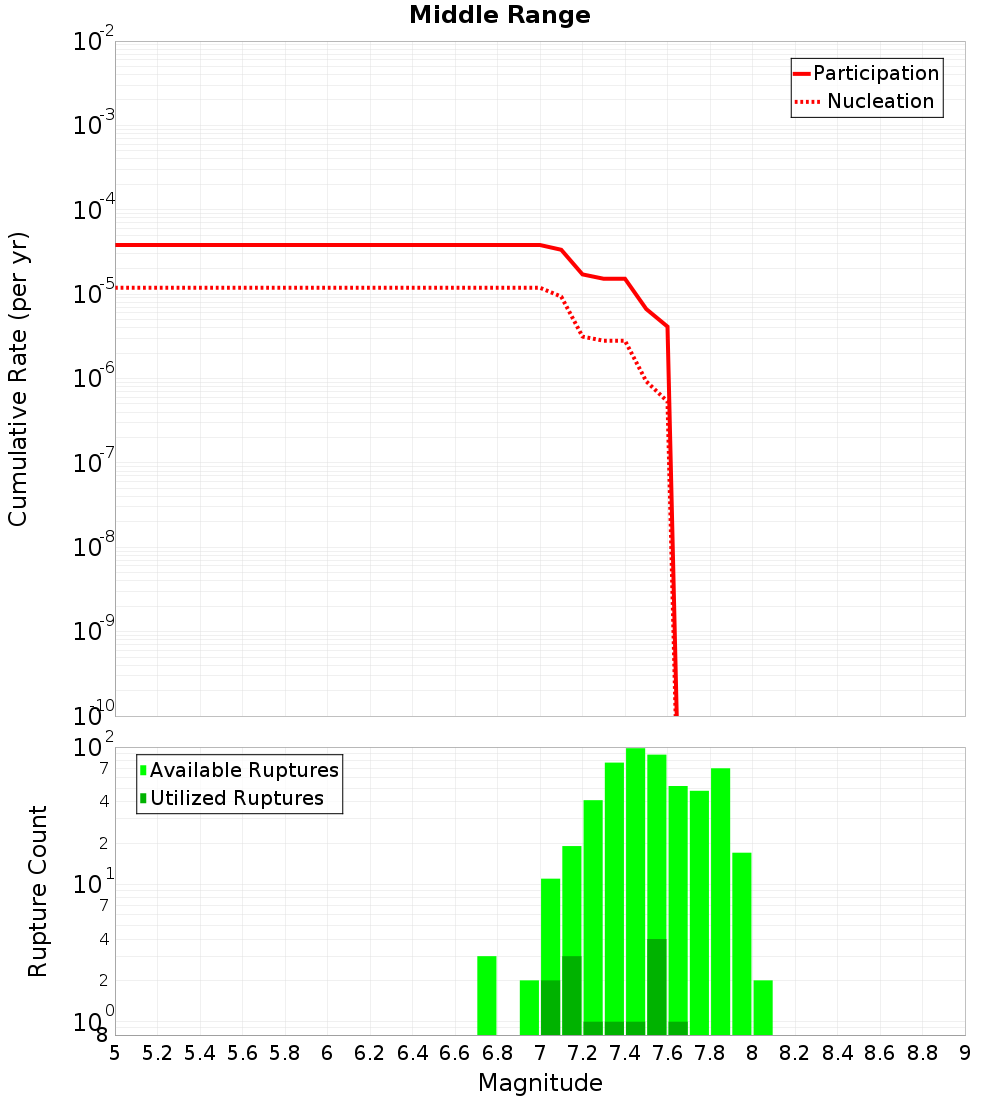

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

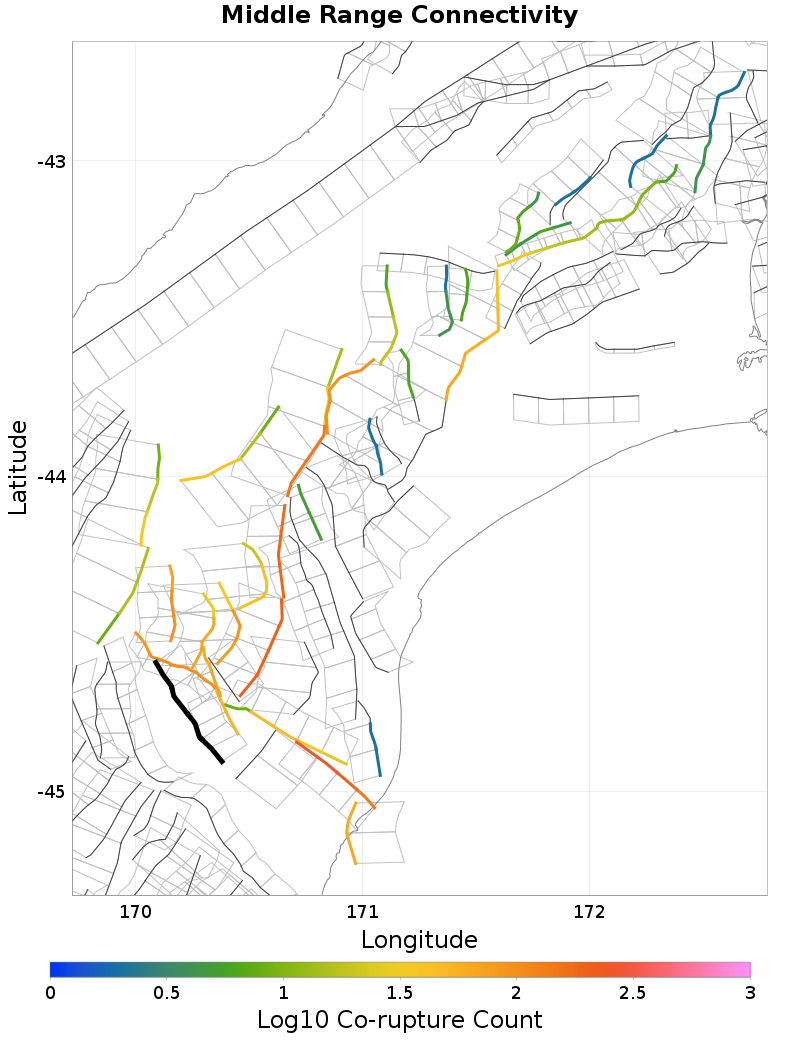

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awahokomo, 0.03 km away
Fern Gully, 0.1 km away
Mt Sutton, 0.14 km away
Gibson, 0.32 km away
Kirkliston, 0.33 km away
Waitangi, 0.37 km away
Falstone, 5.49 km away
Campbell Hills, 6.3 km away
Black Hill, 7.61 km away
Stonewall, 9.97 km away
Grampian, 11.17 km away
Waitaki, 13.01 km away
Omarama Saddle, 14.06 km away
Dryburgh, 14.1 km away
Hawkdun, 14.45 km away

Awahokomo, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.873775E-5

Fern Gully, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate1.956449E-5

Mt Sutton, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate0.0

Gibson, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate3.18069E-7

Kirkliston, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count212
Co-rupture Rate3.3186383E-18

Waitangi, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate1.946405E-5

Falstone, 5.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate6.3391776E-6

Campbell Hills, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 7.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

Grampian, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Waitaki, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?true
Directly Connected?true
Co-rupture Count262
Co-rupture Rate1.4296196E-5

Omarama Saddle, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA1OTUuMHBSd25K
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
