Double Hill Details

PropertyValue
Rupture Count132
Ruptures Above Sect Min Mag128
Ruptures w/ Nonzero Rates12
Magnitude Range[6.79, 8.07]
Length Range[17, 259] km
Total Rate2.298826E-4 /yr
Multi-Fault Rate2.386405E-5 /yr (10.38%)
Directly-Connected Faults2
All Co-Rupturing Faults19

Table Of Contents

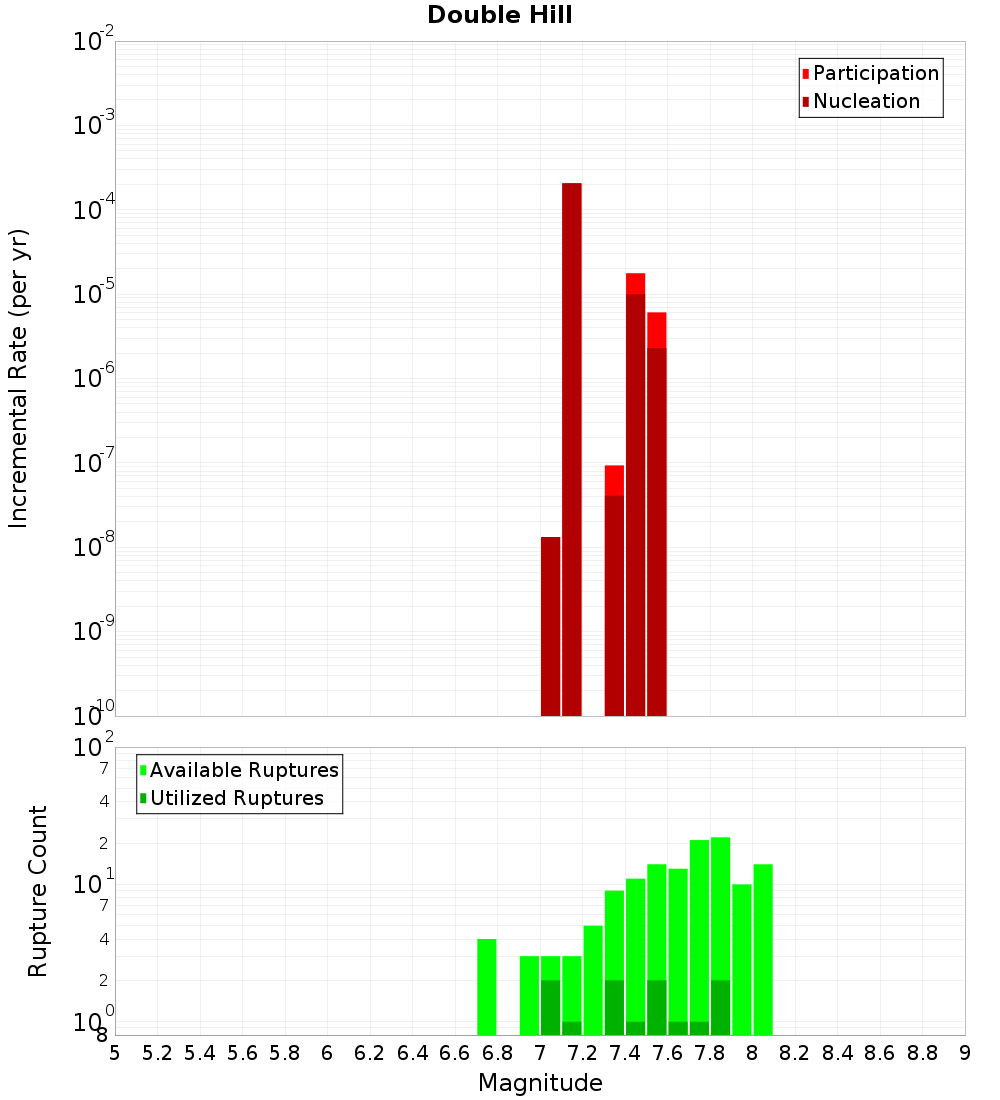

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Redcliffe, 0.11 km away
Hutt Peel, 0.26 km away
North Branch, 0.32 km away
Lake Heron, 1.64 km away
Porters Pass, 2.22 km away
Big Ben, 2.59 km away
Torlesse, 6.89 km away
Cheeseman, 7.96 km away
Hororata, 12.7 km away
Kowai - View Hill, 13.14 km away

Redcliffe, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate6.0789353E-6

North Branch, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Heron, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate6.0789325E-6

Big Ben, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate1.7785114E-5

Torlesse, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate2.3864048E-5

Cheeseman, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate1.7835888E-16

Hororata, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
