Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	9,537
Ruptures Above Sect Min Mag	9,530
Ruptures w/ Nonzero Rates	414
Magnitude Range	[7.05, 8.66]
Length Range	[23, 971] km
Total Rate	2.0916307E-4 /yr
Multi-Fault Rate	3.8876136E-5 /yr (18.59%)
Directly-Connected Faults	7
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

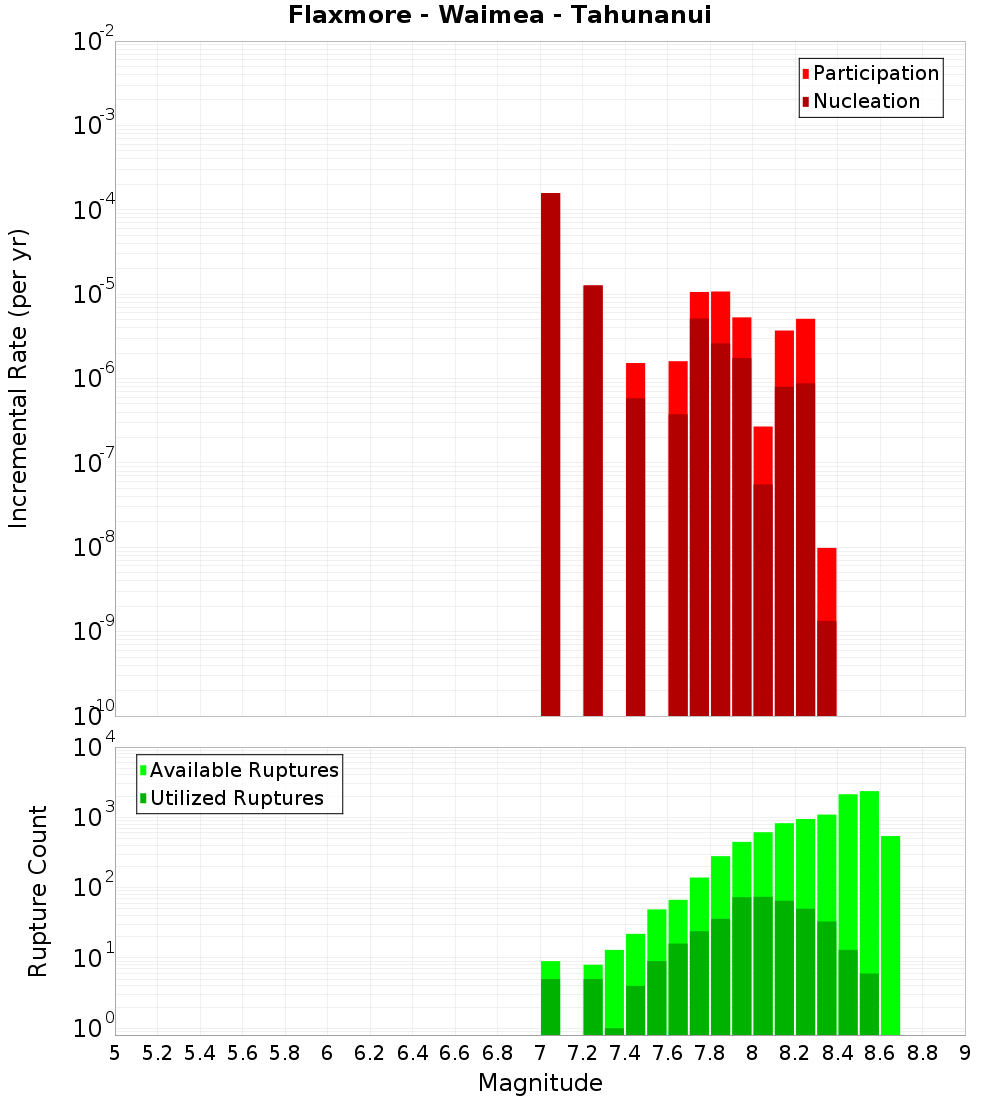

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	4,756
Co-rupture Rate	1.64113E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	1.3603218E-16

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	5,883
Co-rupture Rate	1.5041577E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	5.835891E-6

Tutaki, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	2.600047E-7

Surville, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	false
Co-rupture Count	130
Co-rupture Rate	8.5018075E-7

Ruby Bay - Moutere, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	8.1315693E-7

Awatere: Southwest, 12.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTUuMFNRU1Bm
Connected?	true
Directly Connected?	true
Co-rupture Count	3,354
Co-rupture Rate	1.1401128E-5
