Tuapeka Details

Property	Value
Rupture Count	4,722
Ruptures Above Sect Min Mag	4,721
Ruptures w/ Nonzero Rates	33
Magnitude Range	[7.18, 8.66]
Length Range	[27, 859] km
Total Rate	1.0582486E-5 /yr
Multi-Fault Rate	7.061287E-6 /yr (66.73%)
Directly-Connected Faults	4
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

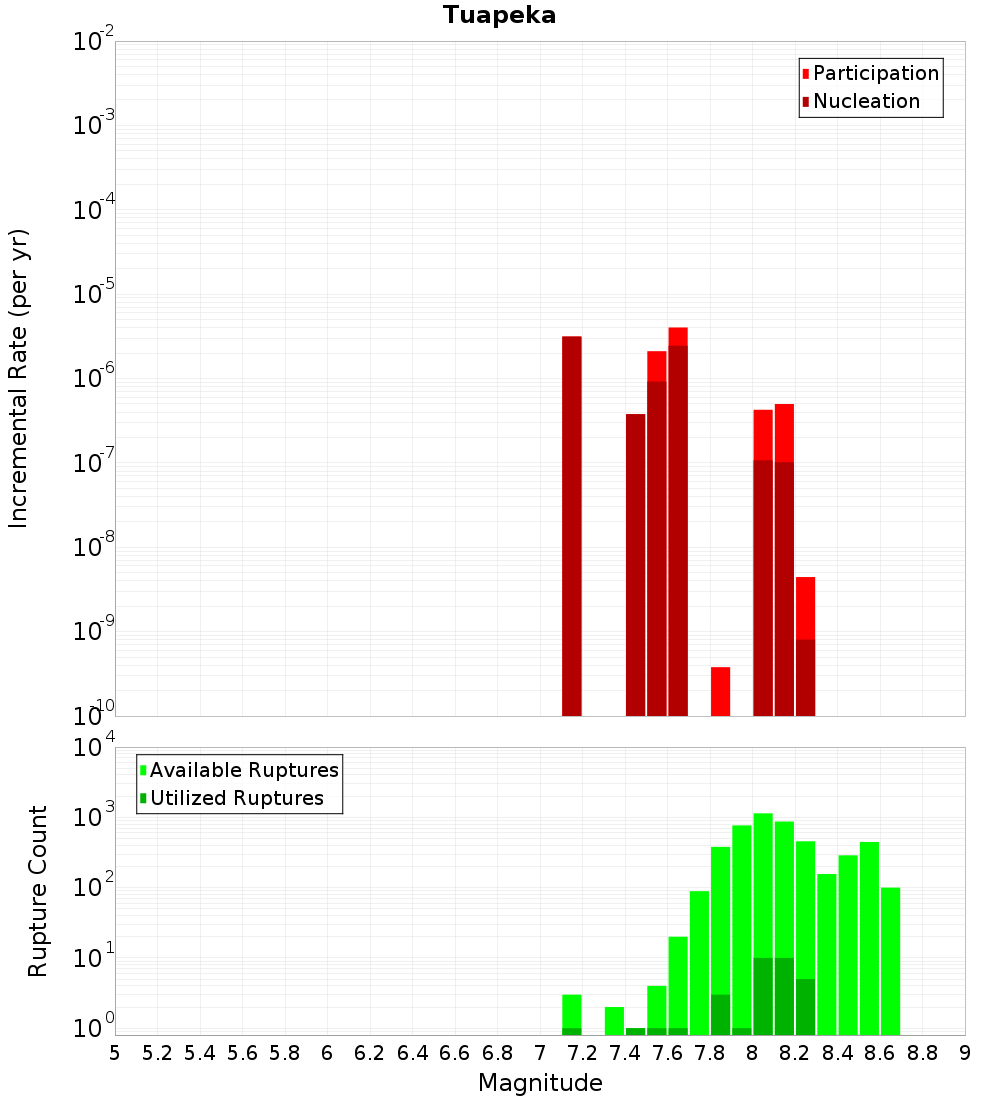

Magnitude-Frequency Distribution

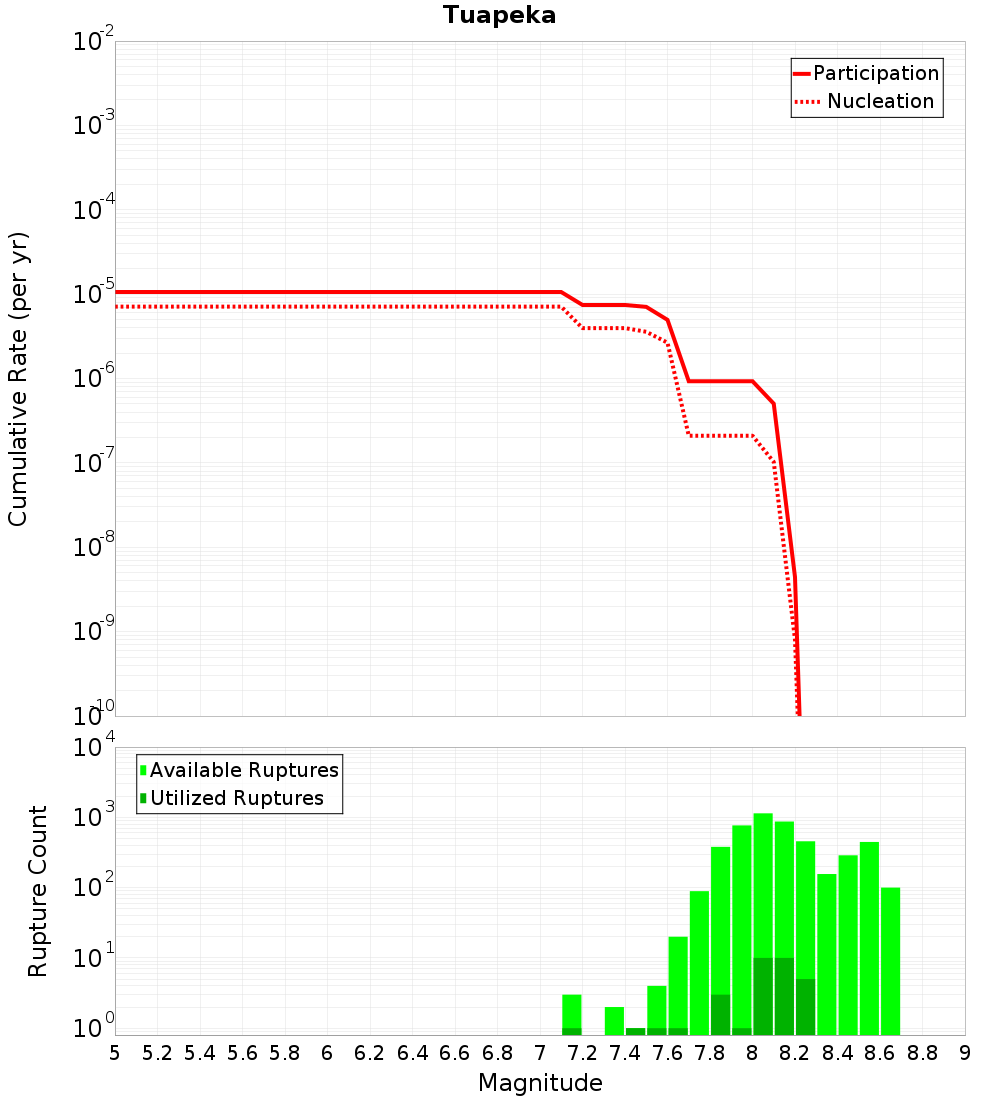

Incremental	Cumulative

Along-Strike Values

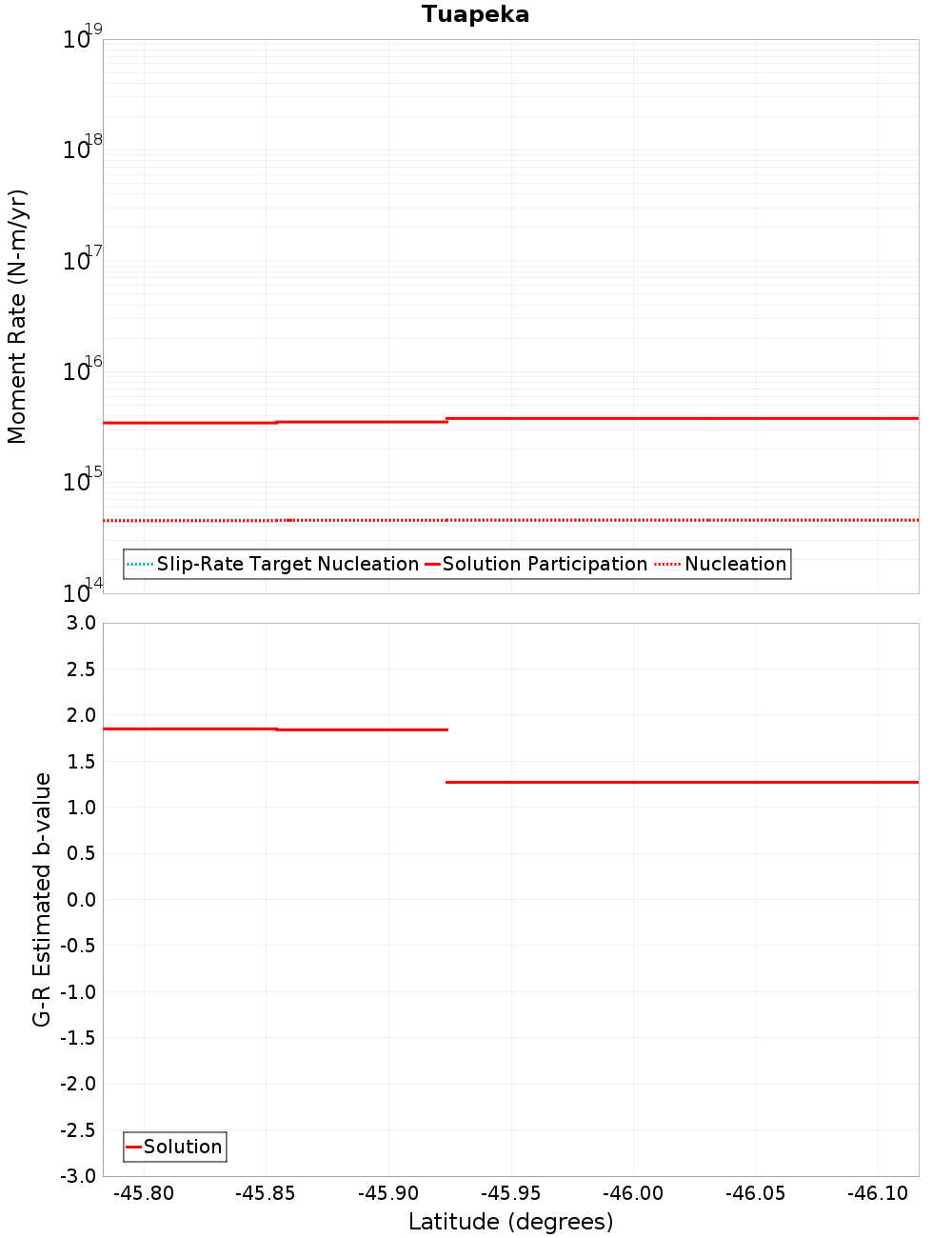

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Blue Mountain, 0.23 km away
Beaumont River, 0.91 km away
Backbone, 1.03 km away
Teviot, 1.07 km away
Waitahuna 1, 1.92 km away
Spylaw, 2.17 km away
Titri South, 4.19 km away
Titri Central, 6.22 km away
Otanomomo, 6.25 km away
Clifton, 6.7 km away
Waitahuna 2, 10.05 km away
Akatore, 14.57 km away
Beacon Hill, 14.81 km away
Hyde South - The Twins, 14.98 km away

Blue Mountain, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Beaumont River, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,261
Co-rupture Rate	5.1972155E-8

Backbone, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,429
Co-rupture Rate	6.923481E-12

Teviot, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,460
Co-rupture Rate	8.7722657E-7

Waitahuna 1, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Titri South, 4.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	true
Co-rupture Count	460
Co-rupture Rate	7.060706E-6

Titri Central, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otanomomo, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	0.0

Clifton, 6.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akatore, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde South - The Twins, 14.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5
Connected?	true
Directly Connected?	false
Co-rupture Count	418
Co-rupture Rate	5.1765205E-8
