Waimea Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 14,387 |
| Ruptures Above Sect Min Mag | 14,384 |
| Ruptures w/ Nonzero Rates | 45 |
| Magnitude Range | [7.26, 8.72] |
| Length Range | [29, 976] km |
| Total Rate | 3.449023E-5 /yr |
| Multi-Fault Rate | 2.7882508E-5 /yr (80.84%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 101 |
Table Of Contents

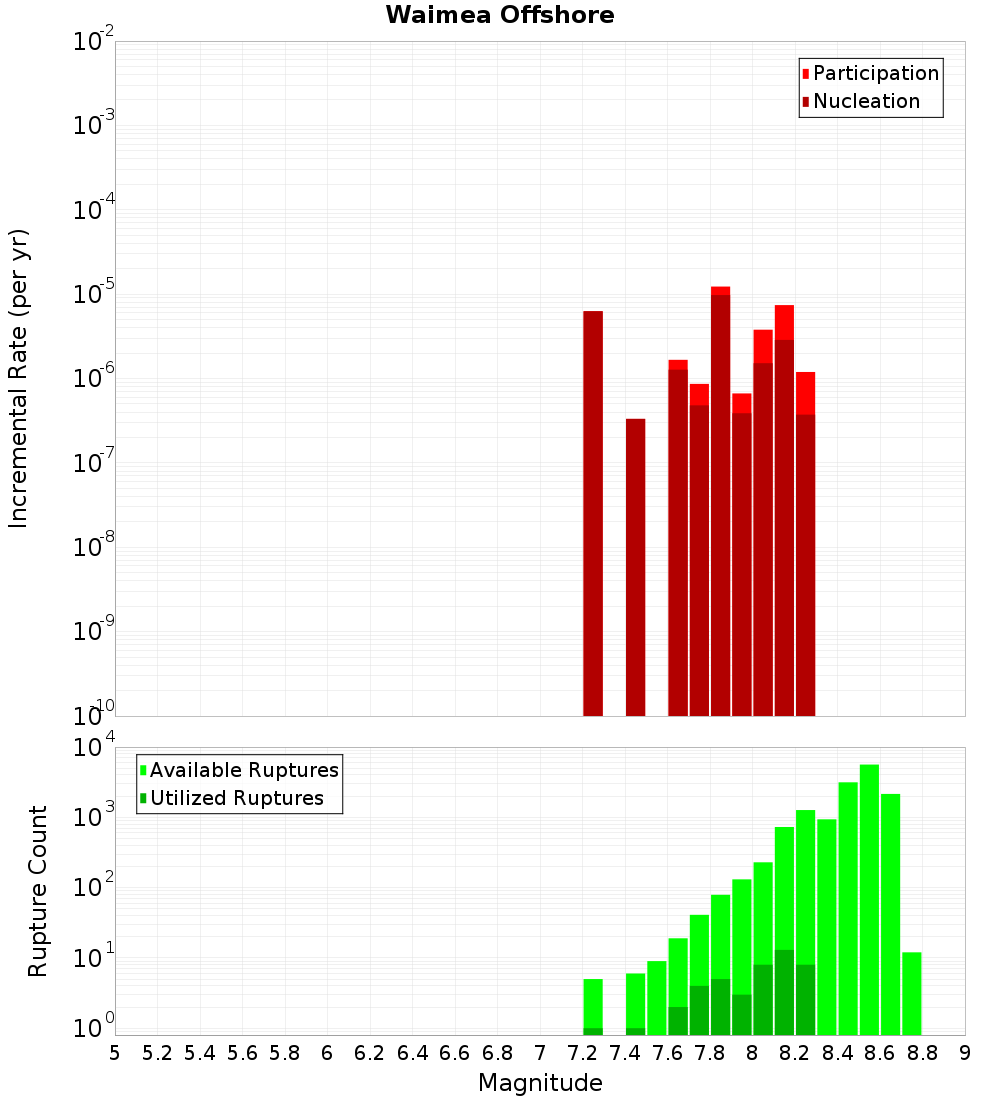

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

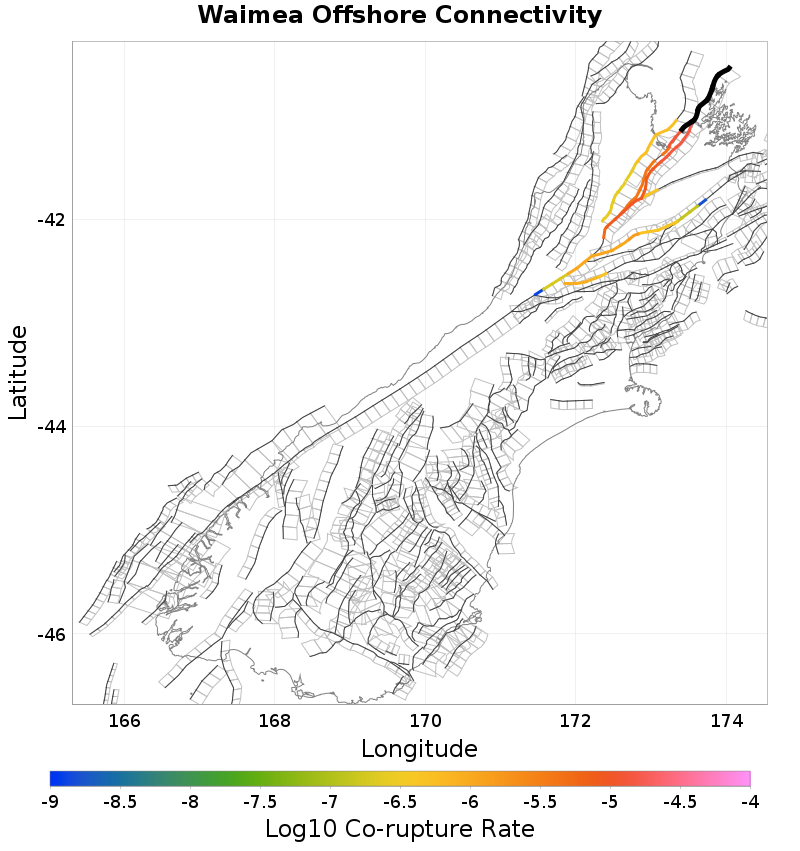

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Flaxmore - Waimea - Tahunanui, 0 km away |
| Whangamoa, 0.82 km away |
| Surville, 9.76 km away |
Flaxmore - Waimea - Tahunanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,756 |
| Co-rupture Rate | 1.6862768E-5 |
Whangamoa, 0.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,245 |
| Co-rupture Rate | 1.4765169E-5 |
Surville, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MTguMG9FV3N5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 415 |
| Co-rupture Rate | 5.049894E-7 |
