Clarence: Central Details

Property	Value
Rupture Count	22,717
Ruptures Above Sect Min Mag	22,713
Ruptures w/ Nonzero Rates	194
Magnitude Range	[6.87, 8.43]
Length Range	[22, 973] km
Total Rate	3.9679557E-4 /yr
Multi-Fault Rate	3.9679557E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	185

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

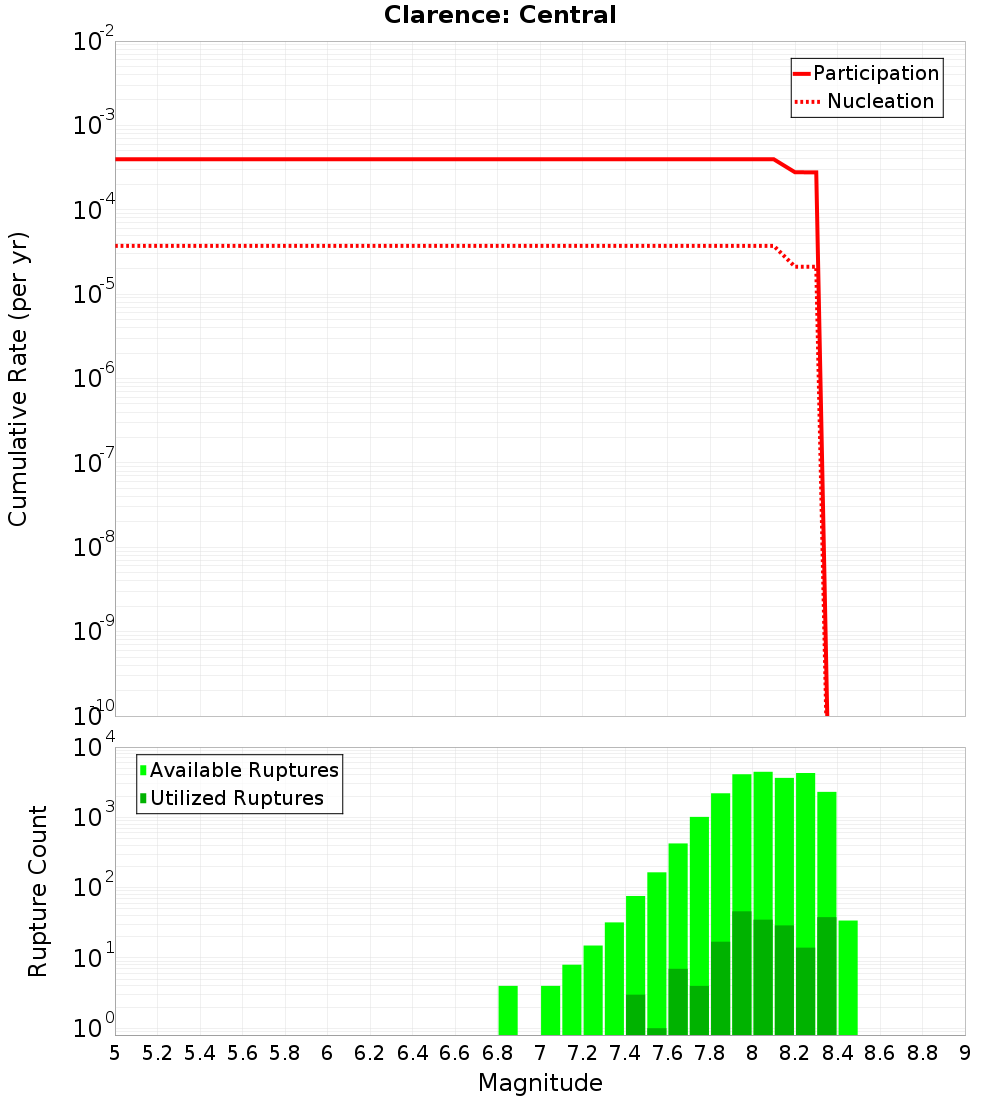

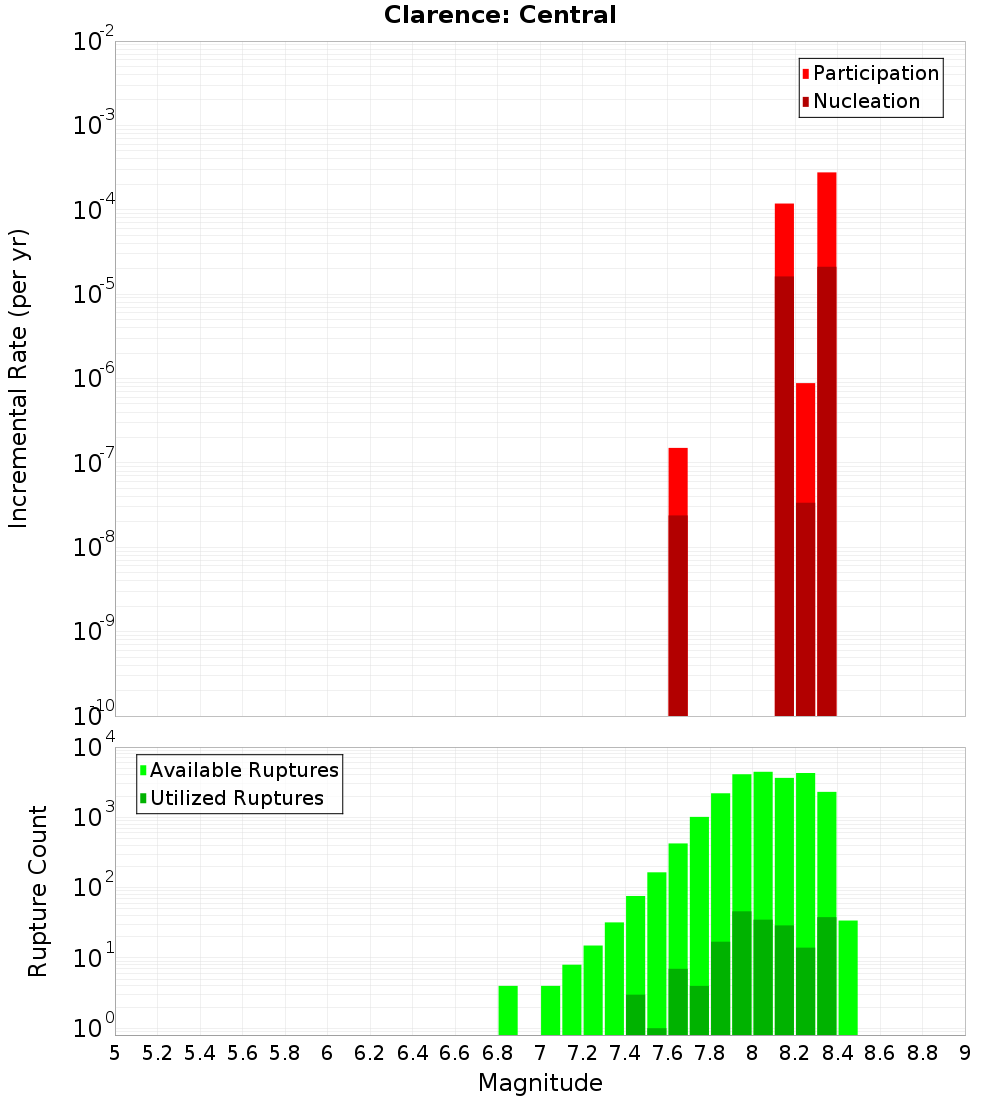

Magnitude-Frequency Distribution

Incremental	Cumulative

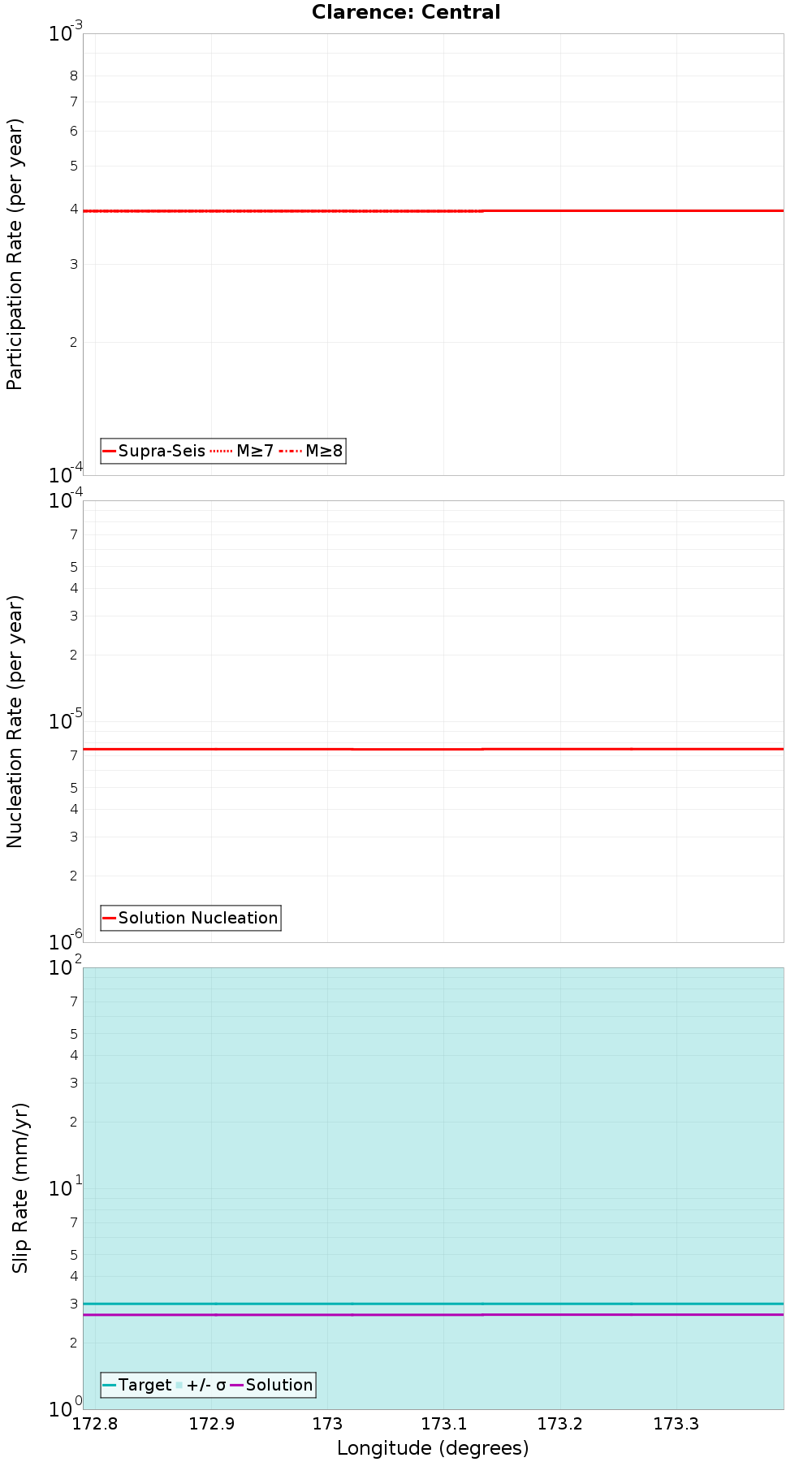

Along-Strike Values

Moment-Rates and b-Values

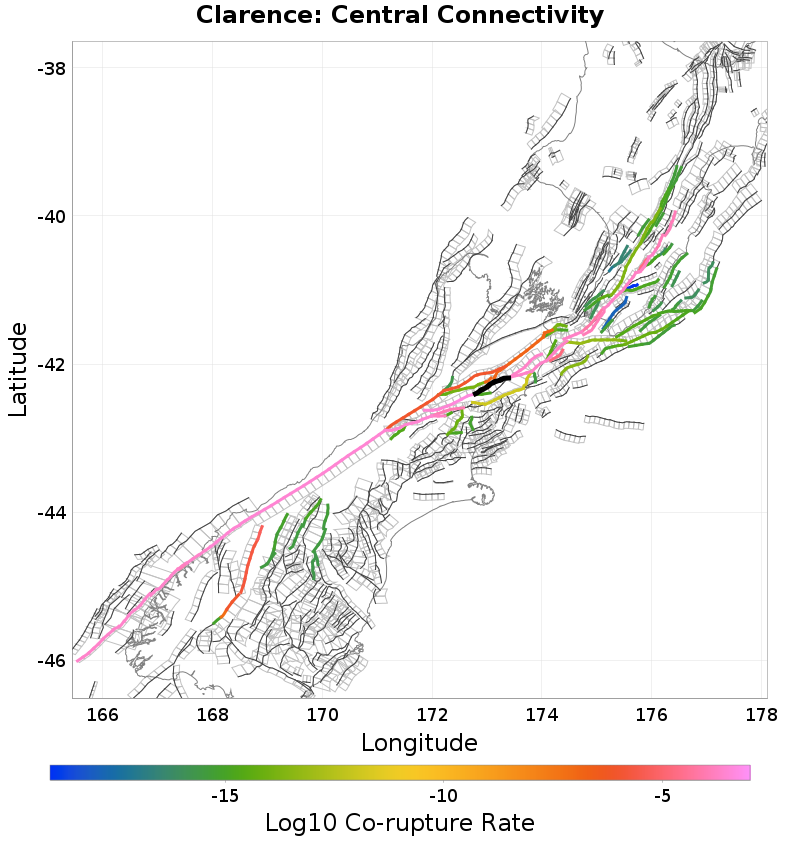

Connectivity

Nearby Sections

Fault Section
Clarence: Southwest, 0 km away
Elliott, 0 km away
Fowlers, 0.07 km away
Clarence: Northeast, 0.09 km away
Barefell, 0.11 km away
Fidget, 3.22 km away
Jordan, 7.52 km away
Awatere: Northeast 1, 10.17 km away
Awatere: Southwest, 12.19 km away
Hanmer, 13.19 km away
Hope: Hanmer NW, 13.28 km away

Clarence: Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	true
Co-rupture Count	16,820
Co-rupture Rate	3.9576346E-4

Elliott, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	341
Co-rupture Rate	1.3051663E-15

Fowlers, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	true
Co-rupture Count	3,012
Co-rupture Rate	1.505294E-7

Clarence: Northeast, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	true
Co-rupture Count	2,701
Co-rupture Rate	1.9780773E-4

Barefell, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	505
Co-rupture Rate	1.5052939E-7

Fidget, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	true
Co-rupture Count	15,652
Co-rupture Rate	1.9883731E-4

Jordan, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	1.1119559E-12

Awatere: Northeast 1, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	556
Co-rupture Rate	1.5052939E-7

Awatere: Southwest, 12.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	true
Co-rupture Count	1,199
Co-rupture Rate	8.815801E-7

Hanmer, 13.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	718
Co-rupture Rate	1.1163484E-12

Hope: Hanmer NW, 13.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MjguMFg5aDda
Connected?	true
Directly Connected?	false
Co-rupture Count	37
Co-rupture Rate	0.0
