Hororata Details
| Property | Value |
|---|---|
| Rupture Count | 4,153 |
| Ruptures Above Sect Min Mag | 4,144 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.70, 8.21] |
| Length Range | [17, 526] km |
| Total Rate | 1.8842667E-4 /yr |
| Multi-Fault Rate | 7.768606E-5 /yr (41.23%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 61 |
Table Of Contents

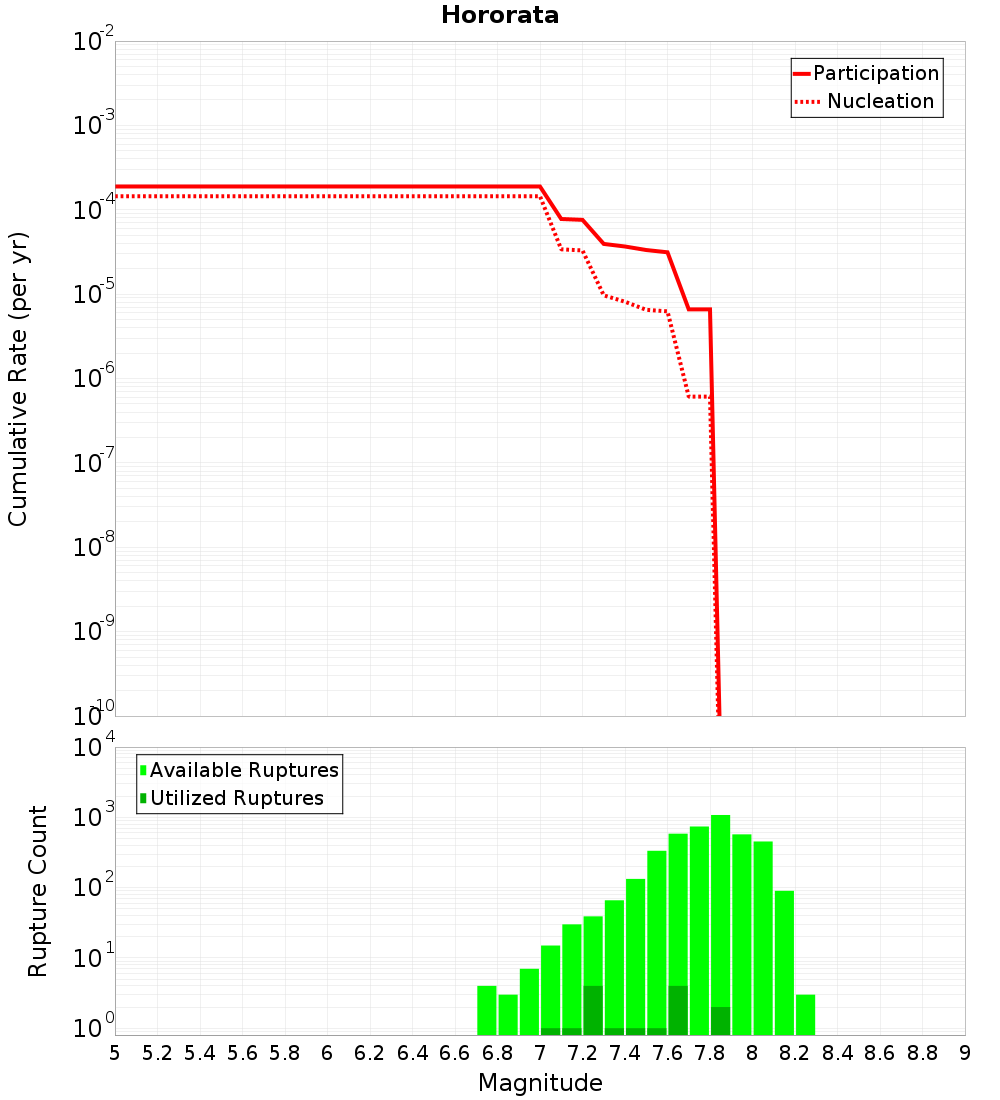

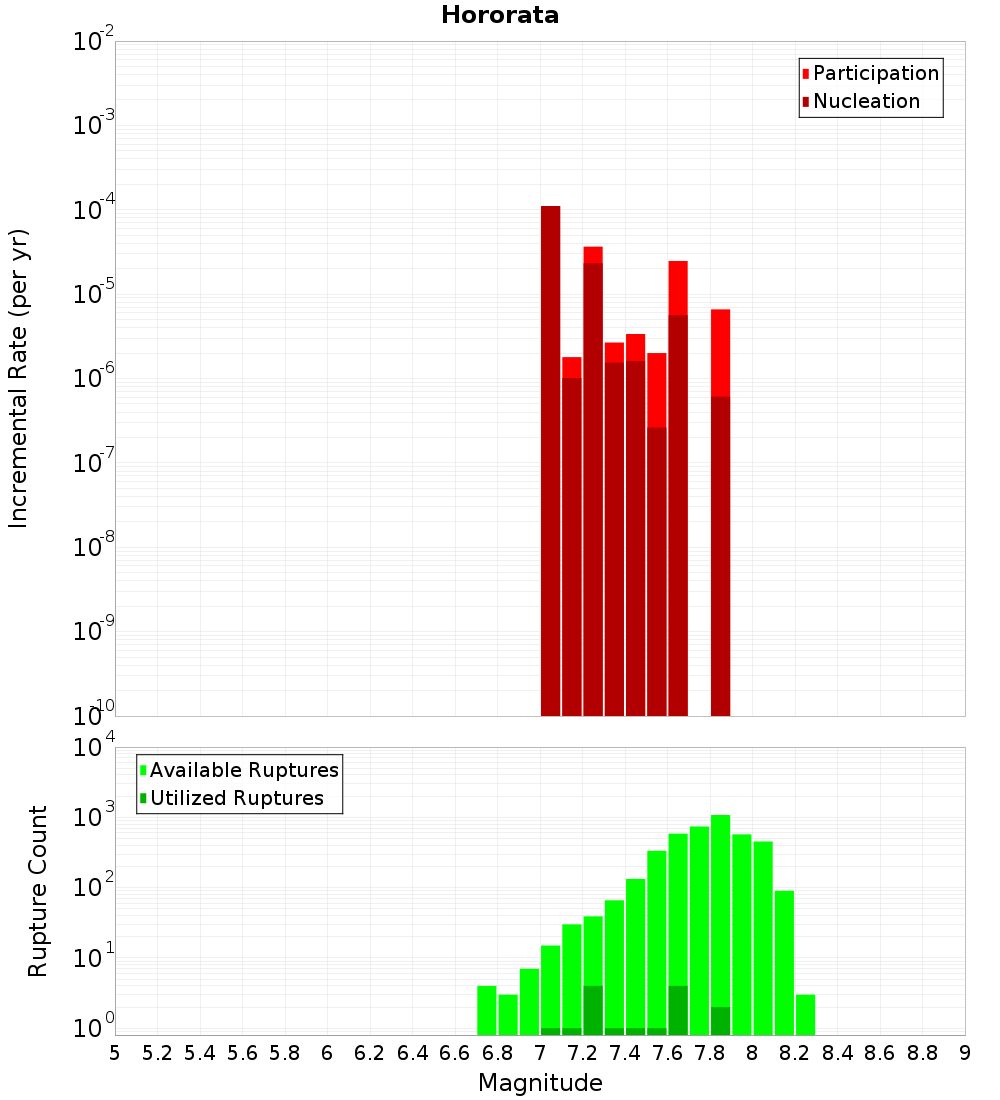

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

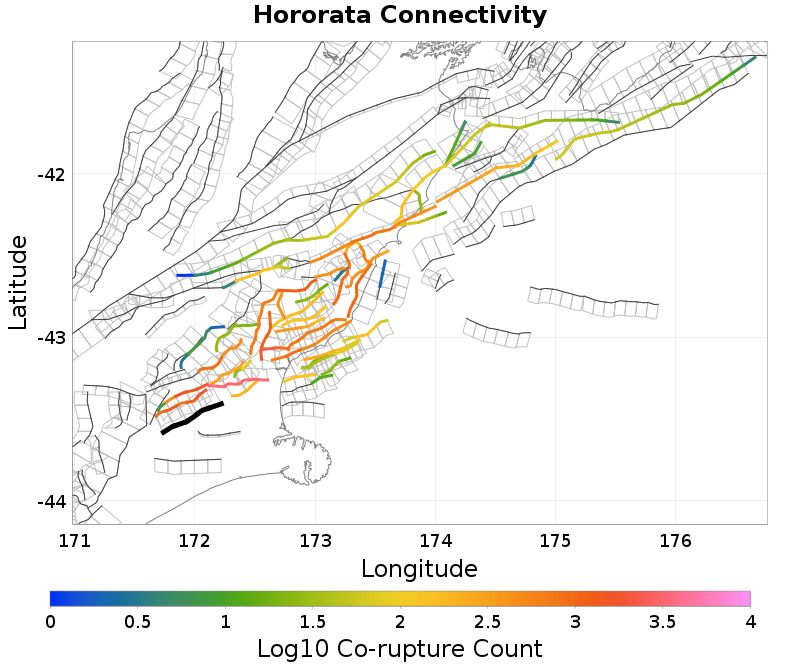

Connectivity
 |  |
|---|
Nearby Sections
High Peak - Sheffield, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,377 |
| Co-rupture Rate | 6.985378E-5 |
Kowai - View Hill, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,604 |
| Co-rupture Rate | 1.7922449E-6 |
Lees Valley, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,119 |
| Co-rupture Rate | 2.0028558E-6 |
Starvation - Ashley, 6.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,481 |
| Co-rupture Rate | 3.3311368E-5 |
Esk South, 6.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.0400394E-6 |
Springbank, 8.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 190 |
| Co-rupture Rate | 0.0 |
Big Ben, 8.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Knowles Top, 10.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 279 |
| Co-rupture Rate | 0.0 |
Greendale, 10.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 10.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Torlesse, 12.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Double Hill, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
