Kekerengu Bank Details

PropertyValue
Rupture Count7,838
Ruptures Above Sect Min Mag7,812
Ruptures w/ Nonzero Rates34
Magnitude Range[6.70, 8.22]
Length Range[17, 526] km
Total Rate6.39623E-4 /yr
Multi-Fault Rate6.39623E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults53

Table Of Contents

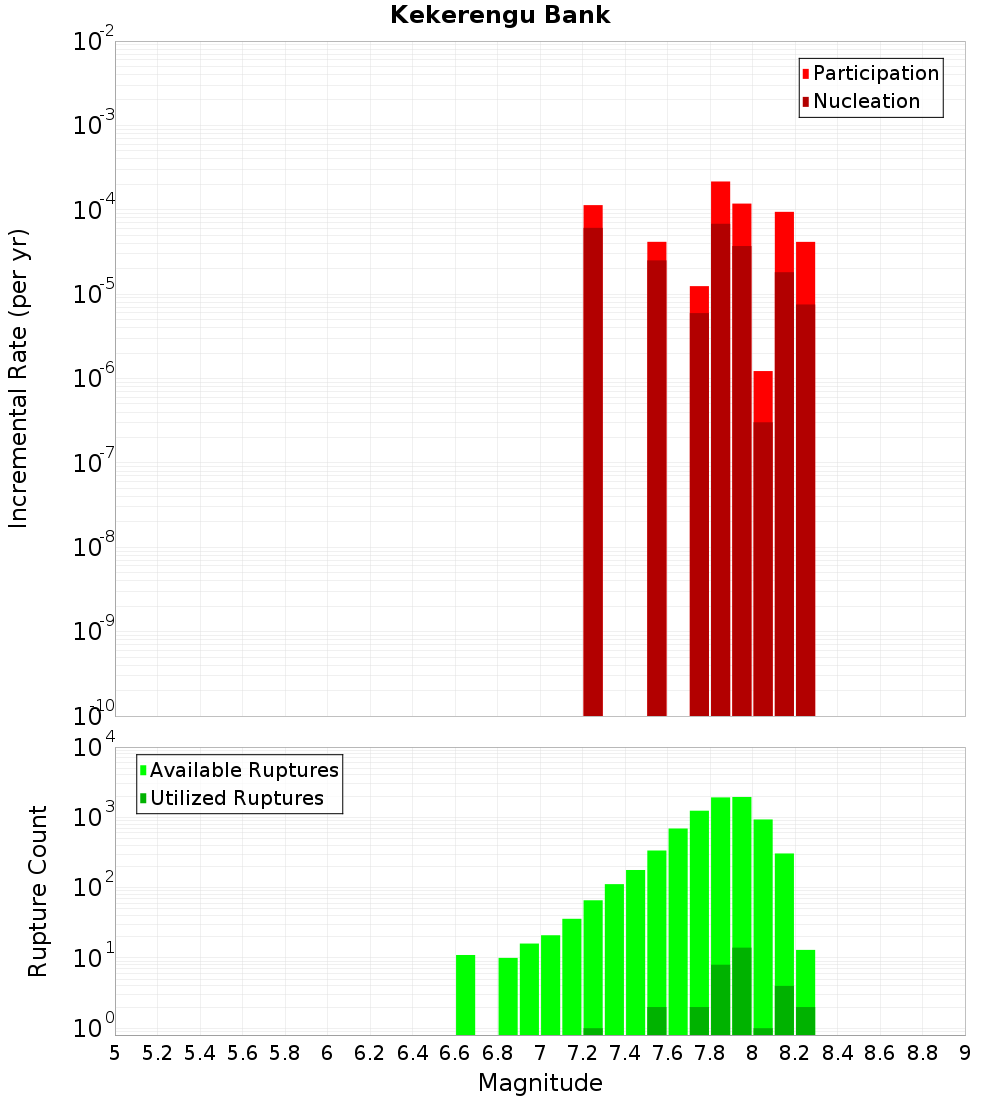

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

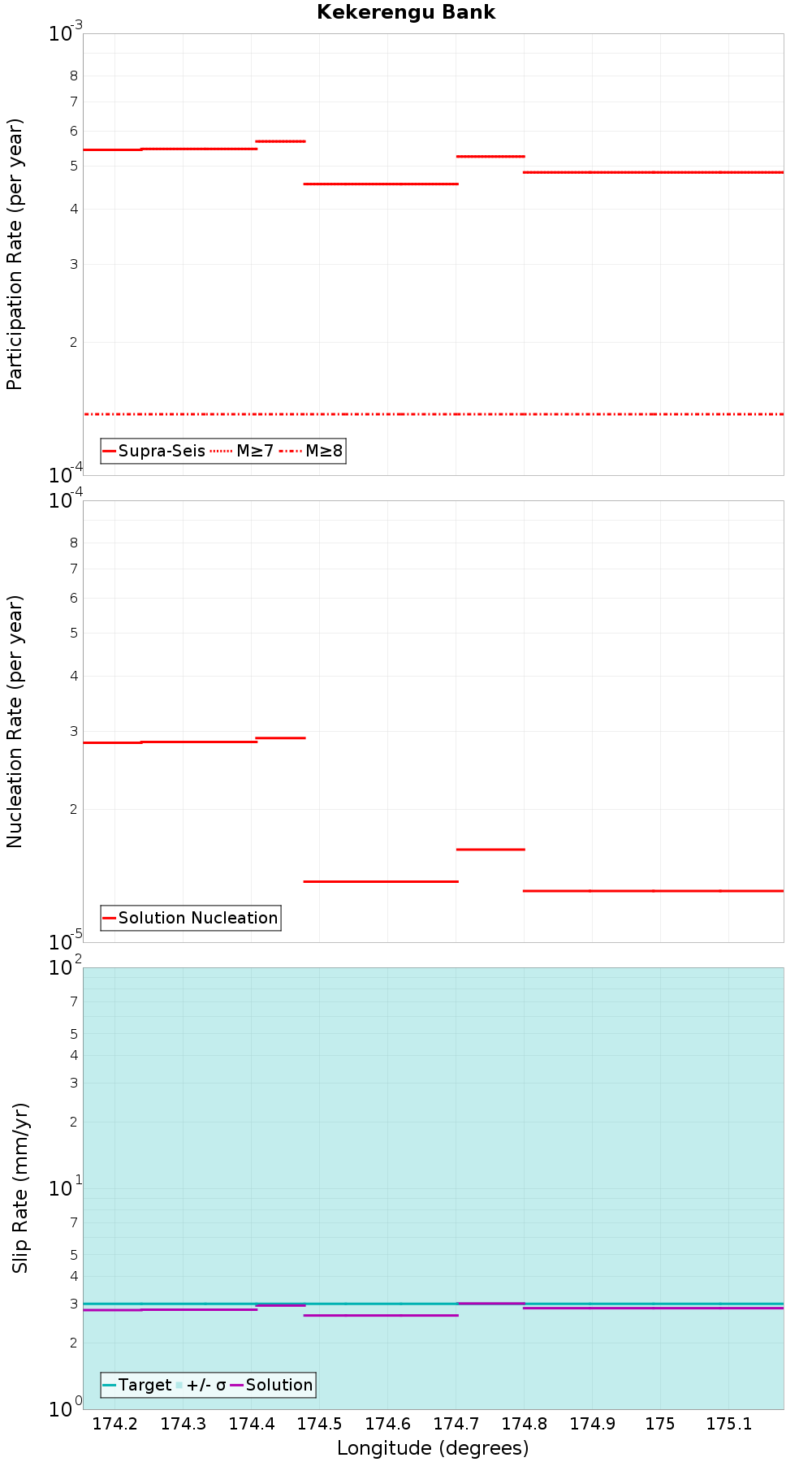

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pahaua, 0 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.08 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away

Pahaua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count2,898
Co-rupture Rate2.8813272E-4

Te Rapa 1, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate0.0

Marlborough Slope 2, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count1,064
Co-rupture Rate1.17089345E-4

Marlborough Slope 4, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count828
Co-rupture Rate1.3538987E-4

Te Rapa 2, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate0.0

Opouawe - Uruti, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count4,854
Co-rupture Rate2.109791E-4

Upper Slope, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate3.158831E-5

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate1.2486628E-5

Campbell Bank, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count1,020
Co-rupture Rate1.1211023E-4

Hope: Te Rapa, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate0.0

Marlborough Slope 3, 10.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.1348562E-4
