Mataikona Details

Property	Value
Rupture Count	3,582
Ruptures Above Sect Min Mag	3,567
Ruptures w/ Nonzero Rates	27
Magnitude Range	[6.74, 8.25]
Length Range	[18, 505] km
Total Rate	9.594344E-4 /yr
Multi-Fault Rate	9.594344E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	74

Table Of Contents

Magnitude-Frequency Distribution

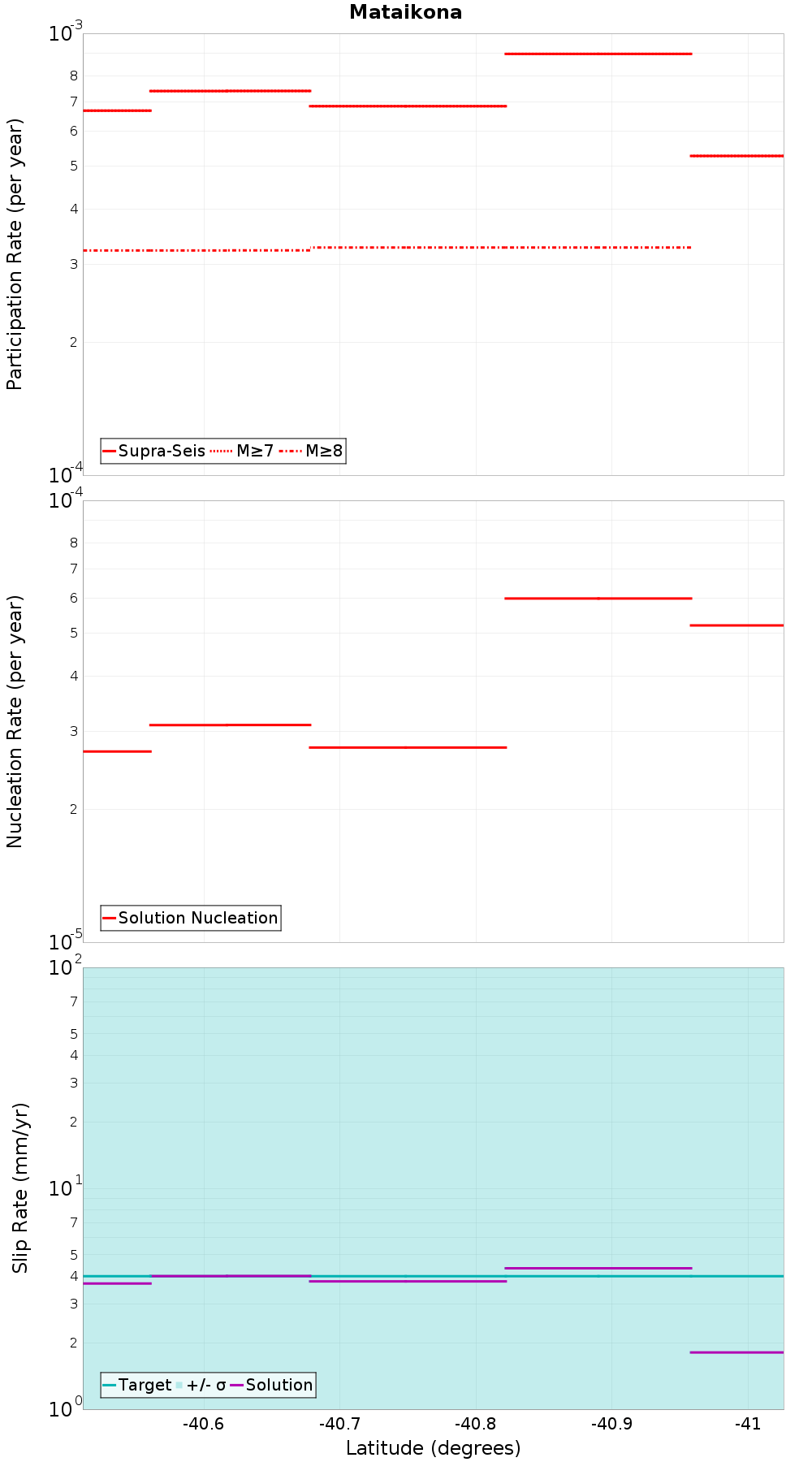

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

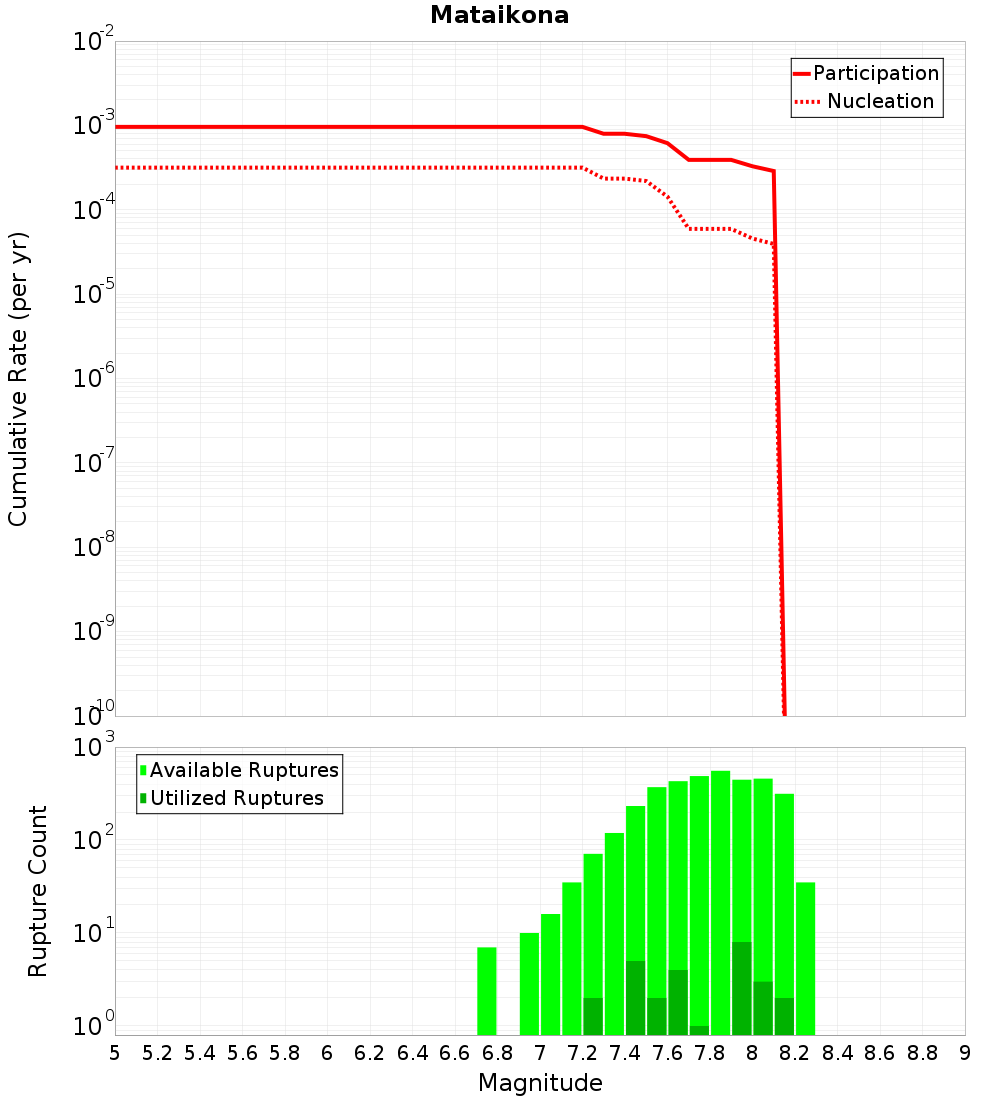

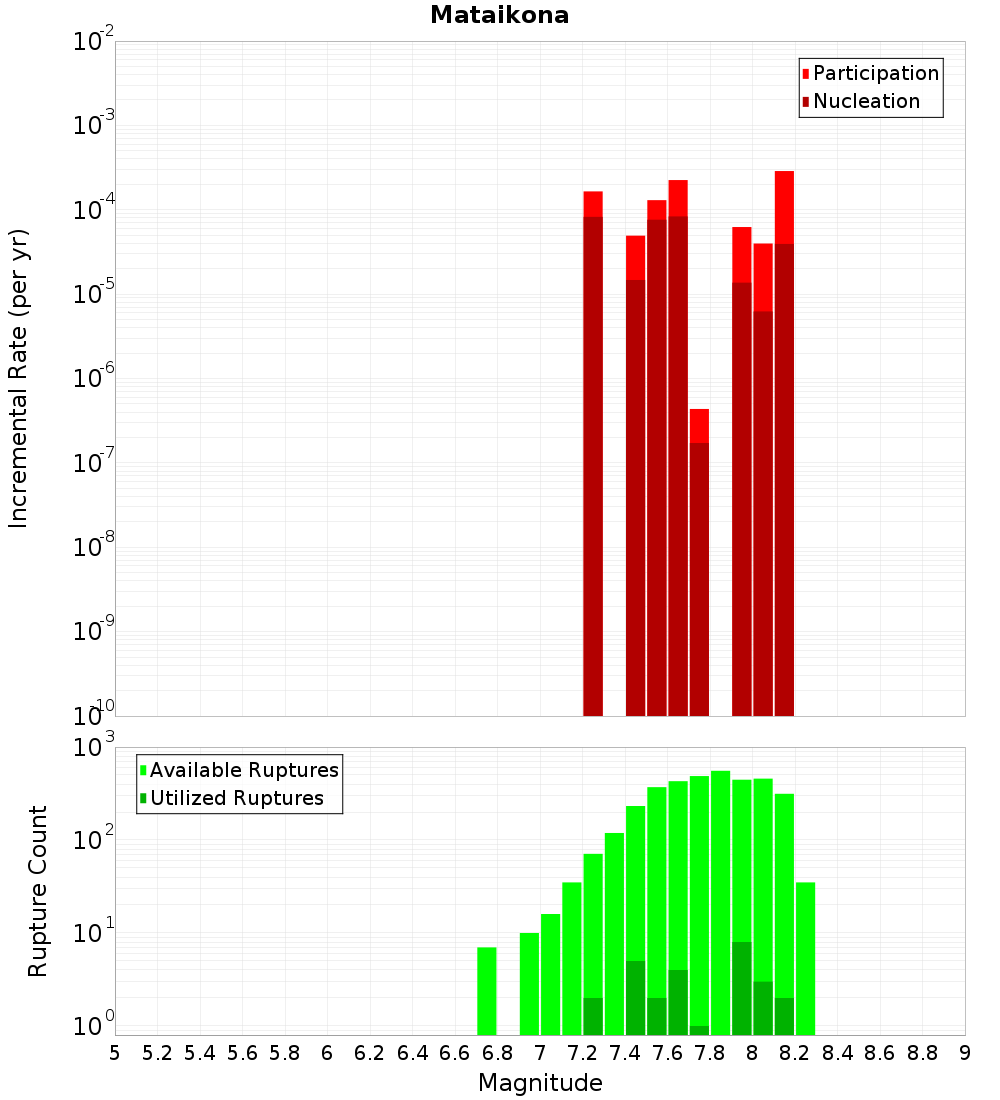

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Carterton, 0.32 km away
Kaumingi, 1.19 km away
Riversdale North, 2.18 km away
Mokonui Northeast, 3.45 km away
Waitawhiti, 4.15 km away
Mataikona East, 5.61 km away
Riversdale, 6.53 km away
Uruti Point, 11.35 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.8 km away

Carterton, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	2,153
Co-rupture Rate	4.3083855E-4

Kaumingi, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	375
Co-rupture Rate	3.2362045E-4

Riversdale North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,234
Co-rupture Rate	3.640593E-4

Mokonui Northeast, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	0.0

Waitawhiti, 4.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	2.1435224E-4

Mataikona East, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	132
Co-rupture Rate	6.1042694E-5

Riversdale, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	false
Co-rupture Count	822
Co-rupture Rate	3.274295E-4

Uruti Point, 11.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	false
Co-rupture Count	688
Co-rupture Rate	3.6629786E-5

Whareama Bank, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Pongaroa - Weber, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	9.2723414E-5
