Sugarloaf Details

PropertyValue
Rupture Count508
Ruptures Above Sect Min Mag507
Ruptures w/ Nonzero Rates4
Magnitude Range[6.96, 8.25]
Length Range[24, 498] km
Total Rate1.5682512E-5 /yr
Multi-Fault Rate1.5682512E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults62

Table Of Contents

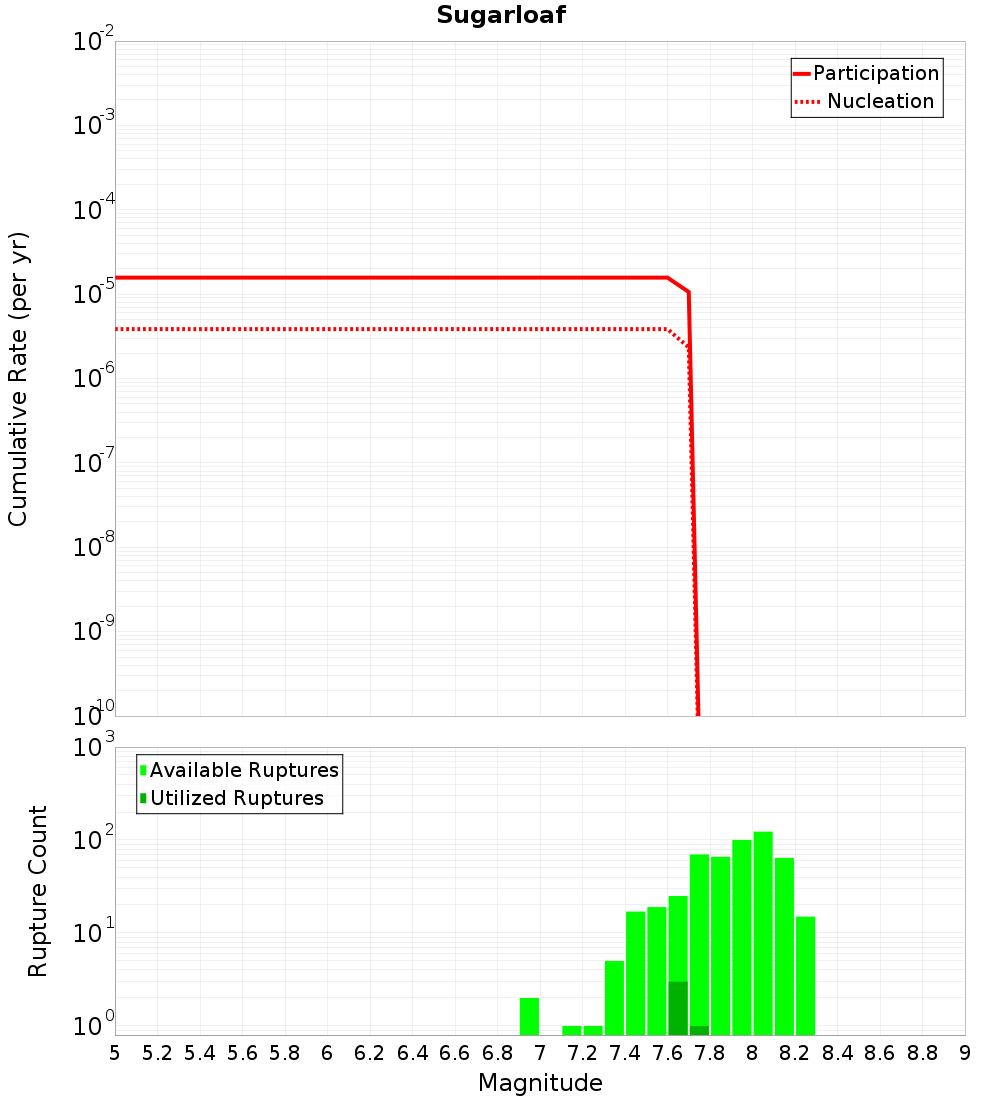

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

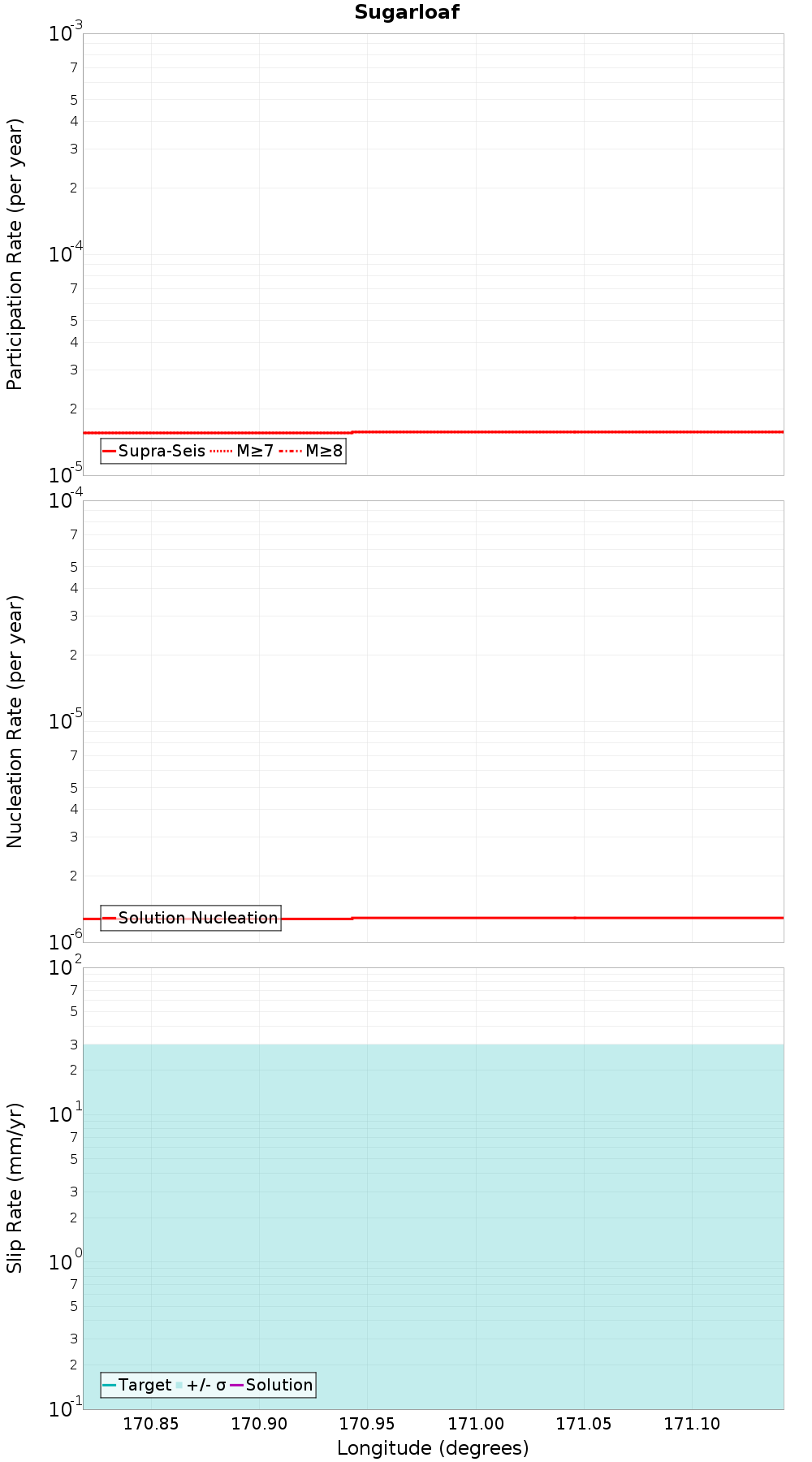

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

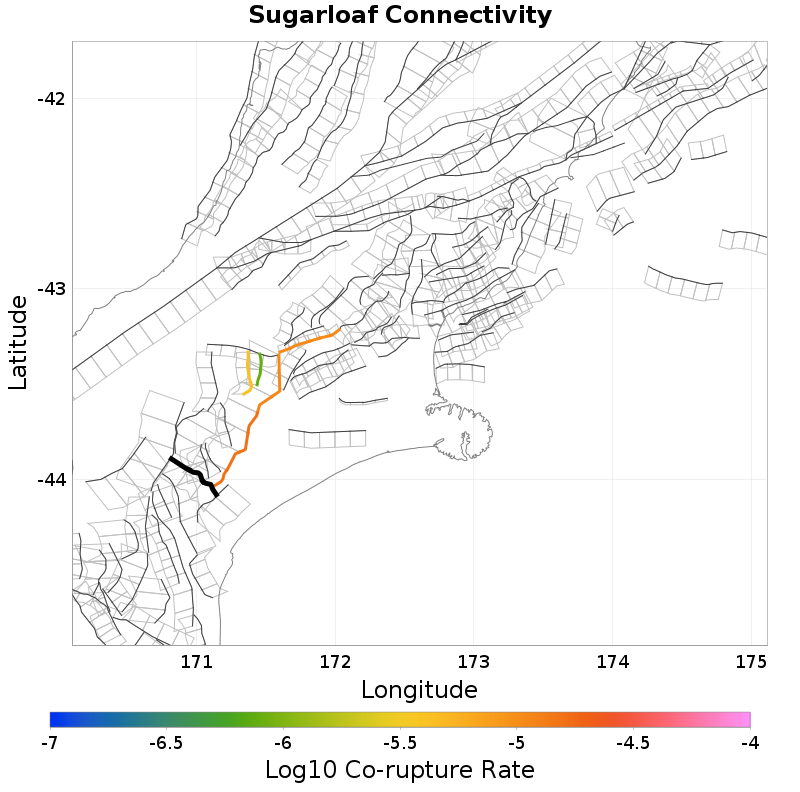

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Brothers, 0.19 km away
Hutt Peel, 0.39 km away
Irishman Creek, 0.39 km away
Fox Peak, 0.68 km away
Opawa, 0.78 km away
Rapuwai, 0.81 km away
Catherine, 2.6 km away
Ben McLeod, 4.07 km away
Edith, 8.43 km away
Albury, 13.75 km away

Brothers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate0.0

Hutt Peel, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count447
Co-rupture Rate1.5682512E-5

Irishman Creek, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Fox Peak, 0.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate0.0

Opawa, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rapuwai, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate0.0

Catherine, 2.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?true
Co-rupture Count97
Co-rupture Rate0.0

Ben McLeod, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Edith, 8.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Albury, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
