Wharanui Details
| Property | Value |
|---|---|
| Rupture Count | 2 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.71, 7.03] |
| Length Range | [17, 33] km |
| Total Rate | 1.1629631E-4 /yr |
| Multi-Fault Rate | 1.1629631E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

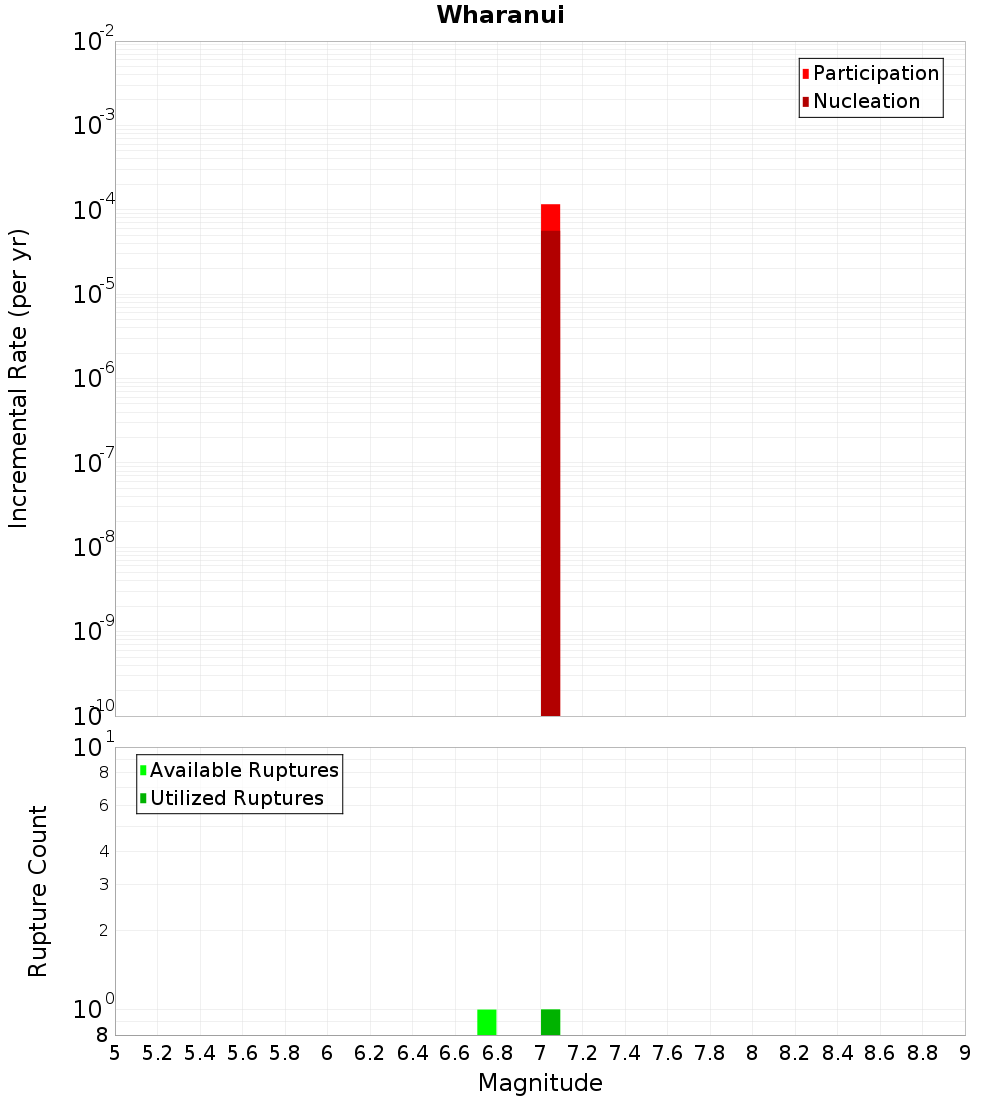

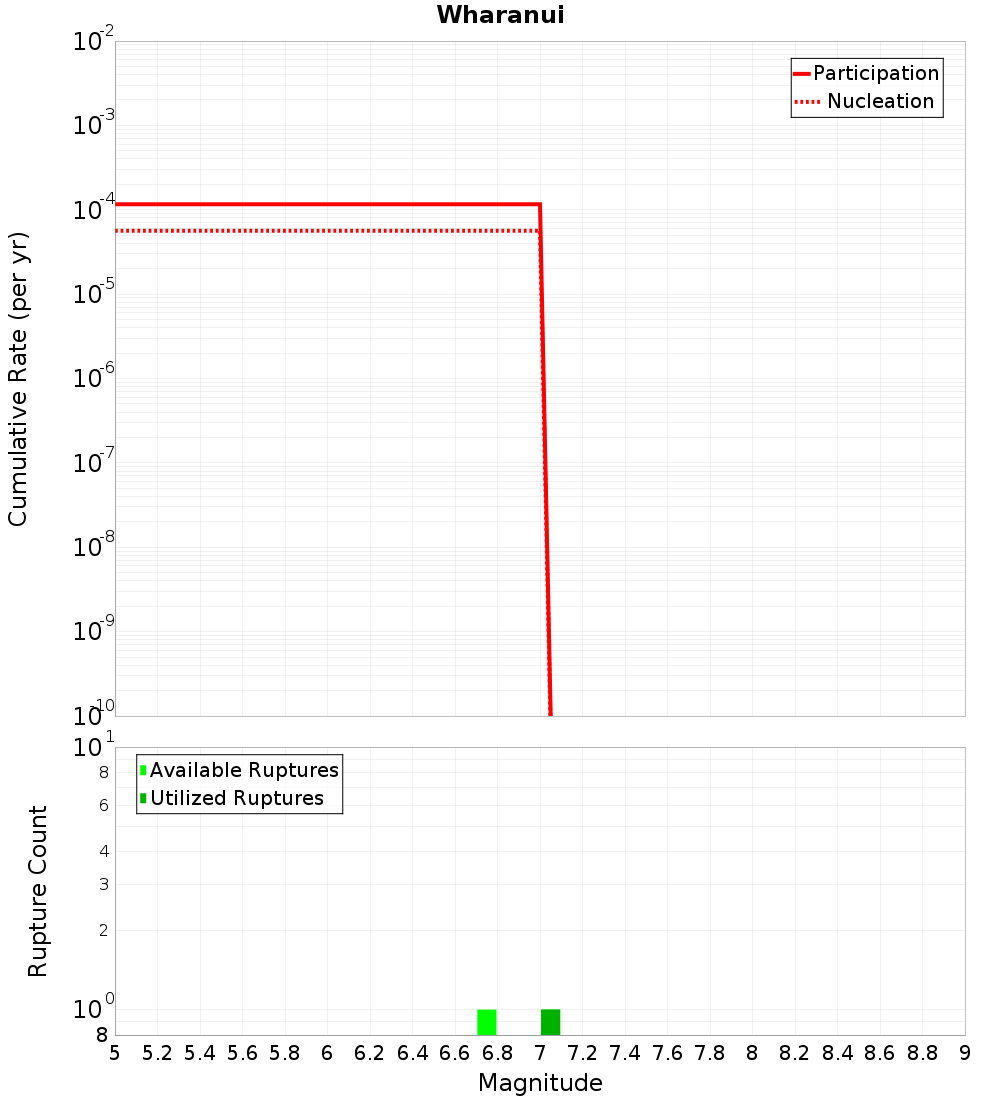

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

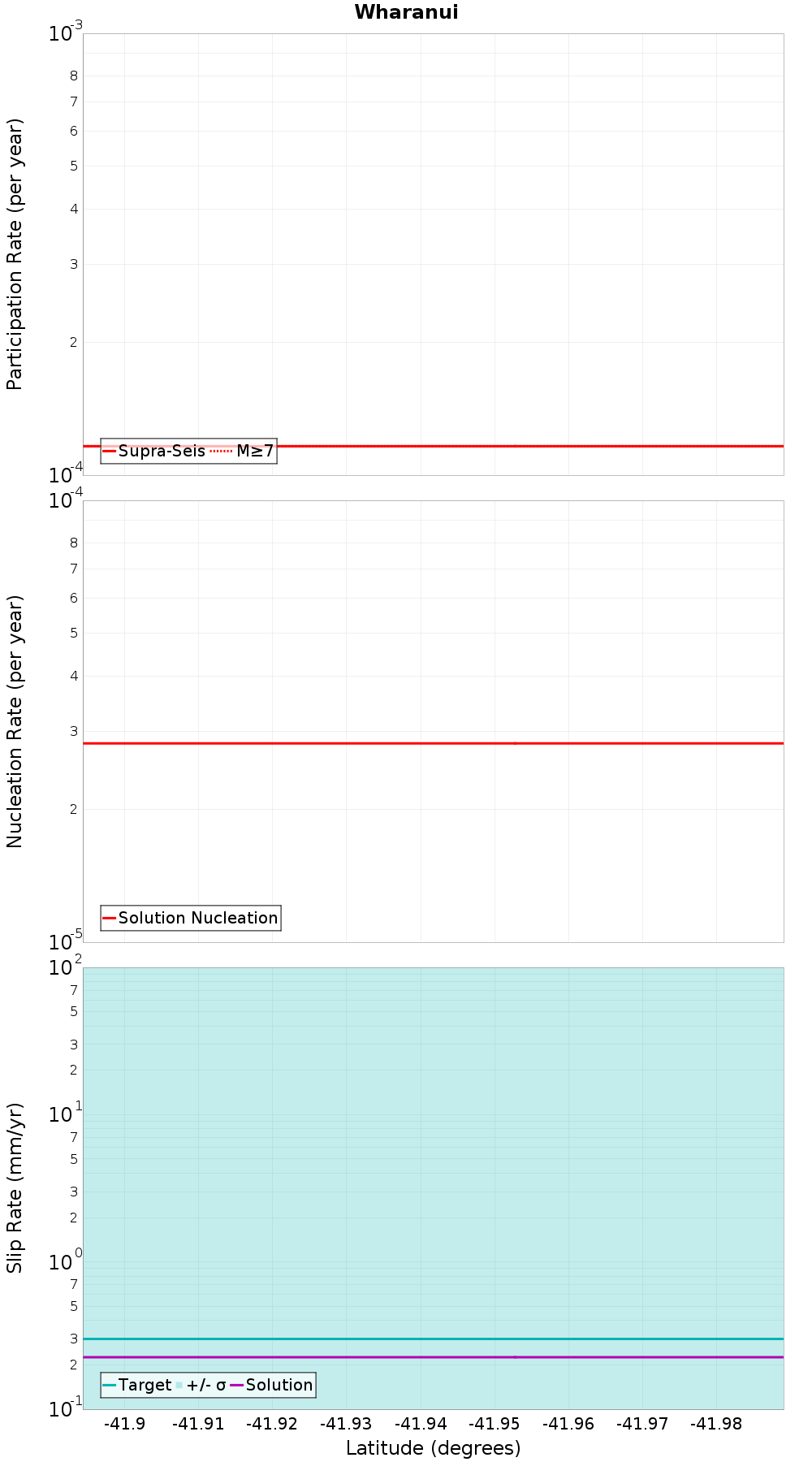

Along-Strike Values
Moment-Rates and b-Values

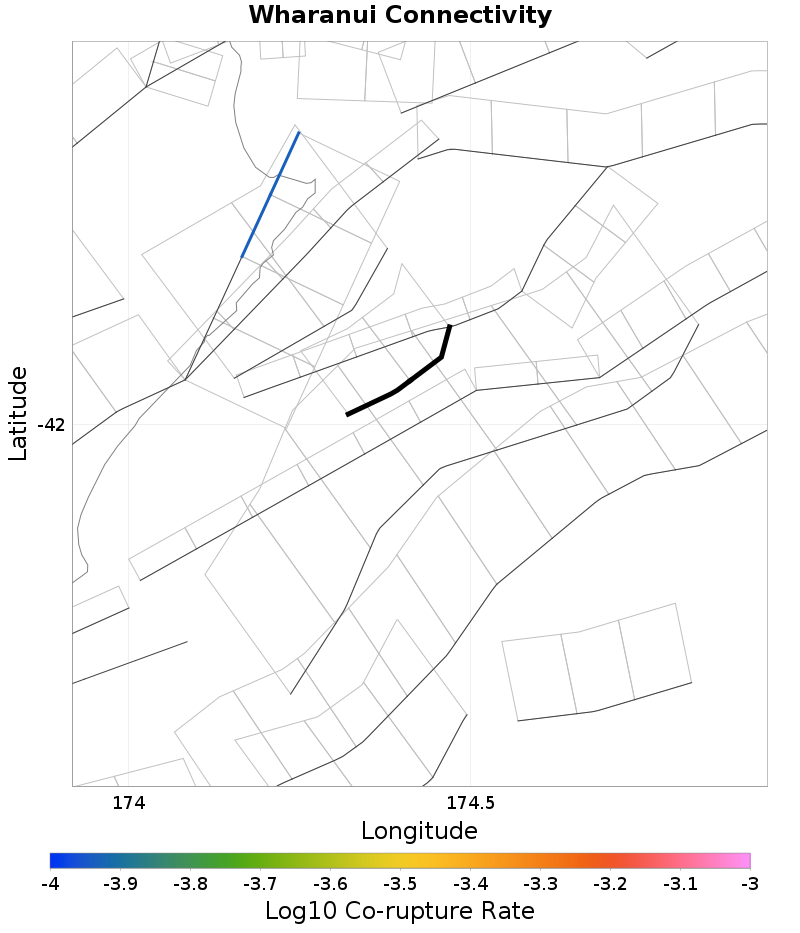

Connectivity
 |  |
|---|
Nearby Sections
Chancet, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.1629631E-4 |
Upper Slope, 1.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Te Rapa, 4.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Rapa 1, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles East 2, 9.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Bank, 9.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles, 10.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2MzYuMFk0WEdw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
