Beacon Hill Details

Property	Value
Rupture Count	5,286
Ruptures Above Sect Min Mag	5,286
Ruptures w/ Nonzero Rates	81
Magnitude Range	[7.09, 8.38]
Length Range	[20, 396] km
Total Rate	8.300894E-6 /yr
Multi-Fault Rate	8.300894E-6 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	69

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

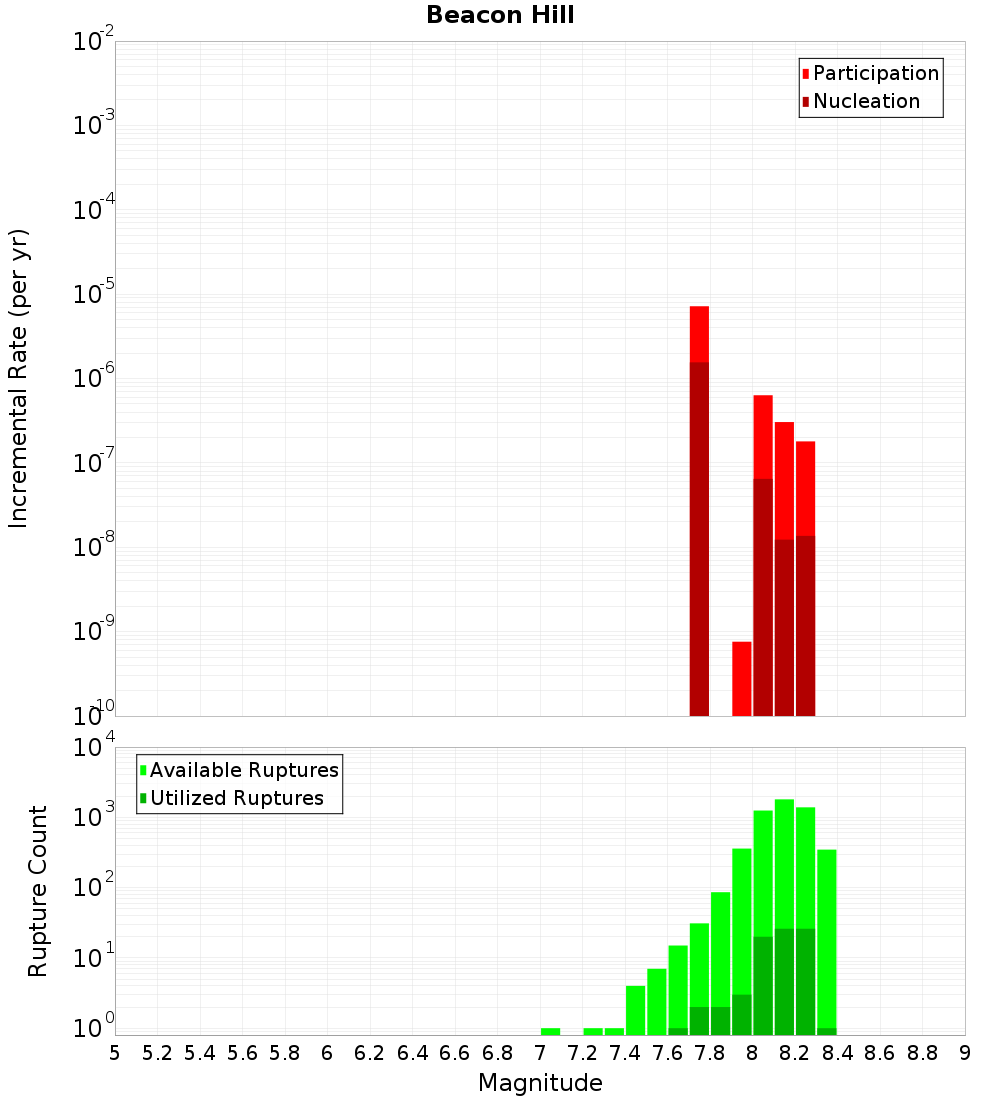

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

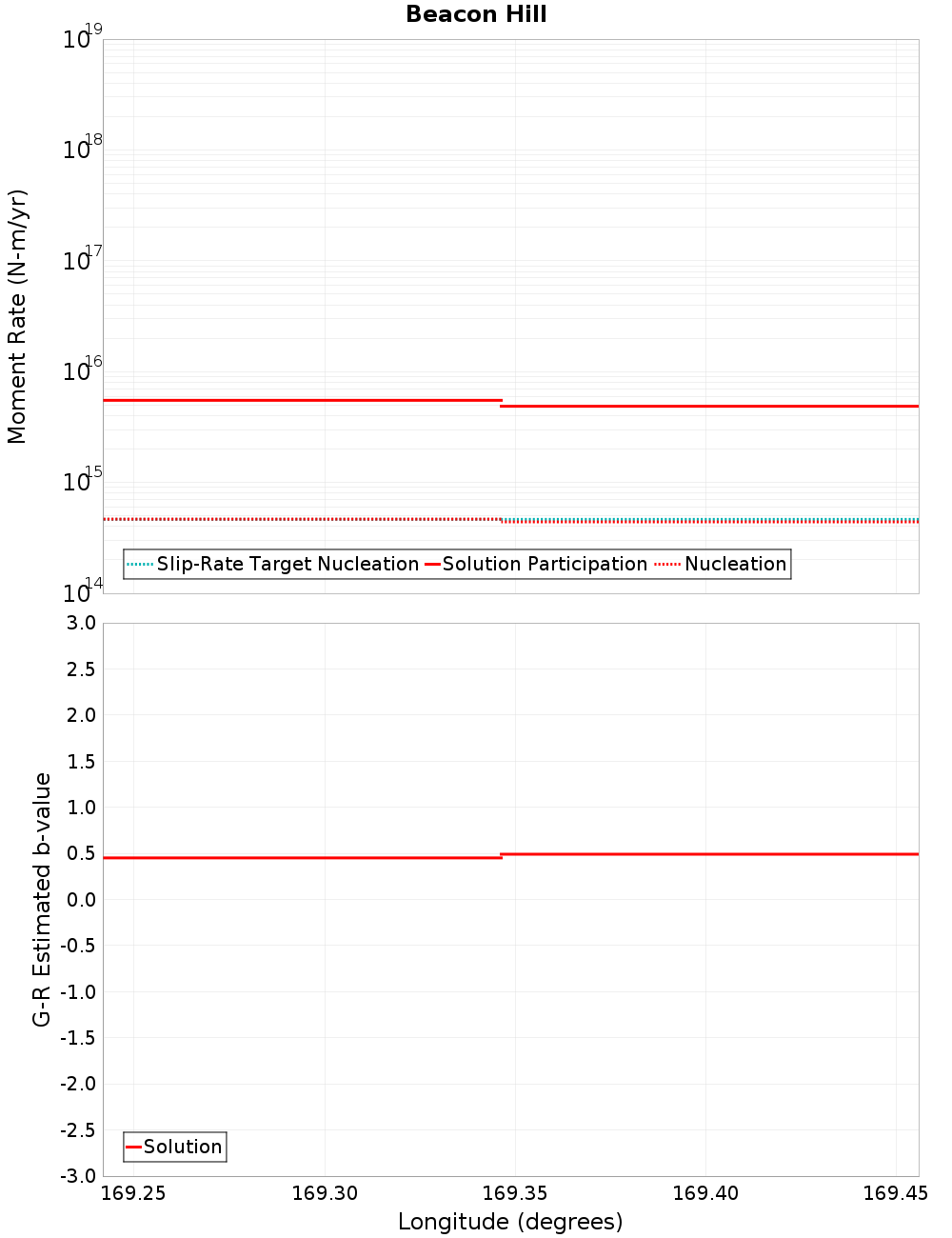

Moment-Rates and b-Values

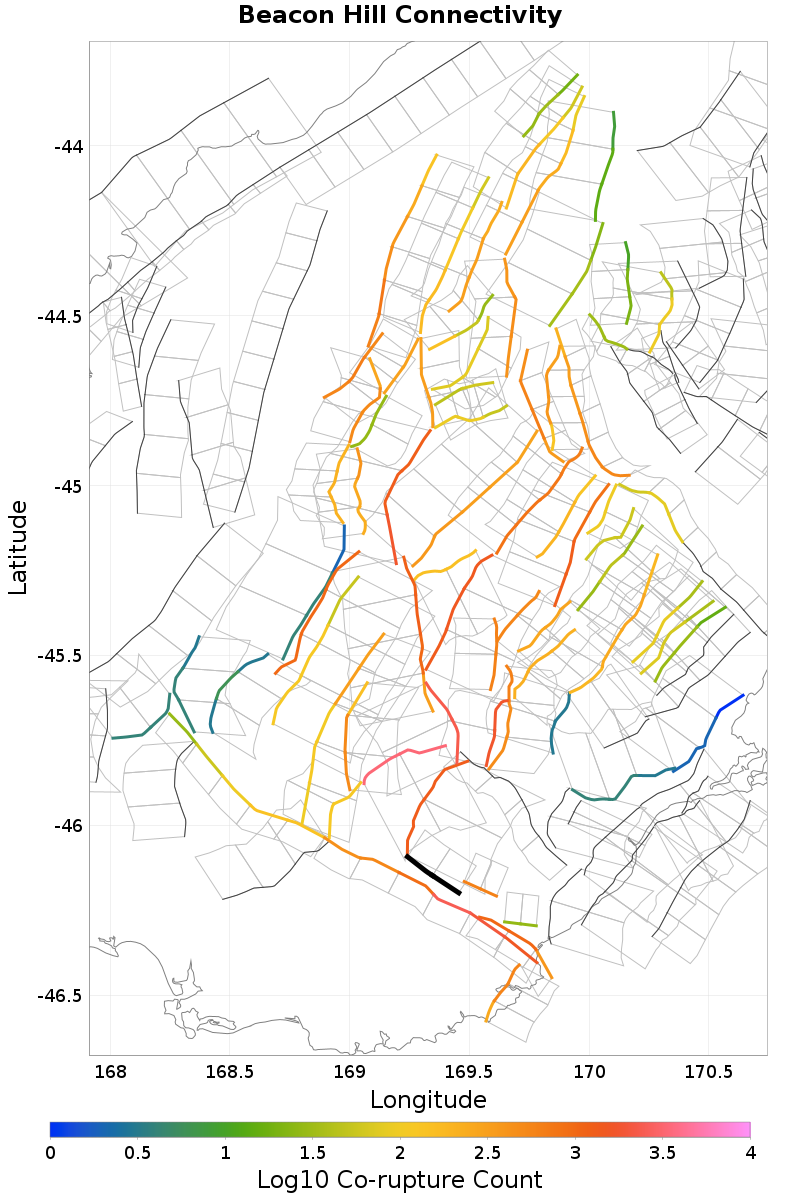

Connectivity

Nearby Sections

Fault Section
Blue Mountain, 0.18 km away
Spylaw, 0.19 km away
Clifton, 3.64 km away
Hillfoot, 4.04 km away
Little Hillfoot, 10.39 km away
Otanomomo, 13.03 km away
Wendon Valley, 13.85 km away
Tuapeka, 14.81 km away

Blue Mountain, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,317
Co-rupture Rate	1.6595527E-6

Spylaw, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	3,354
Co-rupture Rate	6.641341E-6

Clifton, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	611
Co-rupture Rate	1.643586E-16

Hillfoot, 4.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,645
Co-rupture Rate	6.446284E-16

Little Hillfoot, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,021
Co-rupture Rate	7.996215E-6

Otanomomo, 13.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	0.0

Wendon Valley, 13.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	true
Directly Connected?	true
Co-rupture Count	510
Co-rupture Rate	3.046789E-7

Tuapeka, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NDguMEZNeUJ0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
