Green Island Details
| Property | Value |
|---|---|
| Rupture Count | 24 |
| Ruptures Above Sect Min Mag | 24 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.07, 7.86] |
| Length Range | [18, 109] km |
| Total Rate | 3.032479E-4 /yr |
| Multi-Fault Rate | 8.2056344E-5 /yr (27.06%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

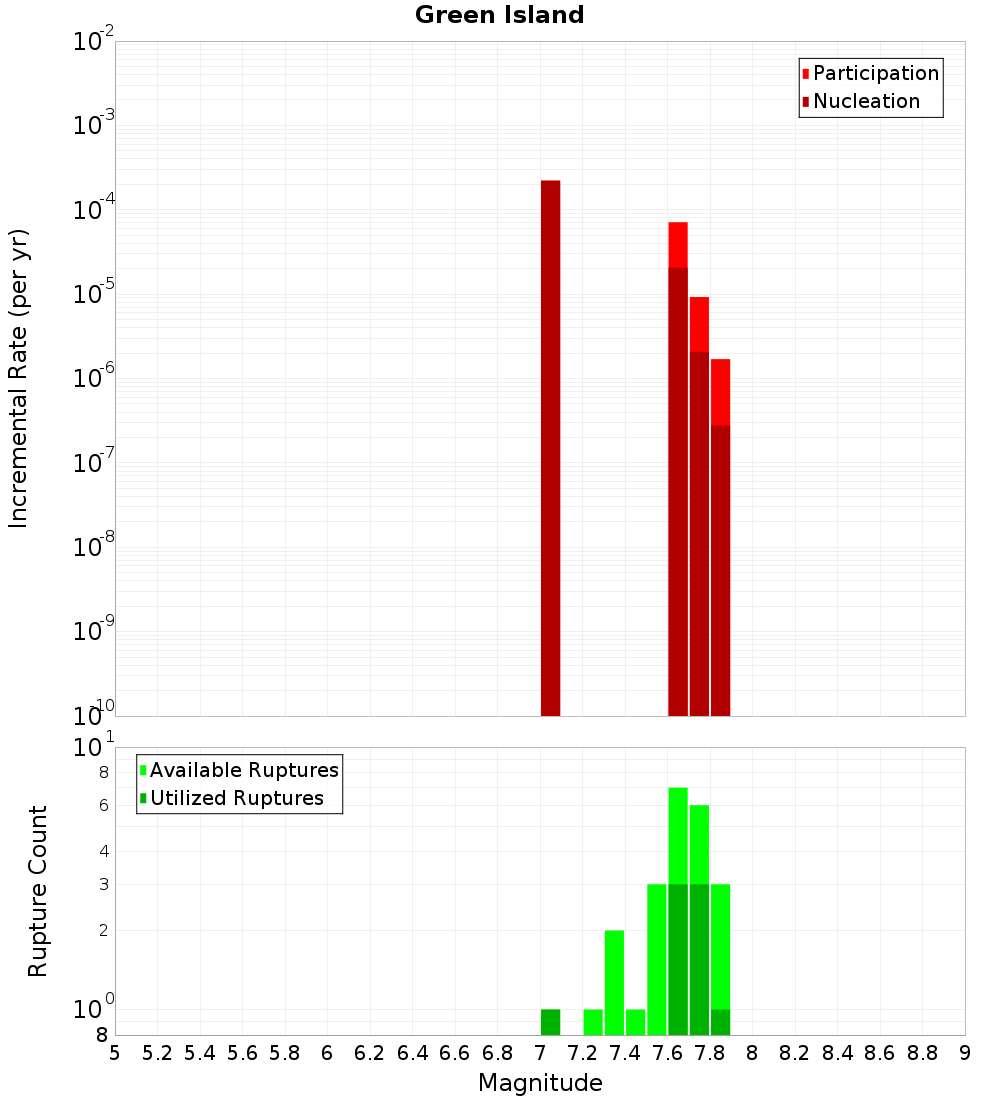

Magnitude-Frequency Distribution

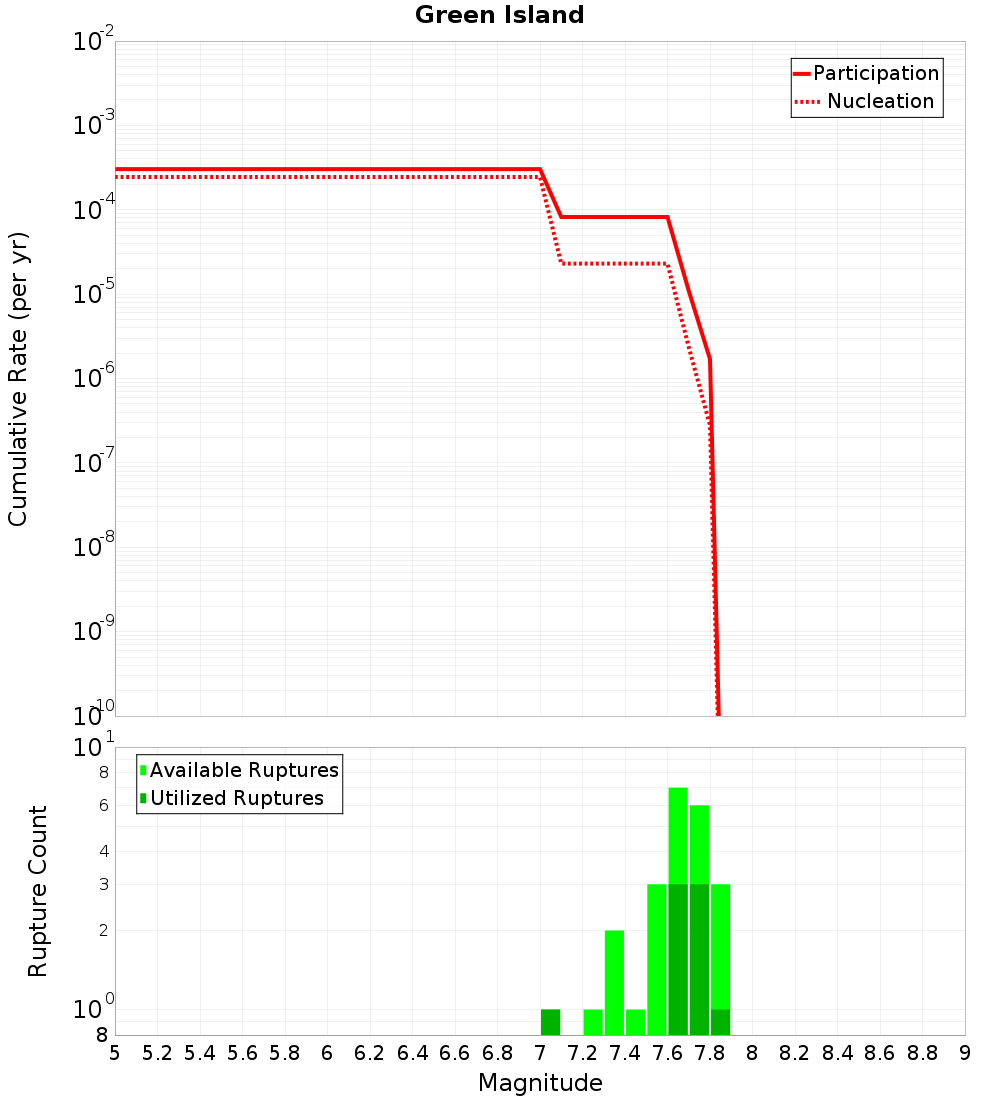

| Incremental | Cumulative |
|---|---|
 |  |

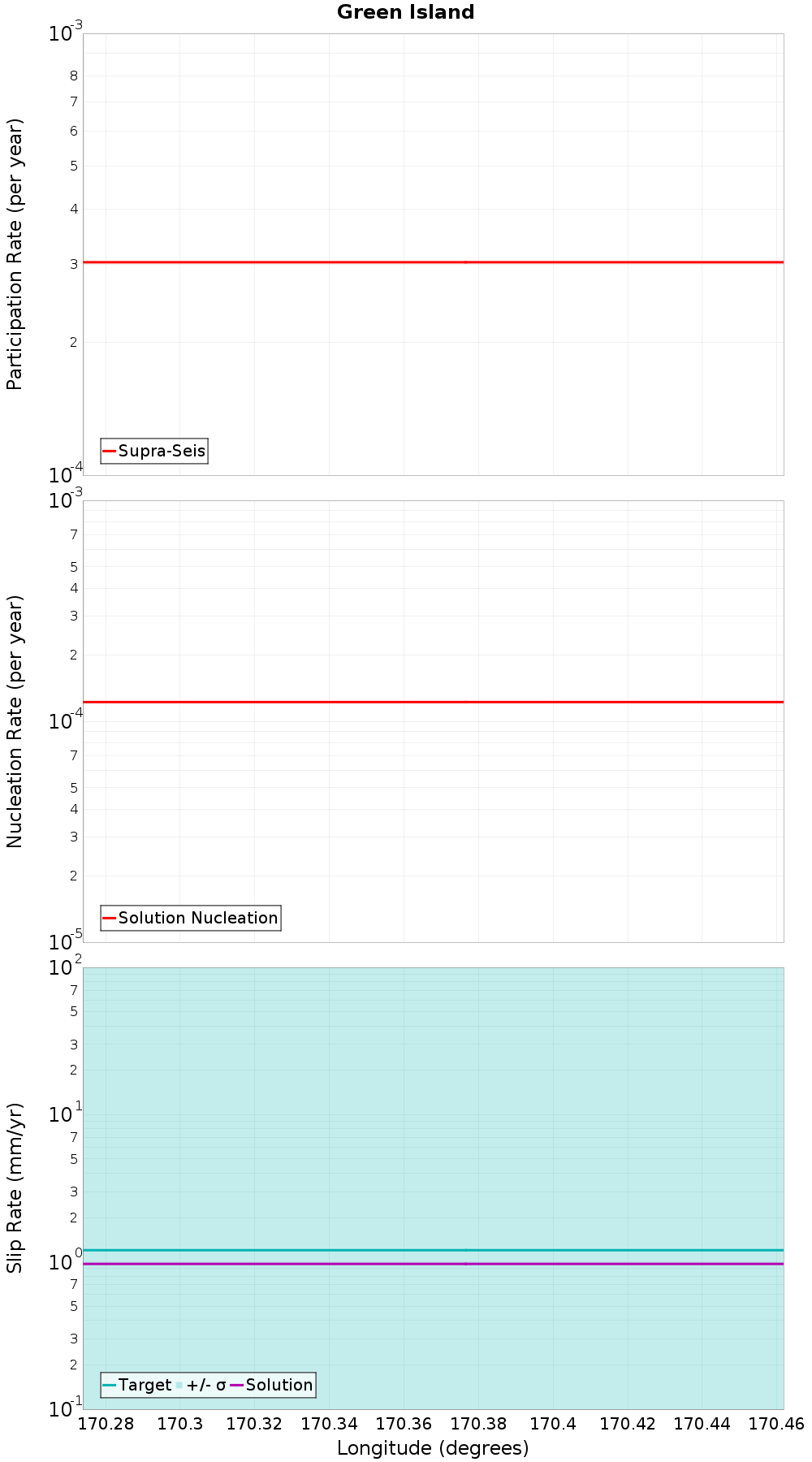

Along-Strike Values
Moment-Rates and b-Values

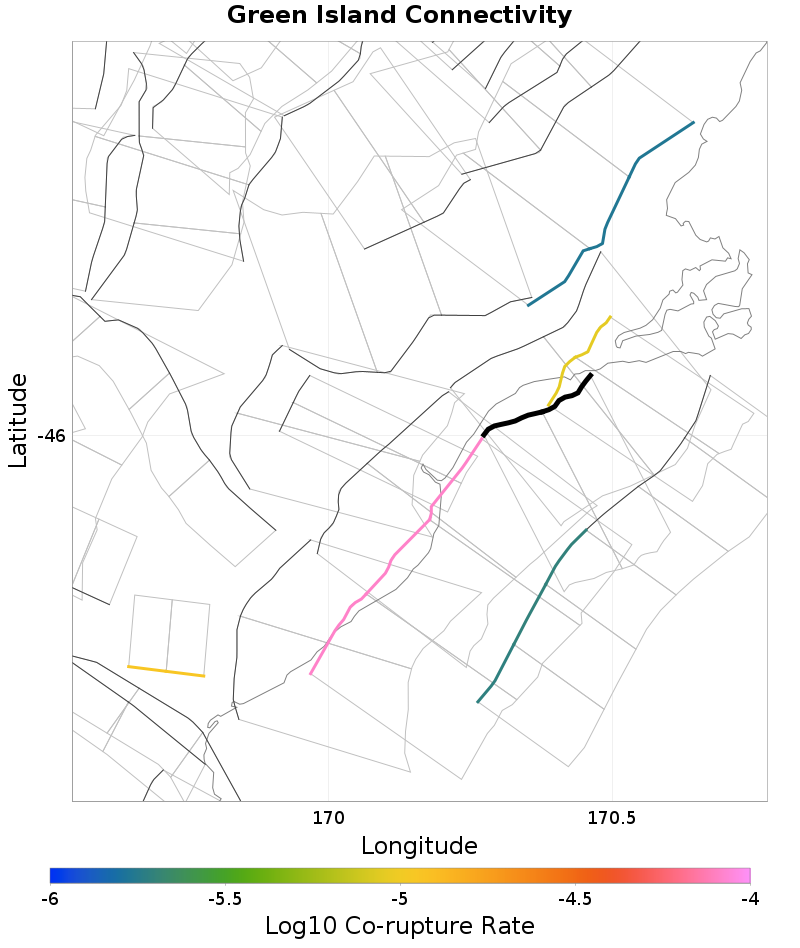

Connectivity
 |  |
|---|
Nearby Sections
Akatore, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 8.2056344E-5 |
Kaikorai, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 9.023017E-6 |
Titri Central, 5.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Titri North, 5.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Takapu, 10.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.962073E-6 |
Titri South, 10.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sliver Stream - Merton, 12.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.6969921E-6 |
Maungatua - North Taieri, 13.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
