Kairakau 2 Details
| Property | Value |
|---|---|
| Rupture Count | 63 |
| Ruptures Above Sect Min Mag | 60 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.70, 7.76] |
| Length Range | [13, 140] km |
| Total Rate | 1.9006306E-4 /yr |
| Multi-Fault Rate | 1.9006306E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

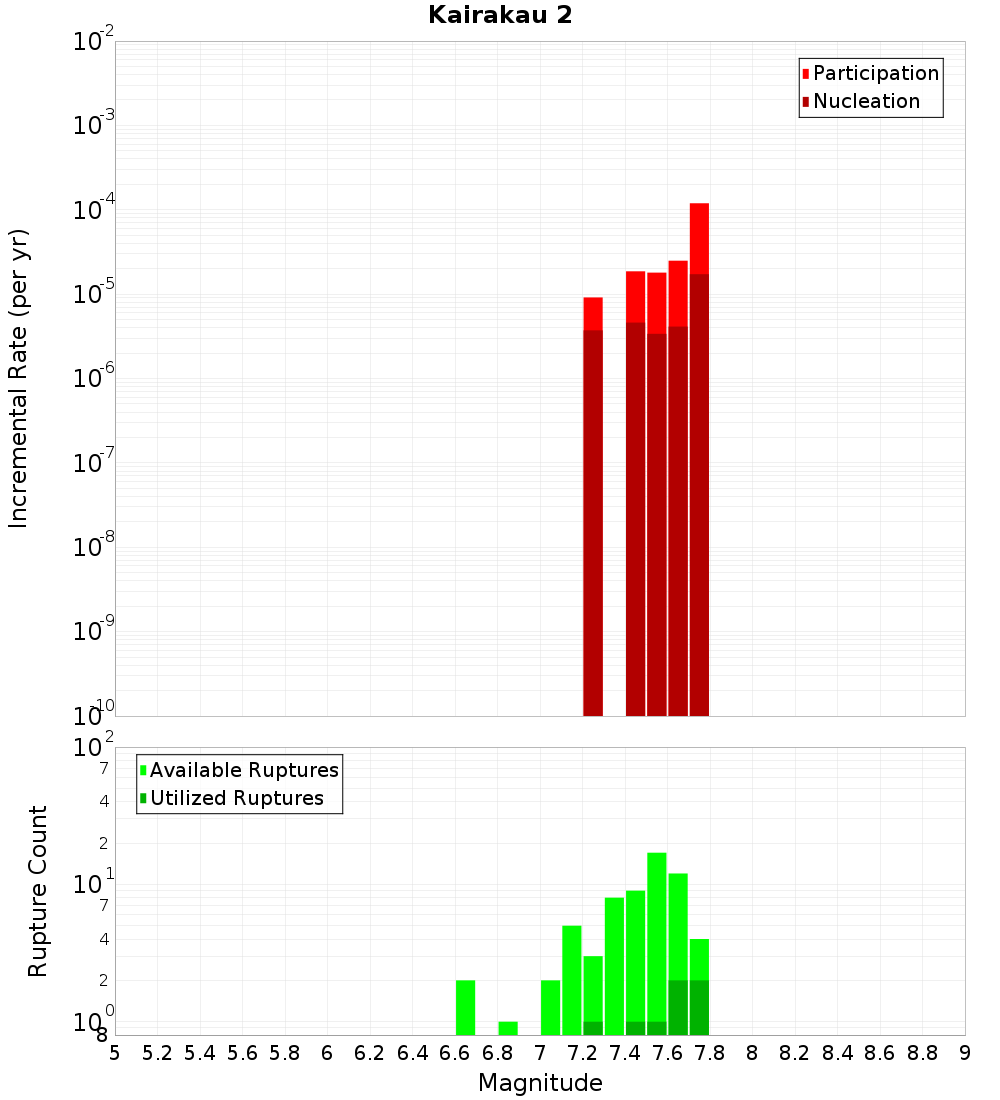

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

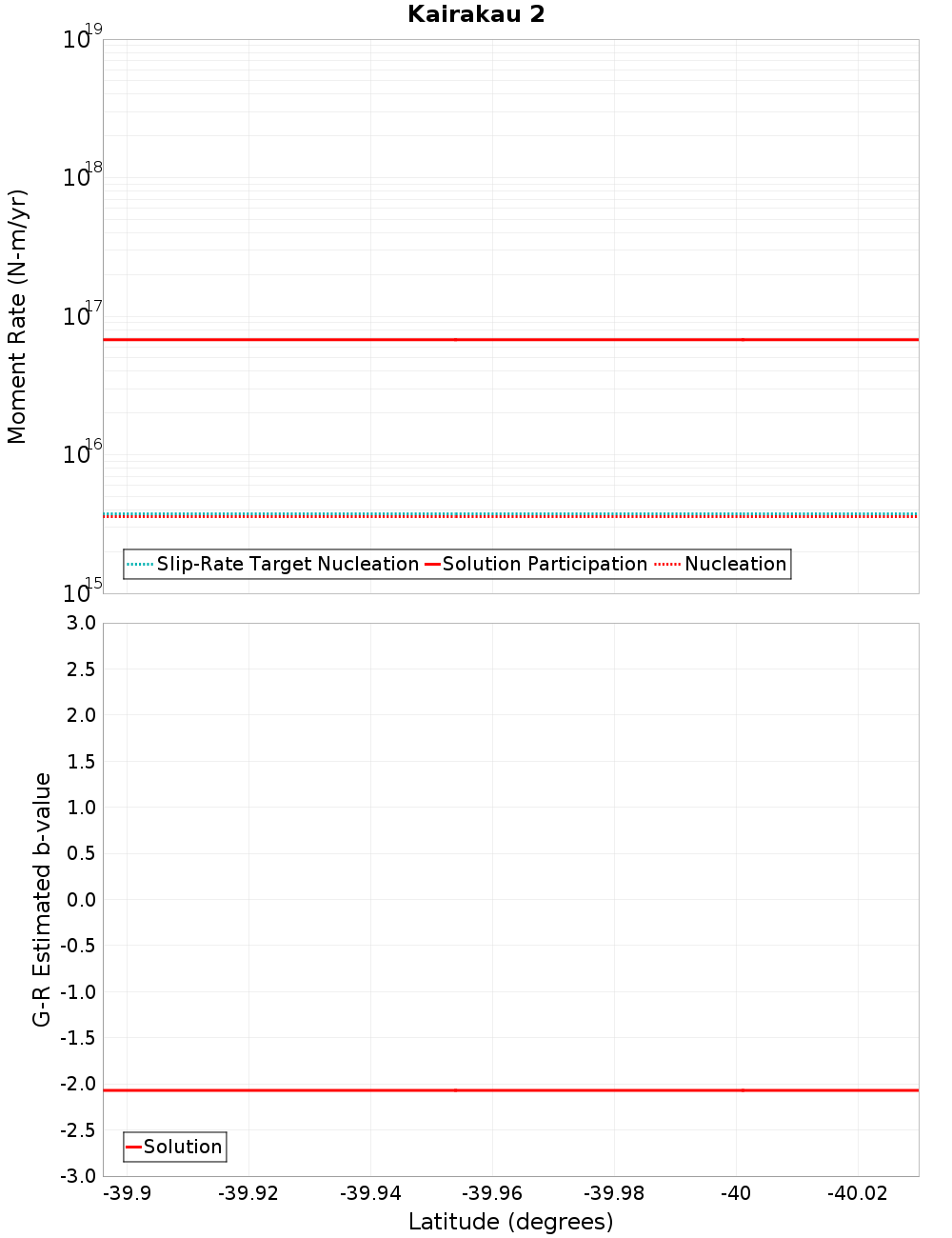

Moment-Rates and b-Values

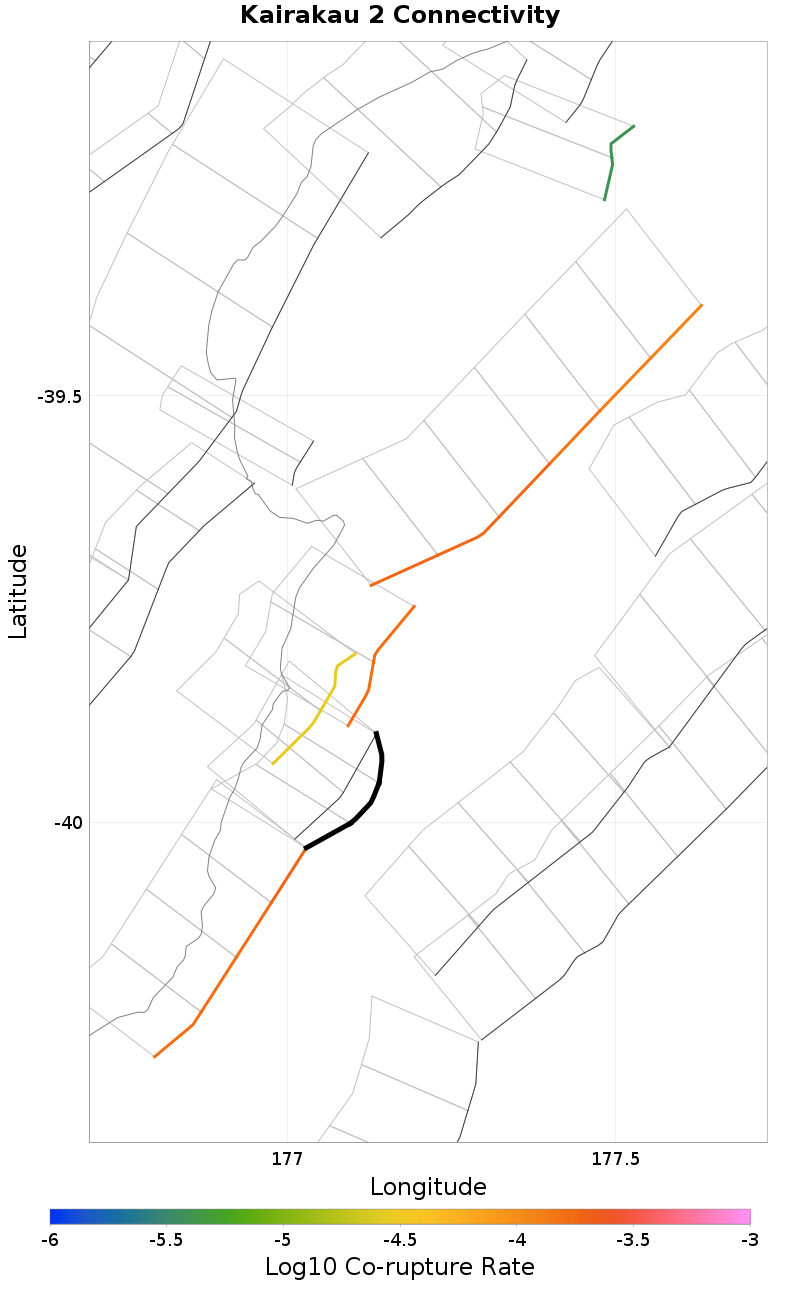

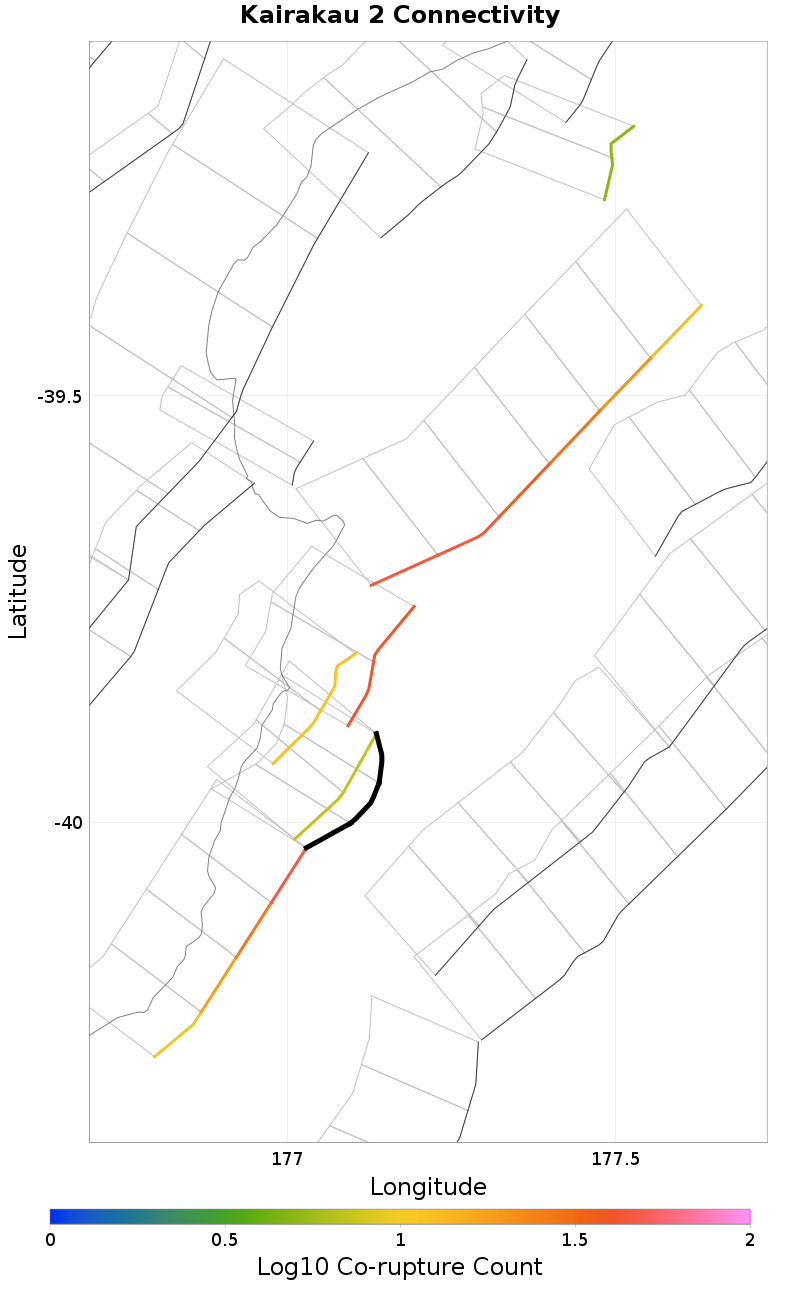

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau South, 0 km away |
| Kairakau North, 0 km away |
| Waimarama 3 & 4, 2.38 km away |
| Waimarama 1 & 2, 4.99 km away |
| Motu o Kura Ridge, 13.65 km away |
Kairakau South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 1.9006306E-4 |
Kairakau North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Waimarama 3 & 4, 2.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 41 |
| Co-rupture Rate | 1.6228517E-4 |
Waimarama 1 & 2, 4.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 2.7777887E-5 |
Motu o Kura Ridge, 13.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
