Ohariu South 2 Details

PropertyValue
Rupture Count6,547
Ruptures Above Sect Min Mag6,545
Ruptures w/ Nonzero Rates12
Magnitude Range[6.53, 8.71]
Length Range[7, 1,132] km
Total Rate2.3109562E-4 /yr
Multi-Fault Rate2.3109562E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults79

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

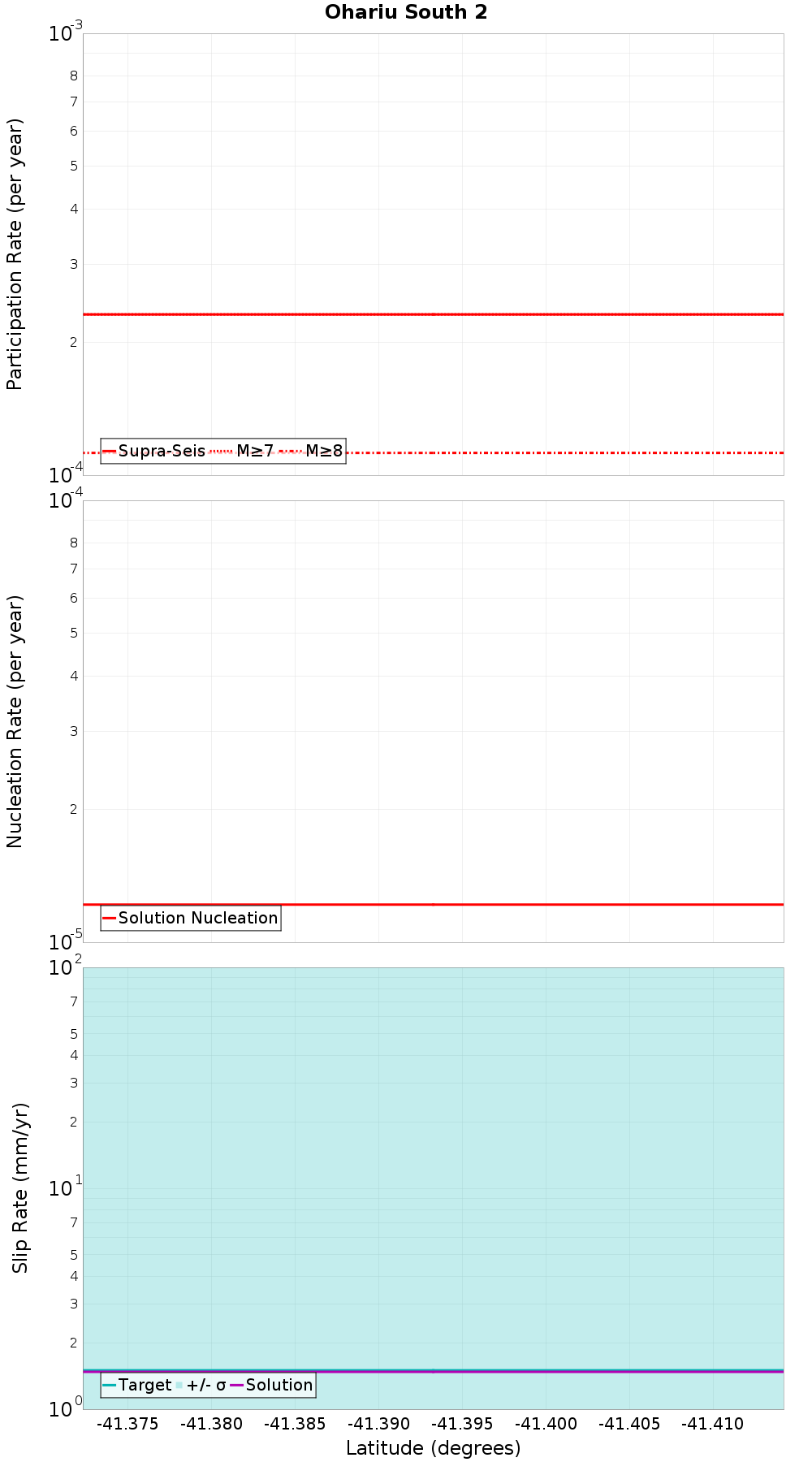

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

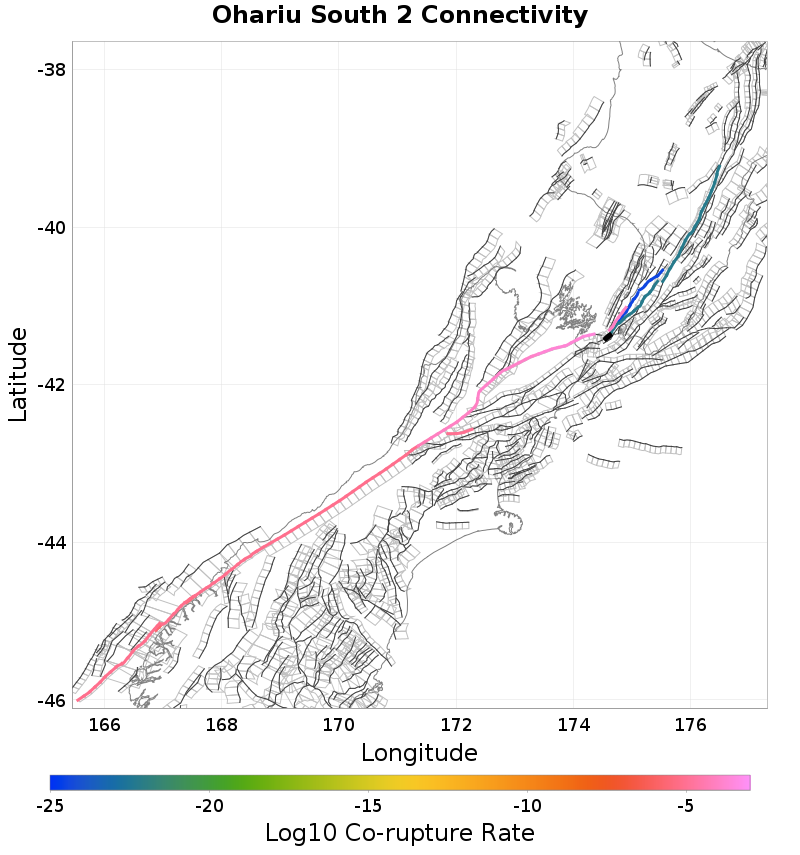

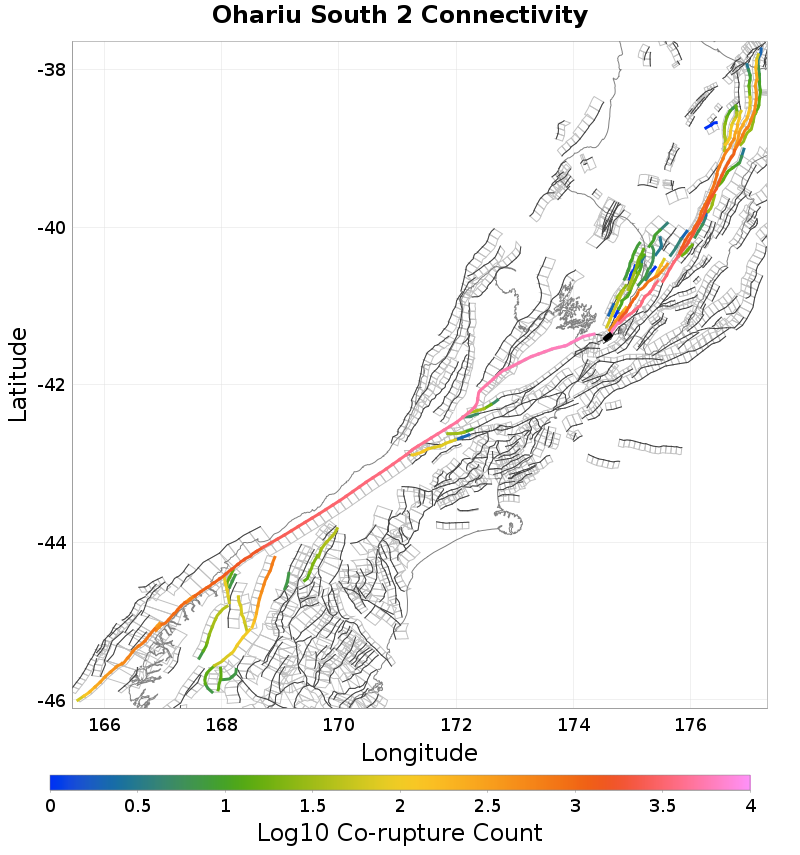

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohariu South 1, 0 km away
Ohariu, 0 km away
Shepherds Gully - Mana, 3.29 km away
Wellington Hutt Valley: 2, 3.71 km away
Wellington Hutt Valley: 1, 3.83 km away
Pukerua - Shepherds Gully: 1, 4.02 km away
Wairau 3, 4.72 km away
Wellington Hutt Valley: 3, 6.81 km away
Okupe 1, 9.01 km away
Pukerua - Shepherds Gully: 2, 10.73 km away
Wairau 2, 12.02 km away
Aotea - Evans Bay, 12.23 km away
Cloudy 3, 12.76 km away

Ohariu South 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?true
Directly Connected?true
Co-rupture Count5,741
Co-rupture Rate5.9630785E-23

Shepherds Gully - Mana, 3.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?true
Directly Connected?true
Co-rupture Count630
Co-rupture Rate9.3501396E-5

Wairau 3, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?true
Directly Connected?false
Co-rupture Count447
Co-rupture Rate9.3501396E-5

Wairau 2, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?true
Directly Connected?true
Co-rupture Count6,137
Co-rupture Rate2.3109562E-4

Aotea - Evans Bay, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NTkuMENyUTVt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
