Cloudy 3 Details

PropertyValue
Rupture Count3,750
Ruptures Above Sect Min Mag3,749
Ruptures w/ Nonzero Rates165
Magnitude Range[6.52, 8.48]
Length Range[10, 1,082] km
Total Rate3.593126E-4 /yr
Multi-Fault Rate3.593126E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults90

Table Of Contents

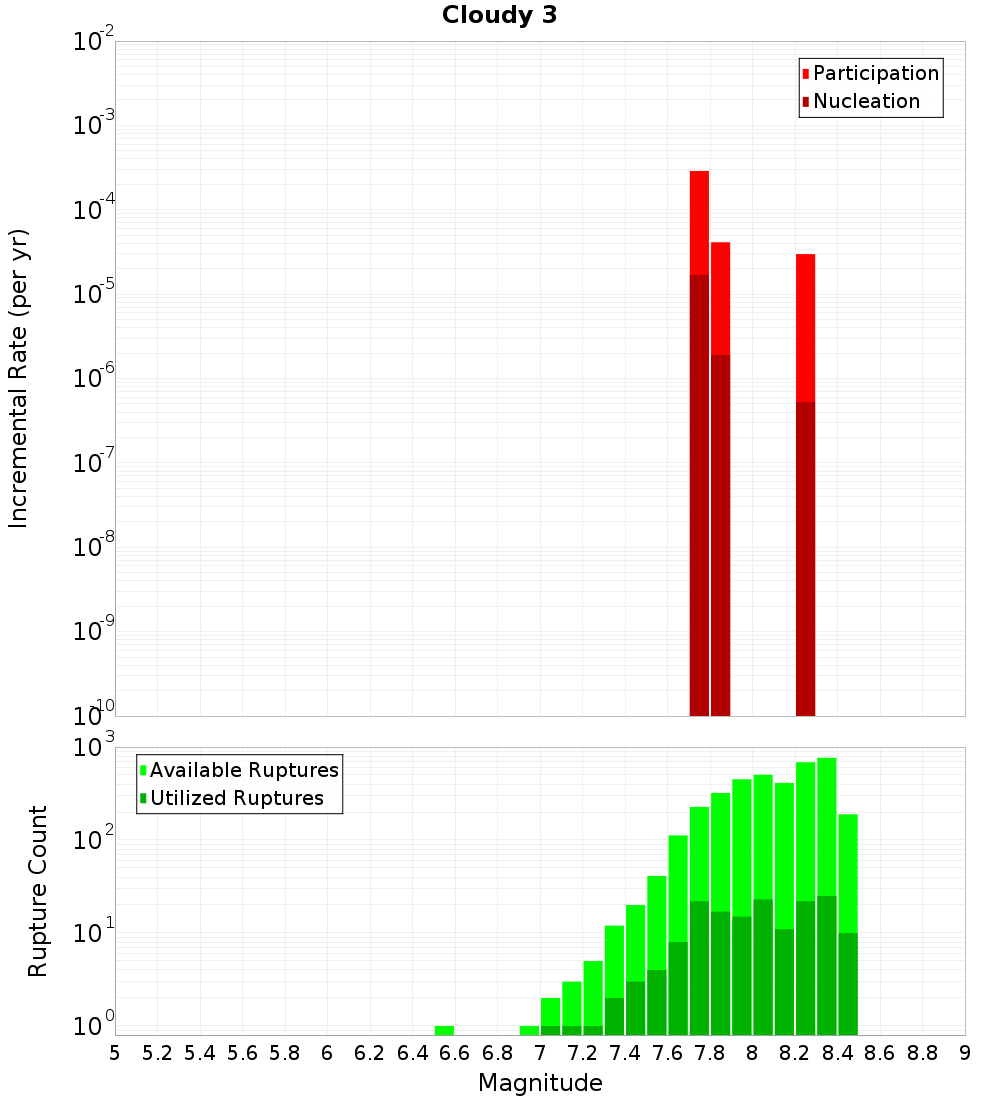

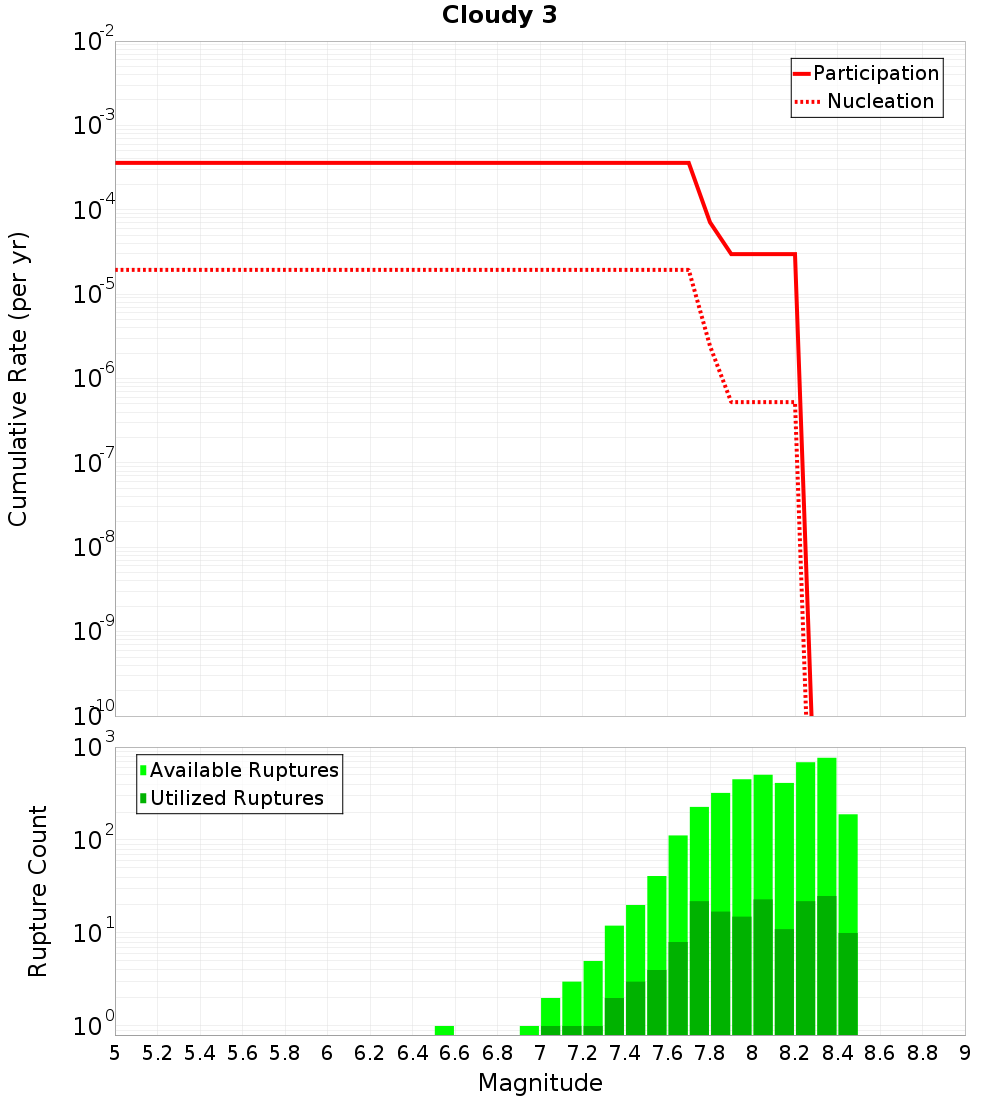

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

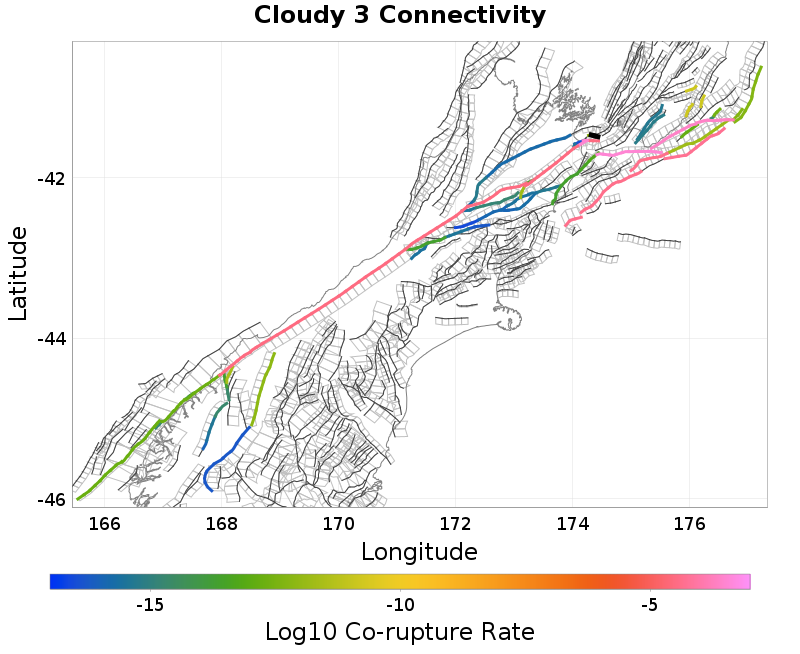

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cloudy 2, 0 km awayVernon 2, 7.26 km away
Wairarapa: Needles, 0.29 km awayBooBoo, 7.74 km away
Ohariu South 1, 2.61 km awayNeedles, 9.38 km away
Cloudy 1, 2.84 km awayWairau 2, 10.8 km away
Vernon 3, 4.14 km awayWairau 3, 11.14 km away
Vernon 4, 5.07 km awayNeedles East 2, 11.74 km away
Awatere: Northeast 2, 5.28 km awayOhariu South 2, 12.76 km away
Wellington Hutt Valley: 1, 6.71 km awayVernon 1, 13.54 km away

Cloudy 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate8.8613166E-13

Wairarapa: Needles, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 1, 2.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Vernon 3, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.883136E-4

Vernon 4, 5.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate2.981249E-5

Awatere: Northeast 2, 5.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?true
Co-rupture Count3,521
Co-rupture Rate3.181261E-4

Wellington Hutt Valley: 1, 6.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate3.9166668E-17

BooBoo, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?true
Co-rupture Count3,229
Co-rupture Rate3.593126E-4

Needles, 9.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate5.3584775E-14

Wairau 2, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 11.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjAuMFlSZkV0
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate3.5745643E-16
