Himatangi Details

PropertyValue
Rupture Count162
Ruptures Above Sect Min Mag162
Ruptures w/ Nonzero Rates15
Magnitude Range[7.11, 7.88]
Length Range[30, 220] km
Total Rate5.123476E-5 /yr
Multi-Fault Rate5.123476E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

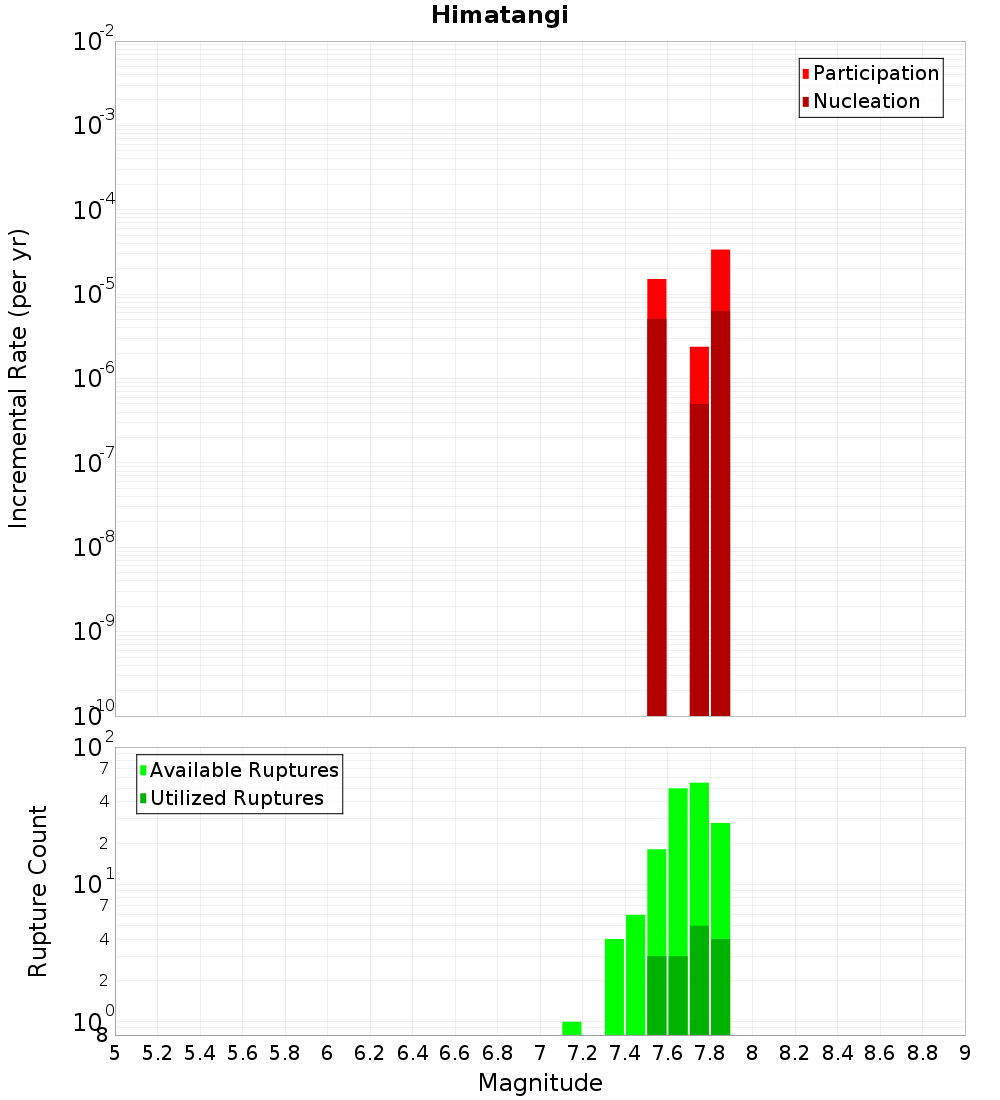

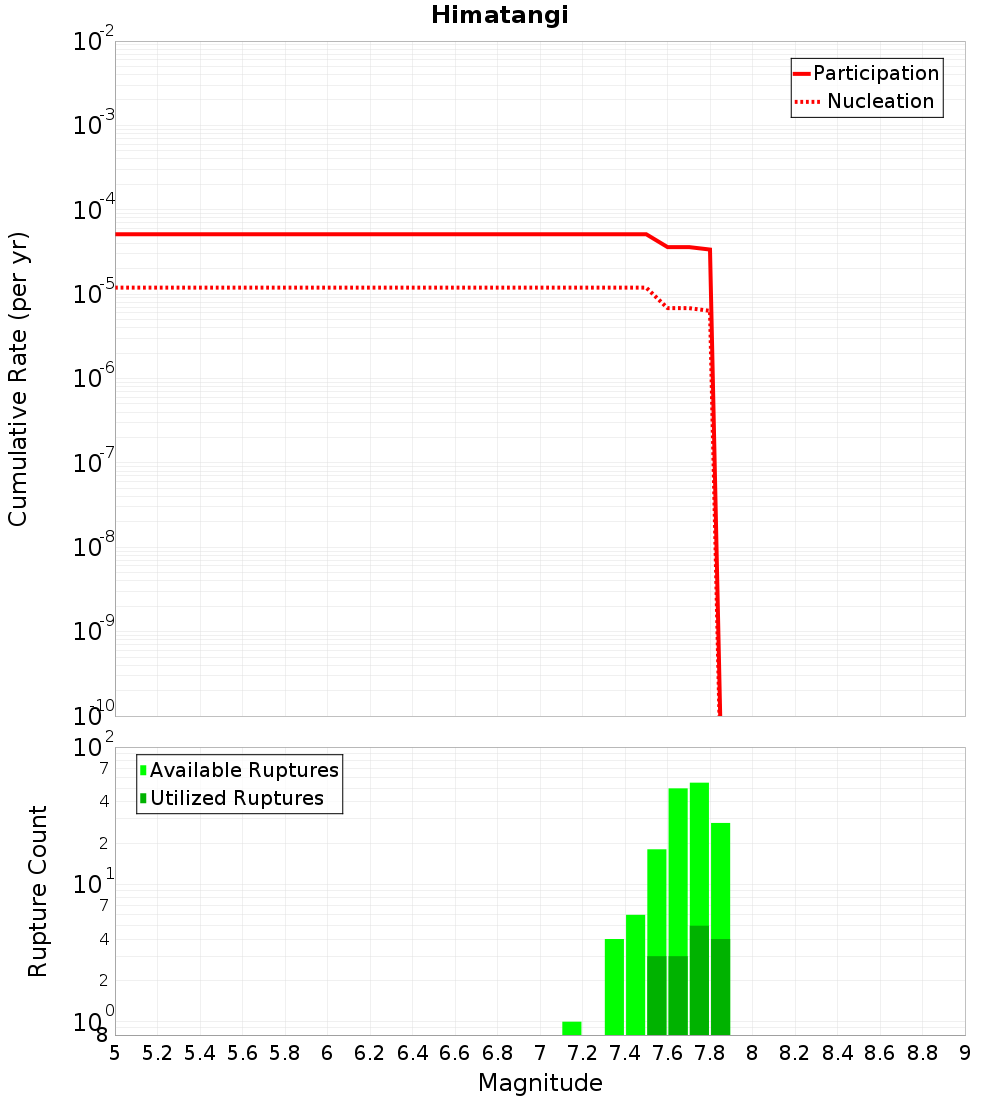

Incremental PlotCumulative Plot

Along-Strike Values

(top)

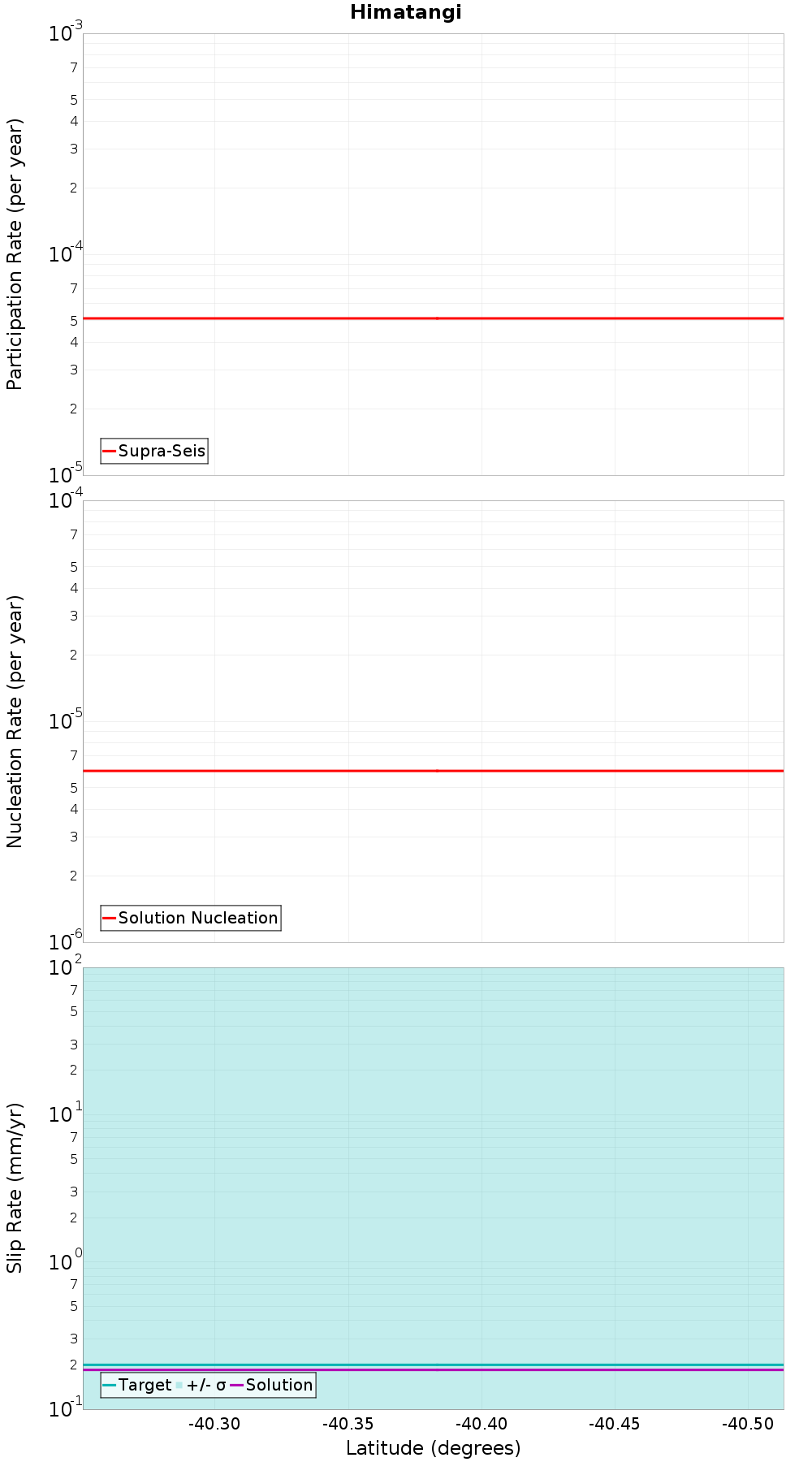

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitikei Offshore 1, 0.17 km away
Mascarin, 0.26 km away
Poroutawhao, 1.52 km away
Levin Anticline, 2.63 km away
Mt Stewart, 3 km away
Leedstown, 3.59 km away
Onepoto, 5.81 km away
Otaheke North, 8.54 km away
Rauoterangi, 11.71 km away
Fisherman 3, 12.2 km away
Tokomaru, 12.24 km away
Taonui, 13.28 km away

Rangitikei Offshore 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Poroutawhao, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate4.938383E-5

Levin Anticline, 2.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate1.8509298E-6

Mt Stewart, 3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leedstown, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?true
Co-rupture Count86
Co-rupture Rate3.6119956E-5

Onepoto, 5.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate1.6373262E-5

Otaheke North, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rauoterangi, 11.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate1.5114802E-5

Fisherman 3, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Taonui, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NjQuMHNEUUdY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
