Oruawharo - Mangatoro Details

Property	Value
Rupture Count	2,118
Ruptures Above Sect Min Mag	2,110
Ruptures w/ Nonzero Rates	129
Magnitude Range	[6.66, 8.23]
Length Range	[16, 500] km
Total Rate	7.387578E-4 /yr
Multi-Fault Rate	7.387578E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	63

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

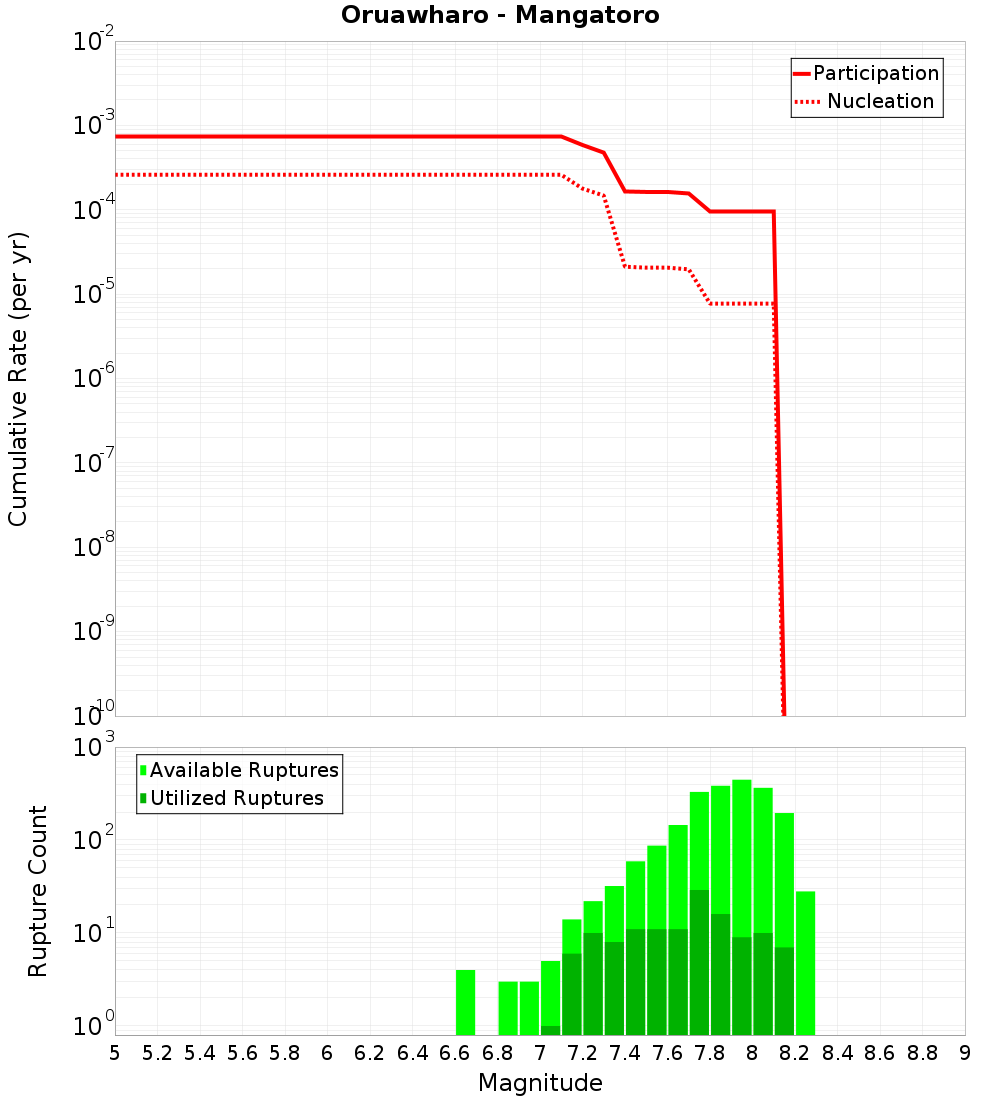

Magnitude-Frequency Distribution

Incremental	Cumulative

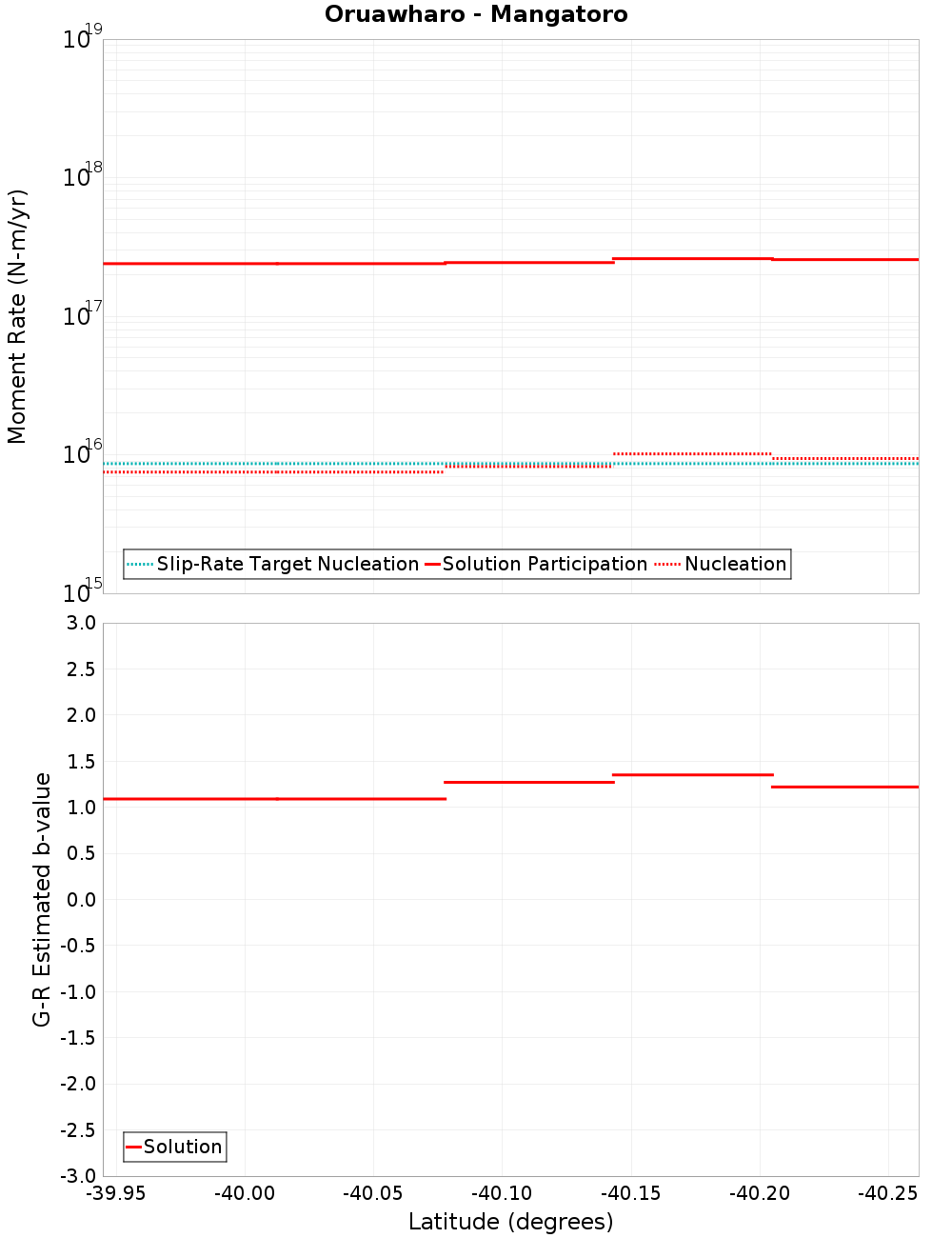

Along-Strike Values

Moment-Rates and b-Values

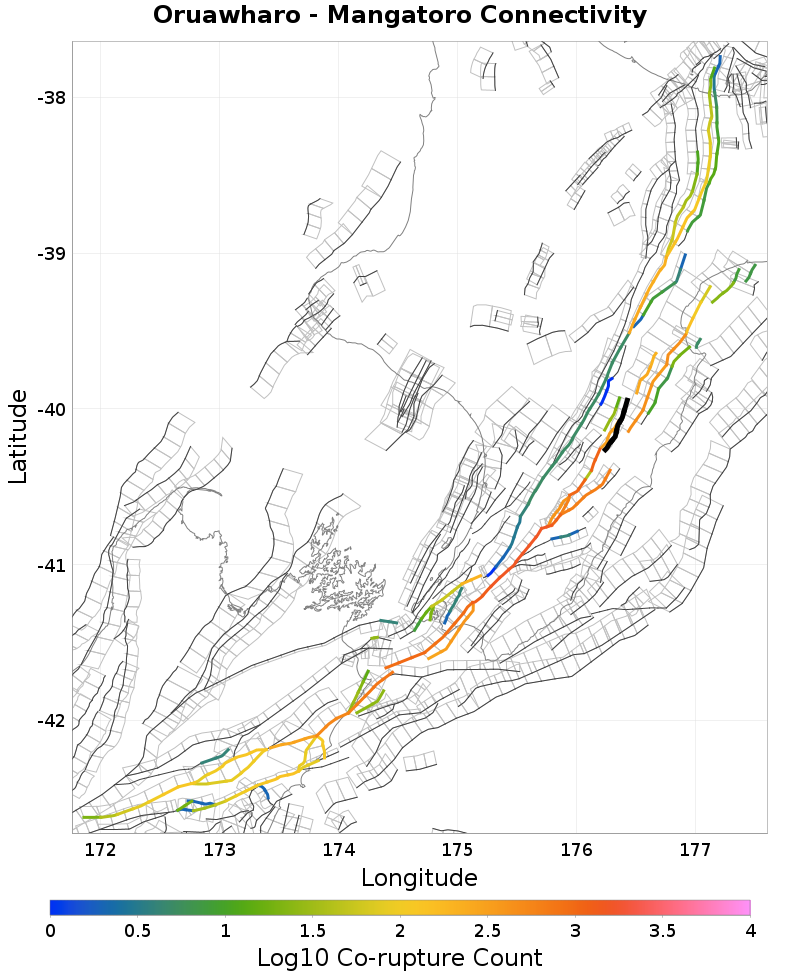

Connectivity

Nearby Sections

Fault Section
Clear Hills - Waikopiro, 0.12 km away
Waipukurau - Poukawa, 3.21 km away
Waewaepa, 3.74 km away
Ruataniwha, 5.67 km away
Te Heka, 8.05 km away
Maunga, 8.13 km away
Tukituki Thrust, 9.21 km away
Waipukaka, 12.74 km away
Pongaroa - Weber, 14.66 km away

Clear Hills - Waikopiro, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	315
Co-rupture Rate	6.1873E-10

Waipukurau - Poukawa, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	2.8199644E-4

Waewaepa, 3.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,116
Co-rupture Rate	5.4578146E-4

Ruataniwha, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	4.232827E-17

Te Heka, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	260
Co-rupture Rate	3.960145E-5

Maunga, 8.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tukituki Thrust, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	2.1836963E-6

Waipukaka, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	661
Co-rupture Rate	7.331505E-5

Pongaroa - Weber, 14.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
