The Humps Details

Property	Value
Rupture Count	2,781
Ruptures Above Sect Min Mag	2,779
Ruptures w/ Nonzero Rates	53
Magnitude Range	[6.94, 8.45]
Length Range	[20, 781] km
Total Rate	1.8865126E-4 /yr
Multi-Fault Rate	1.6118455E-4 /yr (85.44%)
Directly-Connected Faults	4
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

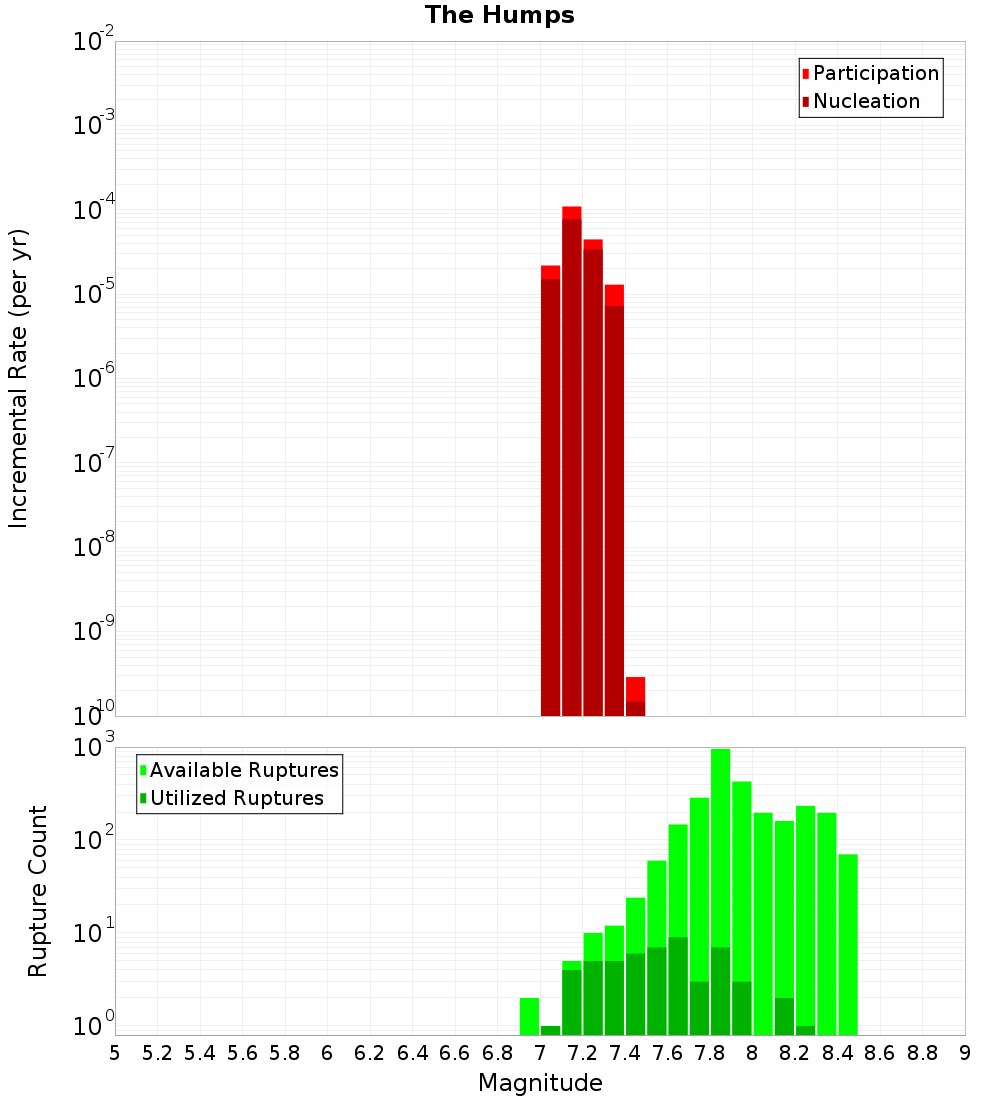

Magnitude-Frequency Distribution

Incremental	Cumulative

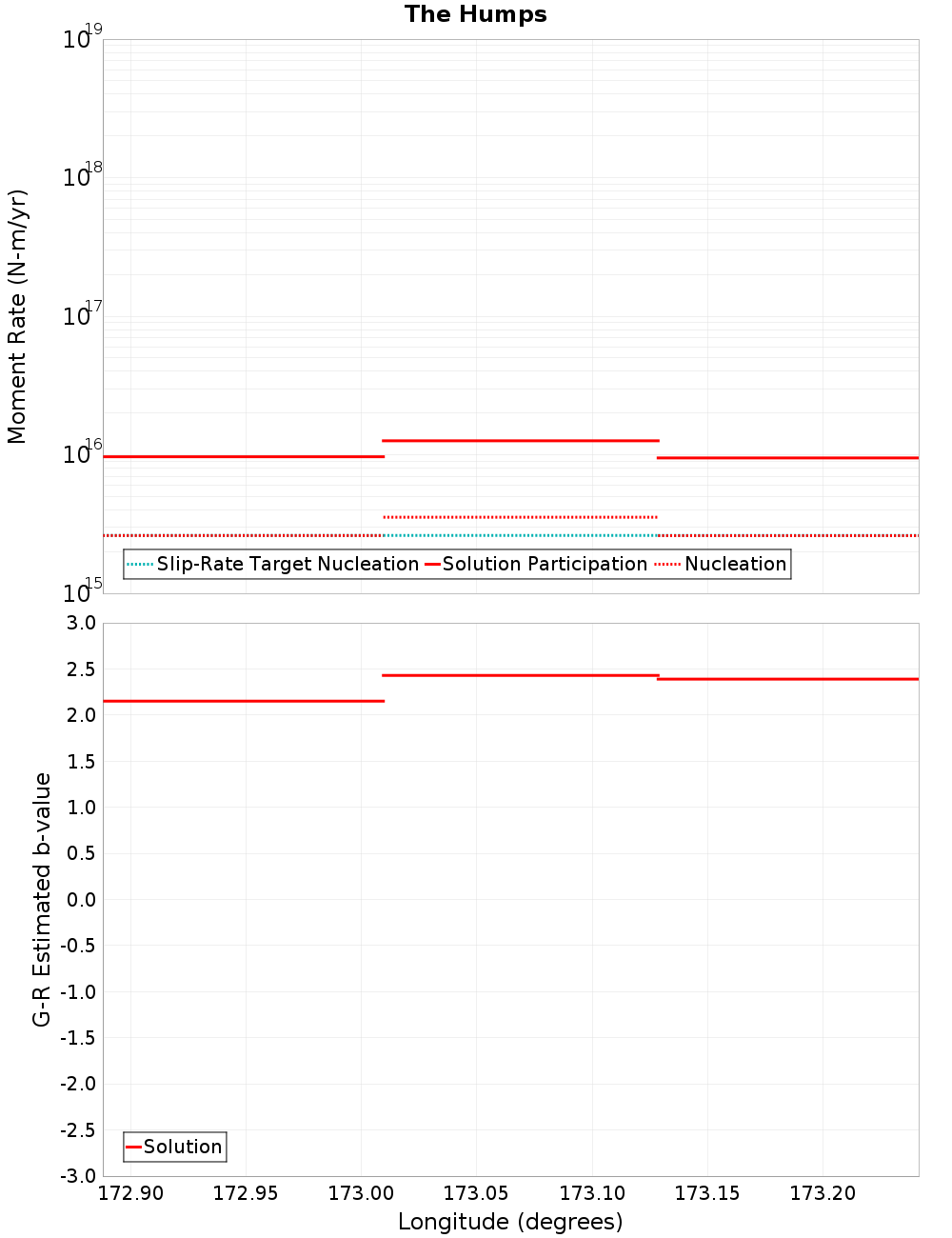

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kaiwara North, 0.22 km away
Hundalee, 0.25 km away
Leader: South, 0.28 km away
Mt Culverden, 1.72 km away
Leader: Central, 2.9 km away
Leonard Mound, 4.72 km away
Hope: Hamner SE, 7.7 km away
Lowry, 8.15 km away
Hanmer, 9.06 km away
Leader: North, 9.77 km away
Hope: Conway, 10.44 km away
Hope: Hamner SW, 10.61 km away
Hawkswood, 11.31 km away
StoneJug, 14.2 km away

Kaiwara North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,395
Co-rupture Rate	4.9068985E-5

Leader: South, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	6.086291E-5

Mt Culverden, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,643
Co-rupture Rate	2.6212324E-15

Leader: Central, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	460
Co-rupture Rate	5.7805446E-16

Leonard Mound, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	6.4206695E-5

Hope: Hamner SE, 7.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Hanmer, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: North, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	186
Co-rupture Rate	3.300817E-16

Hope: Conway, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	238
Co-rupture Rate	3.8720672E-17

Hope: Hamner SW, 10.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	124
Co-rupture Rate	3.4295316E-15

StoneJug, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzYuMHdhdmdH
Connected?	true
Directly Connected?	false
Co-rupture Count	81
Co-rupture Rate	0.0
