Edgecumbe Coastal Details

PropertyValue
Rupture Count7,654
Ruptures Above Sect Min Mag7,647
Ruptures w/ Nonzero Rates30
Magnitude Range[6.44, 8.38]
Length Range[7, 679] km
Total Rate4.0830186E-4 /yr
Multi-Fault Rate4.0830186E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

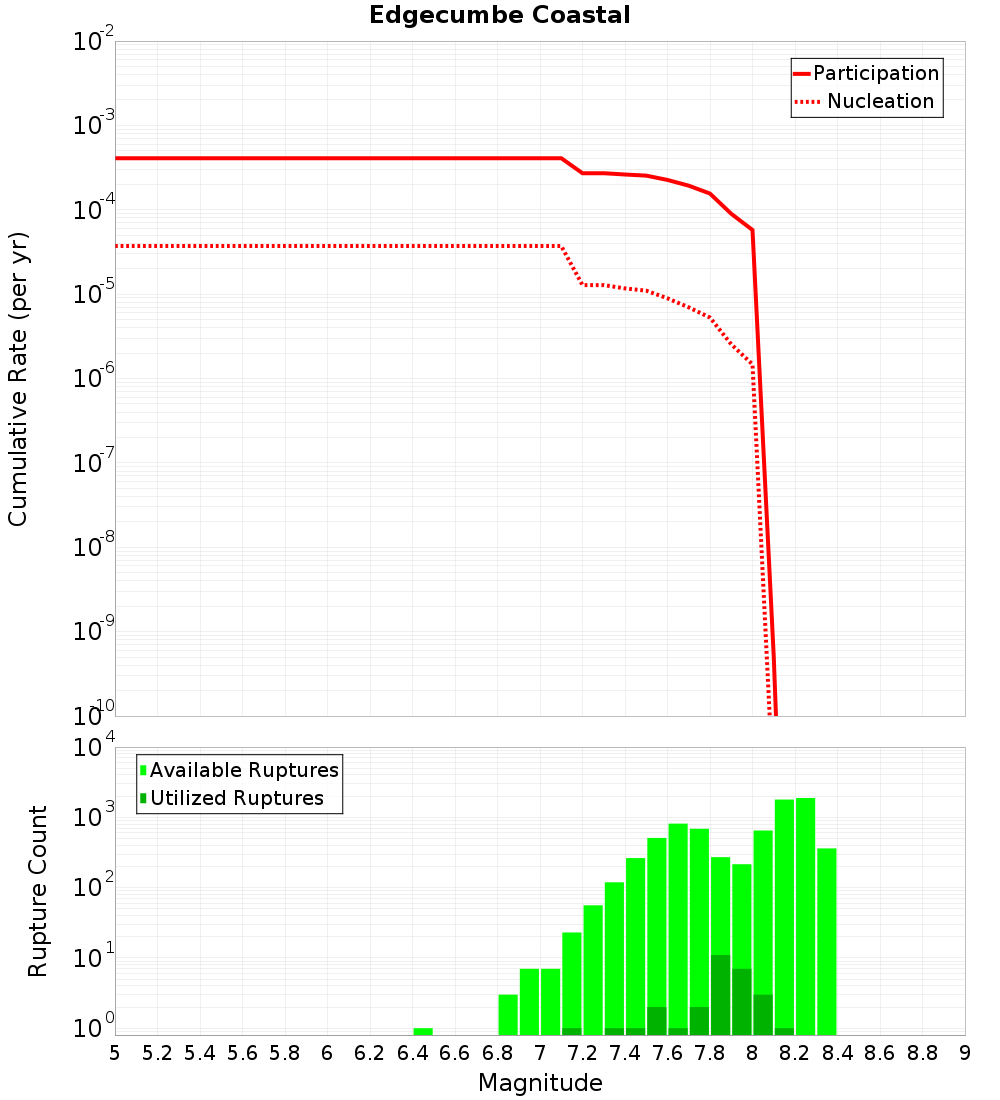

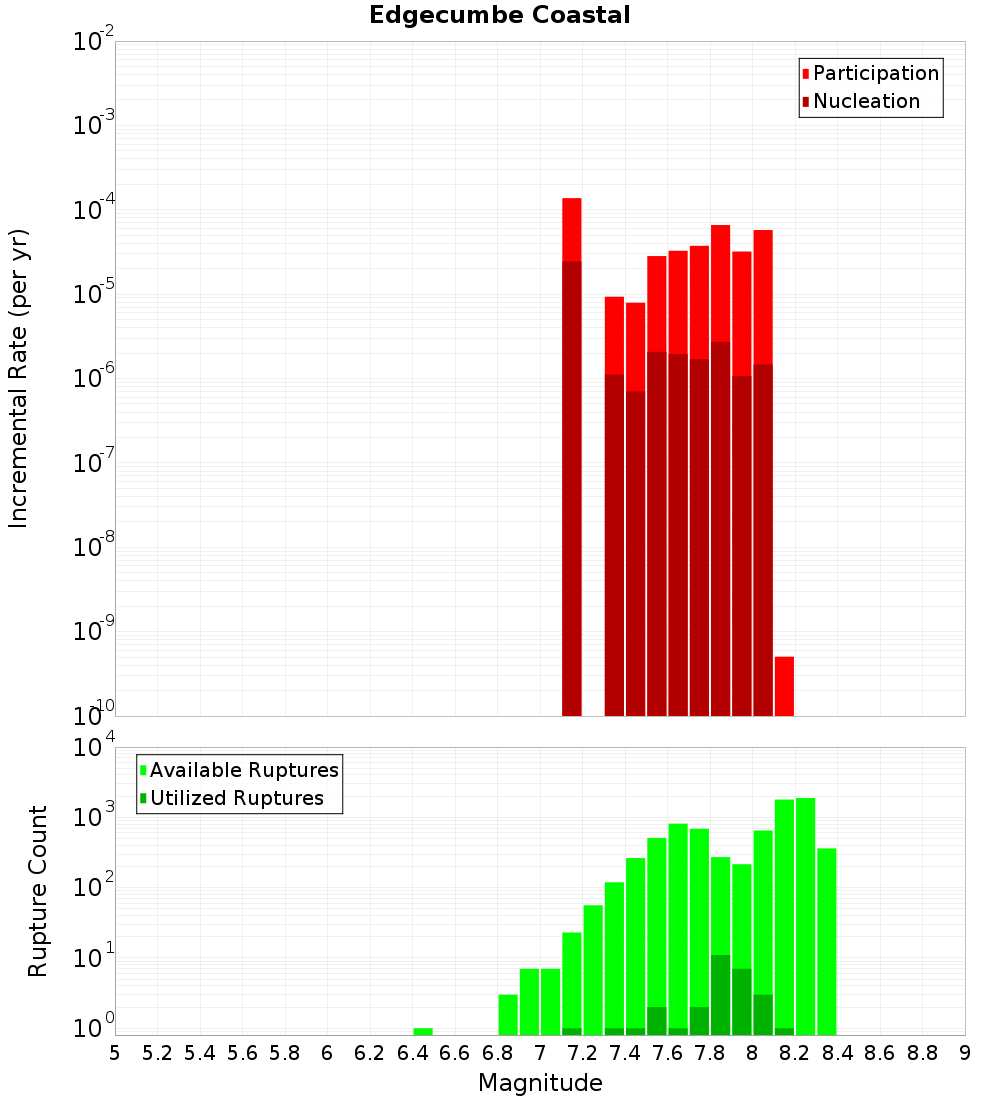

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?true
Co-rupture Count7,417
Co-rupture Rate2.756858E-4

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?true
Co-rupture Count6,312
Co-rupture Rate2.6167036E-4

Otakiri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?true
Co-rupture Count1,128
Co-rupture Rate1.05995554E-4

Matata, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?true
Co-rupture Count941
Co-rupture Rate9.31903E-6

Keepa, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?false
Co-rupture Count530
Co-rupture Rate0.0

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?true
Co-rupture Count558
Co-rupture Rate1.466315E-4

Rangitaiki 1, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?false
Co-rupture Count2,379
Co-rupture Rate1.5787006E-4

Waiohau: North, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?false
Co-rupture Count5,761
Co-rupture Rate1.6499383E-4

Rangitaiki 2, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzguMHR5REJr
Connected?true
Directly Connected?false
Co-rupture Count1,625
Co-rupture Rate1.4977384E-4
