Edith Details
| Property | Value |
|---|---|
| Rupture Count | 81 |
| Ruptures Above Sect Min Mag | 80 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.78, 7.98] |
| Length Range | [19, 308] km |
| Total Rate | 2.5249285E-5 /yr |
| Multi-Fault Rate | 2.5249285E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

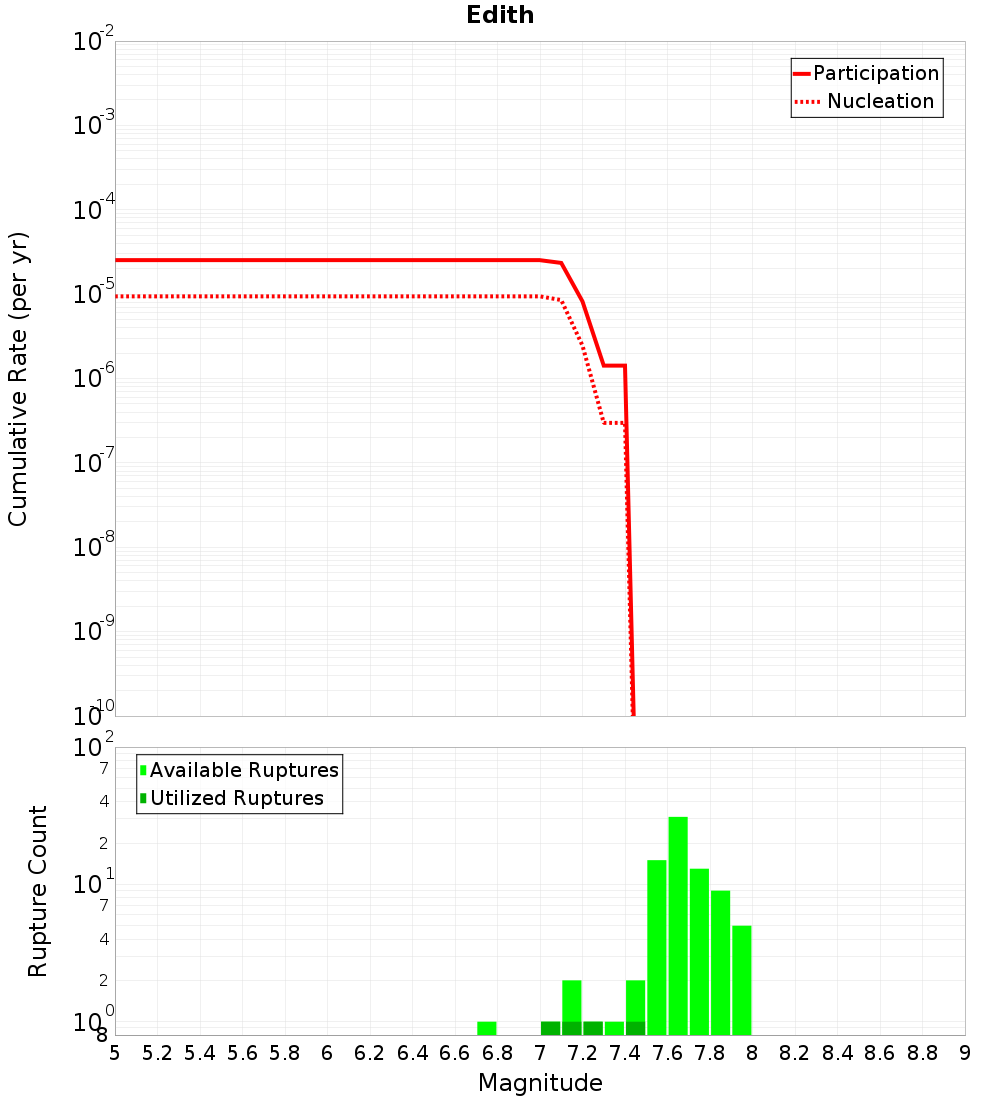

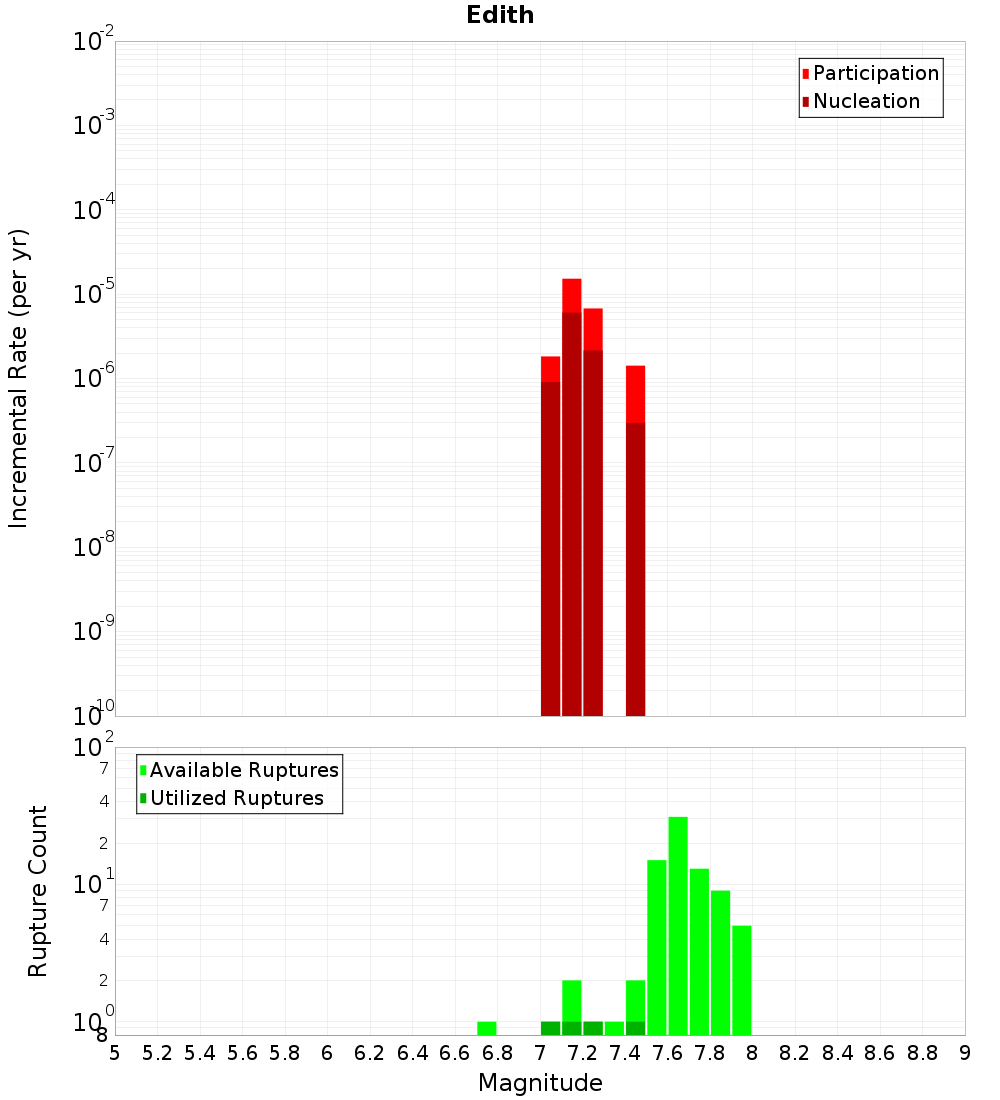

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

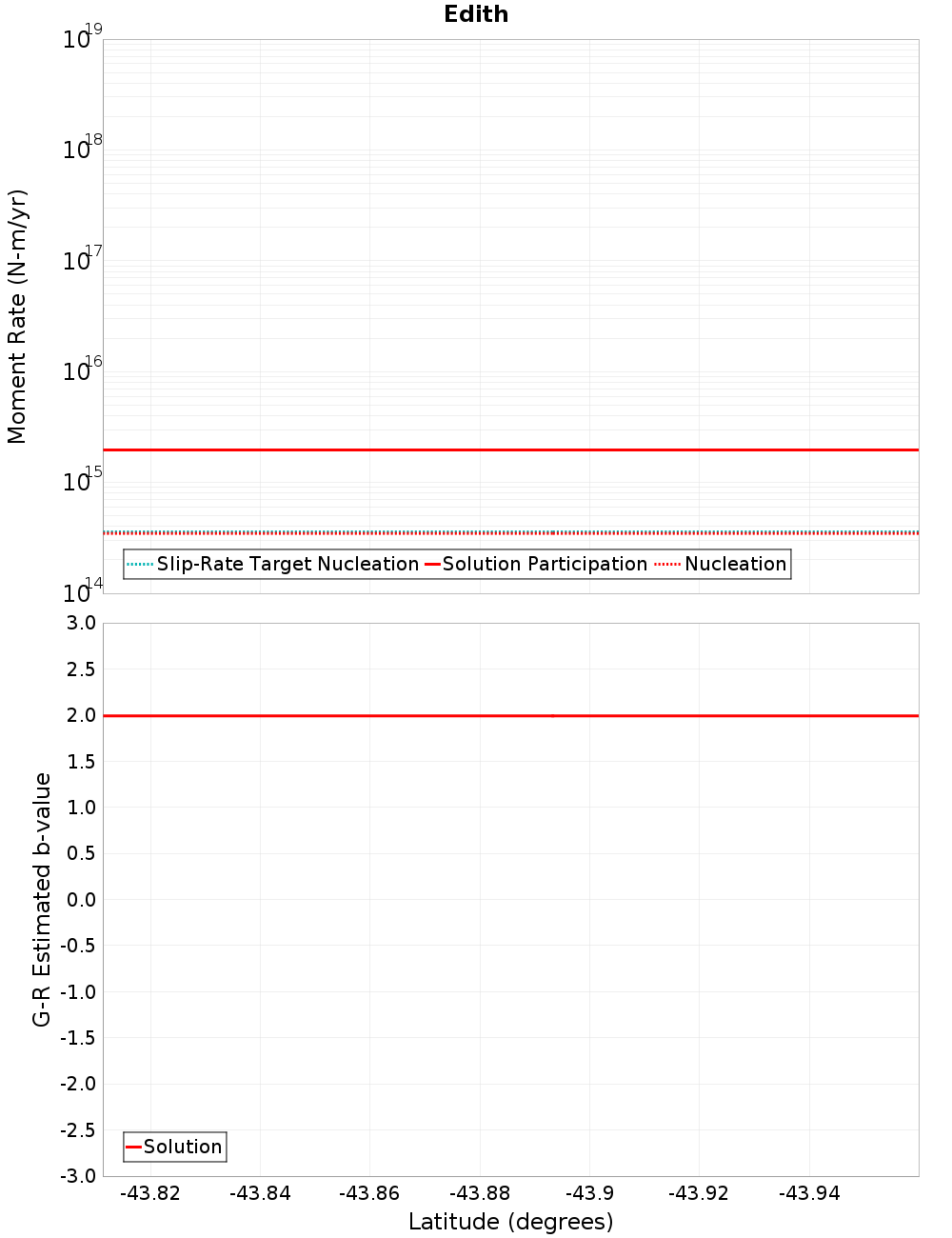

Moment-Rates and b-Values

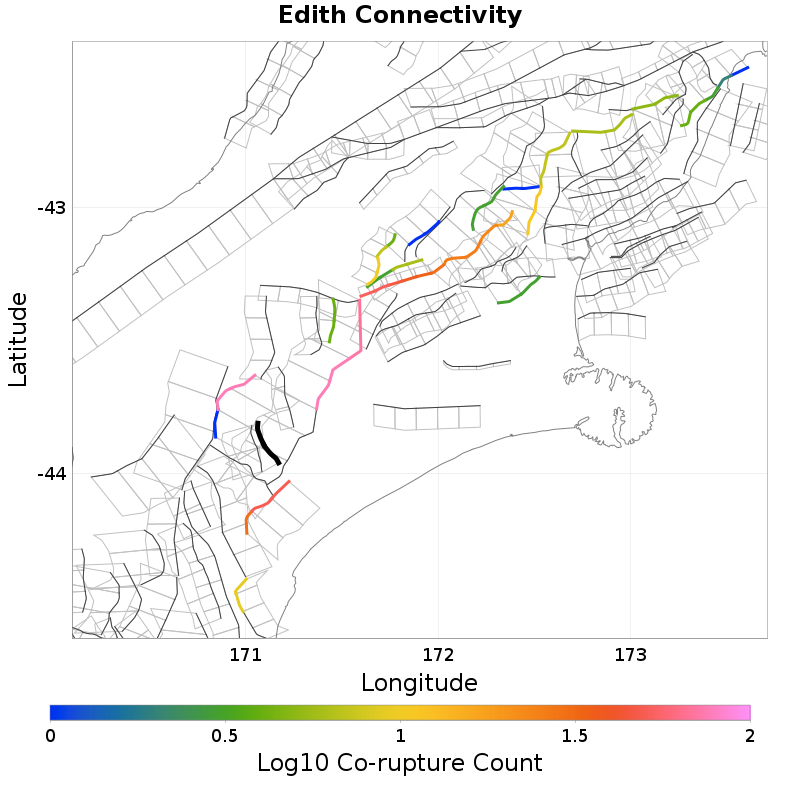

Connectivity
 |  |
|---|
Nearby Sections
Hutt Peel, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 76 |
| Co-rupture Rate | 1.4208302E-6 |
Ben McLeod, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 77 |
| Co-rupture Rate | 1.4208302E-6 |
Catherine, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Brothers, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sugarloaf, 8.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 8.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50 |
| Co-rupture Rate | 2.3828454E-5 |
Irishman Creek, 11.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Klondyke Moor, 13.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opawa, 14.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2NzkuMDMzOW0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
