Beaumont River Details

Property	Value
Rupture Count	5,928
Ruptures Above Sect Min Mag	5,927
Ruptures w/ Nonzero Rates	328
Magnitude Range	[7.15, 8.37]
Length Range	[24, 397] km
Total Rate	9.2630835E-6 /yr
Multi-Fault Rate	9.2630835E-6 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

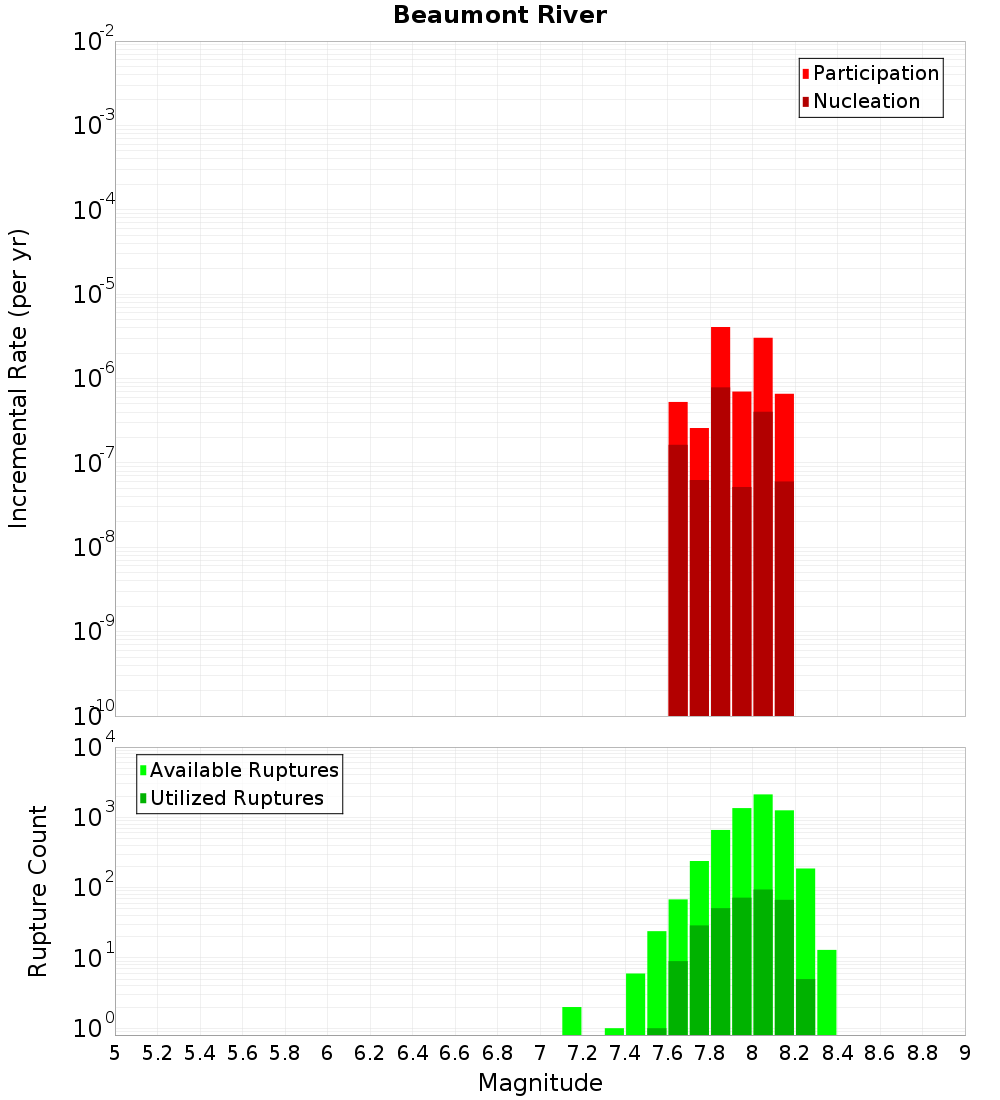

Magnitude-Frequency Distribution

Incremental	Cumulative

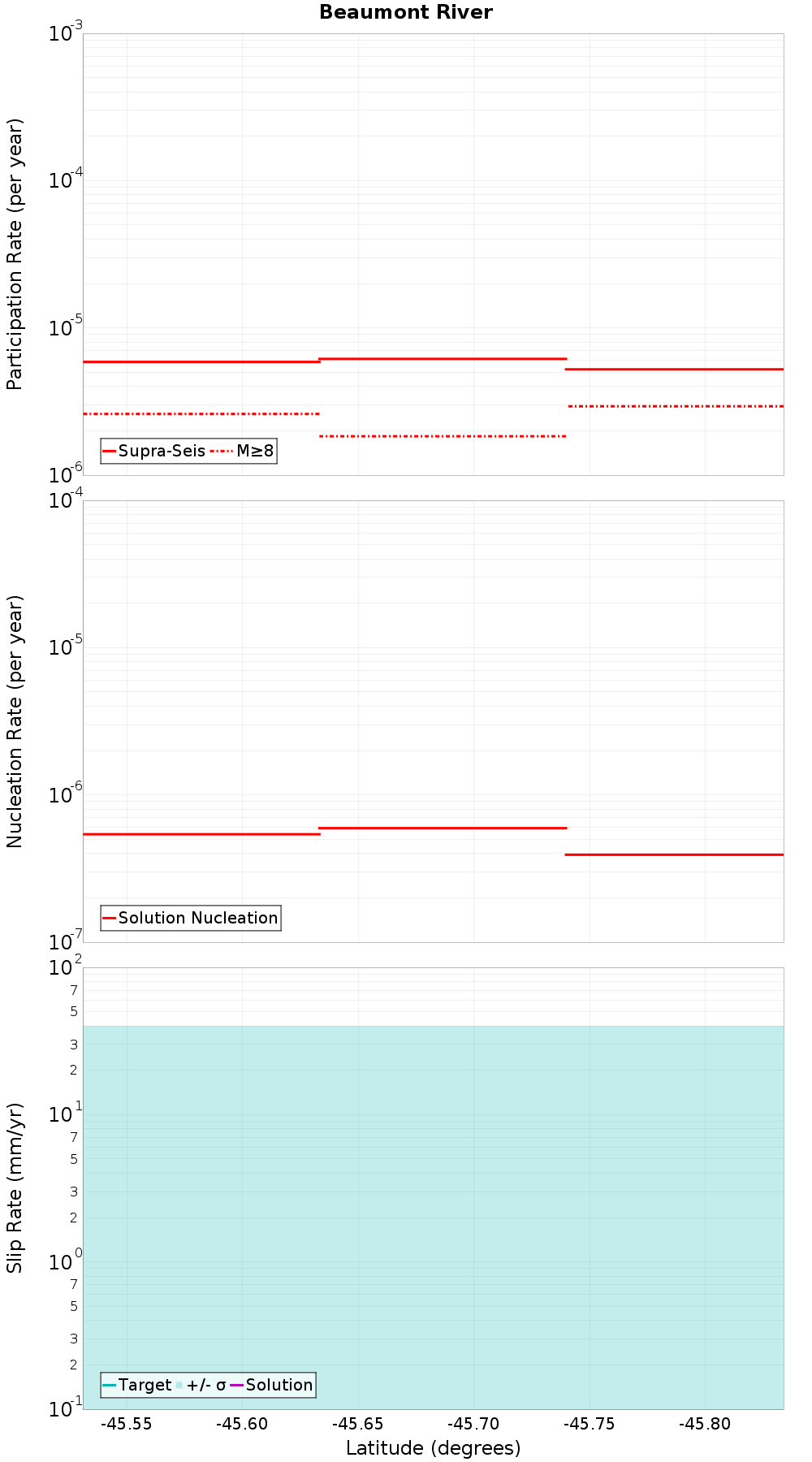

Along-Strike Values

Moment-Rates and b-Values

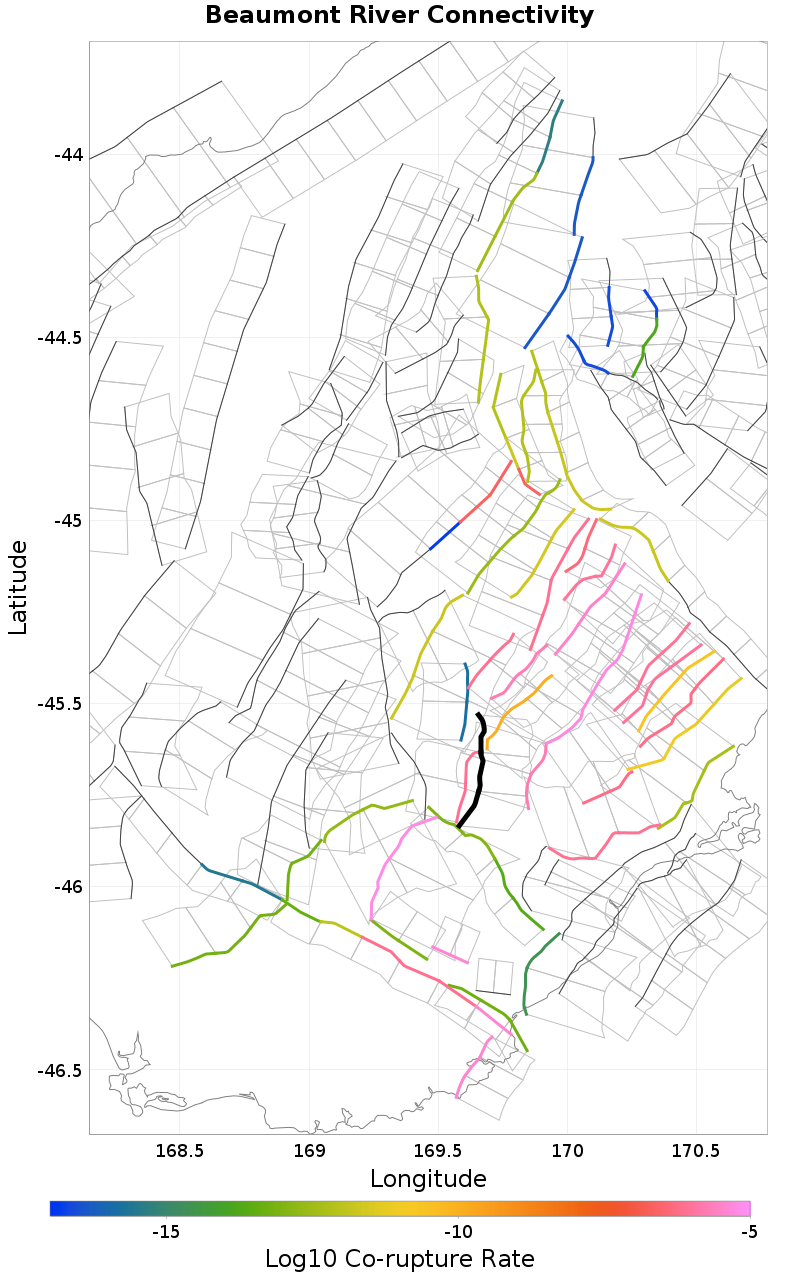

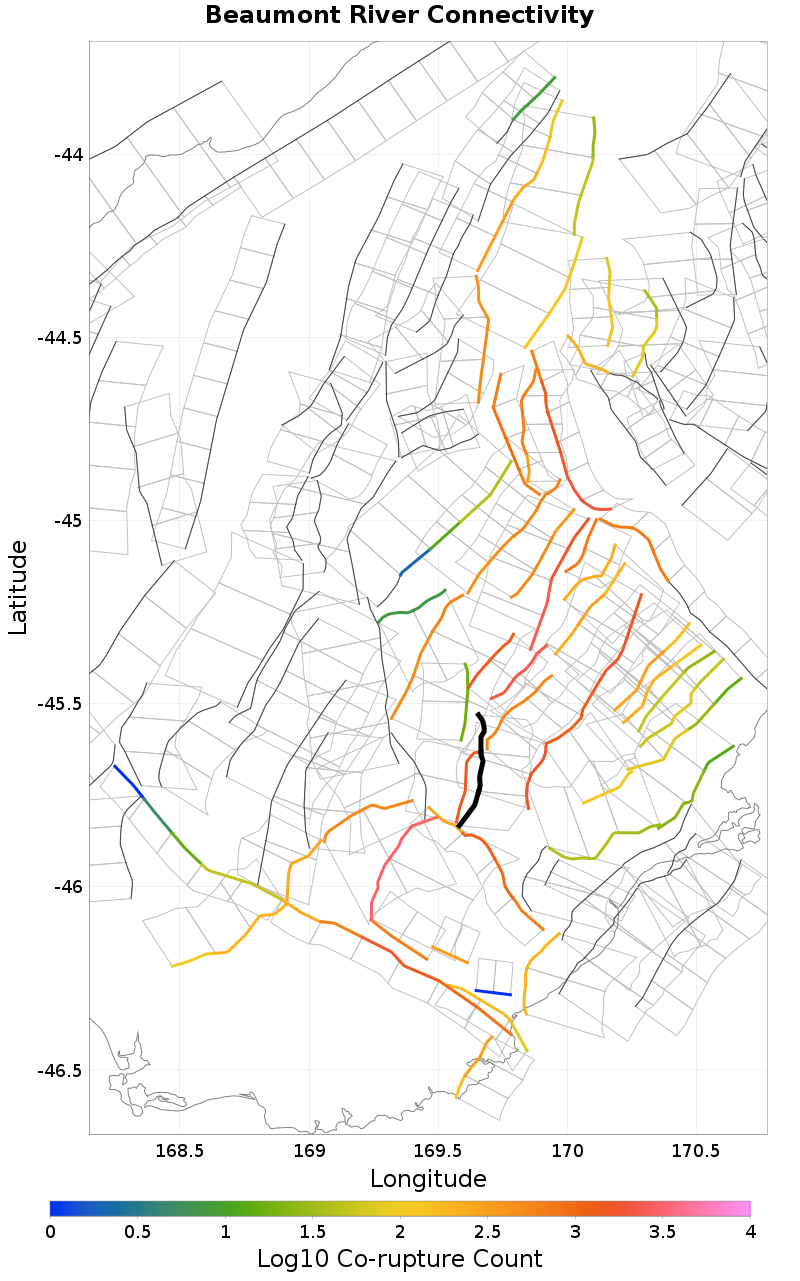

Connectivity

Nearby Sections

Fault Section
Logan Burn, 0.16 km away
Pylap, 0.16 km away
Maungatua - North Taieri, 0.31 km away
Hyde South - The Twins, 0.34 km away
Hyde North, 0.34 km away
Backbone, 0.6 km away
Tuapeka, 0.91 km away
Blue Mountain, 3.48 km away
Lake Onslow, 3.85 km away
Nichols Rock, 5.01 km away
Long Valley, 5.05 km away
Little Valley, 10.37 km away
Teviot, 10.54 km away
Spylaw, 12.97 km away

Logan Burn, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	557
Co-rupture Rate	1.2477303E-10

Pylap, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,306
Co-rupture Rate	1.8420195E-6

Maungatua - North Taieri, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	8.0695753E-7

Hyde South - The Twins, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,582
Co-rupture Rate	1.7958534E-6

Hyde North, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,894
Co-rupture Rate	5.0382037E-6

Backbone, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,449
Co-rupture Rate	7.667004E-7

Tuapeka, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,261
Co-rupture Rate	1.052529E-13

Blue Mountain, 3.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,945
Co-rupture Rate	5.9959466E-6

Lake Onslow, 3.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	1.4554775E-16

Nichols Rock, 5.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	5.7307176E-7

Long Valley, 5.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,475
Co-rupture Rate	7.627995E-7

Little Valley, 10.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	598
Co-rupture Rate	1.6543039E-12

Teviot, 10.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	529
Co-rupture Rate	1.8762291E-13
