Caswell High 5 Details

Property	Value
Rupture Count	1,560
Ruptures Above Sect Min Mag	1,549
Ruptures w/ Nonzero Rates	134
Magnitude Range	[6.66, 8.64]
Length Range	[14, 874] km
Total Rate	1.7404596E-4 /yr
Multi-Fault Rate	5.0515723E-6 /yr (2.90%)
Directly-Connected Faults	1
All Co-Rupturing Faults	26

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

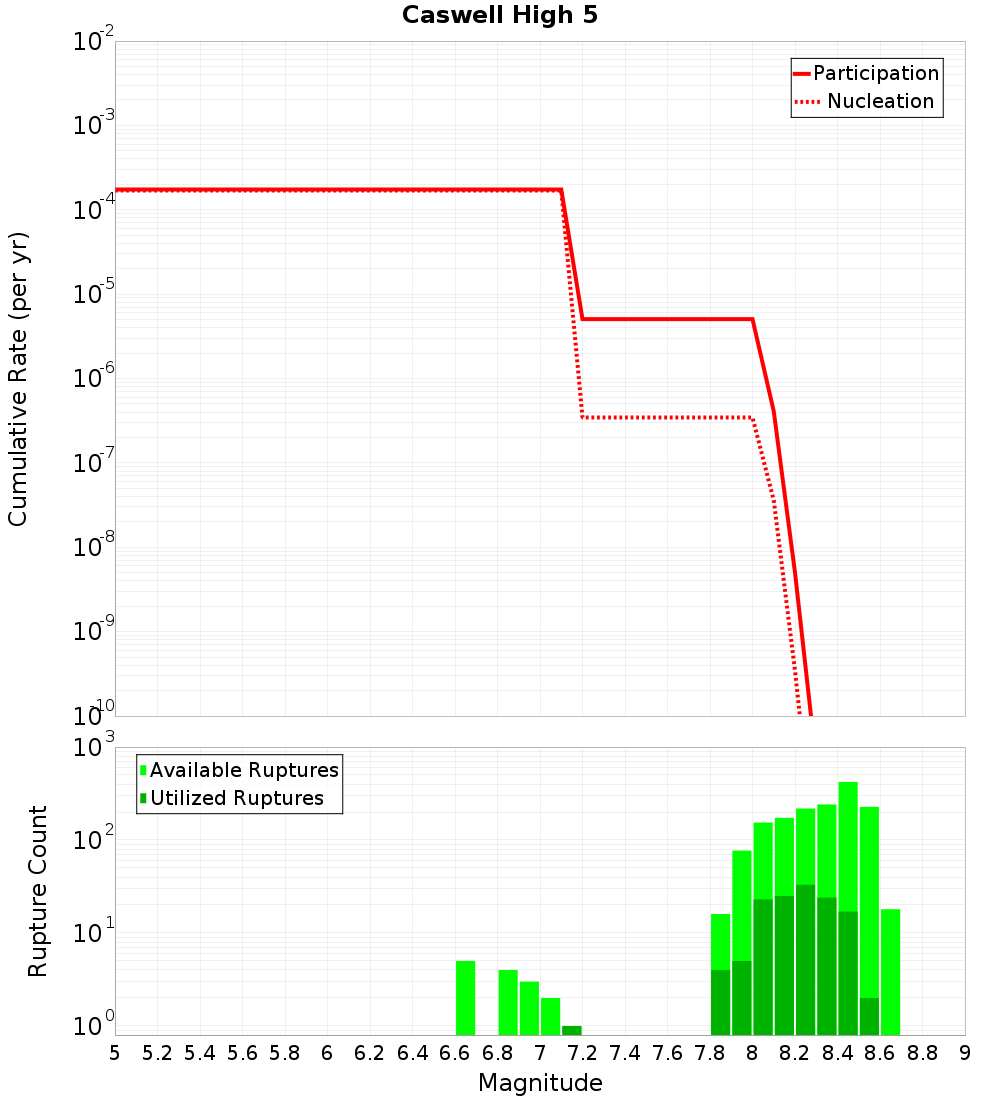

Magnitude-Frequency Distribution

Incremental	Cumulative

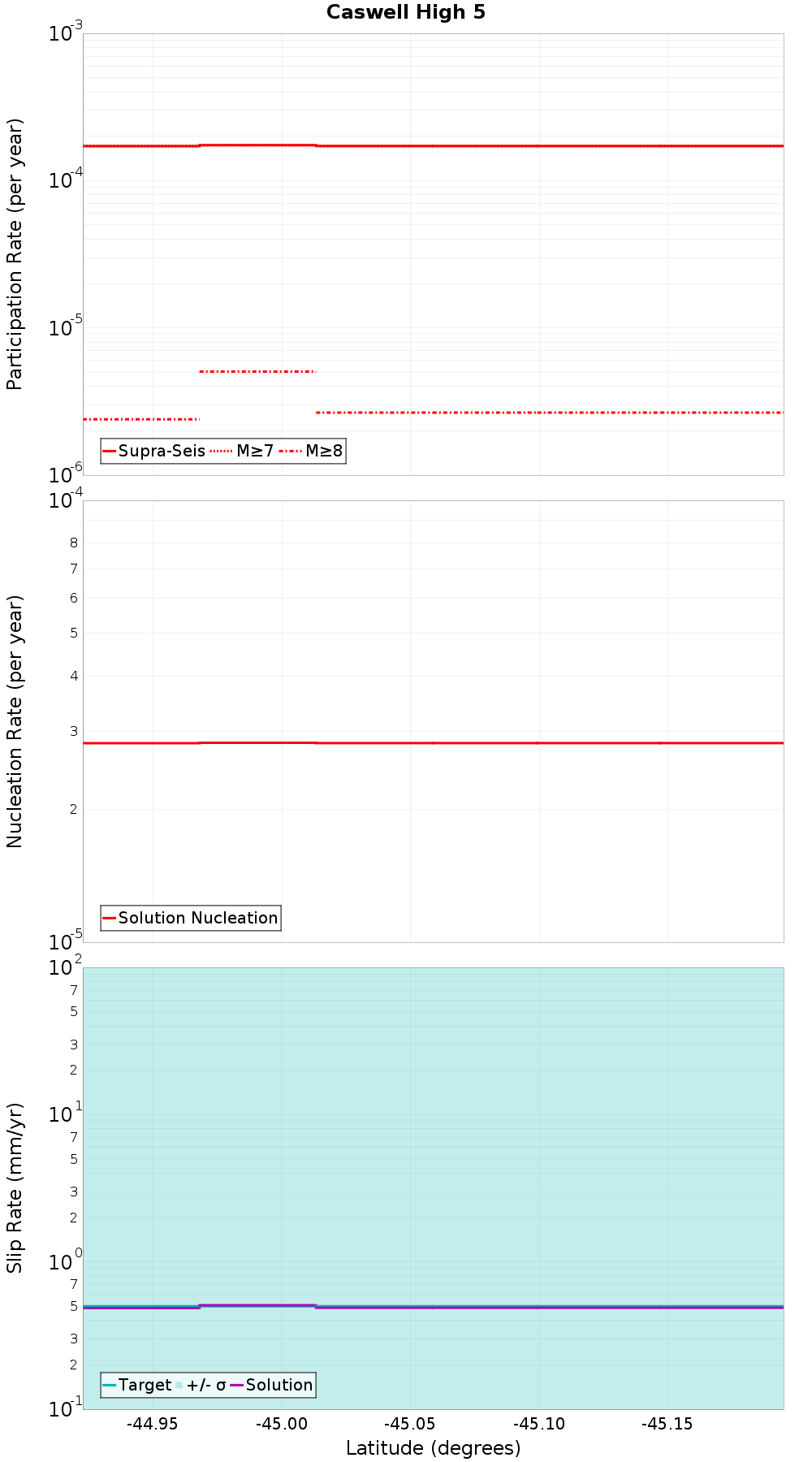

Along-Strike Values

Moment-Rates and b-Values

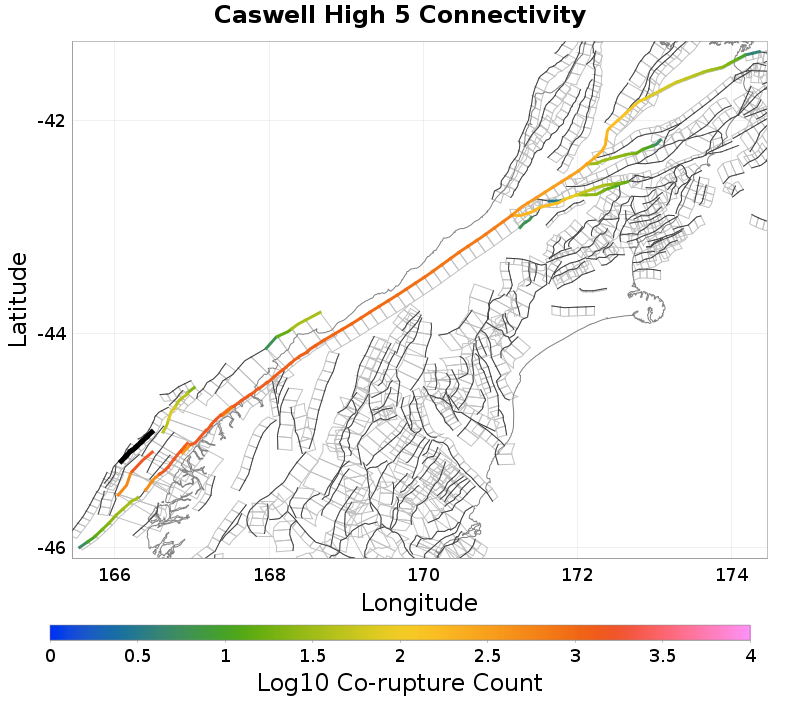

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 0.7 km away
Caswell High 67, 1.48 km away
Caswell High 3, 4.35 km away
Central Wedge 4 - South Wedge 411, 5.03 km away
South Wedge 5, 6.44 km away
Central Wedge 1 & 2 & 3, 10.98 km away
South Wedge 3-6-10, 13.36 km away

Caswell High 4, 0.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 67, 1.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 3, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 5.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 5, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 1 & 2 & 3, 10.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	69
Co-rupture Rate	1.1583906E-16

South Wedge 3-6-10, 13.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,545
Co-rupture Rate	5.0515723E-6
