Kaikoura - Mangamaunu Details

Property	Value
Rupture Count	563
Ruptures Above Sect Min Mag	554
Ruptures w/ Nonzero Rates	59
Magnitude Range	[6.64, 8.14]
Length Range	[13, 326] km
Total Rate	1.7397593E-4 /yr
Multi-Fault Rate	1.7397593E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	42

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

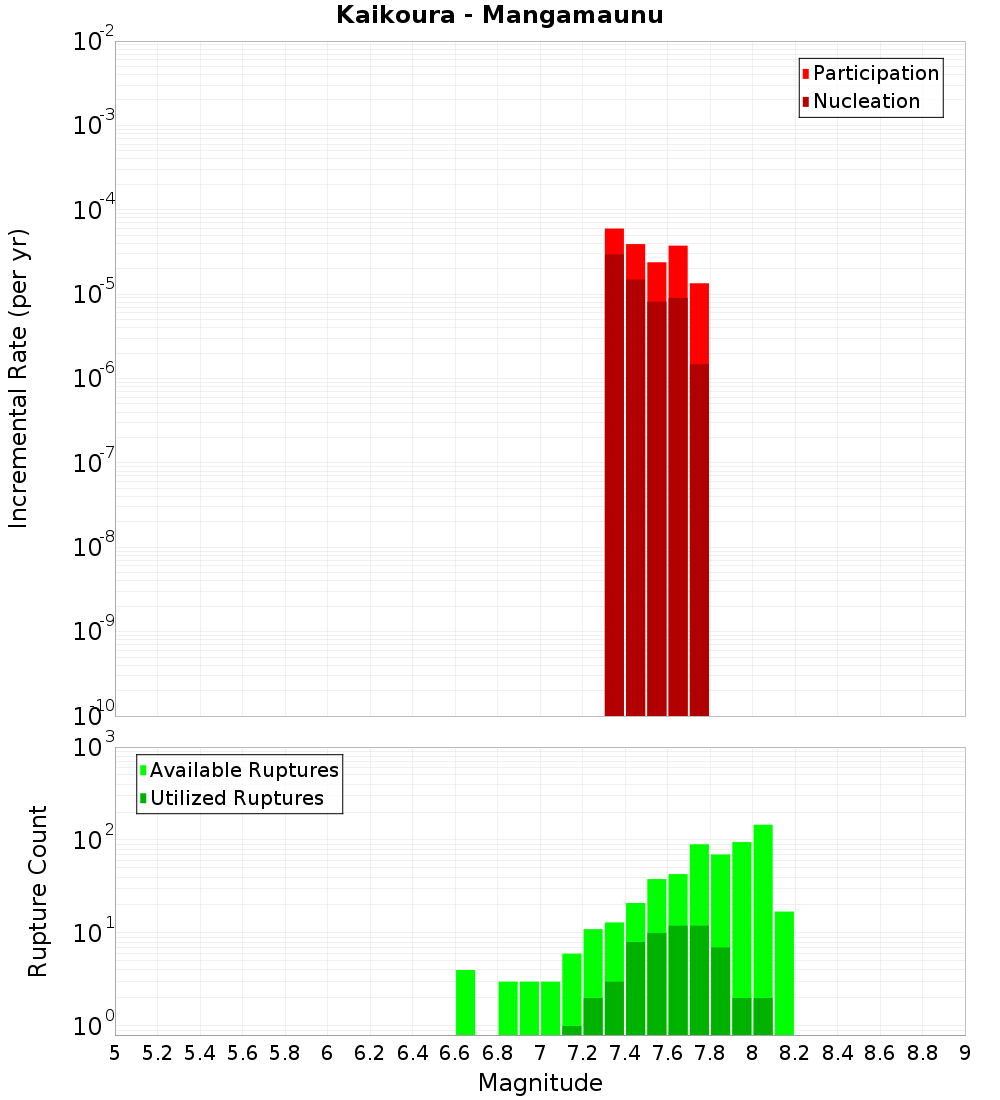

Magnitude-Frequency Distribution

Incremental	Cumulative

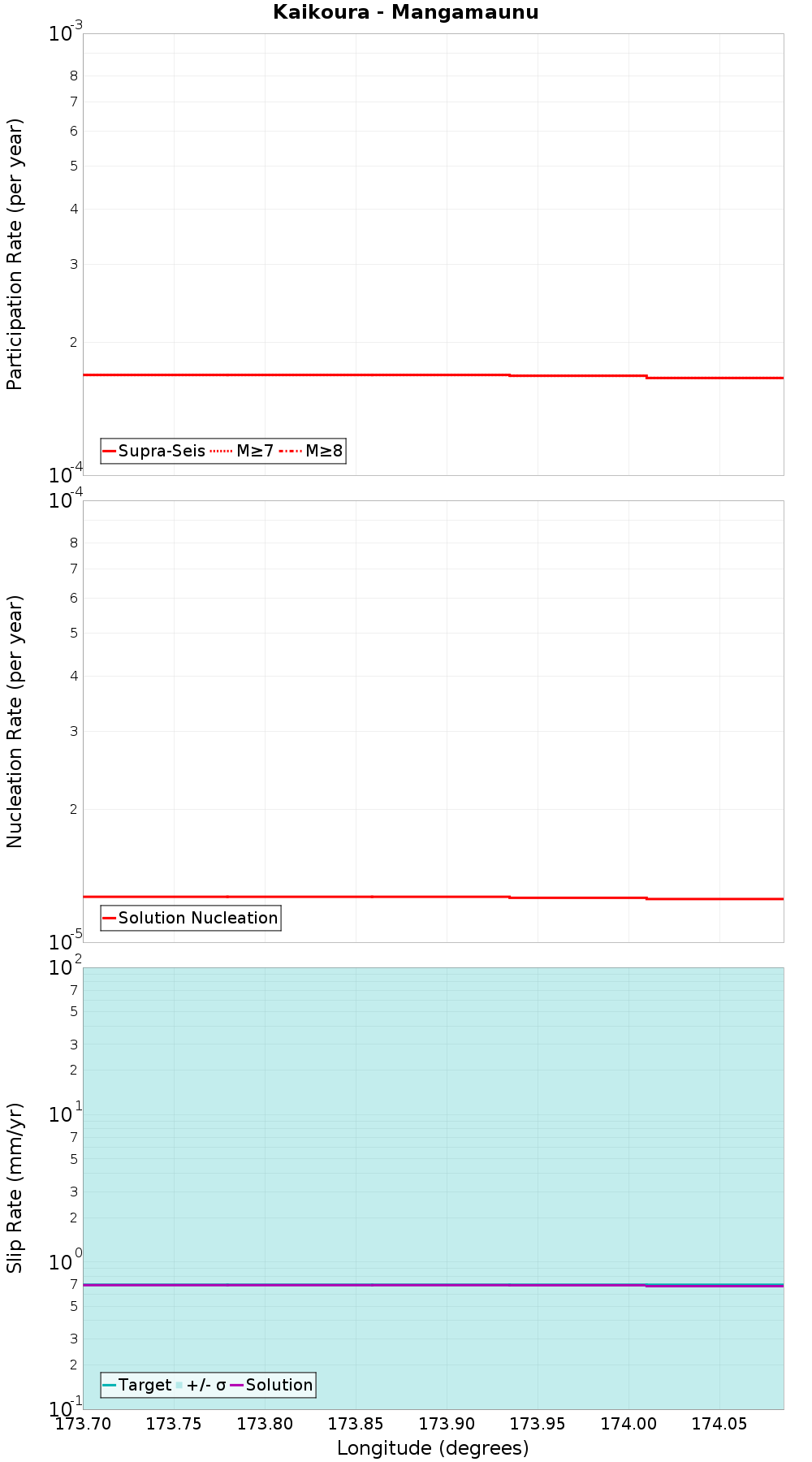

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Seaward, 1.03 km away
Jordan, 2.75 km away
Hope: Conway, 3.18 km away
Papatea, 4.97 km away
Upper Slope, 6.47 km away
Kekerengu Bank, 7.75 km away
Hope: Te Rapa, 8.9 km away
Marlborough Slope 2, 11.74 km away
Marlborough Slope 4, 13.21 km away

Hope: Seaward, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	8.585263E-5

Jordan, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	8.040348E-6

Hope: Conway, 3.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	520
Co-rupture Rate	8.270799E-5

Papatea, 4.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Upper Slope, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu Bank, 7.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	5.415311E-6

Hope: Te Rapa, 8.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	1.006029E-4

Marlborough Slope 2, 11.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	5.415311E-6

Marlborough Slope 4, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
