Raggedy - Blackstone Details

PropertyValue
Rupture Count5,862
Ruptures Above Sect Min Mag5,861
Ruptures w/ Nonzero Rates352
Magnitude Range[7.11, 8.55]
Length Range[22, 702] km
Total Rate2.4193225E-5 /yr
Multi-Fault Rate2.1953063E-5 /yr (90.74%)
Directly-Connected Faults7
All Co-Rupturing Faults57

Table Of Contents

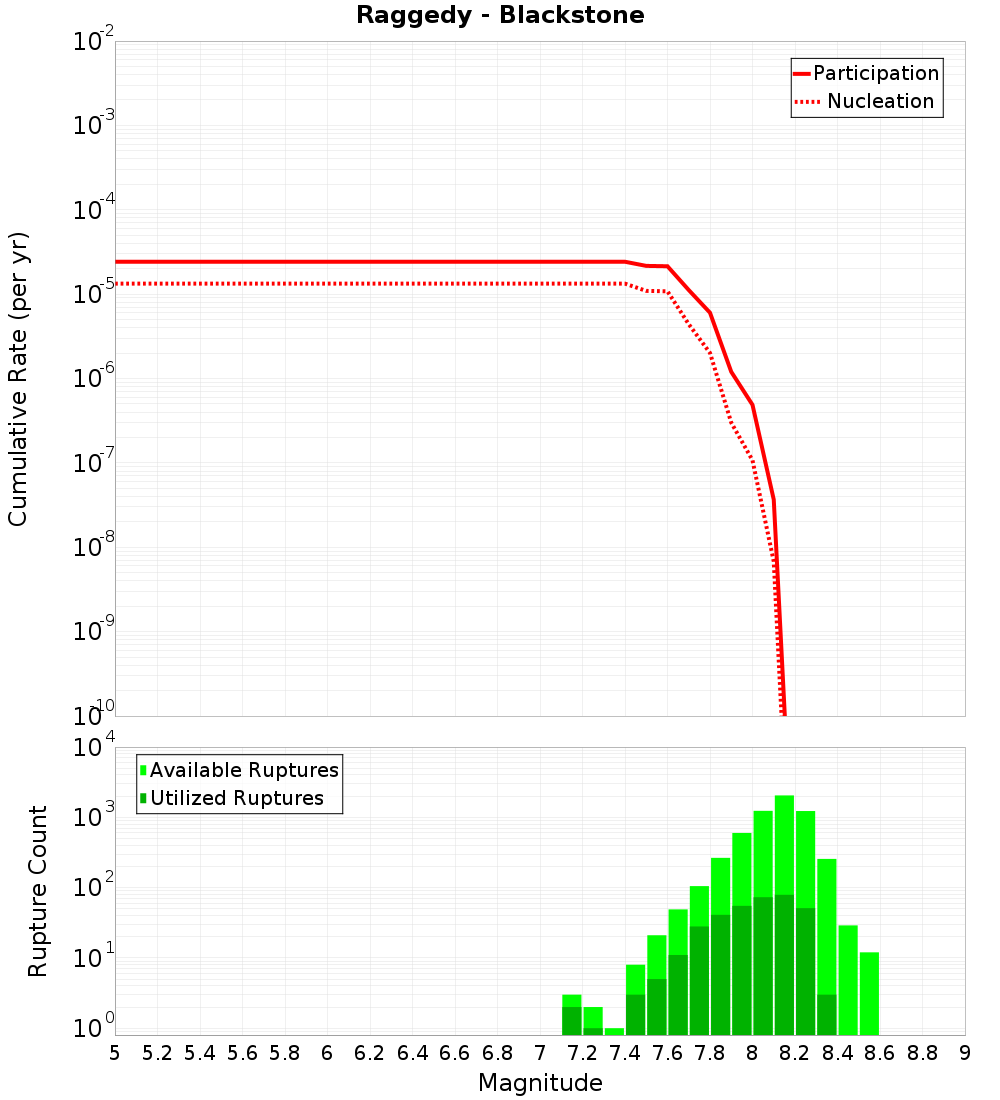

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

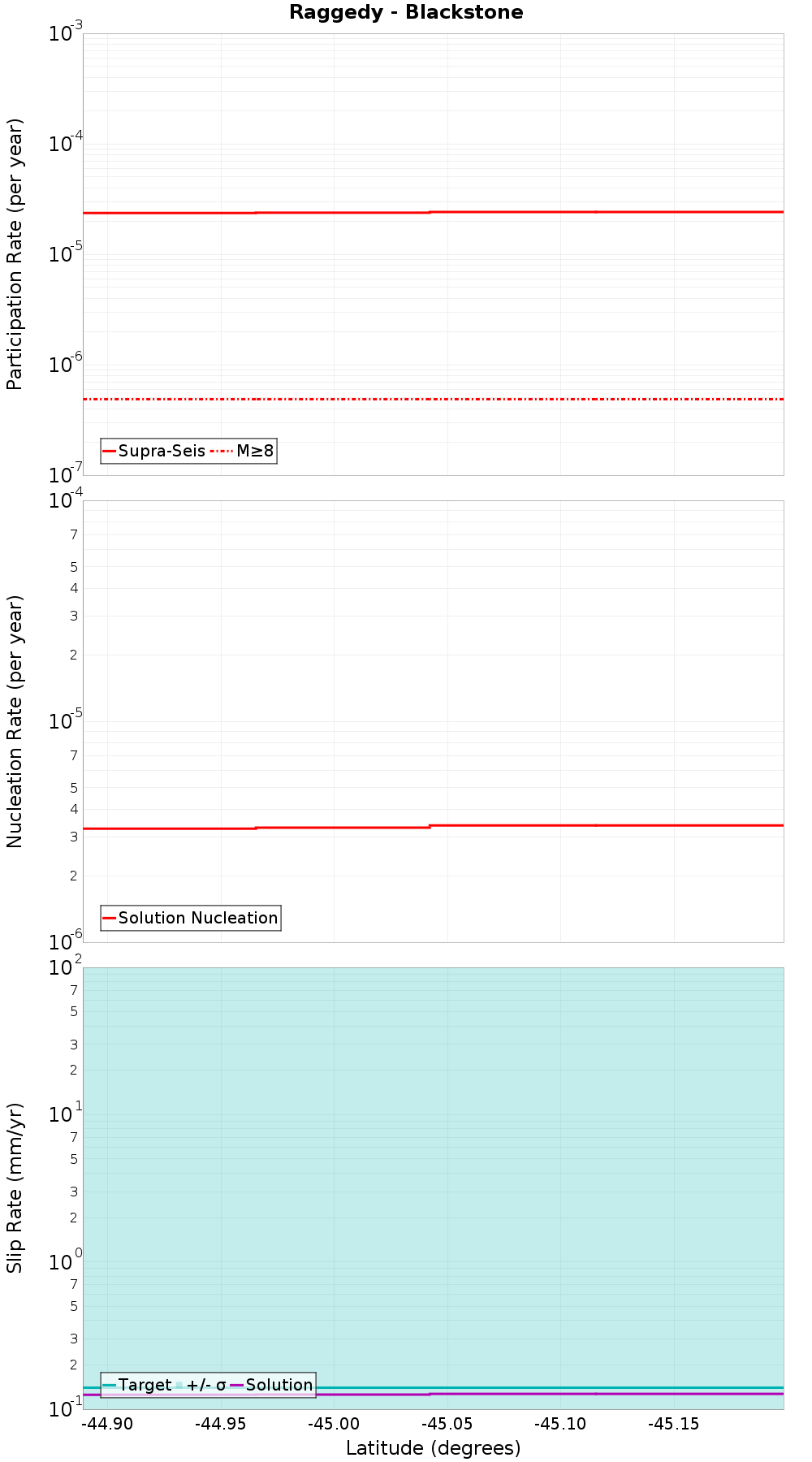

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Lake, 0.17 km away
Omarama Saddle, 0.26 km away
Little Valley, 1.45 km away
Hawkdun, 2.51 km away
Goodger, 4.77 km away
Galloway, 4.8 km away
Garibaldi, 6.01 km away
Dunstan, 9.93 km away
Gimmerburn, 10.19 km away
Lindis River, 12.11 km away
Grandview, 14.9 km away

Blue Lake, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count2,604
Co-rupture Rate7.237446E-6

Omarama Saddle, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count1,697
Co-rupture Rate5.4550185E-7

Little Valley, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count3,331
Co-rupture Rate3.6763363E-6

Hawkdun, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count889
Co-rupture Rate2.1490362E-6

Goodger, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count1,345
Co-rupture Rate3.361948E-6

Garibaldi, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate7.8546E-15

Dunstan, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?true
Co-rupture Count447
Co-rupture Rate1.3477081E-5

Gimmerburn, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate1.3530582E-6

Lindis River, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grandview, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODIuMHc0OFNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
