Alfredton South Details

Property	Value
Rupture Count	6,036
Ruptures Above Sect Min Mag	6,031
Ruptures w/ Nonzero Rates	455
Magnitude Range	[6.55, 8.60]
Length Range	[10, 906] km
Total Rate	7.432445E-4 /yr
Multi-Fault Rate	7.432445E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

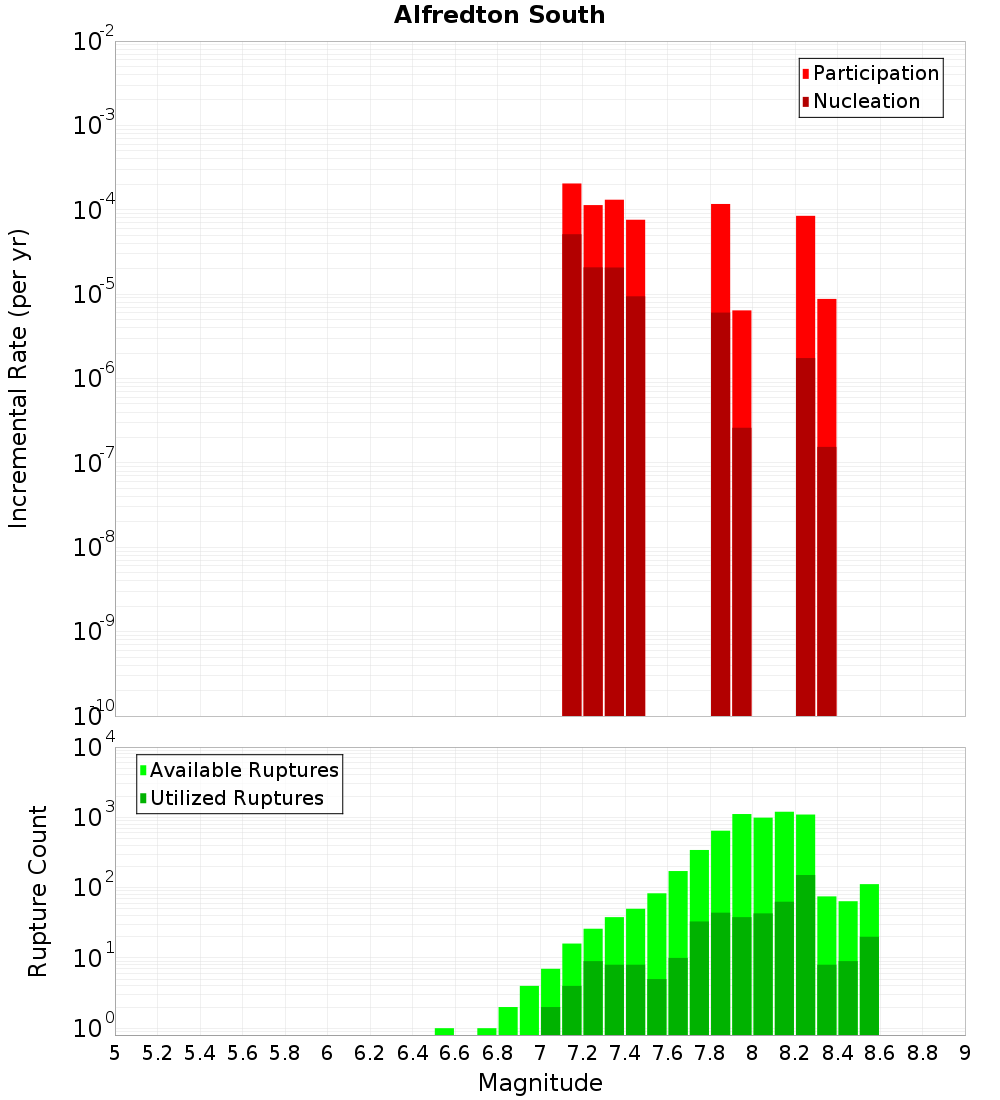

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

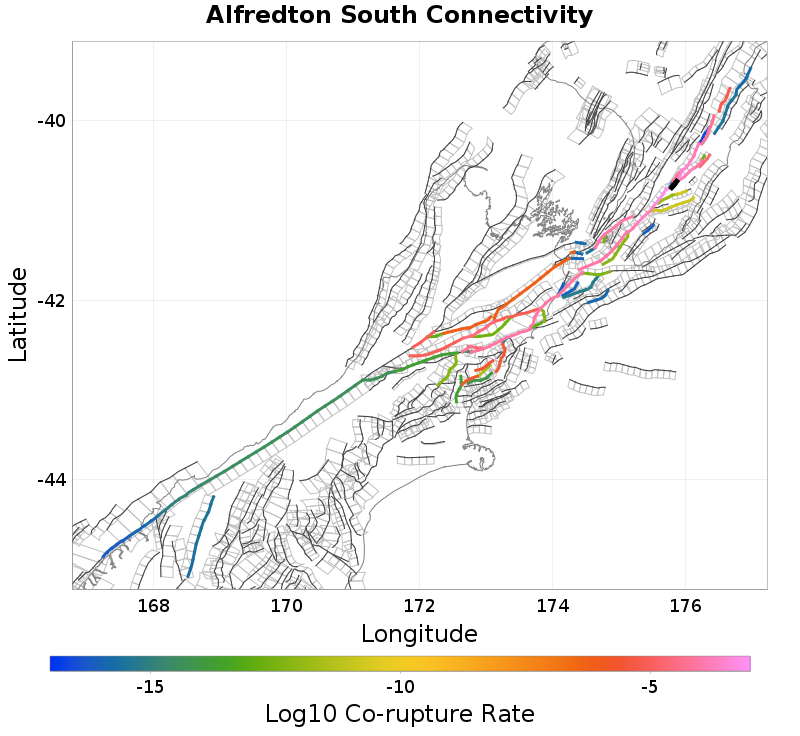

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0 km away
Alfredton North, 0 km away
Dreyers Rock, 0 km away
Pa Valley, 0.07 km away
Wairarapa: 3, 7.46 km away
Mokonui Northeast, 9.5 km away
Mokonui Southwest, 9.66 km away

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	3,182
Co-rupture Rate	1.8060267E-4

Alfredton North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,947
Co-rupture Rate	3.1452335E-4

Dreyers Rock, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	5,924
Co-rupture Rate	6.832793E-4

Pa Valley, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	119
Co-rupture Rate	4.3211134E-5

Wairarapa: 3, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	false
Co-rupture Count	5,917
Co-rupture Rate	6.763739E-4

Mokonui Northeast, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	75
Co-rupture Rate	1.4910602E-11

Mokonui Southwest, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	1.1655045E-12
