Carterton Details

Property	Value
Rupture Count	8,064
Ruptures Above Sect Min Mag	8,048
Ruptures w/ Nonzero Rates	830
Magnitude Range	[6.69, 8.42]
Length Range	[15, 599] km
Total Rate	9.635268E-4 /yr
Multi-Fault Rate	9.571526E-4 /yr (99.34%)
Directly-Connected Faults	13
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

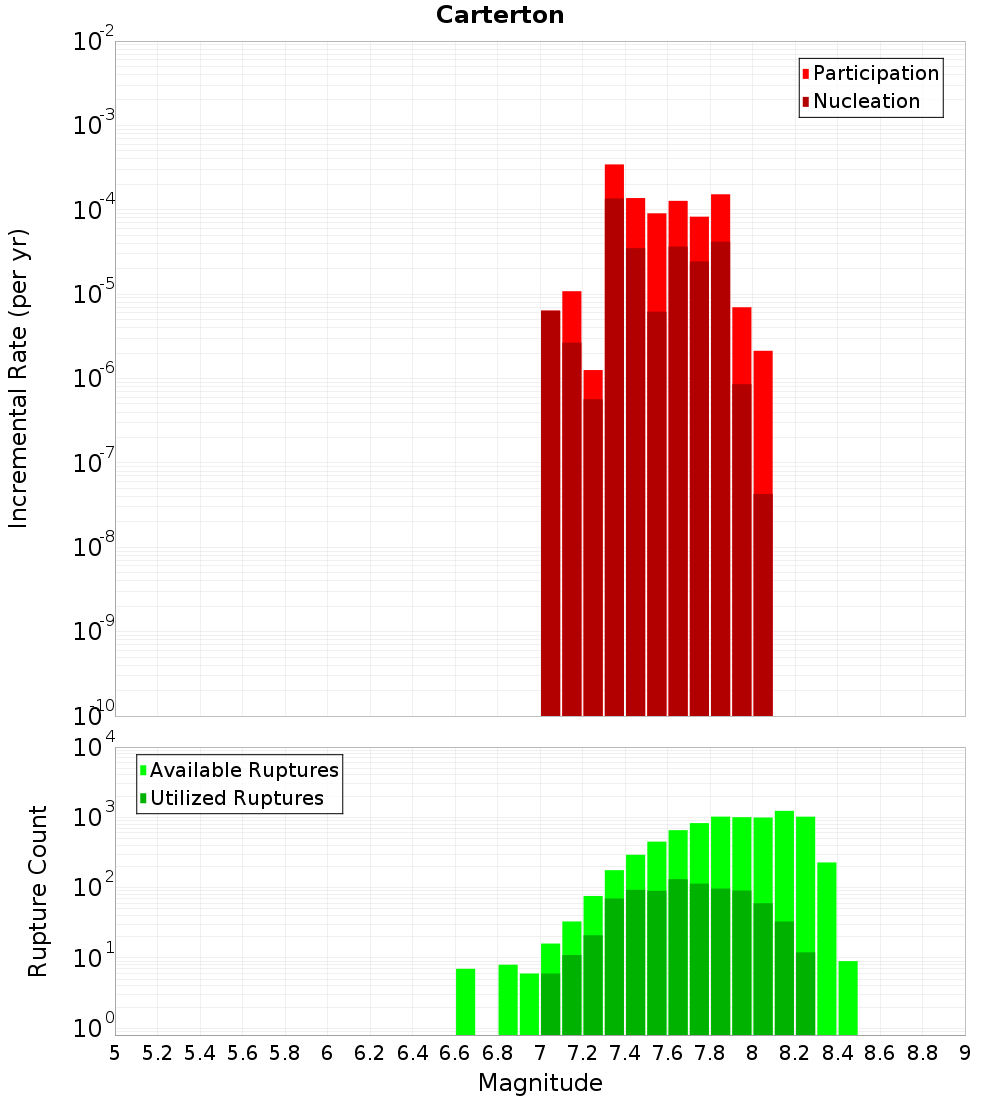

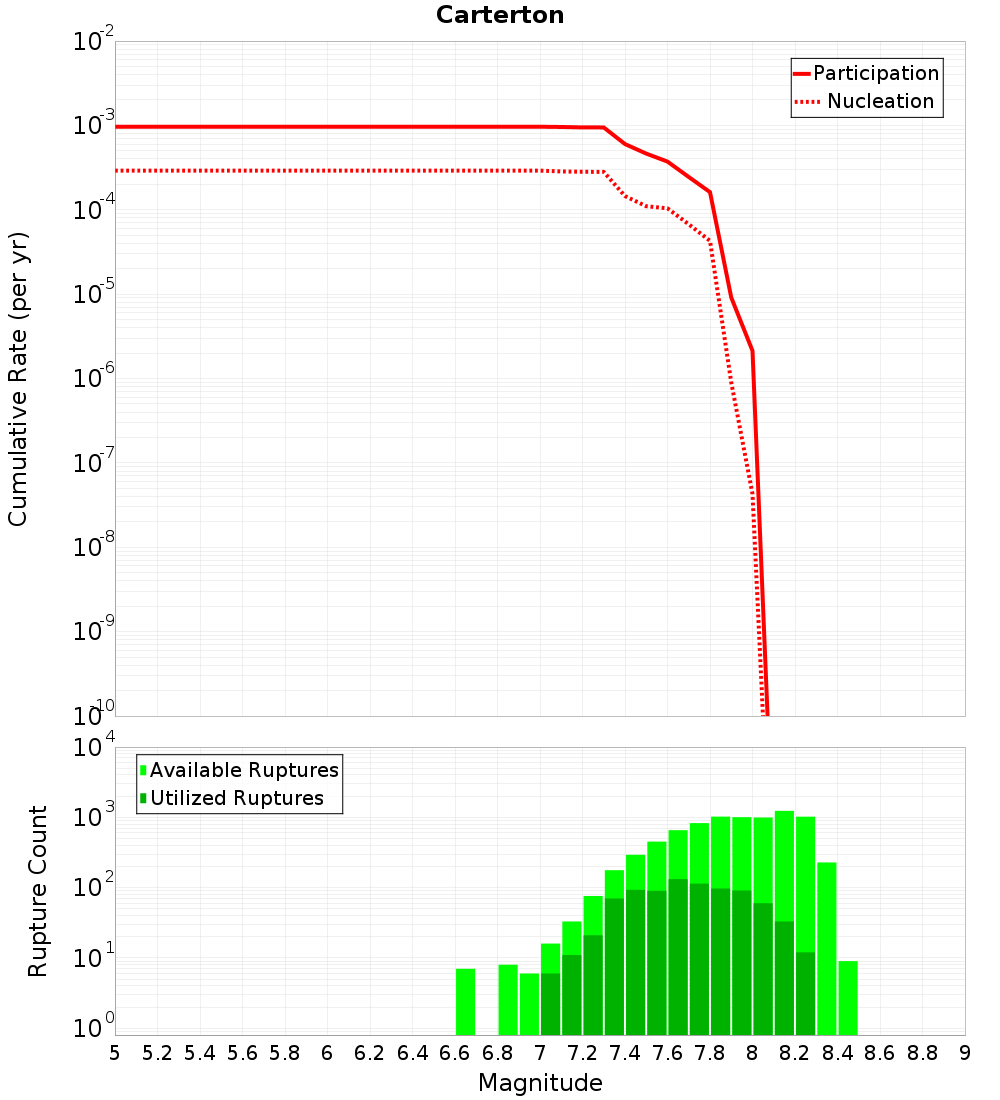

Magnitude-Frequency Distribution

Incremental	Cumulative

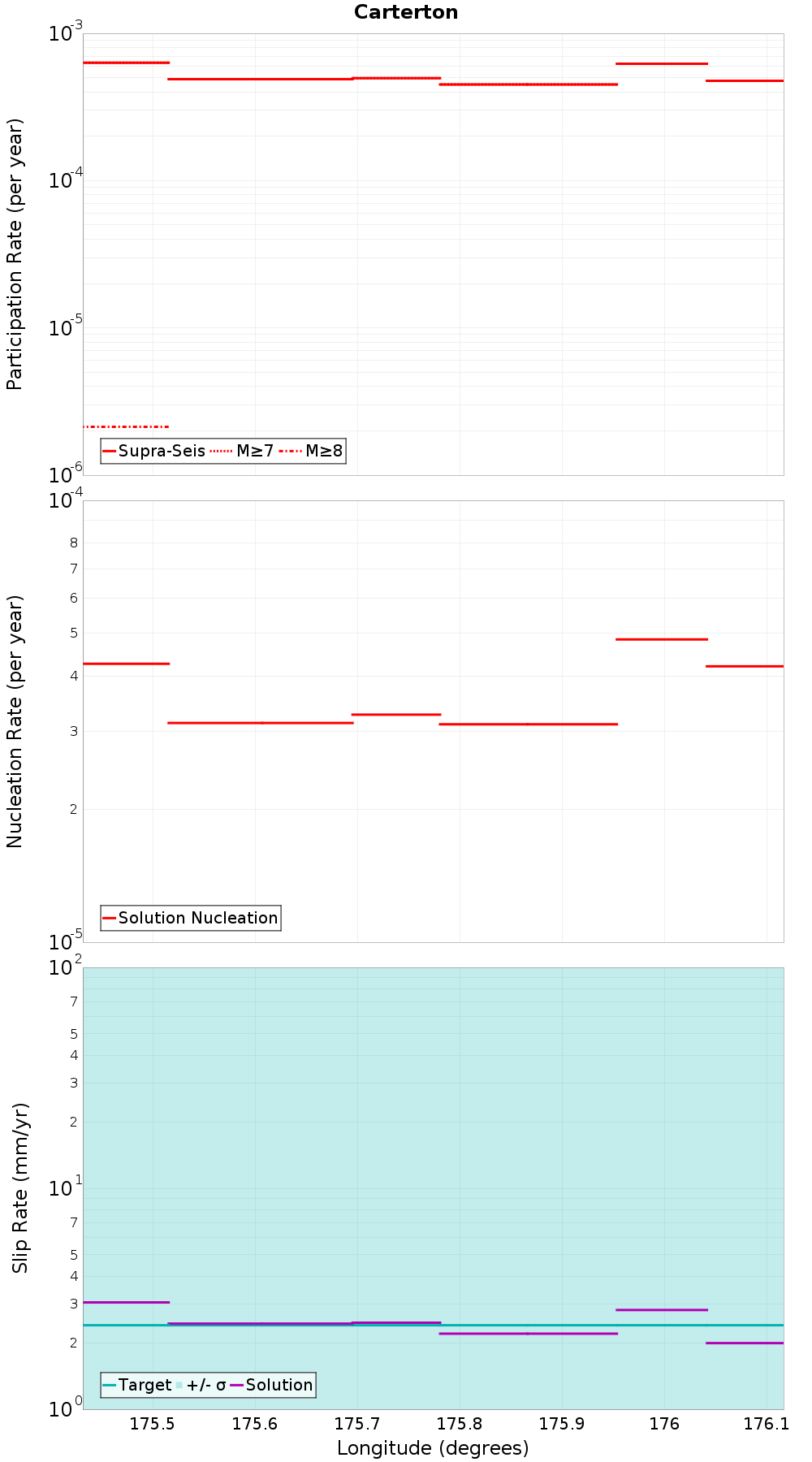

Along-Strike Values

Moment-Rates and b-Values

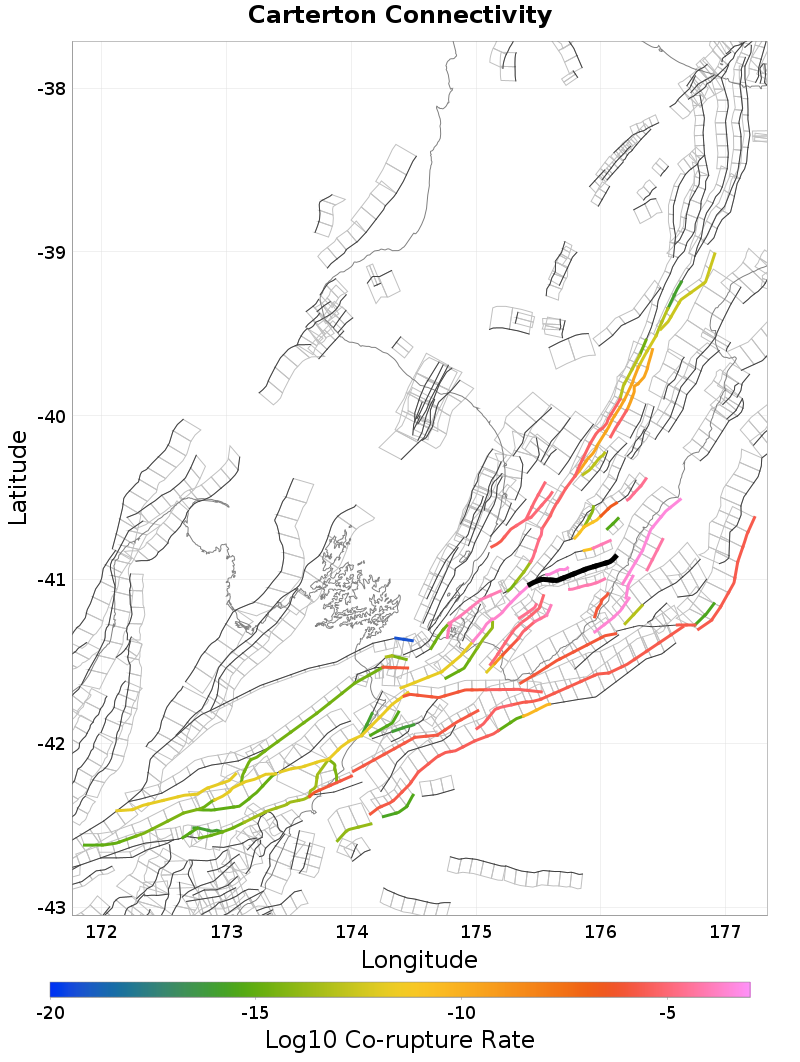

Connectivity

Nearby Sections

Fault Section	Fault Section
Wairarapa: 3, 0.02 km away	Mataikona East, 7.85 km away
Wairarapa: 2, 0.05 km away	Wellington: Tararua 2, 8.44 km away
Mataikona, 0.32 km away	Dry River - Huangarua: 3, 9.56 km away
Martinborough, 0.42 km away	Mokonui Northeast, 9.67 km away
Masterton, 0.45 km away	Riversdale, 10.74 km away
Kaumingi, 0.54 km away	Uruti Point, 12.06 km away
Riversdale North, 2 km away	Dry River - Huangarua: 2, 12.78 km away
Bidwill, 3.31 km away	Wellington: Tararua 3, 13.79 km away
Mokonui Southwest, 5.71 km away

Wairarapa: 3, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	3,476
Co-rupture Rate	2.9984536E-4

Mataikona, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,153
Co-rupture Rate	3.683476E-4

Martinborough, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,659
Co-rupture Rate	7.700159E-6

Masterton, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	227
Co-rupture Rate	3.1956992E-4

Kaumingi, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	323
Co-rupture Rate	7.5156146E-5

Riversdale North, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	129
Co-rupture Rate	2.8037574E-4

Bidwill, 3.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	968
Co-rupture Rate	2.3712744E-5

Mokonui Southwest, 5.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 7.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	334
Co-rupture Rate	5.3825406E-5

Wellington: Tararua 2, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	2.0067783E-14

Dry River - Huangarua: 3, 9.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	291
Co-rupture Rate	1.0559977E-4

Mokonui Northeast, 9.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	162
Co-rupture Rate	9.213688E-5

Riversdale, 10.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	2.7045436E-4

Uruti Point, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	297
Co-rupture Rate	9.782098E-7

Dry River - Huangarua: 2, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	377
Co-rupture Rate	3.3723598E-5

Wellington: Tararua 3, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2ODkuMFROd2tL
Connected?	true
Directly Connected?	true
Co-rupture Count	3,082
Co-rupture Rate	1.5255936E-5
