Tuatoru 1 Details

Property	Value
Rupture Count	1,632
Ruptures Above Sect Min Mag	1,631
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.66, 8.38]
Length Range	[9, 516] km
Total Rate	1.319867E-4 /yr
Multi-Fault Rate	1.319867E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	47

Table Of Contents

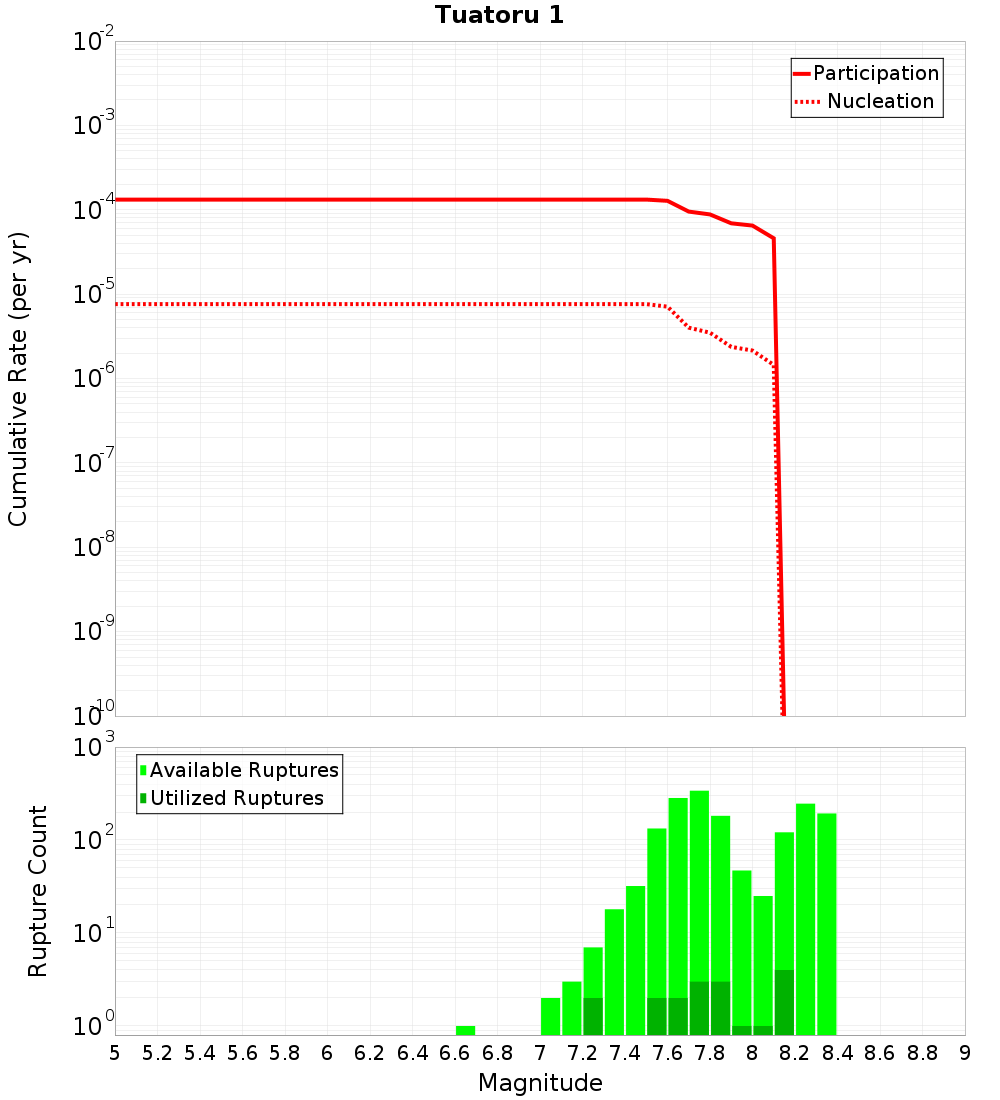

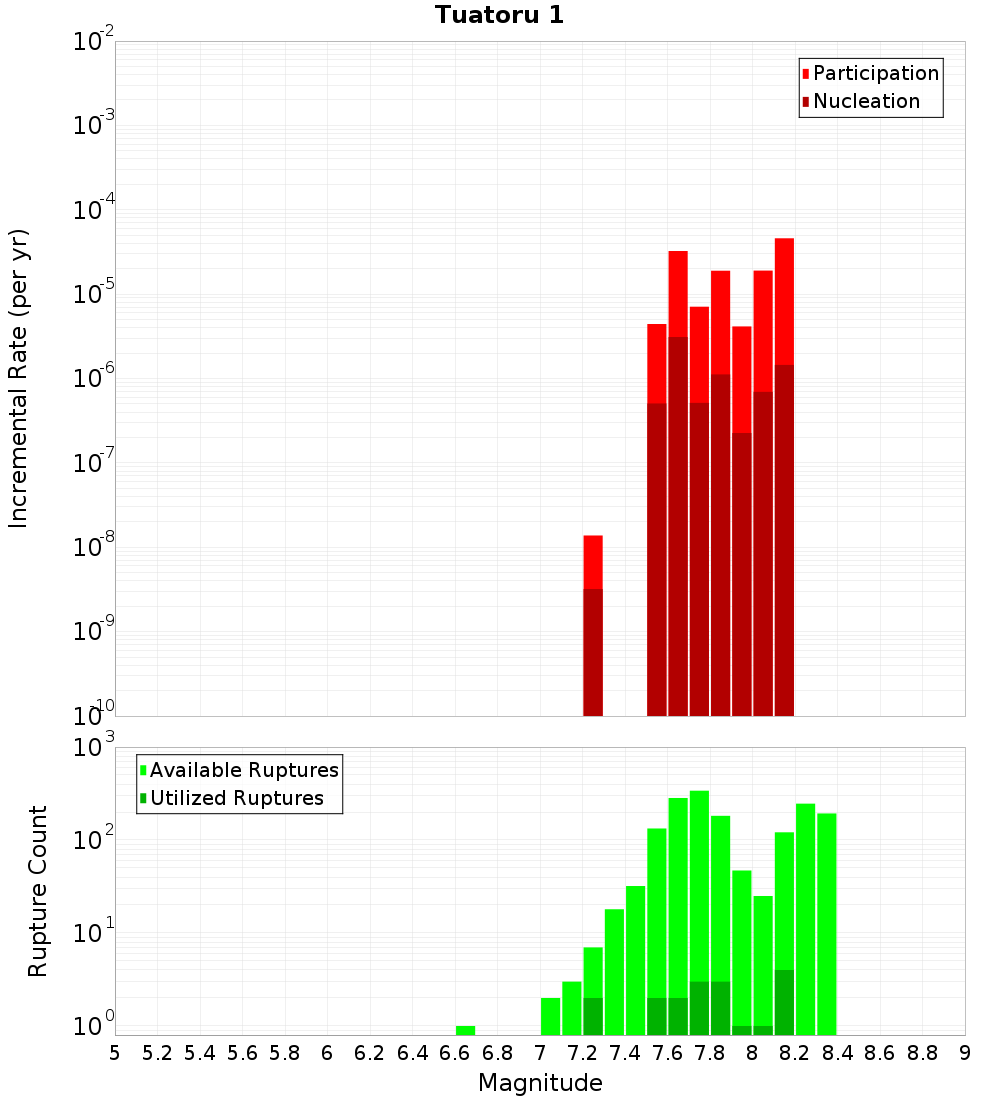

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

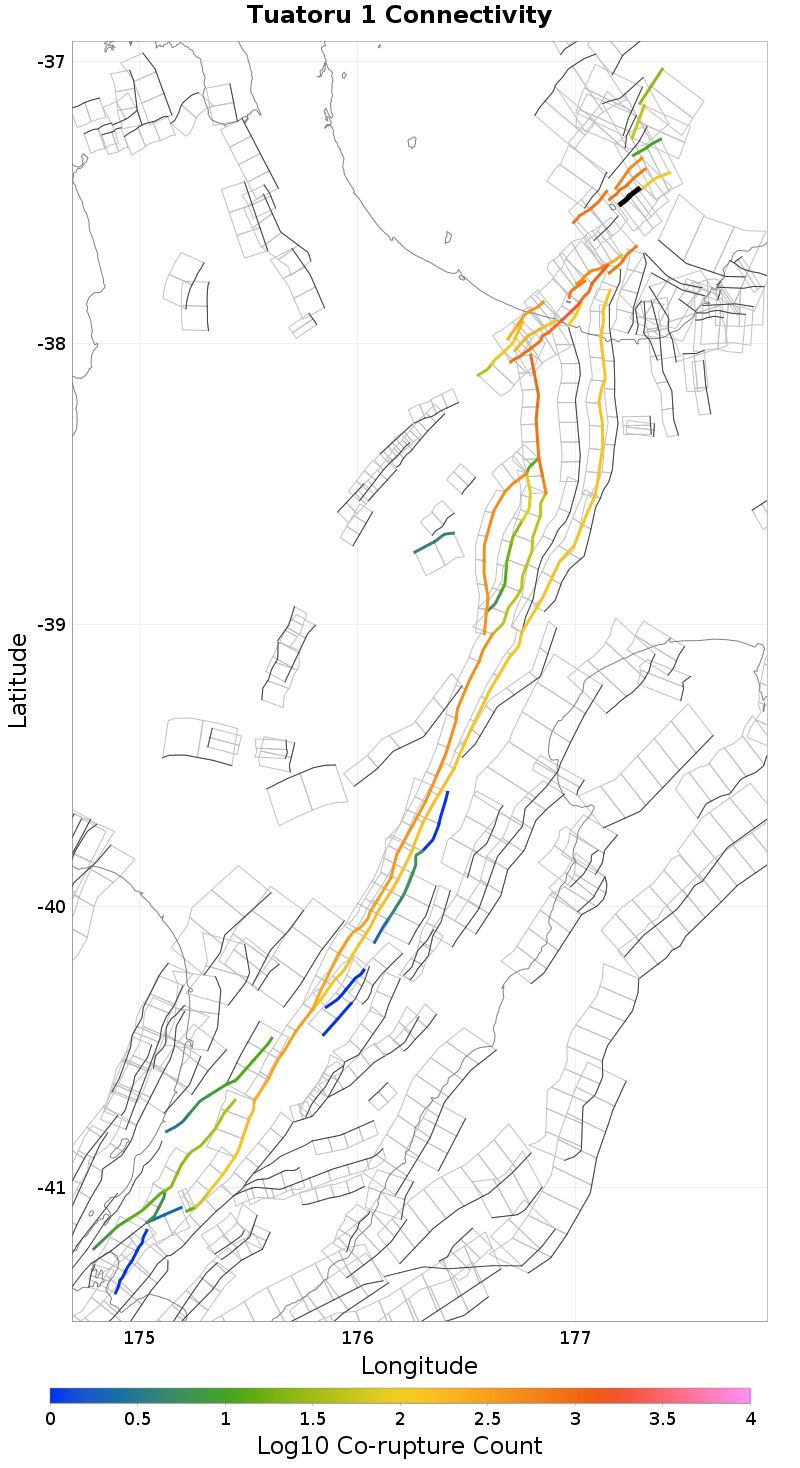

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.43 km away
Te Arawa 1, 3.09 km away
Calypso 2, 3.86 km away
Te Arawa 2, 4.64 km away
Hariki, 5.5 km away
Whakaari 4, 5.84 km away
White Island 2, 5.84 km away
Opotiki 3, 8.45 km away
Te Arawa 3, 9.82 km away
Volkner 3, 10.46 km away
Volkner 4, 11.02 km away
Ohiwa 1, 11.29 km away

Tuatoru 2, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	false
Co-rupture Count	112
Co-rupture Rate	4.8637765E-5

Te Arawa 1, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	true
Co-rupture Count	845
Co-rupture Rate	8.058068E-5

Calypso 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	true
Co-rupture Count	547
Co-rupture Rate	8.048251E-5

Hariki, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	3.353079E-5

White Island 2, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	true
Co-rupture Count	753
Co-rupture Rate	6.484919E-5

Opotiki 3, 8.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 9.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	3.411715E-5

Volkner 3, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Volkner 4, 11.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTEuMHVBYmU0
Connected?	true
Directly Connected?	false
Co-rupture Count	235
Co-rupture Rate	4.707938E-5
