Waitaki Details
| Property | Value |
|---|---|
| Rupture Count | 500 |
| Ruptures Above Sect Min Mag | 495 |
| Ruptures w/ Nonzero Rates | 23 |
| Magnitude Range | [6.65, 7.95] |
| Length Range | [18, 277] km |
| Total Rate | 2.2636617E-5 /yr |
| Multi-Fault Rate | 2.2636617E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

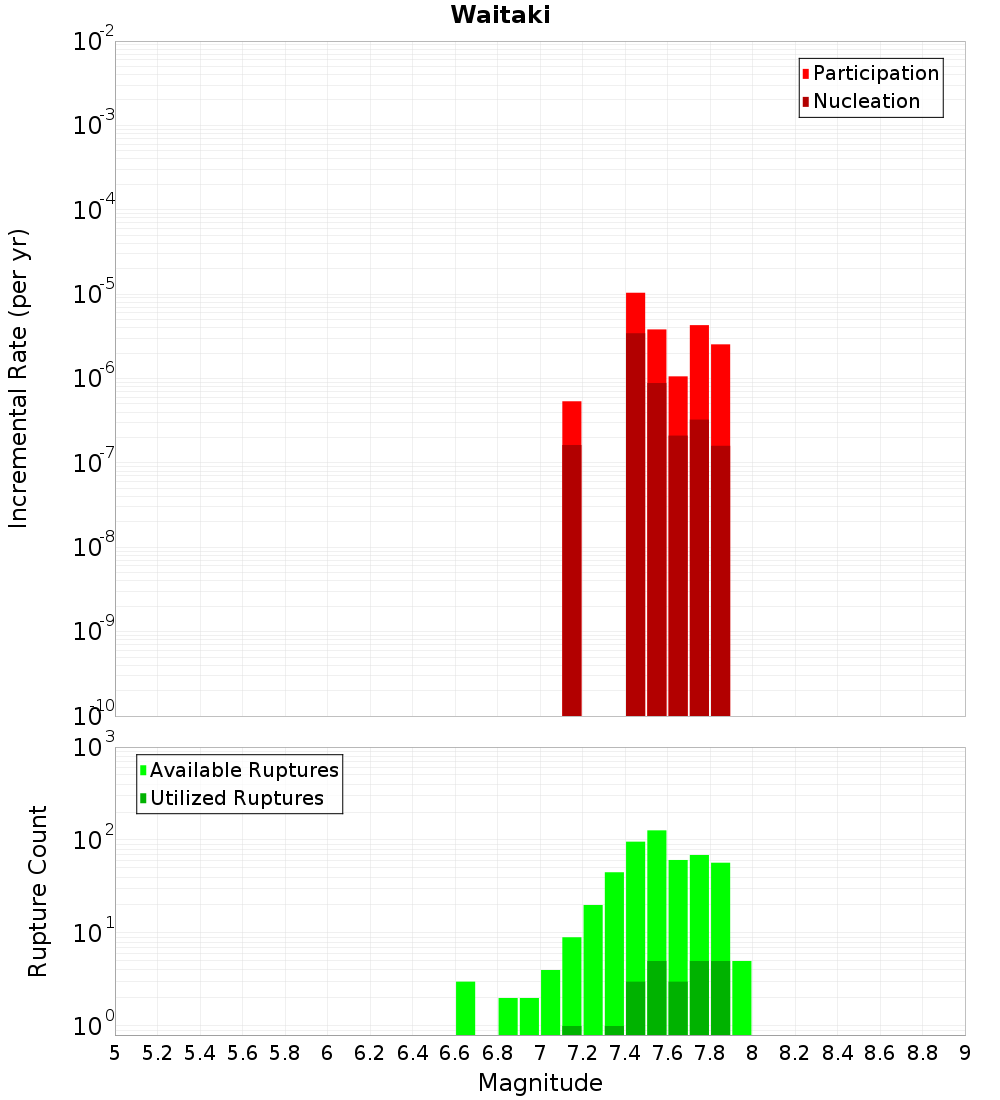

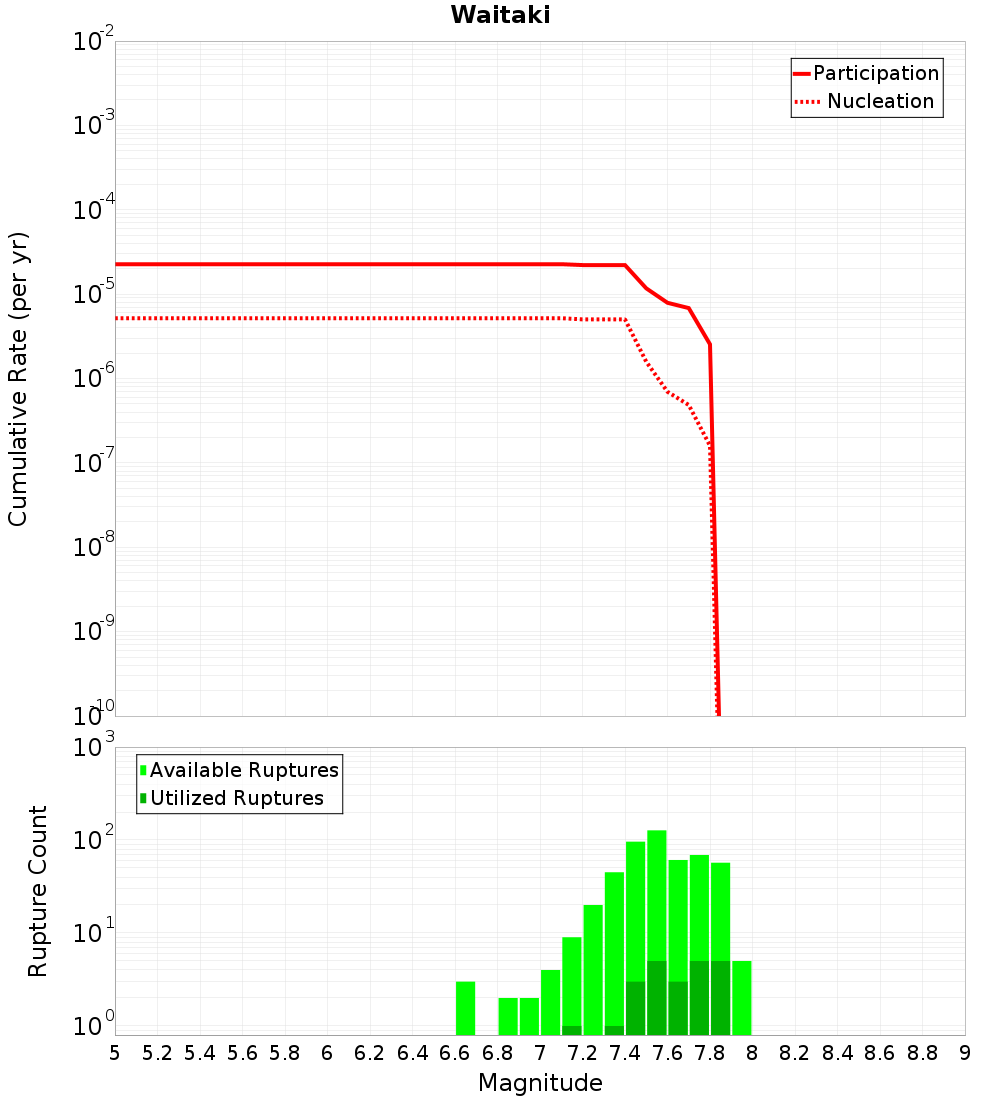

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

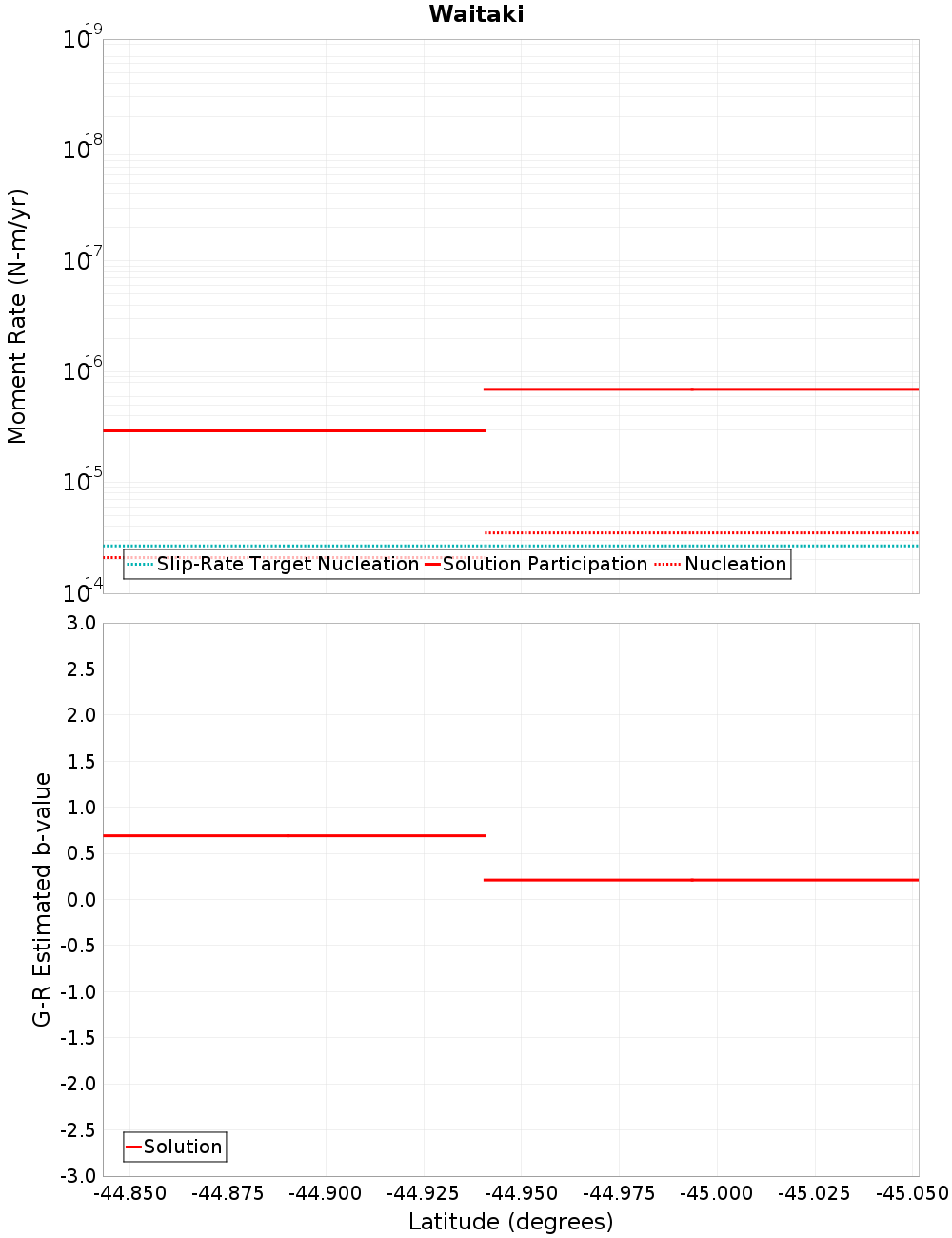

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Black Hill, 0.12 km away |
| Awamoa, 0.28 km away |
| Stonewall, 0.64 km away |
| Waimate, 8.23 km away |
| Campbell Hills, 9.85 km away |
| Middle Range, 13.01 km away |
Black Hill, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awamoa, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 2.2099388E-5 |
Stonewall, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 181 |
| Co-rupture Rate | 2.297505E-6 |
Waimate, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 119 |
| Co-rupture Rate | 7.411972E-6 |
Campbell Hills, 9.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Middle Range, 13.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA2OTkuMEJaY0Rw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 262 |
| Co-rupture Rate | 1.2927141E-5 |
