Maimai: North Details
| Property | Value |
|---|---|
| Rupture Count | 2,693 |
| Ruptures Above Sect Min Mag | 2,687 |
| Ruptures w/ Nonzero Rates | 224 |
| Magnitude Range | [6.62, 8.03] |
| Length Range | [18, 395] km |
| Total Rate | 3.4668893E-4 /yr |
| Multi-Fault Rate | 3.4668893E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

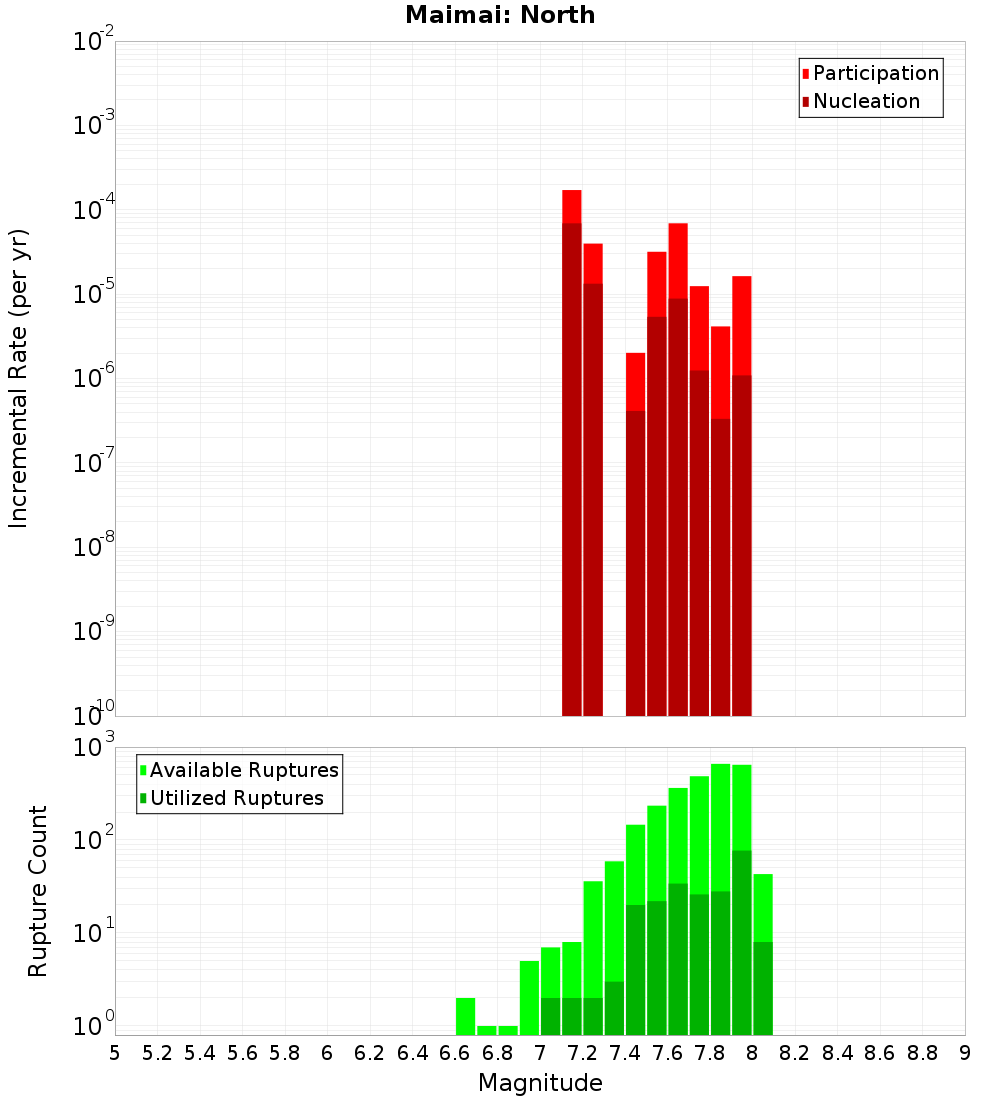

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

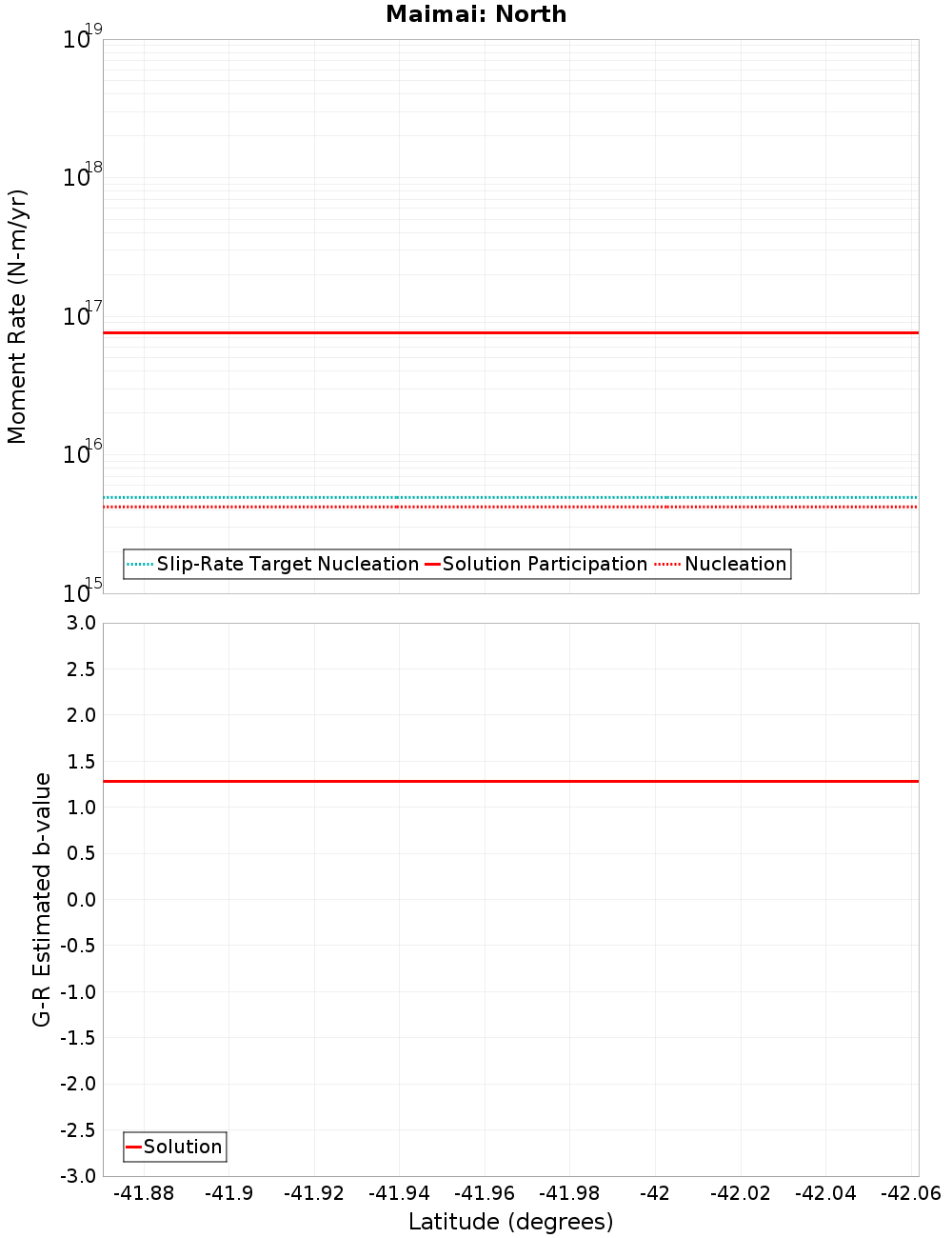

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Inangahua, 0 km away |
| Maimai, 0 km away |
| Paparoa West, 1.82 km away |
| Paparoa West: North, 2.9 km away |
| Lyell South, 7.01 km away |
| Lyell, 7.56 km away |
| Cape Foulwind 2, 14.88 km away |
Inangahua, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,952 |
| Co-rupture Rate | 1.0741318E-4 |
Maimai, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,846 |
| Co-rupture Rate | 1.754804E-4 |
Paparoa West, 1.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 671 |
| Co-rupture Rate | 3.085969E-4 |
Paparoa West: North, 2.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 684 |
| Co-rupture Rate | 3.339331E-5 |
Lyell South, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 131 |
| Co-rupture Rate | 1.3917803E-15 |
Lyell, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 2.9844957E-6 |
Cape Foulwind 2, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MDMuMFJGcEtS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
