Te Rapa 2 Details

Property	Value
Rupture Count	8,053
Ruptures Above Sect Min Mag	8,043
Ruptures w/ Nonzero Rates	376
Magnitude Range	[6.59, 8.62]
Length Range	[13, 946] km
Total Rate	2.7085835E-4 /yr
Multi-Fault Rate	2.7085835E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	97

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

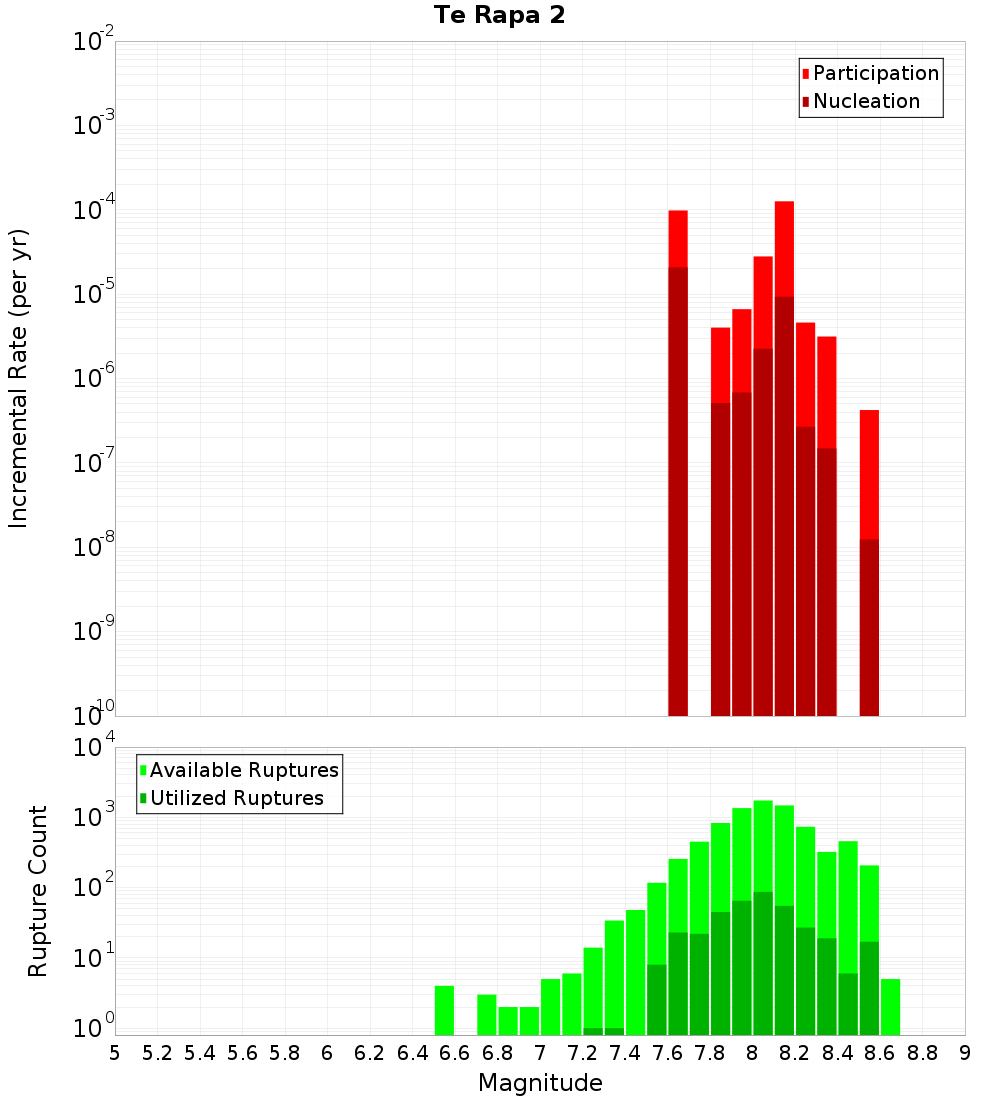

Magnitude-Frequency Distribution

Incremental	Cumulative

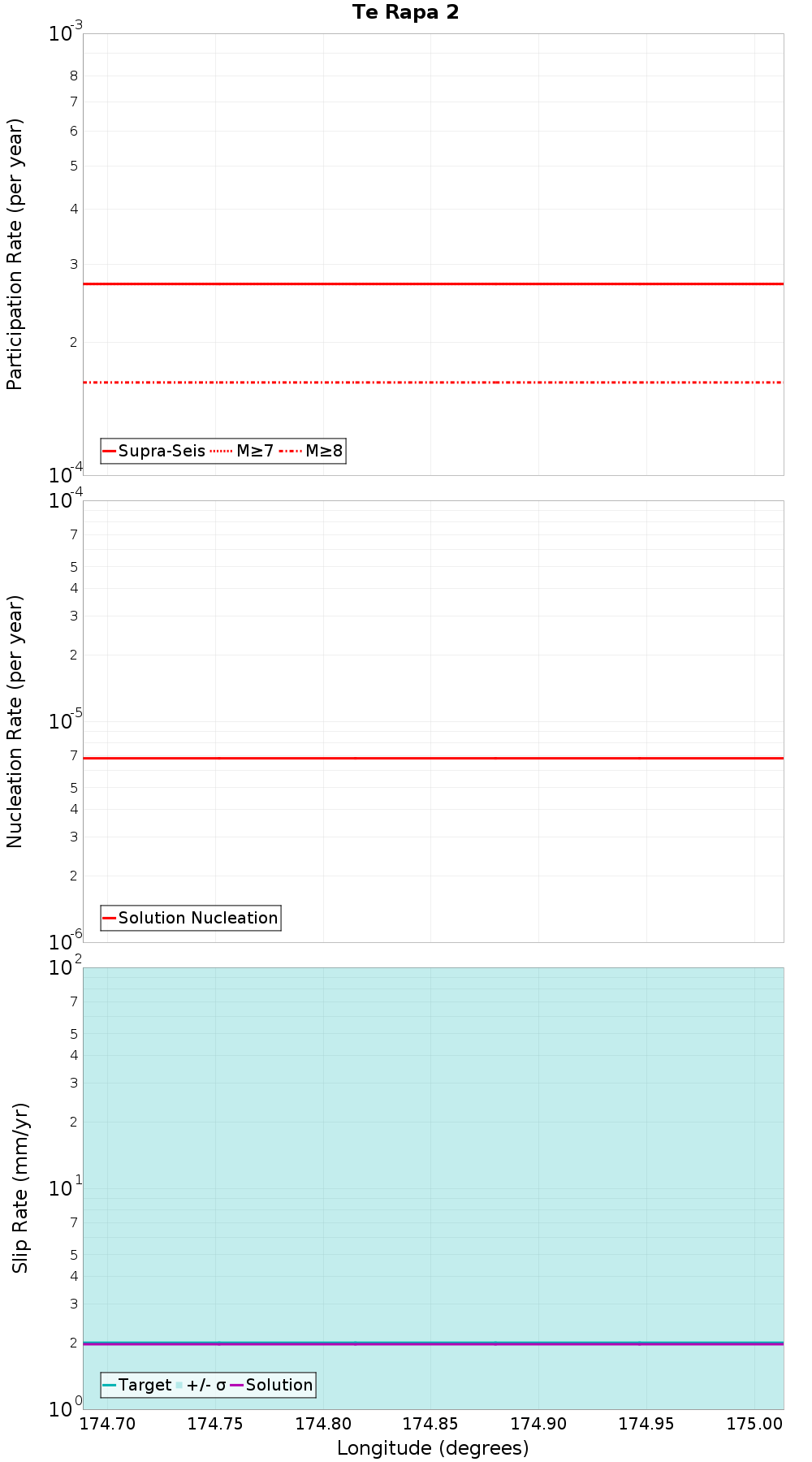

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Rapa 1, 0 km away
Upper Slope, 0.18 km away
Opouawe - Uruti, 0.25 km away
Campbell Bank, 2.05 km away
Kekerengu Bank, 4.95 km away
Pahaua, 10.36 km away
Chancet, 11.11 km away
BooBoo, 13.57 km away
Hope: Te Rapa, 14.01 km away

Te Rapa 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	true
Co-rupture Count	6,817
Co-rupture Rate	2.656703E-4

Upper Slope, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	true
Co-rupture Count	469
Co-rupture Rate	5.188055E-6

Opouawe - Uruti, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	true
Co-rupture Count	5,424
Co-rupture Rate	2.0451507E-5

Campbell Bank, 2.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu Bank, 4.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	8.56678E-16

Pahaua, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	9.246917E-6

Chancet, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.5404708E-16

BooBoo, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,304
Co-rupture Rate	1.523069E-4

Hope: Te Rapa, 14.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3MjEuMFR3OUNt
Connected?	true
Directly Connected?	false
Co-rupture Count	6,711
Co-rupture Rate	2.656703E-4
