Point Gibson Details

PropertyValue
Rupture Count774
Ruptures Above Sect Min Mag766
Ruptures w/ Nonzero Rates12
Magnitude Range[6.66, 7.81]
Length Range[17, 206] km
Total Rate1.1223136E-4 /yr
Multi-Fault Rate1.1223136E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults20

Table Of Contents

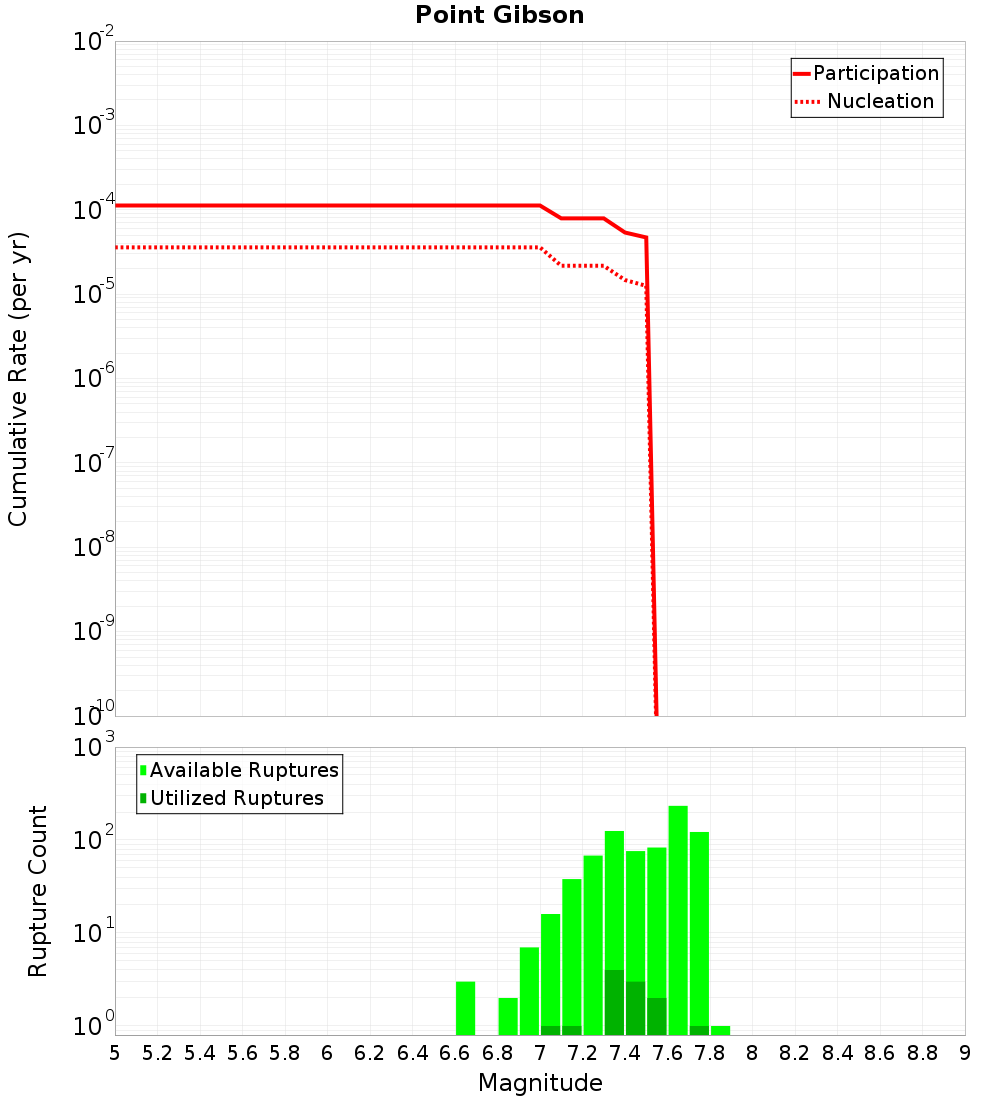

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 2.05 km away
Leithfield - NCVI - NCVII, 3.66 km away
AmberBlyth, 4.29 km away
Motunau, 4.6 km away
OmihiLwrHuru, 9.05 km away
North Canterbury Shelf 4, 10.06 km away
Conway Trough East, 11.43 km away
Hawkswood, 11.9 km away
North Canterbury Shelf 2, 14.3 km away
Conway Trough West, 14.94 km away

North Canterbury Shelf 11, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count234
Co-rupture Rate2.4335804E-6

Leithfield - NCVI - NCVII, 3.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate1.4170285E-5

AmberBlyth, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count448
Co-rupture Rate5.3702912E-5

Motunau, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count479
Co-rupture Rate2.92498E-5

OmihiLwrHuru, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 4, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate0.0

Conway Trough East, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate8.8027984E-5

Hawkswood, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate2.489271E-25

Conway Trough West, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NTAuMFIySHFw
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate1.0033093E-5
