Kaweka Details
| Property | Value |
|---|---|
| Rupture Count | 201 |
| Ruptures Above Sect Min Mag | 198 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [7.07, 8.08] |
| Length Range | [24, 268] km |
| Total Rate | 1.773202E-4 /yr |
| Multi-Fault Rate | 7.606628E-5 /yr (42.90%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

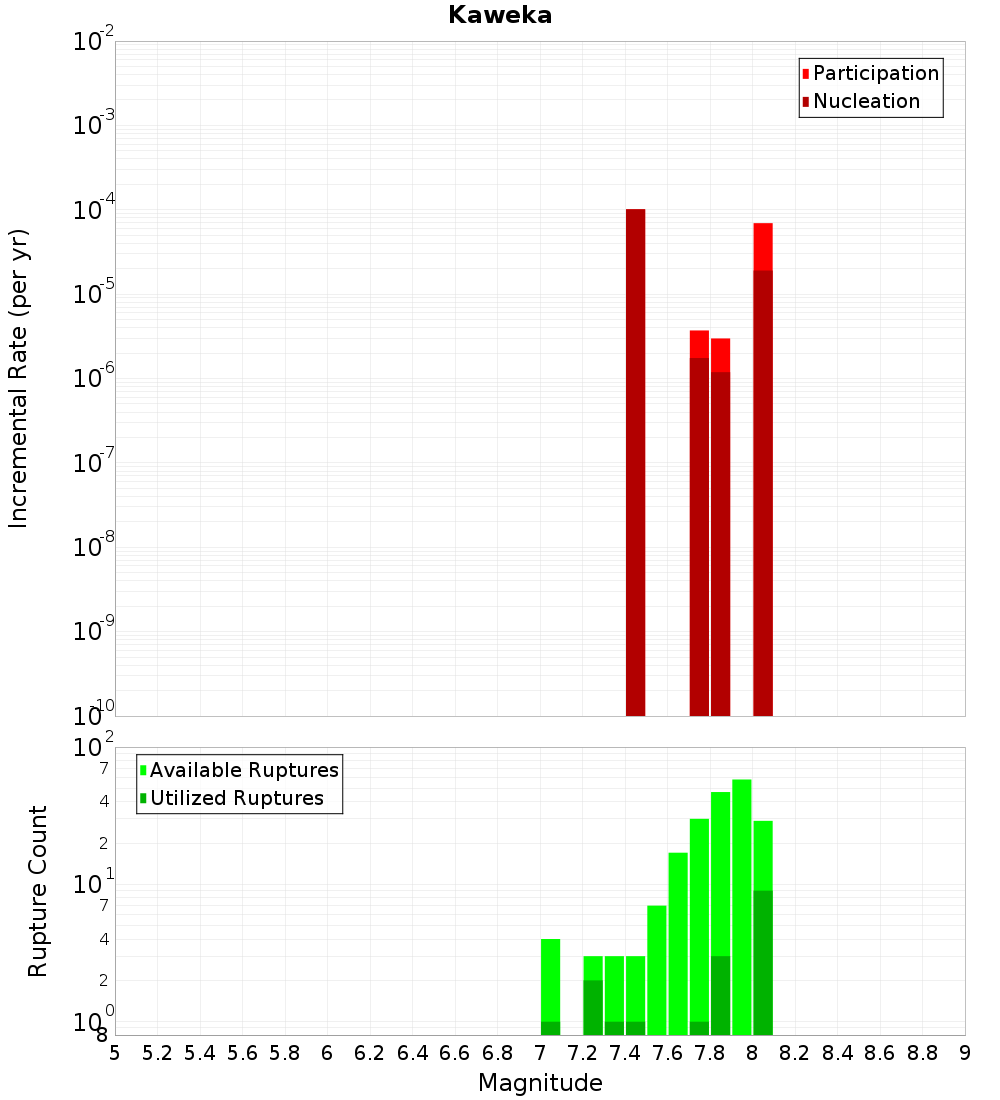

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

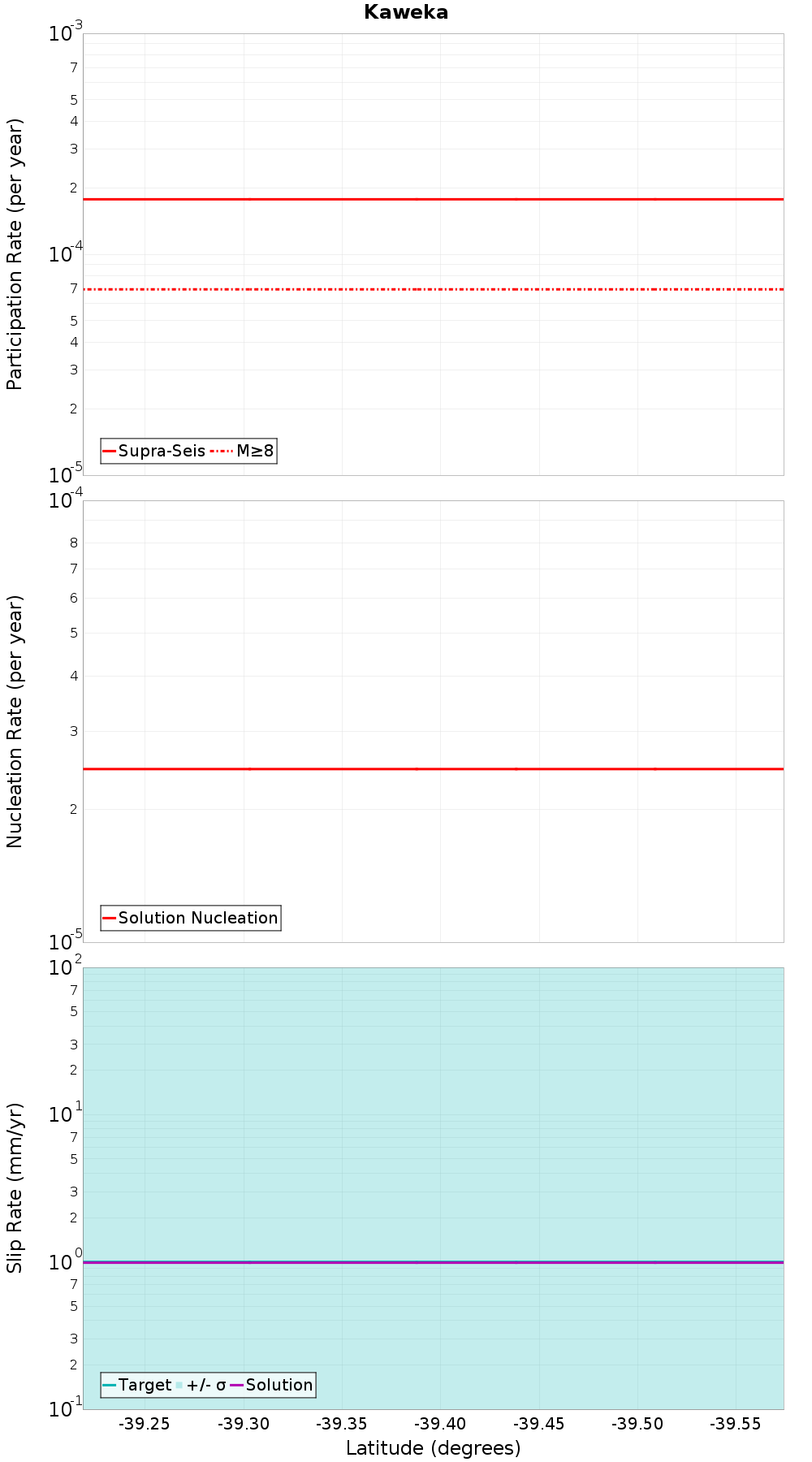

Along-Strike Values
Moment-Rates and b-Values

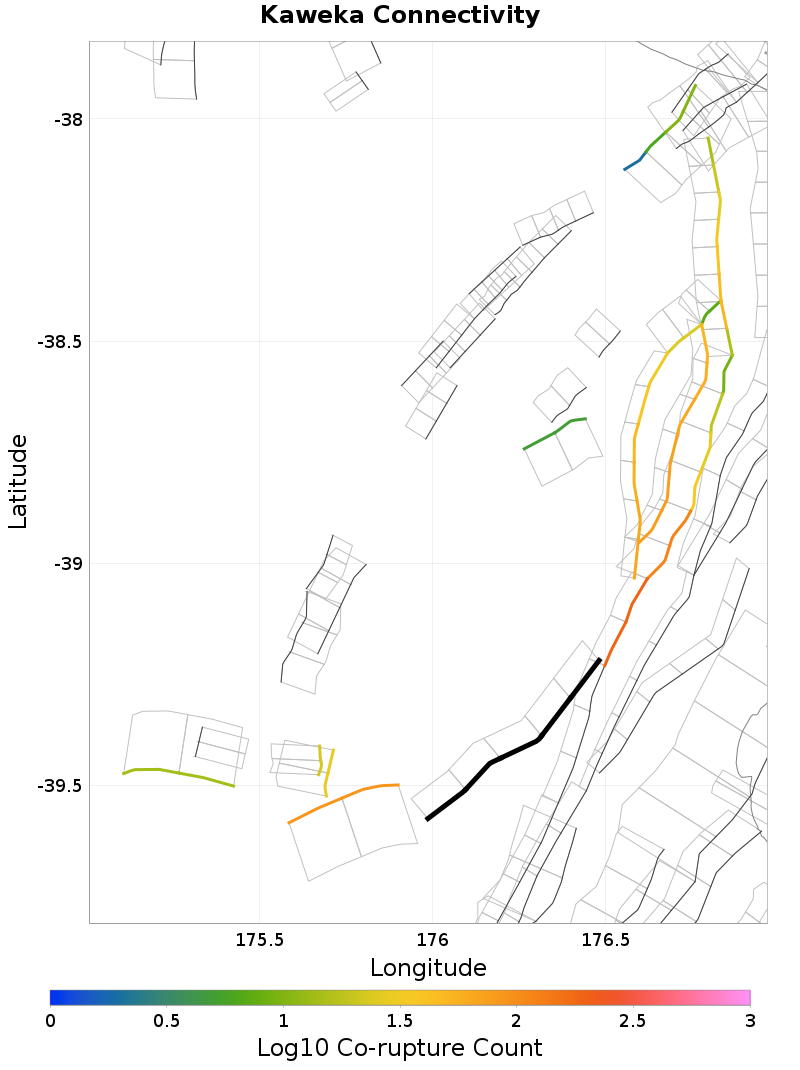

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruahine: North, 1.83 km away |
| Snowgrass, 3.11 km away |
| Mohaka: North, 10.6 km away |
Ruahine: North, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 190 |
| Co-rupture Rate | 7.606628E-5 |
Snowgrass, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 87 |
| Co-rupture Rate | 7.606628E-5 |
Mohaka: North, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
