Tutaki Details

Property	Value
Rupture Count	11,804
Ruptures Above Sect Min Mag	11,802
Ruptures w/ Nonzero Rates	693
Magnitude Range	[7.17, 8.66]
Length Range	[24, 947] km
Total Rate	3.9498093E-5 /yr
Multi-Fault Rate	3.949809E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution

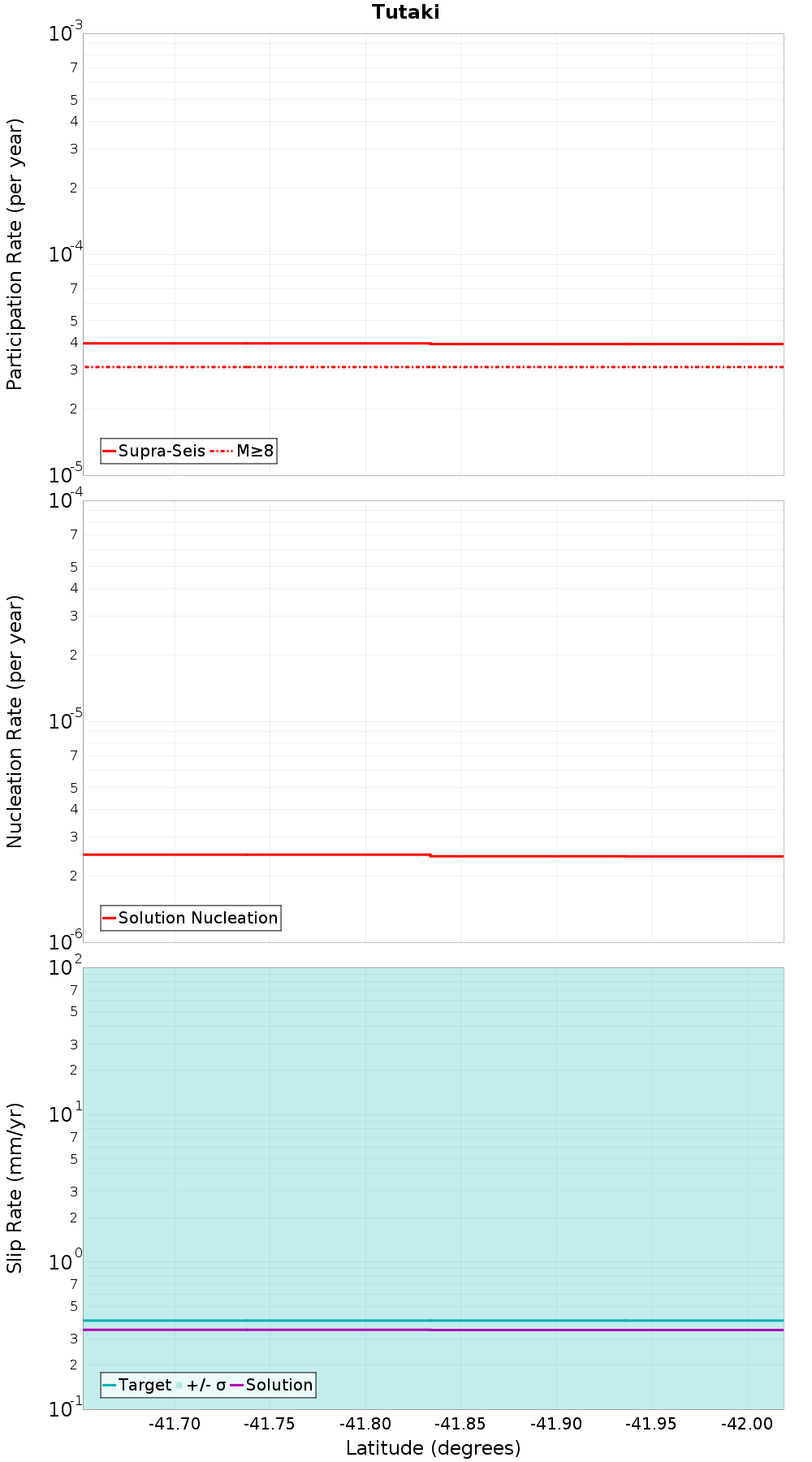

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

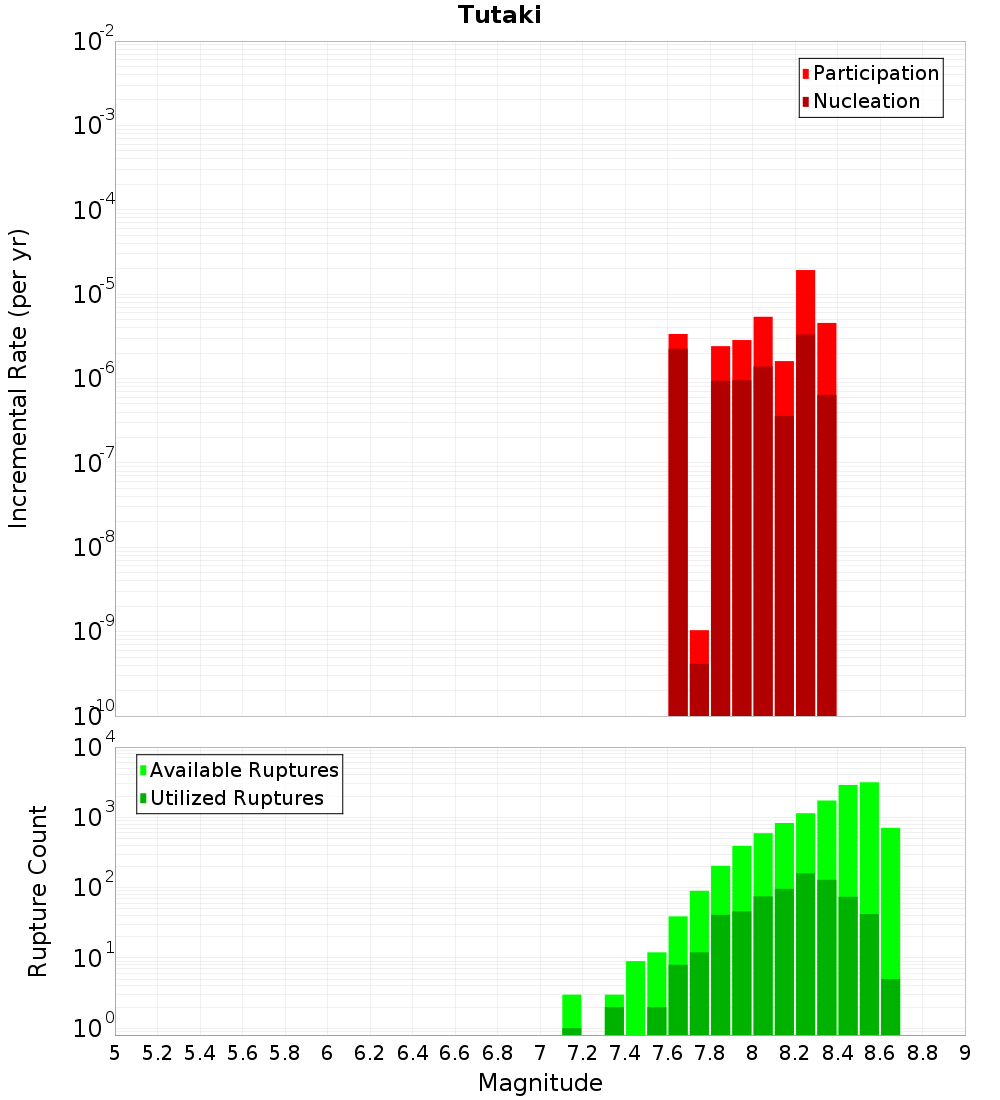

Magnitude-Frequency Distribution

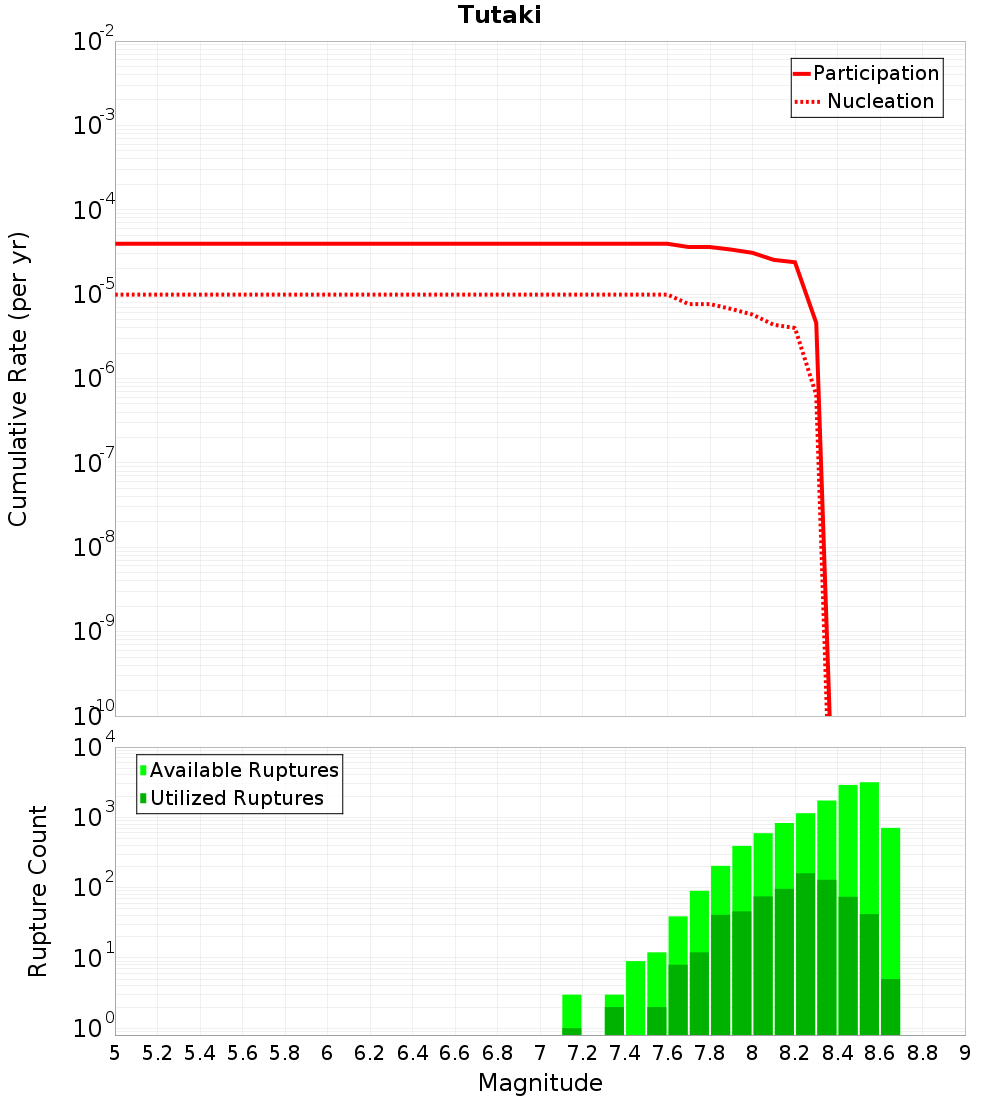

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

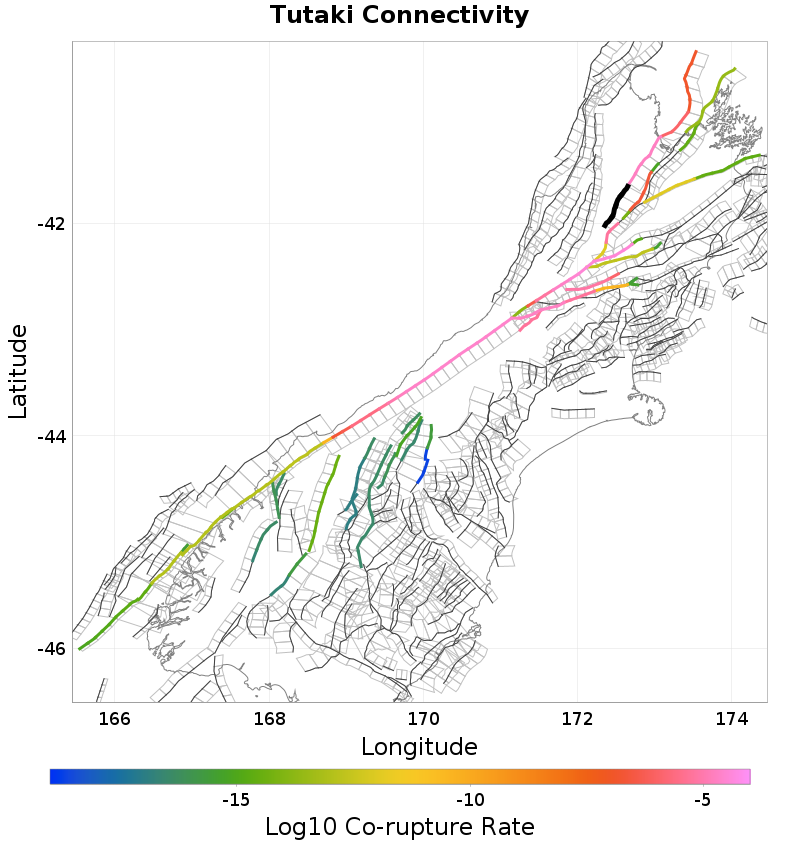

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0.13 km away
Flaxmore - Waimea - Tahunanui, 2.49 km away
Ruby Bay - Moutere, 3.43 km away
Wairau, 7.34 km away
Awatere: Southwest, 9.47 km away
Whangamoa, 14.86 km away

Alpine: Springs Junction to Tophouse, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	7,144
Co-rupture Rate	5.7979805E-6

Flaxmore - Waimea - Tahunanui, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	2.1445227E-7

Ruby Bay - Moutere, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	9,010
Co-rupture Rate	1.8437622E-5

Wairau, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	295
Co-rupture Rate	1.0437476E-12

Awatere: Southwest, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	4,677
Co-rupture Rate	3.3415243E-5

Whangamoa, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.366347E-15
