Wellington: Tararua 3 Details

PropertyValue
Rupture Count50,840
Ruptures Above Sect Min Mag50,838
Ruptures w/ Nonzero Rates758
Magnitude Range[6.87, 8.54]
Length Range[16, 777] km
Total Rate0.0011522087 /yr
Multi-Fault Rate0.0011522087 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults128

Table Of Contents

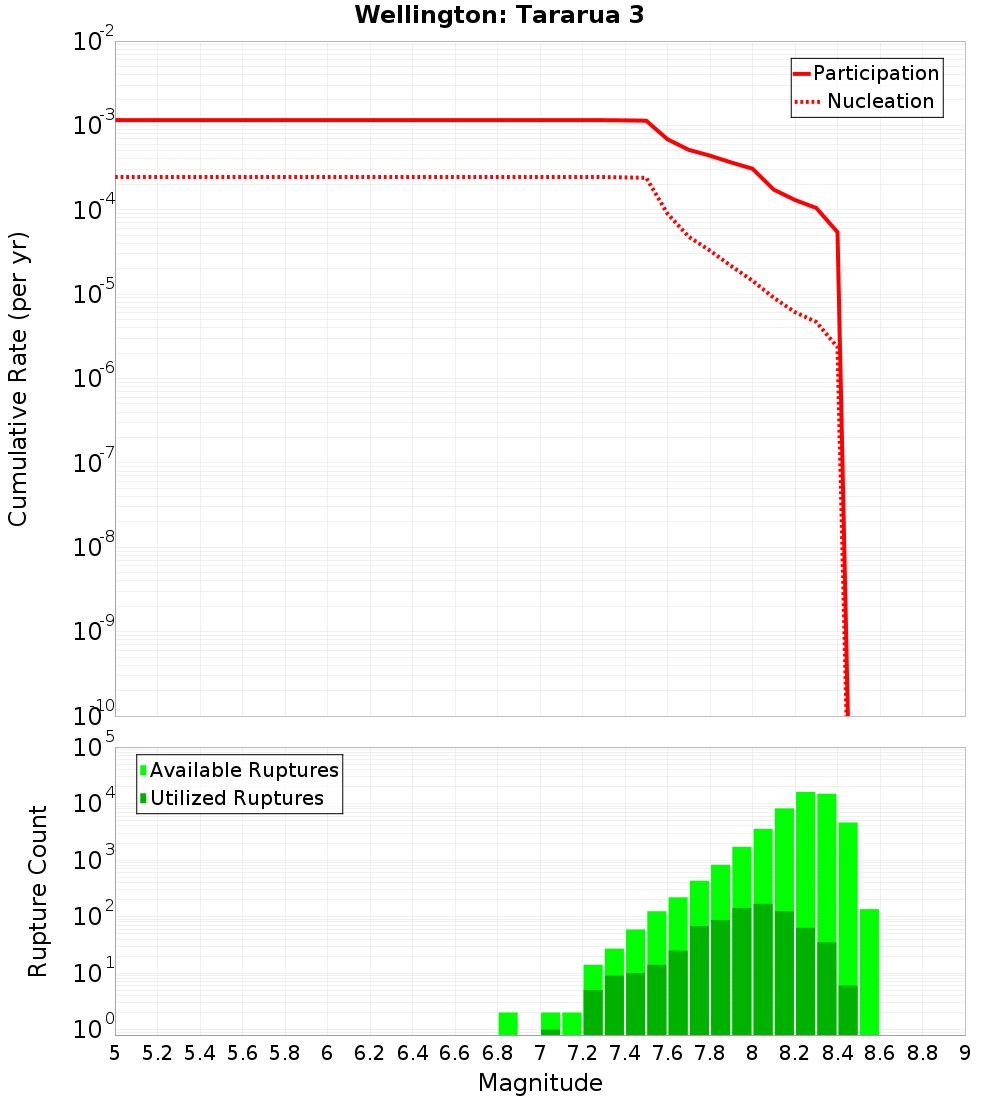

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

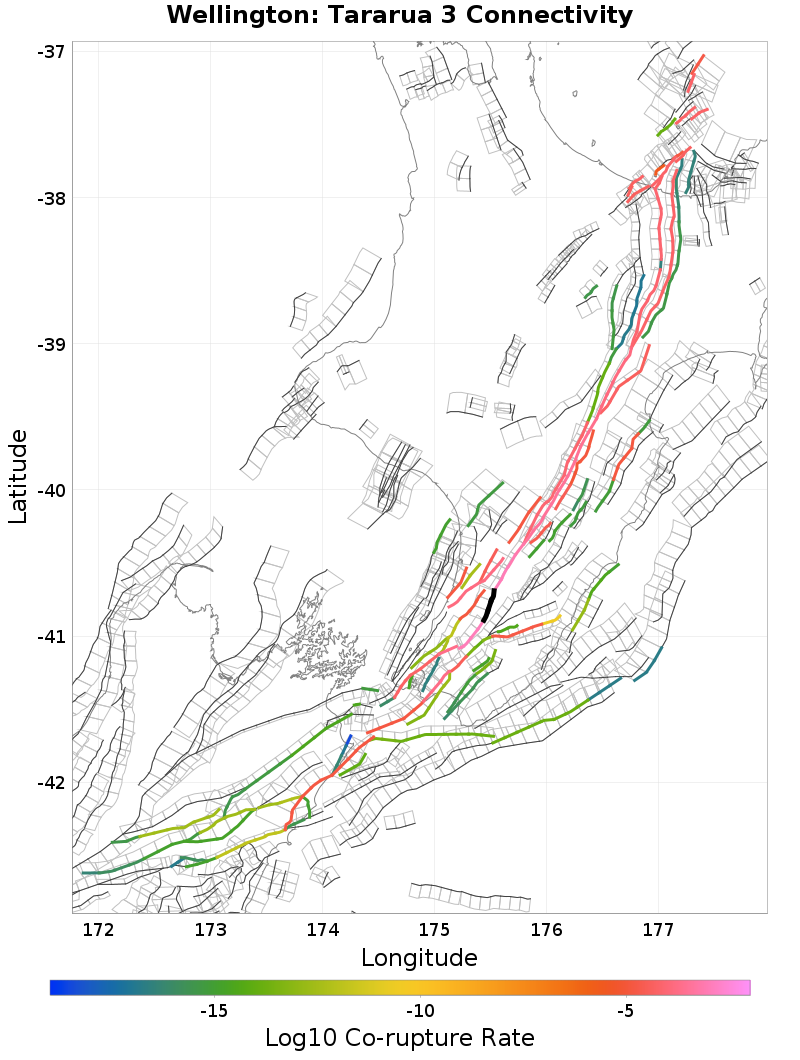

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away

Wellington: Tararua 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count42,630
Co-rupture Rate0.0010920408

Wellington: Pahiatua, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count49,026
Co-rupture Rate0.0011013609

Otaki Forks: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count2,035
Co-rupture Rate1.2445602E-5

Tokomaru, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count1,044
Co-rupture Rate3.1296353E-5

Northern Ohariu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count1,334
Co-rupture Rate1.584926E-4

Wairarapa: 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?false
Co-rupture Count1,638
Co-rupture Rate1.1071832E-12

Masterton, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate3.3915013E-15

Carterton, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?true
Co-rupture Count3,082
Co-rupture Rate1.7213366E-5

Wairarapa: 2, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?true
Directly Connected?false
Co-rupture Count14,347
Co-rupture Rate3.187612E-5
