White Creek Details

Property	Value
Rupture Count	9,157
Ruptures Above Sect Min Mag	9,151
Ruptures w/ Nonzero Rates	1,781
Magnitude Range	[7.01, 8.56]
Length Range	[23, 816] km
Total Rate	1.3432789E-4 /yr
Multi-Fault Rate	1.3432789E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

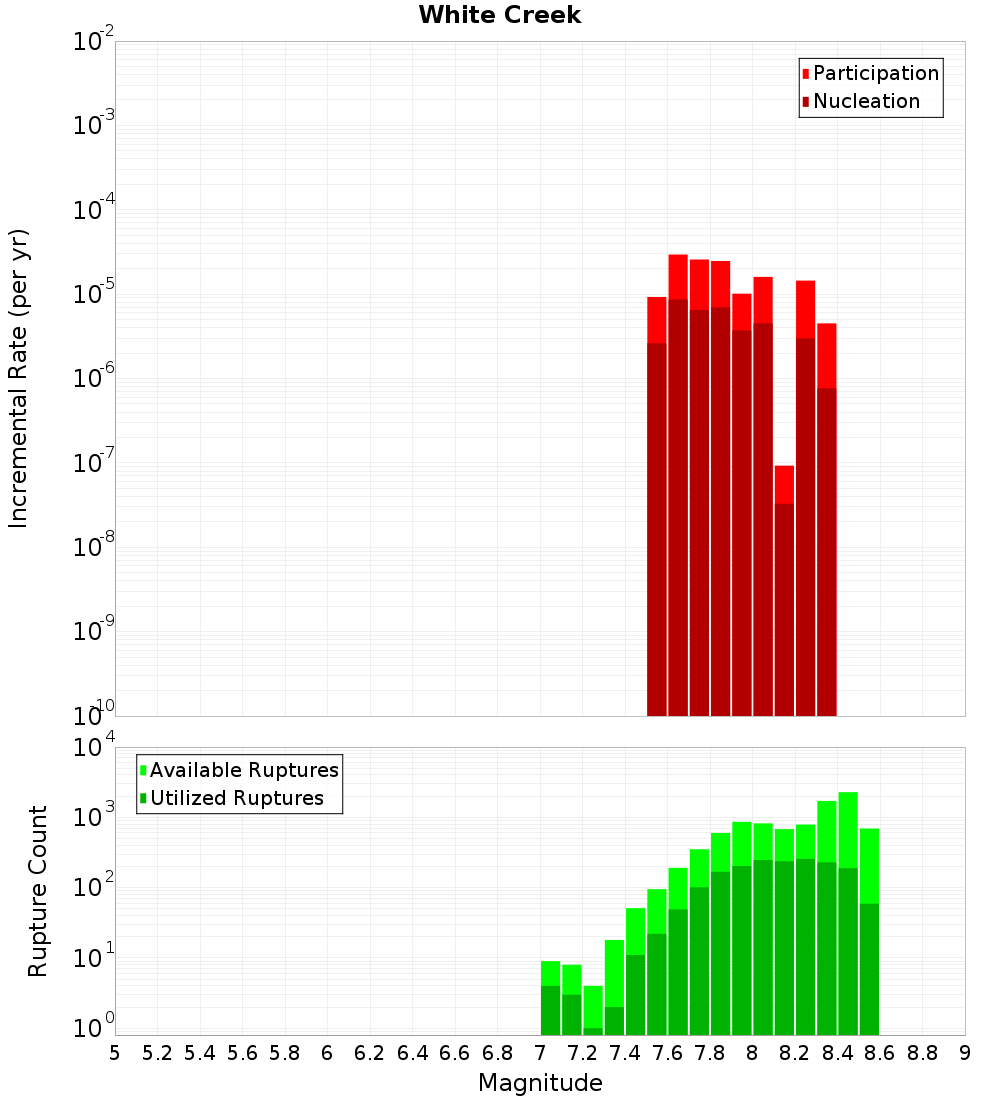

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 0.23 km away
Kohaihai South, 0.56 km away
White Creek - buried, 0.99 km away
Kohaihai, 2.2 km away
Lyell South, 6.32 km away
Kongahau, 11.75 km away
Inangahua, 13.07 km away

Lyell, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,133
Co-rupture Rate	4.8858048E-5

Kohaihai South, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	889
Co-rupture Rate	3.3740398E-5

White Creek - buried, 0.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	7,115
Co-rupture Rate	2.1078466E-5

Kohaihai, 2.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,065
Co-rupture Rate	2.893793E-5

Lyell South, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,894
Co-rupture Rate	4.604426E-5

Kongahau, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,367
Co-rupture Rate	1.8613864E-5

Inangahua, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NjMuMDNRc3Fr
Connected?	true
Directly Connected?	true
Co-rupture Count	618
Co-rupture Rate	5.5230284E-5
