Redcliffe Details
| Property | Value |
|---|---|
| Rupture Count | 100 |
| Ruptures Above Sect Min Mag | 99 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.63, 7.92] |
| Length Range | [18, 268] km |
| Total Rate | 5.962591E-5 /yr |
| Multi-Fault Rate | 5.962591E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

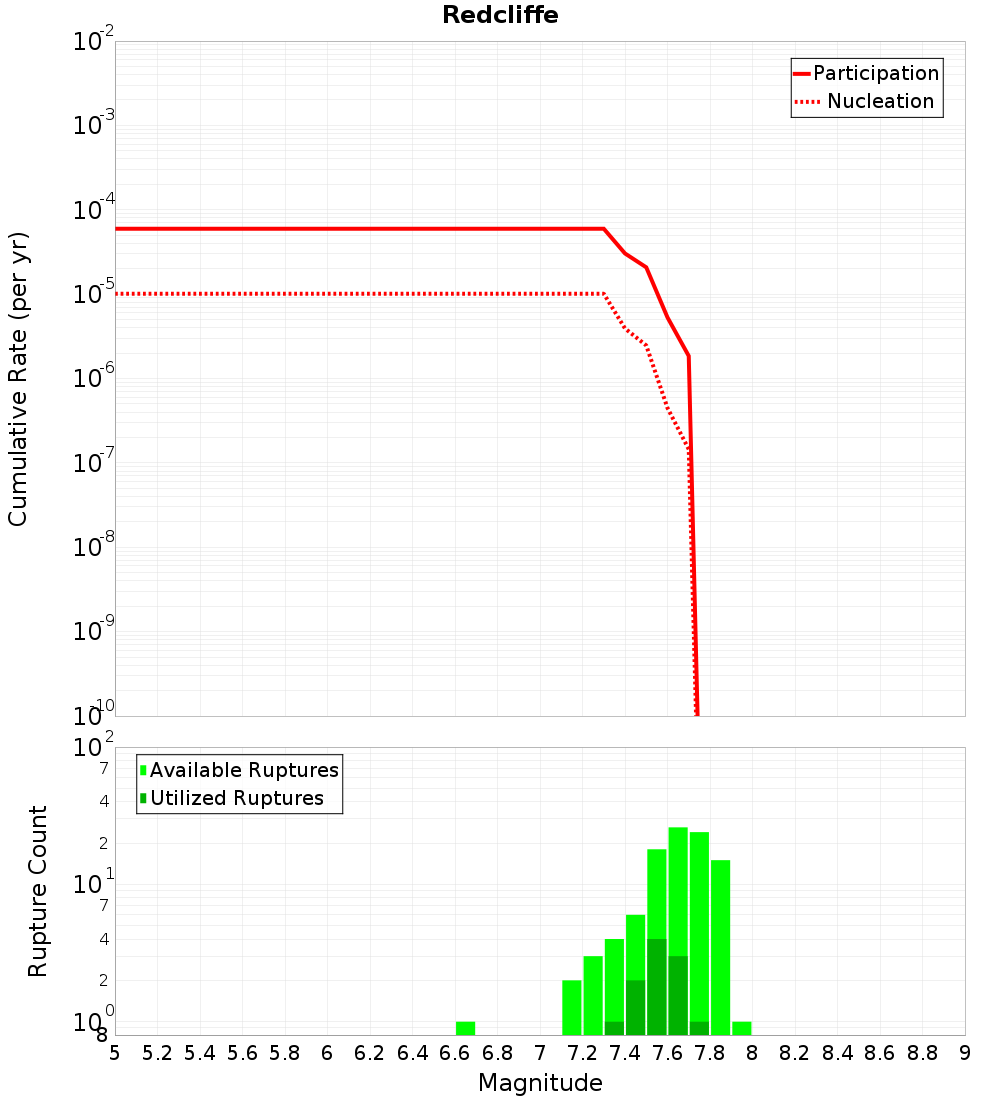

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

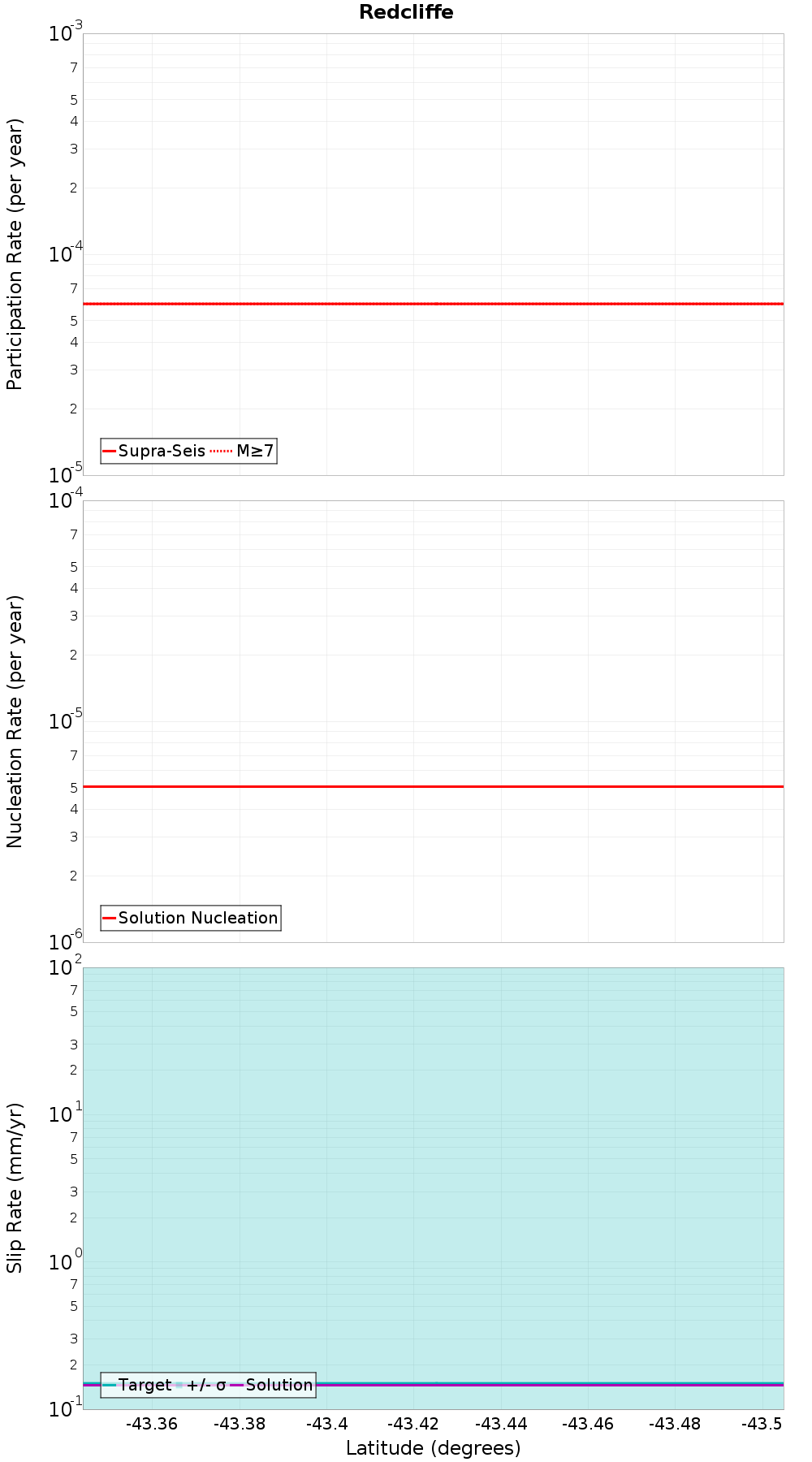

Along-Strike Values

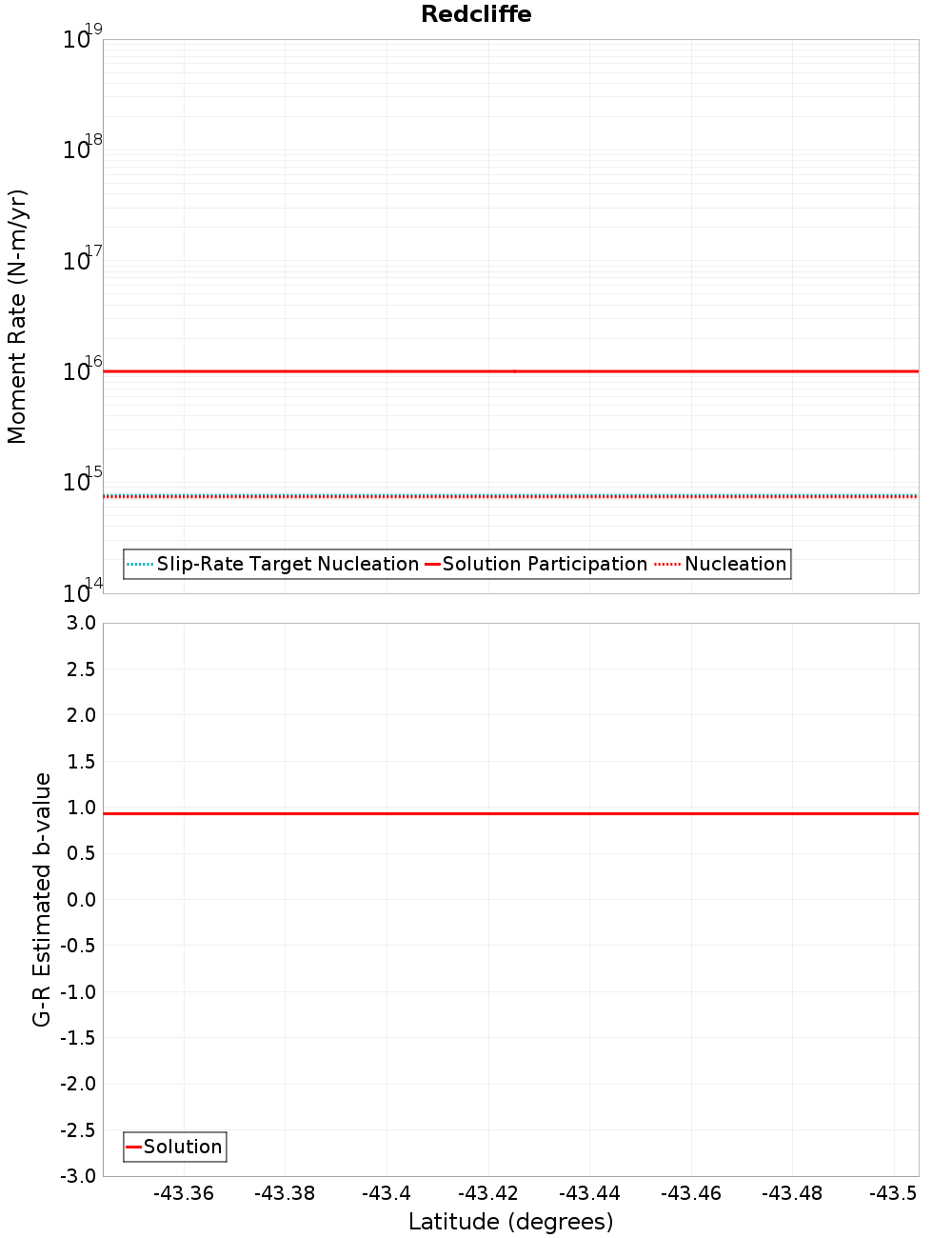

Moment-Rates and b-Values

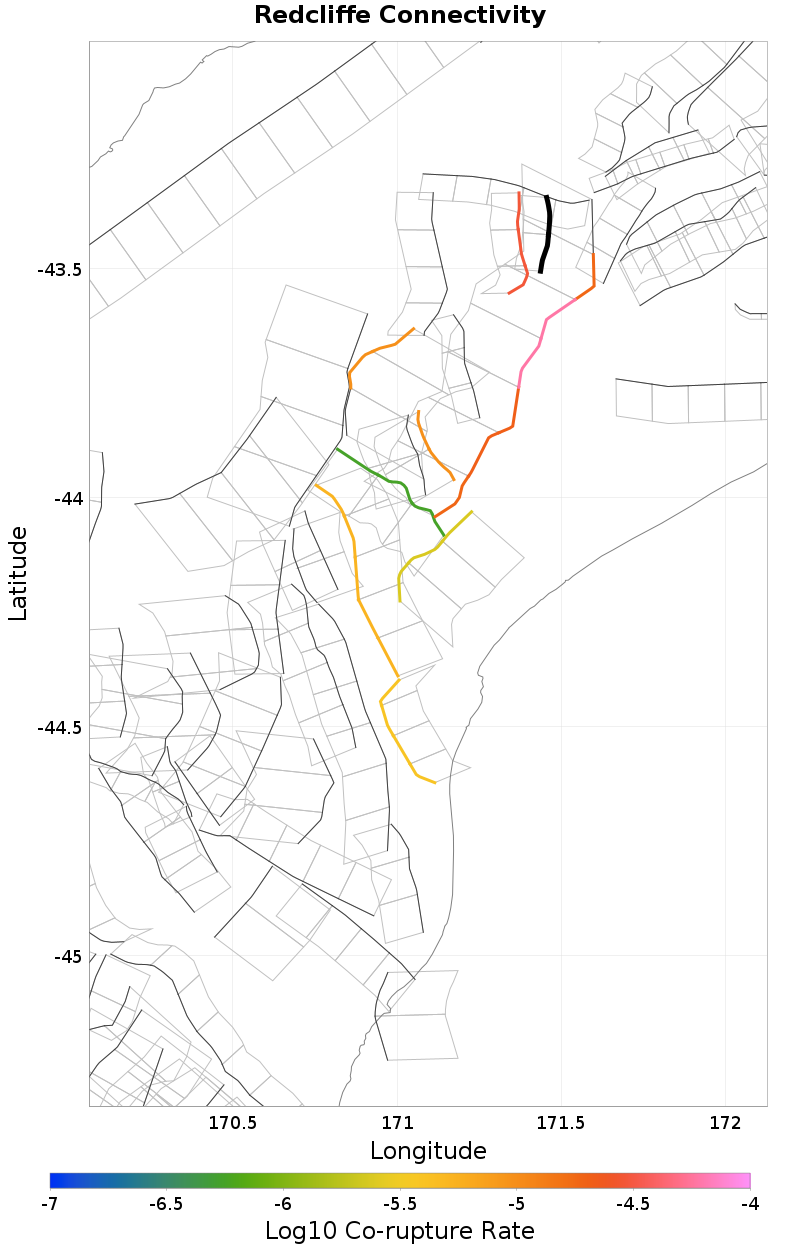

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Double Hill, 0.11 km away |
| Hutt Peel, 0.29 km away |
| North Branch, 3.06 km away |
| Porters Pass, 11.68 km away |
| Big Ben, 12.35 km away |
| Cheeseman, 14.96 km away |
Double Hill, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 99 |
| Co-rupture Rate | 5.962591E-5 |
North Branch, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.9300374E-5 |
Porters Pass, 11.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Big Ben, 12.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cheeseman, 14.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3NzEuMDZTZ25i | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
