Otara West 1 Details

Property	Value
Rupture Count	21
Ruptures Above Sect Min Mag	20
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.87, 7.61]
Length Range	[14, 86] km
Total Rate	8.9402107E-7 /yr
Multi-Fault Rate	8.9402107E-7 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

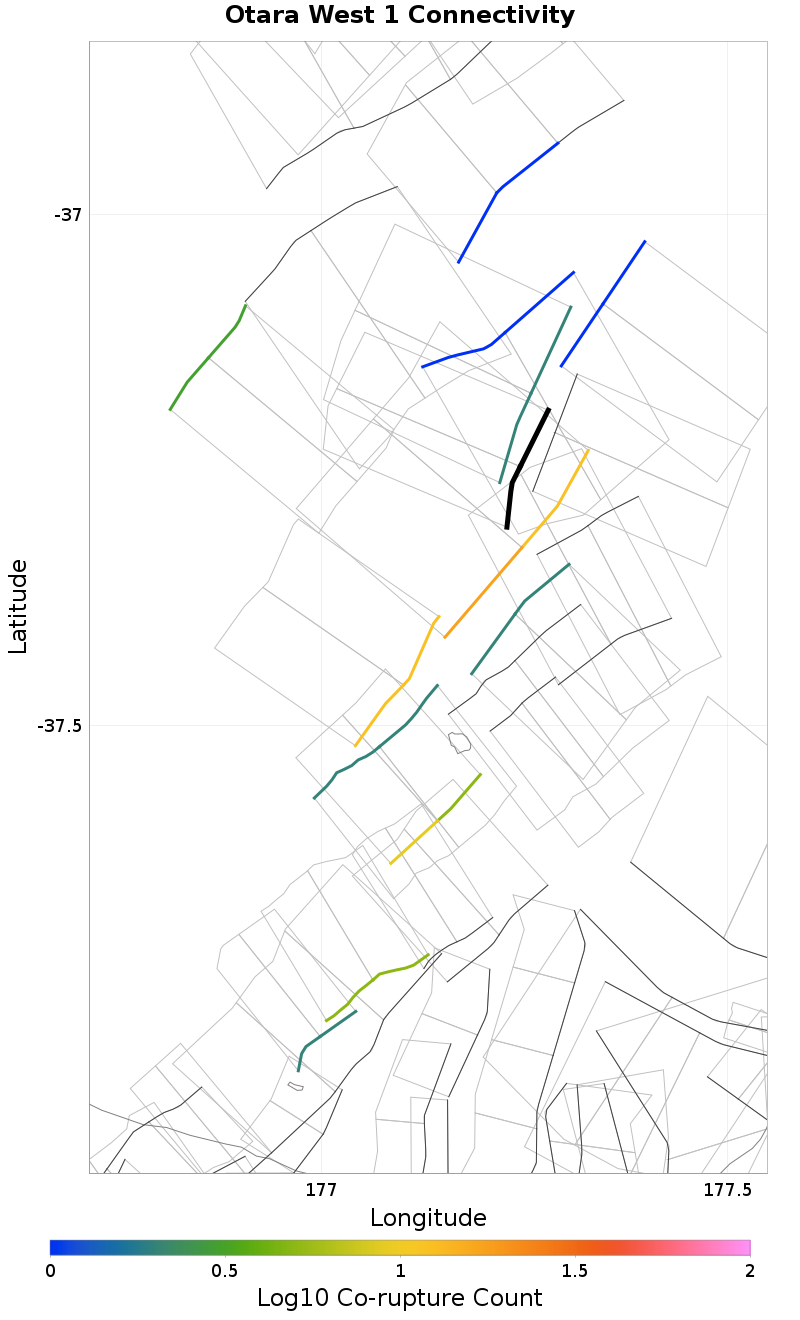

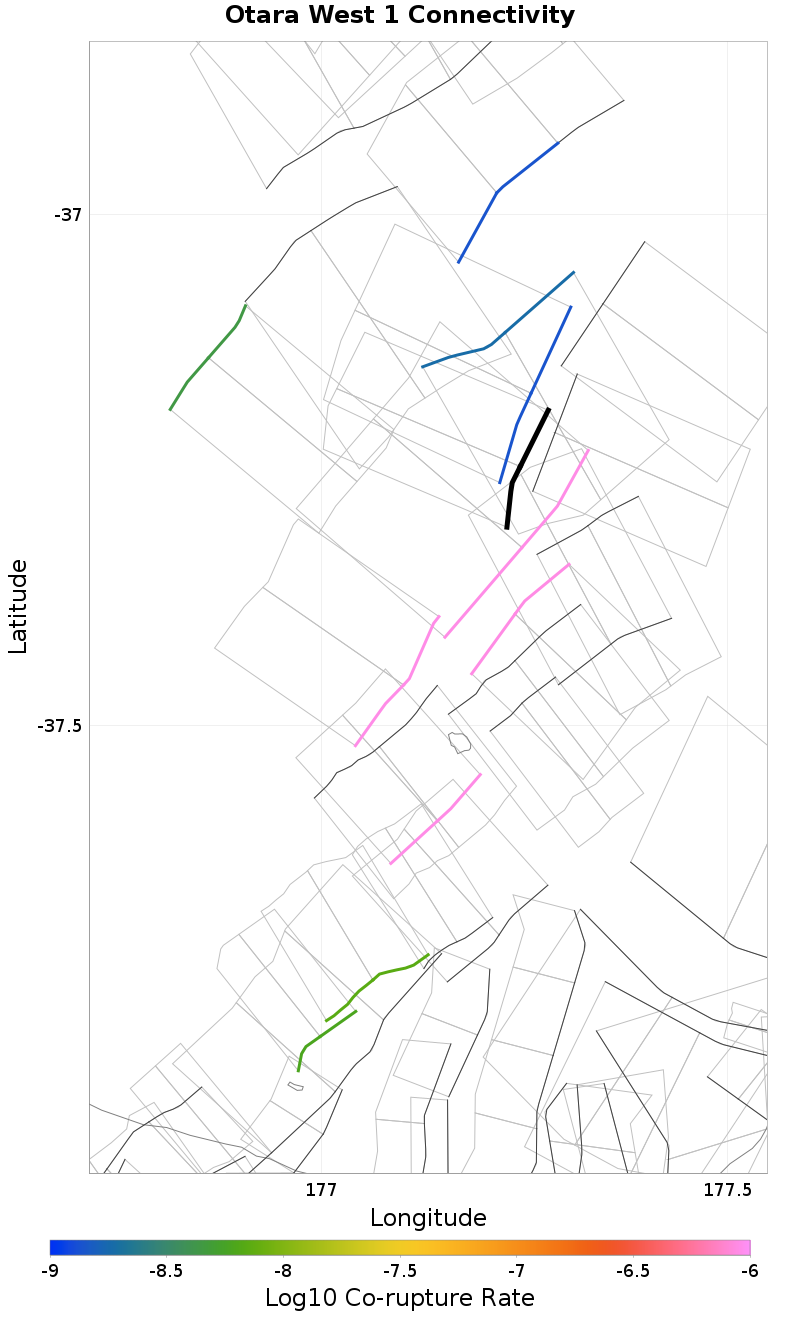

Connectivity

Nearby Sections

Fault Section
Otara West 3, 0.17 km away
Tuakana 6, 0.34 km away
Tuakana 7, 0.36 km away
Otara West 2, 0.97 km away
Volkner 4, 1.39 km away
Otara East 1, 1.57 km away
Te Arawa 3, 4.41 km away
Otara East 2, 4.9 km away
Te Arawa 2, 7.42 km away
Volkner 3, 8.3 km away
Te Arawa 1, 11.56 km away
Tuatoru 2, 12.32 km away

Otara West 3, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.8592339E-9

Tuakana 6, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	4.3720667E-9

Tuakana 7, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 2, 0.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.3767202E-9

Volkner 4, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	8.89649E-7

Otara East 1, 1.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 4.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara East 2, 4.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Te Arawa 2, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	8.7660067E-7

Volkner 3, 8.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	8.9078515E-7

Te Arawa 1, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 2, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA3OTYuMHJrY3Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
