Carterton Details

PropertyValue
Rupture Count8,064
Ruptures Above Sect Min Mag8,021
Ruptures w/ Nonzero Rates79
Magnitude Range[6.49, 8.22]
Length Range[15, 599] km
Total Rate0.0016768046 /yr
Multi-Fault Rate0.0016768046 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults102

Table Of Contents

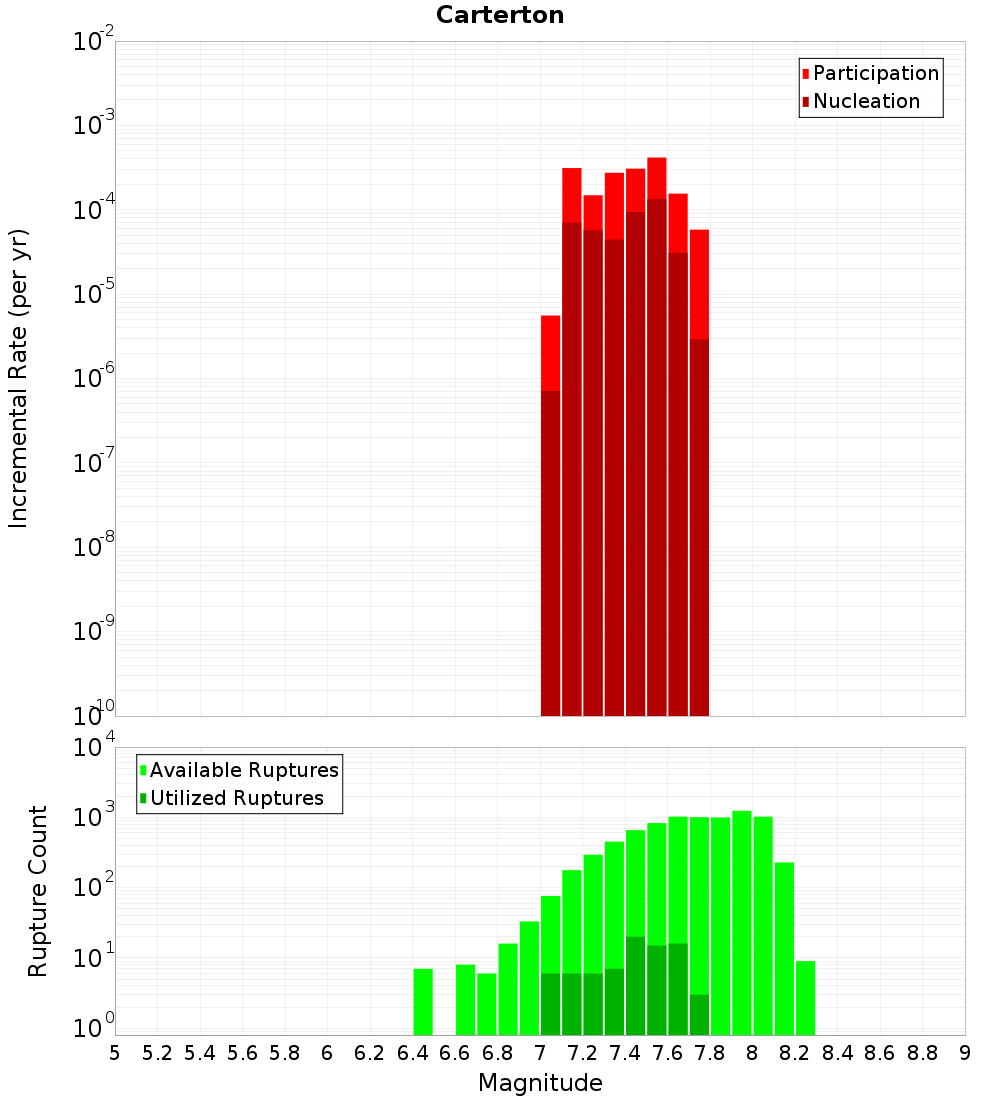

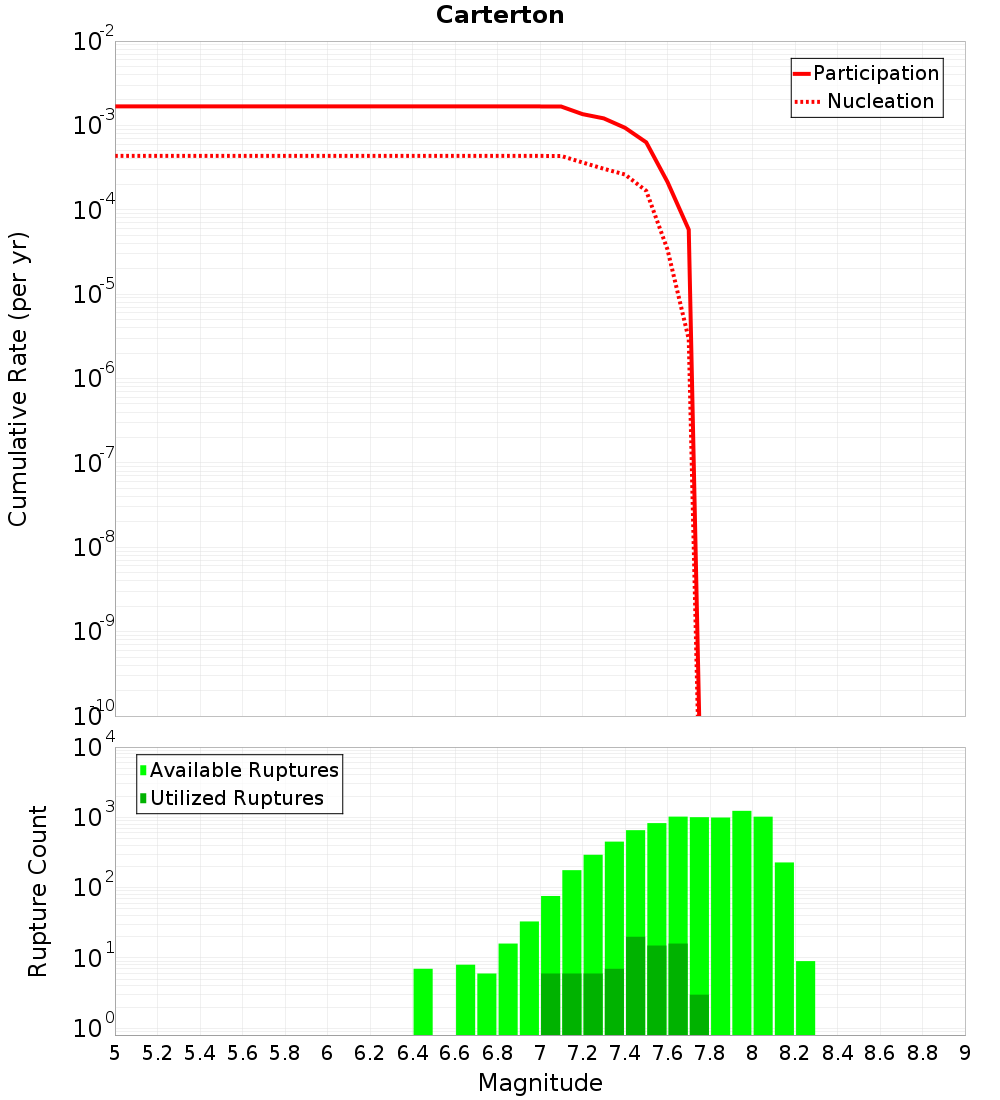

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 3, 0.02 km awayMataikona East, 7.85 km away
Wairarapa: 2, 0.05 km awayWellington: Tararua 2, 8.44 km away
Mataikona, 0.32 km awayDry River - Huangarua: 3, 9.56 km away
Martinborough, 0.42 km awayMokonui Northeast, 9.67 km away
Masterton, 0.45 km awayRiversdale, 10.74 km away
Kaumingi, 0.54 km awayUruti Point, 12.06 km away
Riversdale North, 2 km awayDry River - Huangarua: 2, 12.78 km away
Bidwill, 3.31 km awayWellington: Tararua 3, 13.79 km away
Mokonui Southwest, 5.71 km away

Wairarapa: 3, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count3,476
Co-rupture Rate5.669241E-4

Mataikona, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count2,153
Co-rupture Rate8.685112E-4

Martinborough, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count1,659
Co-rupture Rate2.6113888E-5

Masterton, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count227
Co-rupture Rate5.1317364E-4

Kaumingi, 0.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate2.46042E-4

Riversdale North, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate4.2471234E-4

Bidwill, 3.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count968
Co-rupture Rate5.8757483E-5

Mokonui Southwest, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona East, 7.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count334
Co-rupture Rate9.7070435E-5

Wellington: Tararua 2, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?false
Co-rupture Count148
Co-rupture Rate3.6364883E-5

Dry River - Huangarua: 3, 9.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate2.2920642E-4

Mokonui Northeast, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate2.3170748E-4

Riversdale, 10.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate4.1596833E-4

Uruti Point, 12.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count297
Co-rupture Rate8.74401E-6

Dry River - Huangarua: 2, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count377
Co-rupture Rate2.5191832E-5

Wellington: Tararua 3, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MTguMDdybTZq
Connected?true
Directly Connected?true
Co-rupture Count3,082
Co-rupture Rate3.6364883E-5
