Jordan Details

Property	Value
Rupture Count	11,416
Ruptures Above Sect Min Mag	11,416
Ruptures w/ Nonzero Rates	58
Magnitude Range	[7.05, 8.31]
Length Range	[29, 721] km
Total Rate	0.0040223617 /yr
Multi-Fault Rate	0.0040223617 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	152

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

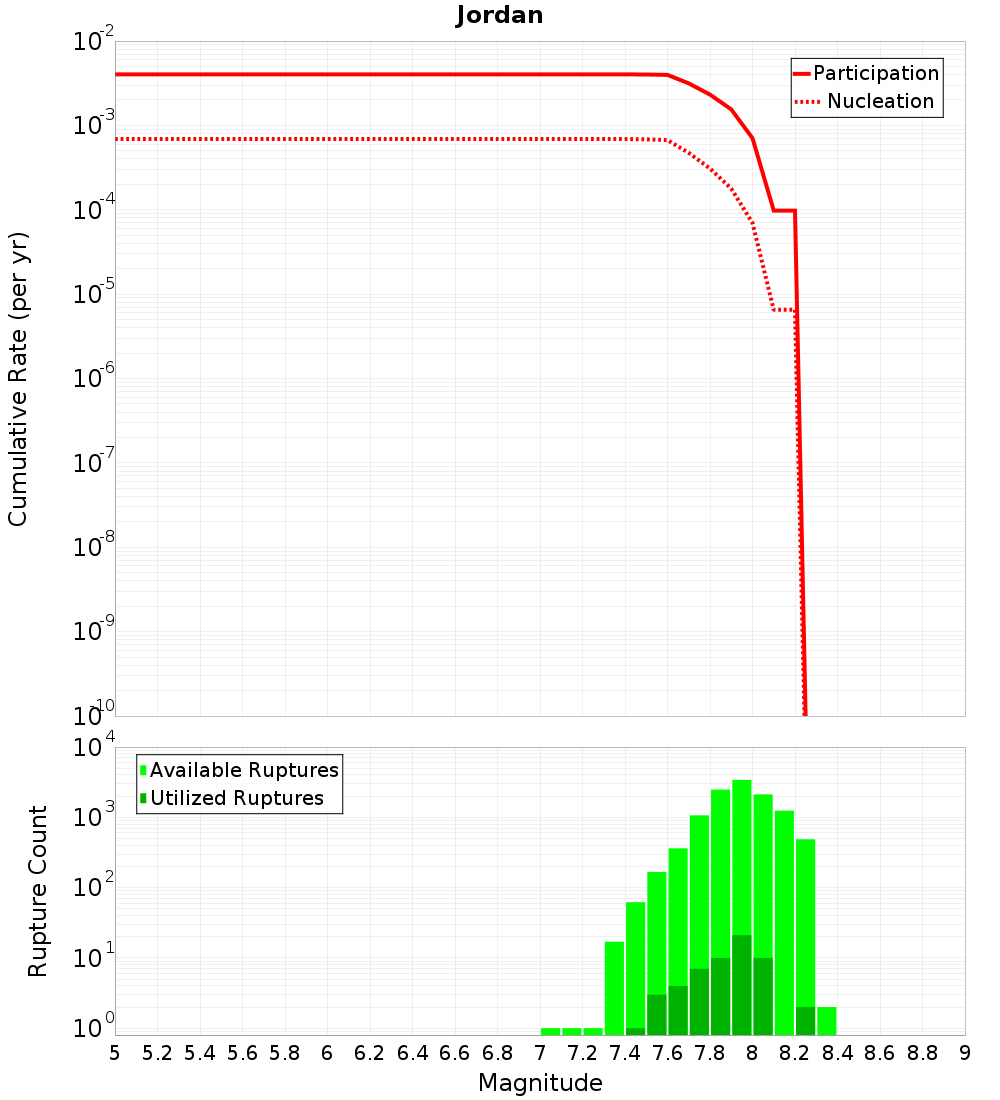

Magnitude-Frequency Distribution

Incremental	Cumulative

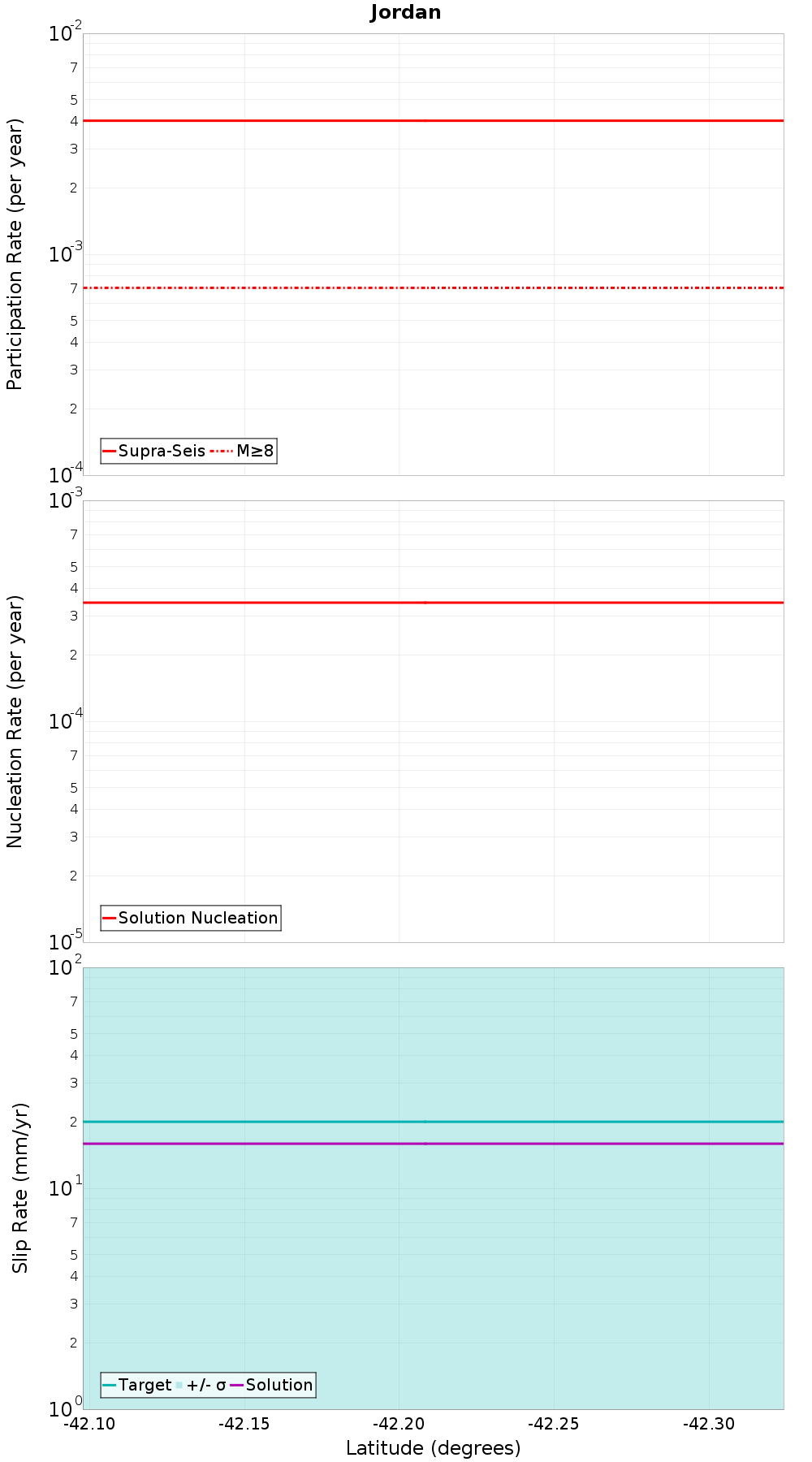

Along-Strike Values

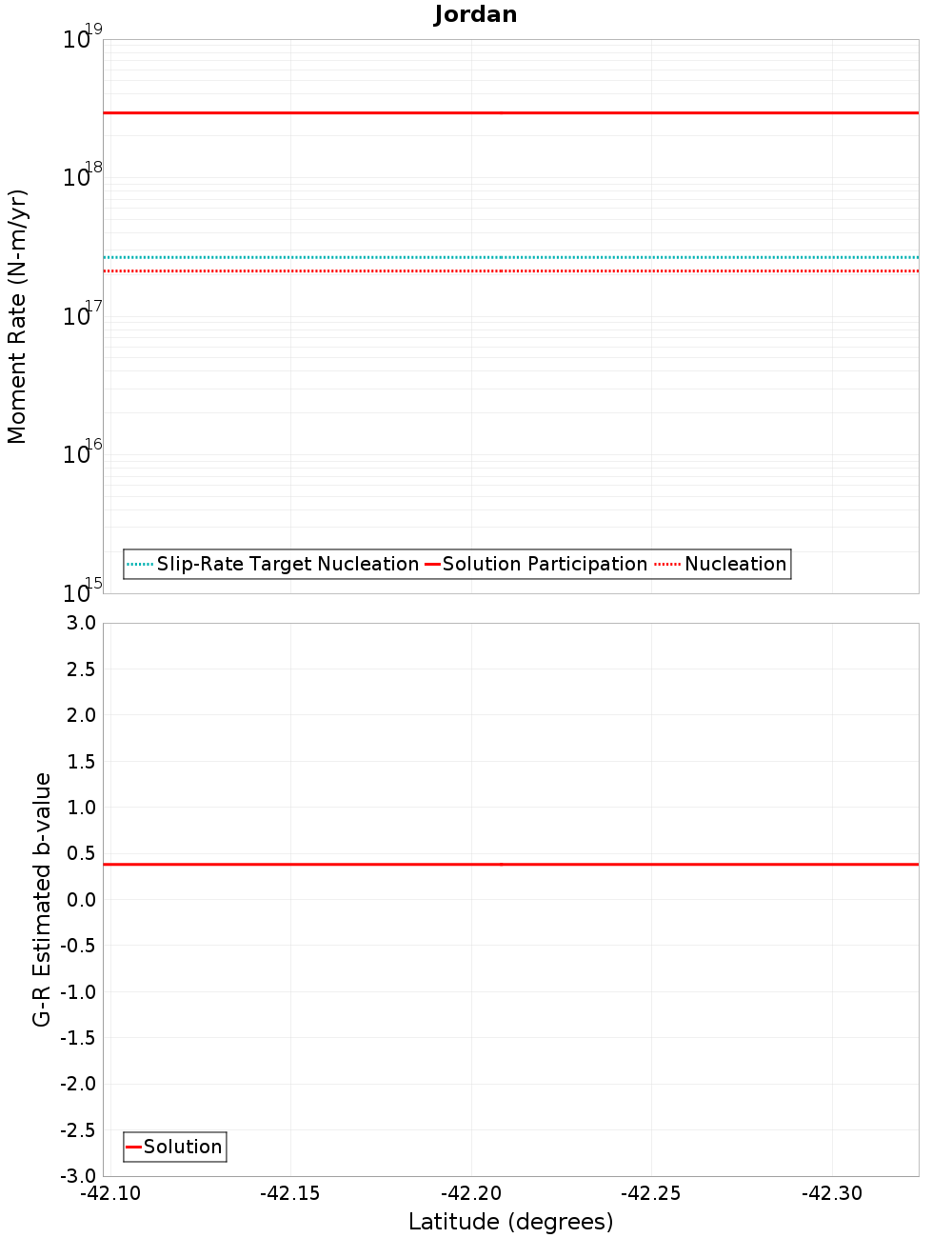

Moment-Rates and b-Values

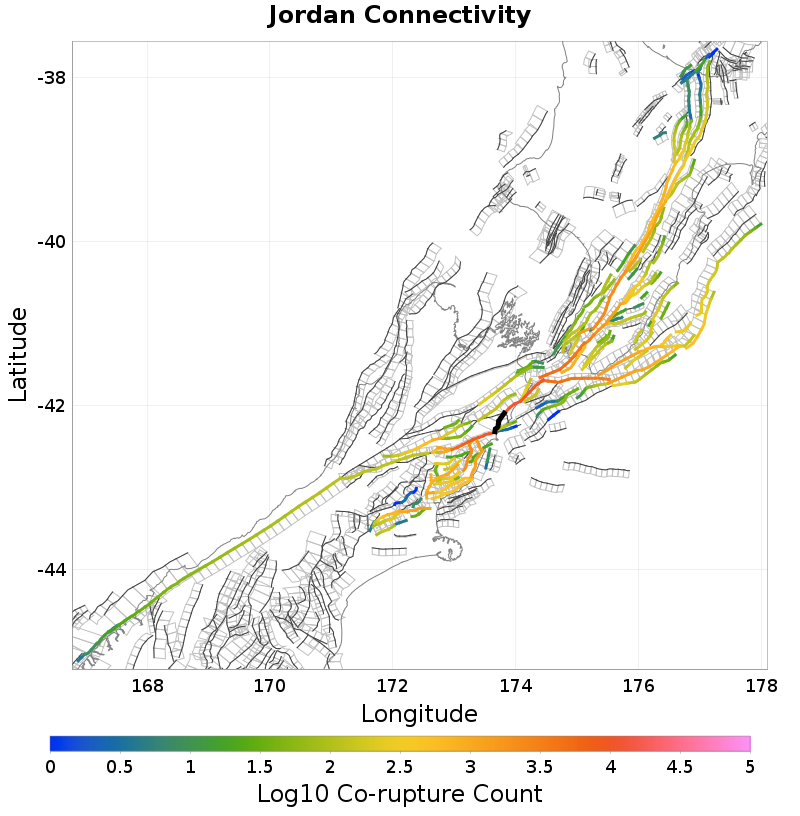

Connectivity

Nearby Sections

Fault Section
Papatea, 0 km away
Hope: Conway, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Clarence: Northeast, 0.78 km away
Kaikoura - Mangamaunu, 2.75 km away
Clarence: Central, 7.52 km away
Elliott, 9.78 km away
Awatere: Northeast 1, 12.64 km away

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	true
Co-rupture Count	10,536
Co-rupture Rate	0.0036462636

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	true
Co-rupture Count	10,955
Co-rupture Rate	0.0040223617

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	false
Co-rupture Count	118
Co-rupture Rate	1.1937066E-4

Clarence: Northeast, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	8.5499167E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Clarence: Central, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	7.2218434E-5

Elliott, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	8.07118E-6

Awatere: Northeast 1, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4MzUuMHl6b1Bx
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	0.0
