Tuatoru 2 Details

PropertyValue
Rupture Count1,986
Ruptures Above Sect Min Mag1,985
Ruptures w/ Nonzero Rates318
Magnitude Range[6.77, 8.25]
Length Range[14, 611] km
Total Rate3.8907415E-4 /yr
Multi-Fault Rate3.8907415E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults56

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

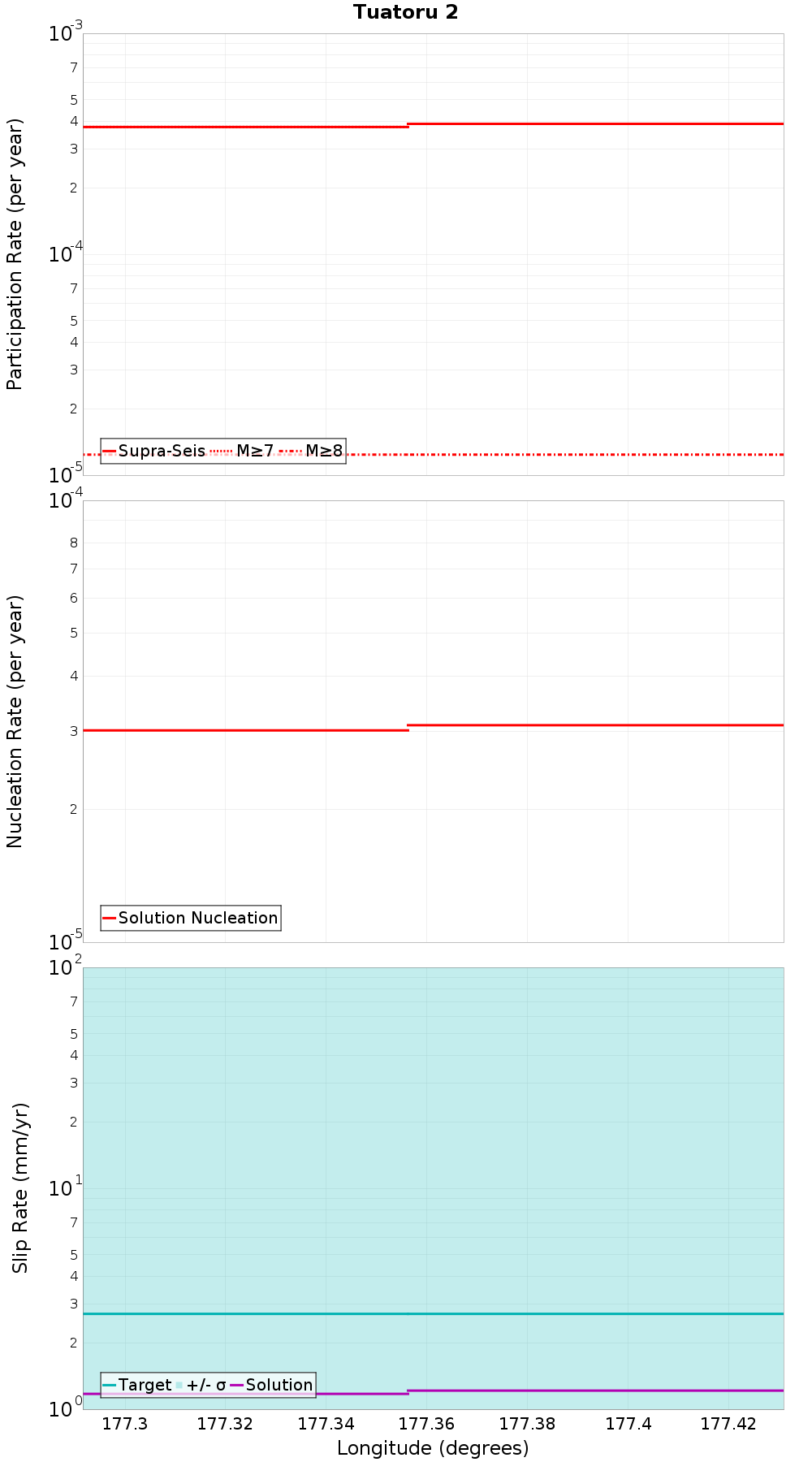

Along-Strike Values

(top)

Along-strike plot

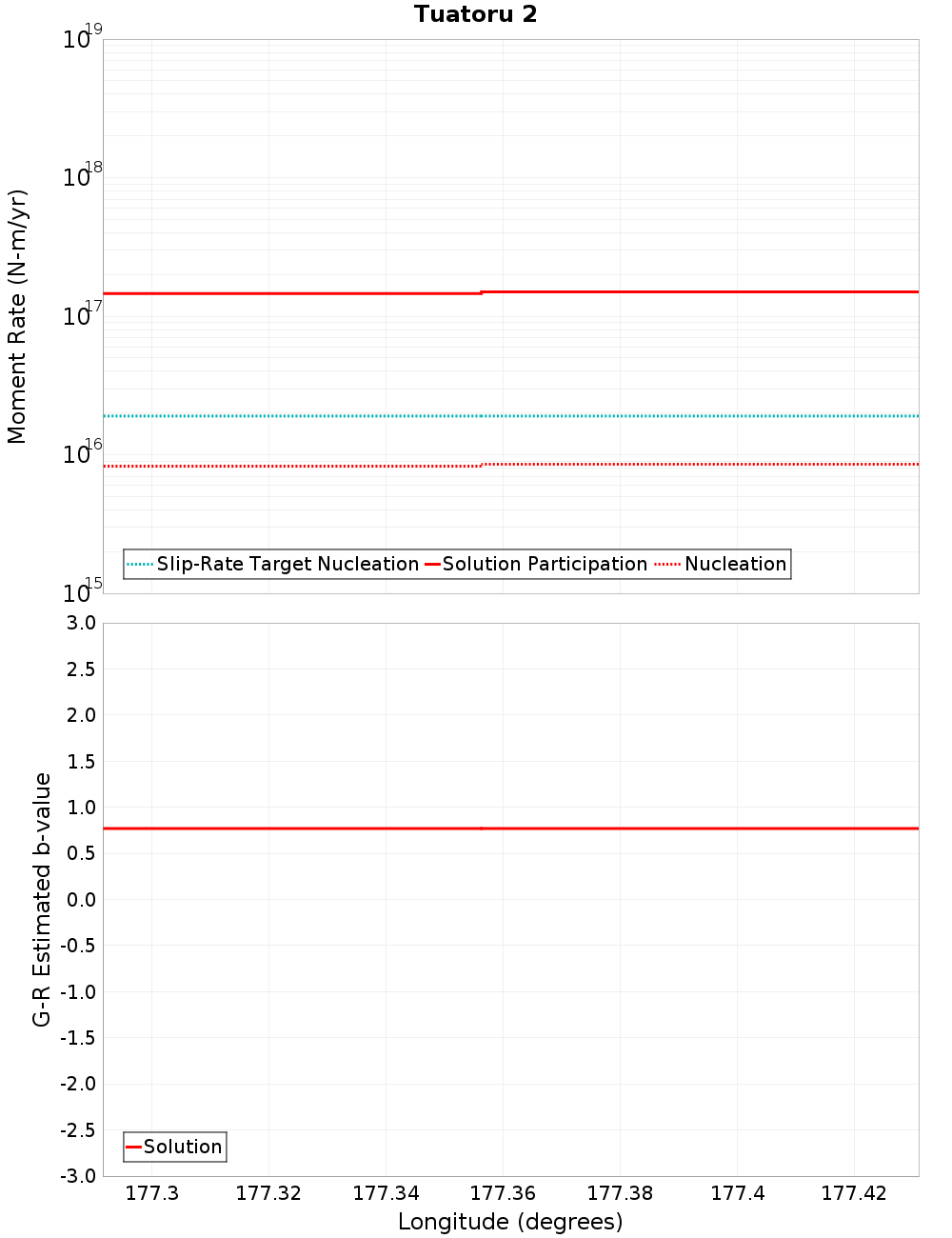

Moment-Rates and b-Values

(top)

Along-strike plot

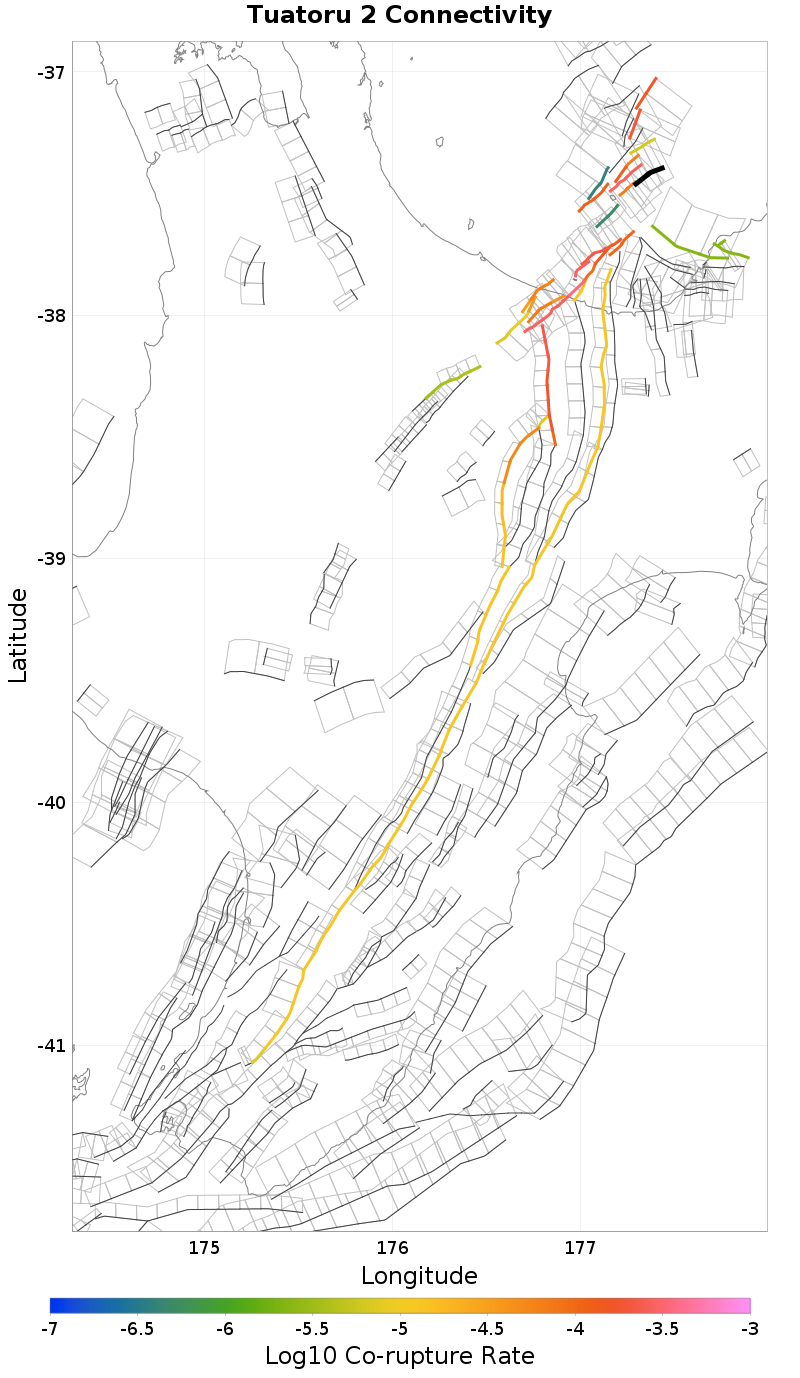

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otara West 3, 0.1 km away
Te Arawa 3, 0.11 km away
Te Arawa 2, 0.13 km away
Otara East 1, 0.2 km away
Te Arawa 1, 0.34 km away
Tuatoru 1, 0.43 km away
Otara East 2, 8.63 km away
Volkner 4, 10.03 km away
Whakaari 4, 11.04 km away
Tuakana 6, 11.58 km away
Tuakana 7, 12.24 km away
Otara West 1, 12.32 km away
Volkner 3, 12.56 km away
Calypso 2, 12.9 km away

Otara West 3, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate6.4358924E-6

Te Arawa 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?true
Co-rupture Count627
Co-rupture Rate1.2521801E-4

Otara East 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate1.9360872E-4

Te Arawa 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?true
Co-rupture Count1,440
Co-rupture Rate2.8541364E-4

Tuatoru 1, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate6.622738E-5

Otara East 2, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count344
Co-rupture Rate1.5603585E-4

Volkner 4, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count988
Co-rupture Rate1.2403597E-4

Tuakana 6, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate3.9603566E-7

Calypso 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDMuMEVxUWlG
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate4.789586E-7
