Caswell High 1 Details
| Property | Value |
|---|---|
| Rupture Count | 885 |
| Ruptures Above Sect Min Mag | 861 |
| Ruptures w/ Nonzero Rates | 84 |
| Magnitude Range | [6.61, 8.56] |
| Length Range | [15, 967] km |
| Total Rate | 3.4996198E-4 /yr |
| Multi-Fault Rate | 3.3394722E-4 /yr (95.42%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

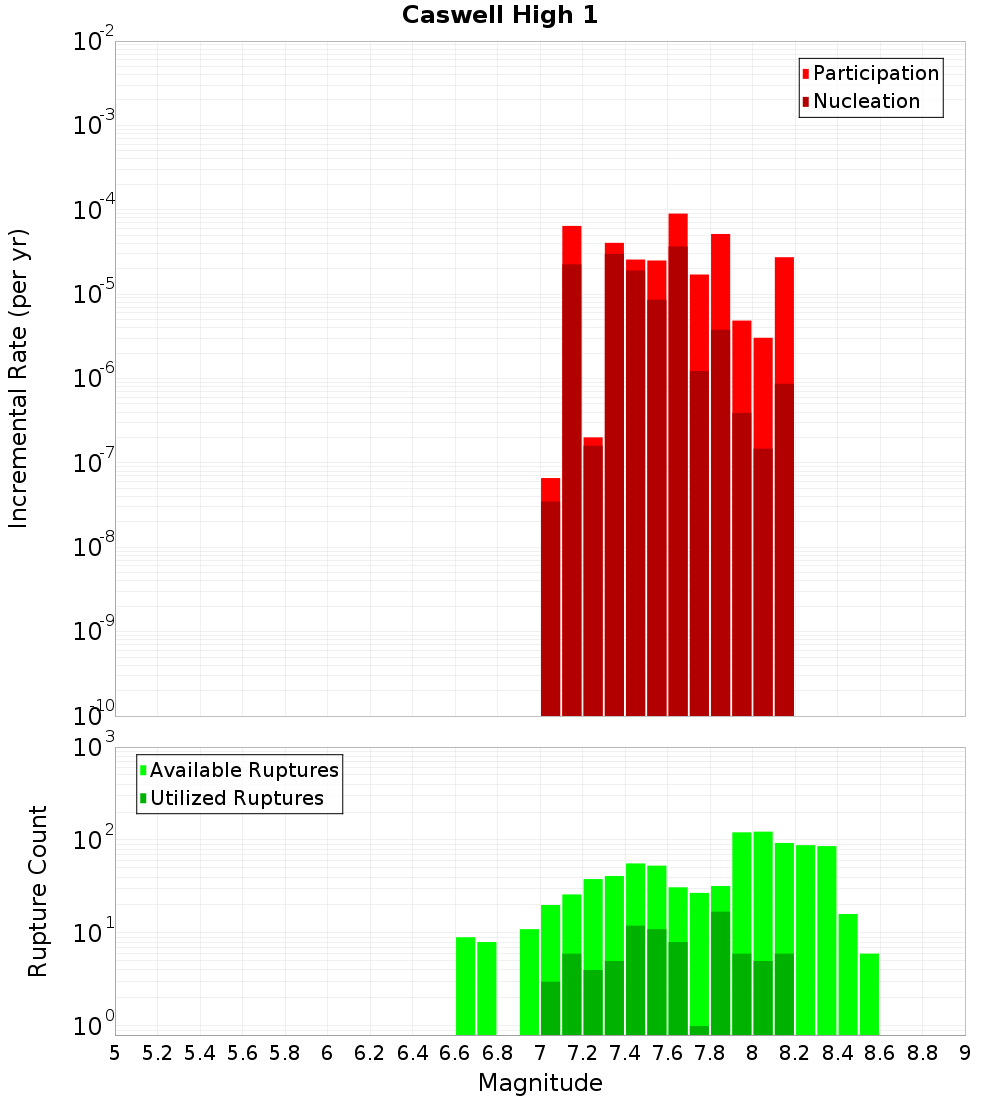

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

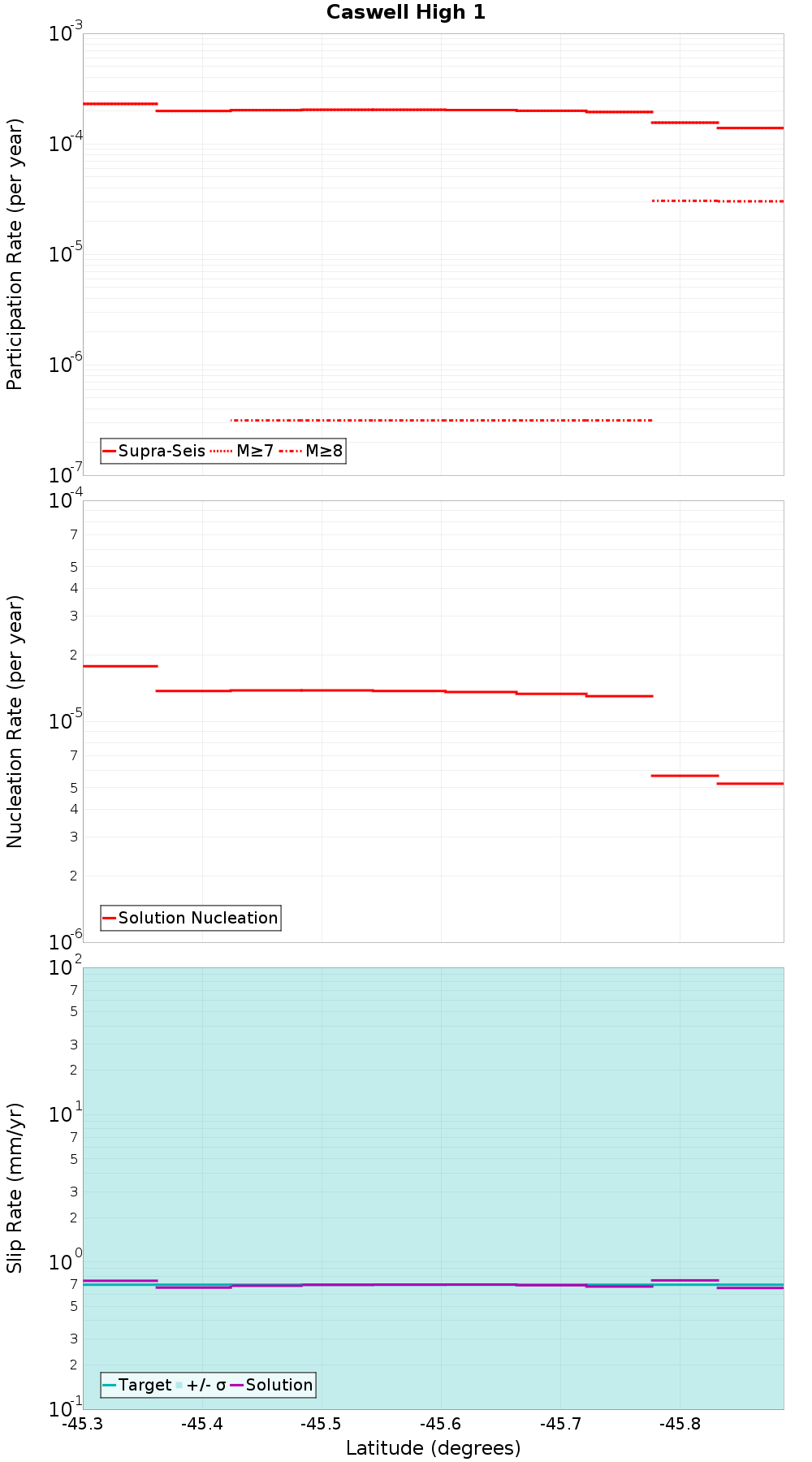

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 4, 2.01 km away |
| Caswell High 3, 4.37 km away |
| Caswell 211, 4.71 km away |
| Alpine: Resolution - Five Fingers, 11.73 km away |
| South Wedge 5, 13.13 km away |
Caswell High 4, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDUuMG9Ydjd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 2.2291455E-4 |
Caswell High 3, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDUuMG9Ydjd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 3.0909836E-5 |
Caswell 211, 4.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDUuMG9Ydjd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 4.9222064E-5 |
Alpine: Resolution - Five Fingers, 11.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDUuMG9Ydjd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 644 |
| Co-rupture Rate | 1.03998194E-4 |
South Wedge 5, 13.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NDUuMG9Ydjd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
